Collection: Gears - Spur - Standard - 48DP

Gears (With Images)

Spur

Standard

20 Degree

75 Products in this selection

This is a combined category of 48DP Standard Spur Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
48DP Gear Racks

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - 48DP. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type	Indicative Image
Teeth 12	Pitch Circle Diameter (PD) 9.525 mm _{(0.375 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 11.13 mm	Face Width (FW) 4.76 mm
Material: Acetal - Brass insert Hub Diameter (D1): 7.14 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G010B-12-D32-048-032-AB-G Spur Gears - 12 tooth - 9.525x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Each
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 12	Pitch Circle Diameter (PD) 9.525 mm _{(0.375 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 11.13 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 7.14 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G010B-12-D32-048-032-AB-G Spur Gears - 12 tooth - 9.525x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Each View the product page first if you are unsure.
G010B-12-D32-048-032-AB-G --- Spur Gears - 12 tooth - 9.525x3.175 mm - Acetal - Brass insert G010B-12-D32-048-032-AB-G --- Spur Gears - 12 tooth - 9.525x3.175 mm - Acetal - Brass insert Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Pitch Circle Diameter (PD) 11.125 mm _{(0.438 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 12.70 mm	Face Width (FW) 4.76 mm
Material: Acetal - Brass insert Hub Diameter (D1): 7.95 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G011B-14-D32-048-032-AB-G Spur Gears - 14 tooth - 11.125x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Each
Teeth 14	Pitch Circle Diameter (PD) 11.125 mm _{(0.438 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 12.70 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 7.95 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G011B-14-D32-048-032-AB-G Spur Gears - 14 tooth - 11.125x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Each View the product page first if you are unsure.
G011B-14-D32-048-032-AB-G --- Spur Gears - 14 tooth - 11.125x3.175 mm - Acetal - Brass insert G011B-14-D32-048-032-AB-G --- Spur Gears - 14 tooth - 11.125x3.175 mm - Acetal - Brass insert Regular price $13.05 AUD Regular price Sale price $13.05 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Pitch Circle Diameter (PD) 12.700 mm _{(0.5 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 14.30 mm	Face Width (FW) 4.76 mm
Material: Acetal - Brass insert Hub Diameter (D1): 8.74 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-16-D32-048-032-AB-G Spur Gears - 16 tooth - 12.7x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 12.700 mm _{(0.5 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 14.30 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 8.74 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-16-D32-048-032-AB-G Spur Gears - 16 tooth - 12.7x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each View the product page first if you are unsure.
G013B-16-D32-048-032-AB-G --- Spur Gears - 16 tooth - 12.7x3.175 mm - Acetal - Brass insert G013B-16-D32-048-032-AB-G --- Spur Gears - 16 tooth - 12.7x3.175 mm - Acetal - Brass insert Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 9.53 mm _{(0.375 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 10.574 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G010B-18-D48-032-032-AB-G Spur Gears - 18 tooth - 9.53x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 9.53 mm _{(0.375 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 10.574 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G010B-18-D48-032-032-AB-G Spur Gears - 18 tooth - 9.53x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each View the product page first if you are unsure.
G010B-18-D48-032-032-AB-G --- Spur Gears - 18 tooth - 9.53x3.175 mm - Acetal - Brass insert G010B-18-D48-032-032-AB-G --- Spur Gears - 18 tooth - 9.53x3.175 mm - Acetal - Brass insert Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 14.275 mm _{(0.562 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 15.88 mm	Face Width (FW) 4.76 mm
Material: Acetal - Brass insert Hub Diameter (D1): 8.74 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G014B-18-D32-048-032-AB-G Spur Gears - 18 tooth - 14.275x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 14.275 mm _{(0.562 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 15.88 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 8.74 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G014B-18-D32-048-032-AB-G Spur Gears - 18 tooth - 14.275x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each View the product page first if you are unsure.
G014B-18-D32-048-032-AB-G --- Spur Gears - 18 tooth - 14.275x3.175 mm - Acetal - Brass insert G014B-18-D32-048-032-AB-G --- Spur Gears - 18 tooth - 14.275x3.175 mm - Acetal - Brass insert Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Pitch Circle Diameter (PD) 10.06 mm _{(0.396 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 11.107 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G010B-19-D48-032-032-AB-G Spur Gears - 19 tooth - 10.06x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each
Teeth 19	Pitch Circle Diameter (PD) 10.06 mm _{(0.396 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 11.107 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G010B-19-D48-032-032-AB-G Spur Gears - 19 tooth - 10.06x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each View the product page first if you are unsure.
G010B-19-D48-032-032-AB-G --- Spur Gears - 19 tooth - 10.06x3.175 mm - Acetal - Brass insert G010B-19-D48-032-032-AB-G --- Spur Gears - 19 tooth - 10.06x3.175 mm - Acetal - Brass insert Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Pitch Circle Diameter (PD) 10.06 mm _{(0.396 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 11.107 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G010B-19-D48-032-040-A-P Spur Gears - 19 tooth - 10.06x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 19	Pitch Circle Diameter (PD) 10.06 mm _{(0.396 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 11.107 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 7.94 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G010B-19-D48-032-040-A-P Spur Gears - 19 tooth - 10.06x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G010B-19-D48-032-040-A-P --- Spur Gears - 19 tooth - 10.06x3.97 mm - Acetal G010B-19-D48-032-040-A-P --- Spur Gears - 19 tooth - 10.06x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 10.59 mm _{(0.417 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 11.641 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G011B-20-D48-032-032-AB-G Spur Gears - 20 tooth - 10.59x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 10.59 mm _{(0.417 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 11.641 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G011B-20-D48-032-032-AB-G Spur Gears - 20 tooth - 10.59x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each View the product page first if you are unsure.
G011B-20-D48-032-032-AB-G --- Spur Gears - 20 tooth - 10.59x3.175 mm - Acetal - Brass insert G011B-20-D48-032-032-AB-G --- Spur Gears - 20 tooth - 10.59x3.175 mm - Acetal - Brass insert Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 10.59 mm _{(0.417 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 11.641 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G011B-20-D48-032-040-A-P Spur Gears - 20 tooth - 10.59x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 10.59 mm _{(0.417 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 11.641 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G011B-20-D48-032-040-A-P Spur Gears - 20 tooth - 10.59x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G011B-20-D48-032-040-A-P --- Spur Gears - 20 tooth - 10.59x3.97 mm - Acetal G011B-20-D48-032-040-A-P --- Spur Gears - 20 tooth - 10.59x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 15.875 mm _{(0.625 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 17.48 mm	Face Width (FW) 4.76 mm
Material: Acetal - Brass insert Hub Diameter (D1): 11.91 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G016B-20-D32-048-064-AB-G Spur Gears - 20 tooth - 15.875x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 15.875 mm _{(0.625 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 17.48 mm
Material: Acetal - Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 11.91 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G016B-20-D32-048-064-AB-G Spur Gears - 20 tooth - 15.875x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Each View the product page first if you are unsure.
G016B-20-D32-048-064-AB-G --- Spur Gears - 20 tooth - 15.875x6.35 mm - Acetal - Brass insert G016B-20-D32-048-064-AB-G --- Spur Gears - 20 tooth - 15.875x6.35 mm - Acetal - Brass insert Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
Teeth 21	Pitch Circle Diameter (PD) 11.13 mm _{(0.438 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 12.174 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G011B-21-D48-032-032-AB-G Spur Gears - 21 tooth - 11.13x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each
Teeth 21	Pitch Circle Diameter (PD) 11.13 mm _{(0.438 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 12.174 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G011B-21-D48-032-032-AB-G Spur Gears - 21 tooth - 11.13x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each View the product page first if you are unsure.
G011B-21-D48-032-032-AB-G --- Spur Gears - 21 tooth - 11.13x3.175 mm - Acetal - Brass insert G011B-21-D48-032-032-AB-G --- Spur Gears - 21 tooth - 11.13x3.175 mm - Acetal - Brass insert Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Out of stock! Backorder Now
Teeth 21	Pitch Circle Diameter (PD) 11.13 mm _{(0.438 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 12.174 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G011B-21-D48-032-040-A-P Spur Gears - 21 tooth - 11.13x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 21	Pitch Circle Diameter (PD) 11.13 mm _{(0.438 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 12.174 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 8.73 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G011B-21-D48-032-040-A-P Spur Gears - 21 tooth - 11.13x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G011B-21-D48-032-040-A-P --- Spur Gears - 21 tooth - 11.13x3.97 mm - Acetal G011B-21-D48-032-040-A-P --- Spur Gears - 21 tooth - 11.13x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Pitch Circle Diameter (PD) 11.63 mm _{(0.458 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 12.682 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G012B-22-D48-032-032-AB-G Spur Gears - 22 tooth - 11.63x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each
Teeth 22	Pitch Circle Diameter (PD) 11.63 mm _{(0.458 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 12.682 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G012B-22-D48-032-032-AB-G Spur Gears - 22 tooth - 11.63x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each View the product page first if you are unsure.
G012B-22-D48-032-032-AB-G --- Spur Gears - 22 tooth - 11.63x3.175 mm - Acetal - Brass insert G012B-22-D48-032-032-AB-G --- Spur Gears - 22 tooth - 11.63x3.175 mm - Acetal - Brass insert Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Pitch Circle Diameter (PD) 11.63 mm _{(0.458 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 12.682 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G012B-22-D48-032-040-A-P Spur Gears - 22 tooth - 11.63x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 22	Pitch Circle Diameter (PD) 11.63 mm _{(0.458 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 12.682 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G012B-22-D48-032-040-A-P Spur Gears - 22 tooth - 11.63x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G012B-22-D48-032-040-A-P --- Spur Gears - 22 tooth - 11.63x3.97 mm - Acetal G012B-22-D48-032-040-A-P --- Spur Gears - 22 tooth - 11.63x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 23	Pitch Circle Diameter (PD) 12.17 mm _{(0.479 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 13.216 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G012B-23-D48-032-032-AB-G Spur Gears - 23 tooth - 12.17x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each
Teeth 23	Pitch Circle Diameter (PD) 12.17 mm _{(0.479 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 13.216 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G012B-23-D48-032-032-AB-G Spur Gears - 23 tooth - 12.17x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Each View the product page first if you are unsure.
G012B-23-D48-032-032-AB-G --- Spur Gears - 23 tooth - 12.17x3.175 mm - Acetal - Brass insert G012B-23-D48-032-032-AB-G --- Spur Gears - 23 tooth - 12.17x3.175 mm - Acetal - Brass insert Regular price $13.77 AUD Regular price Sale price $13.77 AUD Unit price per Out of stock! Backorder Now
Teeth 23	Pitch Circle Diameter (PD) 12.17 mm _{(0.479 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 13.216 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G012B-23-D48-032-040-A-P Spur Gears - 23 tooth - 12.17x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 23	Pitch Circle Diameter (PD) 12.17 mm _{(0.479 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 13.216 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 9.53 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G012B-23-D48-032-040-A-P Spur Gears - 23 tooth - 12.17x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G012B-23-D48-032-040-A-P --- Spur Gears - 23 tooth - 12.17x3.97 mm - Acetal G012B-23-D48-032-040-A-P --- Spur Gears - 23 tooth - 12.17x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 12.70 mm _{(0.5 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 13.749 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-24-D48-032-032-AB-G Spur Gears - 24 tooth - 12.7x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 12.70 mm _{(0.5 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 13.749 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-24-D48-032-032-AB-G Spur Gears - 24 tooth - 12.7x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Each View the product page first if you are unsure.
G013B-24-D48-032-032-AB-G --- Spur Gears - 24 tooth - 12.7x3.175 mm - Acetal - Brass insert G013B-24-D48-032-032-AB-G --- Spur Gears - 24 tooth - 12.7x3.175 mm - Acetal - Brass insert Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 12.70 mm _{(0.5 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 13.749 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-24-D48-032-040-A-P Spur Gears - 24 tooth - 12.7x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 12.70 mm _{(0.5 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 13.749 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-24-D48-032-040-A-P Spur Gears - 24 tooth - 12.7x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G013B-24-D48-032-040-A-P --- Spur Gears - 24 tooth - 12.7x3.97 mm - Acetal G013B-24-D48-032-040-A-P --- Spur Gears - 24 tooth - 12.7x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Pitch Circle Diameter (PD) 13.23 mm _{(0.521 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 14.282 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-25-D48-032-032-AB-G Spur Gears - 25 tooth - 13.23x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Each
Teeth 25	Pitch Circle Diameter (PD) 13.23 mm _{(0.521 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 14.282 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-25-D48-032-032-AB-G Spur Gears - 25 tooth - 13.23x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Each View the product page first if you are unsure.
G013B-25-D48-032-032-AB-G --- Spur Gears - 25 tooth - 13.23x3.175 mm - Acetal - Brass insert G013B-25-D48-032-032-AB-G --- Spur Gears - 25 tooth - 13.23x3.175 mm - Acetal - Brass insert Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Pitch Circle Diameter (PD) 13.23 mm _{(0.521 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 14.282 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-25-D48-032-040-A-P Spur Gears - 25 tooth - 13.23x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 25	Pitch Circle Diameter (PD) 13.23 mm _{(0.521 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 14.282 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 10.32 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-25-D48-032-040-A-P Spur Gears - 25 tooth - 13.23x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G013B-25-D48-032-040-A-P --- Spur Gears - 25 tooth - 13.23x3.97 mm - Acetal G013B-25-D48-032-040-A-P --- Spur Gears - 25 tooth - 13.23x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Pitch Circle Diameter (PD) 13.23 mm _{(0.521 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 14.277 mm	Face Width (FW) 3.18 mm

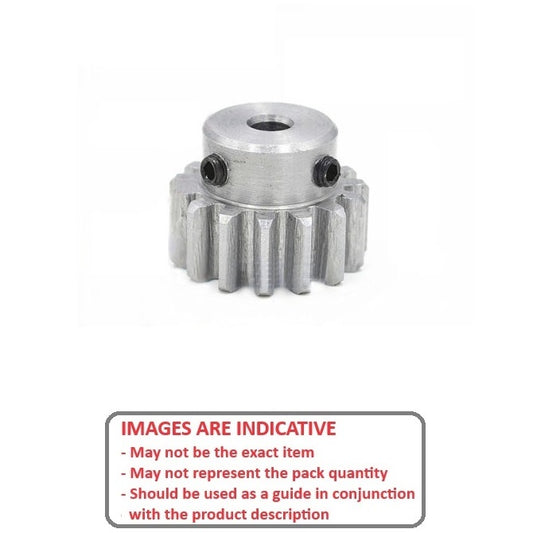

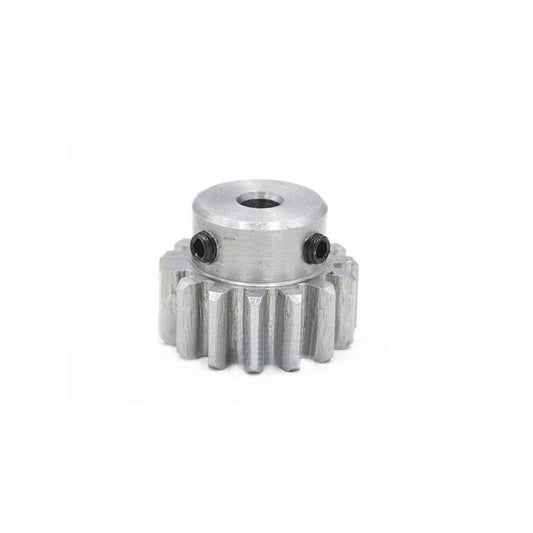

Material: Aluminium Alloy 2024 Hub Diameter (D1): 9.53 mm Hub Projection (HL): 5.54 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-25-D48-032-048-AL-G Spur Gears - 25 tooth - 13.23x4.762 mm - Aluminium Alloy 2024 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each
Teeth 25	Pitch Circle Diameter (PD) 13.23 mm _{(0.521 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 14.277 mm
Material: Aluminium Alloy 2024 Face Width (FW): 3.18 mm Hub Diameter (D1): 9.53 mm Hub Projection (HL): 5.54 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G013B-25-D48-032-048-AL-G Spur Gears - 25 tooth - 13.23x4.762 mm - Aluminium Alloy 2024 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each
G013B-25-D48-032-048-AL-G --- Spur Gears - 25 tooth - 13.23x4.762 mm - Aluminium Alloy 2024 Sale G013B-25-D48-032-048-AL-G --- Spur Gears - 25 tooth - 13.23x4.762 mm - Aluminium Alloy 2024 Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 1 Available Now Sale
Teeth 26	Pitch Circle Diameter (PD) 13.767 mm _{(0.542 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 14.81 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G014B-26-D48-032-032-AB-G Spur Gears - 26 tooth - 13.767x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.14 AUD Regular price Sale price $13.14 AUD Unit price per Each
Teeth 26	Pitch Circle Diameter (PD) 13.767 mm _{(0.542 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 14.81 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G014B-26-D48-032-032-AB-G Spur Gears - 26 tooth - 13.767x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.14 AUD Regular price Sale price $13.14 AUD Unit price per Each View the product page first if you are unsure.
G014B-26-D48-032-032-AB-G --- Spur Gears - 26 tooth - 13.767x3.175 mm - Acetal - Brass insert G014B-26-D48-032-032-AB-G --- Spur Gears - 26 tooth - 13.767x3.175 mm - Acetal - Brass insert Regular price $13.14 AUD Regular price Sale price $13.14 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Pitch Circle Diameter (PD) 13.77 mm _{(0.542 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 14.816 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G014B-26-D48-032-040-A-P Spur Gears - 26 tooth - 13.77x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 26	Pitch Circle Diameter (PD) 13.77 mm _{(0.542 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 14.816 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G014B-26-D48-032-040-A-P Spur Gears - 26 tooth - 13.77x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G014B-26-D48-032-040-A-P --- Spur Gears - 26 tooth - 13.77x3.97 mm - Acetal G014B-26-D48-032-040-A-P --- Spur Gears - 26 tooth - 13.77x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 27	Pitch Circle Diameter (PD) 13.767 mm _{(0.542 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 15.34 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G014B-27-D48-032-032-AB-G Spur Gears - 27 tooth - 13.767x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each
Teeth 27	Pitch Circle Diameter (PD) 13.767 mm _{(0.542 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 15.34 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G014B-27-D48-032-032-AB-G Spur Gears - 27 tooth - 13.767x3.175 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each View the product page first if you are unsure.
G014B-27-D48-032-032-AB-G --- Spur Gears - 27 tooth - 13.767x3.175 mm - Acetal - Brass insert G014B-27-D48-032-032-AB-G --- Spur Gears - 27 tooth - 13.767x3.175 mm - Acetal - Brass insert Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Out of stock! Backorder Now
