Collection: Gears - Spur - Standard - 48DP

Gears (With Images)

Spur

Standard

20 Degree

75 Products in this selection

This is a combined category of 48DP Standard Spur Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
48DP Gear Racks

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - 48DP. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type	Indicative Image
Teeth 42	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.274 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G022B-42-D48-032-048-AB-B Spur Gears - 42 tooth - 22.23x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Each
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 42	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.274 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G022B-42-D48-032-048-AB-B Spur Gears - 42 tooth - 22.23x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Each View the product page first if you are unsure.
G022B-42-D48-032-048-AB-B --- Spur Gears - 42 tooth - 22.23x4.762 mm - Acetal - Brass insert G022B-42-D48-032-048-AB-B --- Spur Gears - 42 tooth - 22.23x4.762 mm - Acetal - Brass insert Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Out of stock! Backorder Now

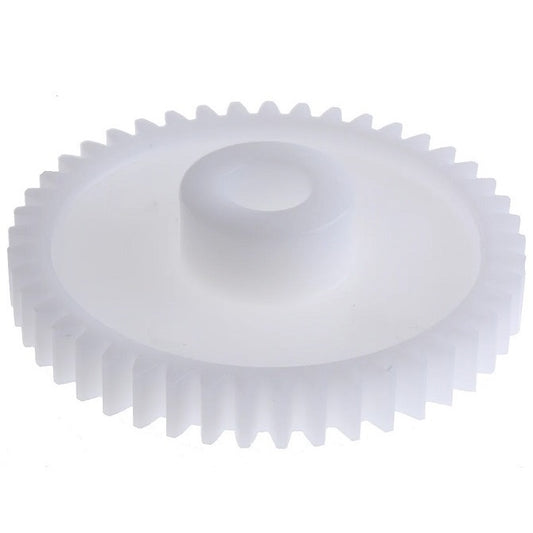

Teeth 44	Pitch Circle Diameter (PD) 23.29 mm _{(0.917 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.341 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G023B-44-D48-032-048-A-P Spur Gears - 44 tooth - 23.29x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Teeth 44	Pitch Circle Diameter (PD) 23.29 mm _{(0.917 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.341 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G023B-44-D48-032-048-A-P Spur Gears - 44 tooth - 23.29x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
G023B-44-D48-032-048-A-P --- Spur Gears - 44 tooth - 23.29x4.762 mm - Acetal G023B-44-D48-032-048-A-P --- Spur Gears - 44 tooth - 23.29x4.762 mm - Acetal Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
Teeth 44	Pitch Circle Diameter (PD) 23.29 mm _{(0.917 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.341 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G023B-44-D48-032-048-AB-B Spur Gears - 44 tooth - 23.29x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Each
Teeth 44	Pitch Circle Diameter (PD) 23.29 mm _{(0.917 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.341 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G023B-44-D48-032-048-AB-B Spur Gears - 44 tooth - 23.29x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Each View the product page first if you are unsure.
G023B-44-D48-032-048-AB-B --- Spur Gears - 44 tooth - 23.29x4.762 mm - Acetal - Brass insert G023B-44-D48-032-048-AB-B --- Spur Gears - 44 tooth - 23.29x4.762 mm - Acetal - Brass insert Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Out of stock! Backorder Now

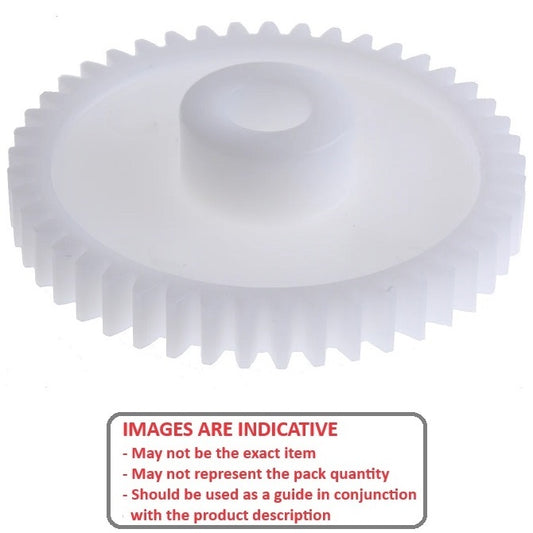

Teeth 45	Pitch Circle Diameter (PD) 23.83 mm _{(0.938 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.874 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G024B-45-D48-032-048-A-P Spur Gears - 45 tooth - 23.83x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Teeth 45	Pitch Circle Diameter (PD) 23.83 mm _{(0.938 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.874 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G024B-45-D48-032-048-A-P Spur Gears - 45 tooth - 23.83x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
G024B-45-D48-032-048-A-P --- Spur Gears - 45 tooth - 23.83x4.762 mm - Acetal G024B-45-D48-032-048-A-P --- Spur Gears - 45 tooth - 23.83x4.762 mm - Acetal Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
Teeth 45	Pitch Circle Diameter (PD) 23.83 mm _{(0.938 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.874 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G024B-45-D48-032-048-AB-B Spur Gears - 45 tooth - 23.83x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Each
Teeth 45	Pitch Circle Diameter (PD) 23.83 mm _{(0.938 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.874 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G024B-45-D48-032-048-AB-B Spur Gears - 45 tooth - 23.83x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Each View the product page first if you are unsure.
G024B-45-D48-032-048-AB-B --- Spur Gears - 45 tooth - 23.83x4.762 mm - Acetal - Brass insert G024B-45-D48-032-048-AB-B --- Spur Gears - 45 tooth - 23.83x4.762 mm - Acetal - Brass insert Regular price $15.95 AUD Regular price Sale price $15.95 AUD Unit price per Out of stock! Backorder Now
Teeth 48	Pitch Circle Diameter (PD) 25.40 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 26.449 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G025B-48-D48-032-064-AB-B Spur Gears - 48 tooth - 25.4x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Each
Teeth 48	Pitch Circle Diameter (PD) 25.40 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 26.449 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G025B-48-D48-032-064-AB-B Spur Gears - 48 tooth - 25.4x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Each View the product page first if you are unsure.
G025B-48-D48-032-064-AB-B --- Spur Gears - 48 tooth - 25.4x6.35 mm - Acetal - Brass insert G025B-48-D48-032-064-AB-B --- Spur Gears - 48 tooth - 25.4x6.35 mm - Acetal - Brass insert Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Out of stock! Backorder Now
Teeth 48	Pitch Circle Diameter (PD) 25.40 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 26.449 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G025B-48-D48-032-064-A-B Spur Gears - 48 tooth - 25.4x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Teeth 48	Pitch Circle Diameter (PD) 25.40 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 26.449 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G025B-48-D48-032-064-A-B Spur Gears - 48 tooth - 25.4x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
G025B-48-D48-032-064-A-B --- Spur Gears - 48 tooth - 25.4x6.35 mm - Acetal G025B-48-D48-032-064-A-B --- Spur Gears - 48 tooth - 25.4x6.35 mm - Acetal Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
Teeth 52	Pitch Circle Diameter (PD) 27.51 mm _{(1.083 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 28.557 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G028B-52-D48-032-064-AB-G Spur Gears - 52 tooth - 27.51x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each
Teeth 52	Pitch Circle Diameter (PD) 27.51 mm _{(1.083 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 28.557 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G028B-52-D48-032-064-AB-G Spur Gears - 52 tooth - 27.51x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each View the product page first if you are unsure.
G028B-52-D48-032-064-AB-G --- Spur Gears - 52 tooth - 27.51x6.35 mm - Acetal - Brass insert G028B-52-D48-032-064-AB-G --- Spur Gears - 52 tooth - 27.51x6.35 mm - Acetal - Brass insert Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Out of stock! Backorder Now
Teeth 52	Pitch Circle Diameter (PD) 27.51 mm _{(1.083 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 28.557 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G028B-52-D48-032-064-A-P Spur Gears - 52 tooth - 27.51x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each
Teeth 52	Pitch Circle Diameter (PD) 27.51 mm _{(1.083 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 28.557 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G028B-52-D48-032-064-A-P Spur Gears - 52 tooth - 27.51x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each View the product page first if you are unsure.
G028B-52-D48-032-064-A-P --- Spur Gears - 52 tooth - 27.51x6.35 mm - Acetal G028B-52-D48-032-064-A-P --- Spur Gears - 52 tooth - 27.51x6.35 mm - Acetal Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Out of stock! Backorder Now
Teeth 54	Pitch Circle Diameter (PD) 28.58 mm _{(1.125 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 29.624 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G029B-54-D48-032-064-AB-G Spur Gears - 54 tooth - 28.58x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each
Teeth 54	Pitch Circle Diameter (PD) 28.58 mm _{(1.125 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 29.624 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G029B-54-D48-032-064-AB-G Spur Gears - 54 tooth - 28.58x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Each View the product page first if you are unsure.
G029B-54-D48-032-064-AB-G --- Spur Gears - 54 tooth - 28.58x6.35 mm - Acetal - Brass insert G029B-54-D48-032-064-AB-G --- Spur Gears - 54 tooth - 28.58x6.35 mm - Acetal - Brass insert Regular price $16.50 AUD Regular price Sale price $16.50 AUD Unit price per Out of stock! Backorder Now
Teeth 54	Pitch Circle Diameter (PD) 28.58 mm _{(1.125 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 29.624 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G029B-54-D48-032-064-A-P Spur Gears - 54 tooth - 28.58x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each
Teeth 54	Pitch Circle Diameter (PD) 28.58 mm _{(1.125 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 29.624 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G029B-54-D48-032-064-A-P Spur Gears - 54 tooth - 28.58x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each View the product page first if you are unsure.
G029B-54-D48-032-064-A-P --- Spur Gears - 54 tooth - 28.58x6.35 mm - Acetal G029B-54-D48-032-064-A-P --- Spur Gears - 54 tooth - 28.58x6.35 mm - Acetal Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Out of stock! Backorder Now
Teeth 56	Pitch Circle Diameter (PD) 29.64 mm _{(1.167 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 30.691 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G030B-56-D48-032-064-A-P Spur Gears - 56 tooth - 29.64x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each
Teeth 56	Pitch Circle Diameter (PD) 29.64 mm _{(1.167 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 30.691 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G030B-56-D48-032-064-A-P Spur Gears - 56 tooth - 29.64x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each View the product page first if you are unsure.
G030B-56-D48-032-064-A-P --- Spur Gears - 56 tooth - 29.64x6.35 mm - Acetal G030B-56-D48-032-064-A-P --- Spur Gears - 56 tooth - 29.64x6.35 mm - Acetal Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Out of stock! Backorder Now
Teeth 56	Pitch Circle Diameter (PD) 29.64 mm _{(1.167 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 30.691 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G030B-56-D48-032-064-AB-G Spur Gears - 56 tooth - 29.64x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Each
Teeth 56	Pitch Circle Diameter (PD) 29.64 mm _{(1.167 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 30.691 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G030B-56-D48-032-064-AB-G Spur Gears - 56 tooth - 29.64x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Each View the product page first if you are unsure.
G030B-56-D48-032-064-AB-G --- Spur Gears - 56 tooth - 29.64x6.35 mm - Acetal - Brass insert G030B-56-D48-032-064-AB-G --- Spur Gears - 56 tooth - 29.64x6.35 mm - Acetal - Brass insert Regular price $16.77 AUD Regular price Sale price $16.77 AUD Unit price per Out of stock! Backorder Now
Teeth 60	Pitch Circle Diameter (PD) 31.75 mm _{(1.25 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 32.799 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G032B-60-D48-032-064-A-P Spur Gears - 60 tooth - 31.75x6.35 mm - Acetal 3 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each
Teeth 60	Pitch Circle Diameter (PD) 31.75 mm _{(1.25 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 32.799 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G032B-60-D48-032-064-A-P Spur Gears - 60 tooth - 31.75x6.35 mm - Acetal 3 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each View the product page first if you are unsure.
G032B-60-D48-032-064-A-P --- Spur Gears - 60 tooth - 31.75x6.35 mm - Acetal G032B-60-D48-032-064-A-P --- Spur Gears - 60 tooth - 31.75x6.35 mm - Acetal Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per 3 Available Now
Teeth 60	Pitch Circle Diameter (PD) 31.75 mm _{(1.25 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 32.799 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G032B-60-D48-032-064-AB-G Spur Gears - 60 tooth - 31.75x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Each
Teeth 60	Pitch Circle Diameter (PD) 31.75 mm _{(1.25 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 32.799 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G032B-60-D48-032-064-AB-G Spur Gears - 60 tooth - 31.75x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Each View the product page first if you are unsure.
G032B-60-D48-032-064-AB-G --- Spur Gears - 60 tooth - 31.75x6.35 mm - Acetal - Brass insert G032B-60-D48-032-064-AB-G --- Spur Gears - 60 tooth - 31.75x6.35 mm - Acetal - Brass insert Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Out of stock! Backorder Now
Teeth 64	Pitch Circle Diameter (PD) 33.86 mm _{(1.333 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 34.907 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G034B-64-D48-032-064-A-P Spur Gears - 64 tooth - 33.86x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each
Teeth 64	Pitch Circle Diameter (PD) 33.86 mm _{(1.333 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 34.907 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G034B-64-D48-032-064-A-P Spur Gears - 64 tooth - 33.86x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each View the product page first if you are unsure.
G034B-64-D48-032-064-A-P --- Spur Gears - 64 tooth - 33.86x6.35 mm - Acetal G034B-64-D48-032-064-A-P --- Spur Gears - 64 tooth - 33.86x6.35 mm - Acetal Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Out of stock! Backorder Now
Teeth 64	Pitch Circle Diameter (PD) 33.86 mm _{(1.333 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 34.907 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G034B-64-D48-032-064-AB-G Spur Gears - 64 tooth - 33.86x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Each
Teeth 64	Pitch Circle Diameter (PD) 33.86 mm _{(1.333 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 34.907 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G034B-64-D48-032-064-AB-G Spur Gears - 64 tooth - 33.86x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Each View the product page first if you are unsure.
G034B-64-D48-032-064-AB-G --- Spur Gears - 64 tooth - 33.86x6.35 mm - Acetal - Brass insert G034B-64-D48-032-064-AB-G --- Spur Gears - 64 tooth - 33.86x6.35 mm - Acetal - Brass insert Regular price $17.59 AUD Regular price Sale price $17.59 AUD Unit price per Out of stock! Backorder Now
Teeth 66	Pitch Circle Diameter (PD) 34.93 mm _{(1.375 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 35.974 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G035B-66-D48-032-064-AB-G Spur Gears - 66 tooth - 34.93x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Each
Teeth 66	Pitch Circle Diameter (PD) 34.93 mm _{(1.375 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 35.974 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G035B-66-D48-032-064-AB-G Spur Gears - 66 tooth - 34.93x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Each View the product page first if you are unsure.
G035B-66-D48-032-064-AB-G --- Spur Gears - 66 tooth - 34.93x6.35 mm - Acetal - Brass insert G035B-66-D48-032-064-AB-G --- Spur Gears - 66 tooth - 34.93x6.35 mm - Acetal - Brass insert Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Out of stock! Backorder Now
Teeth 66	Pitch Circle Diameter (PD) 34.93 mm _{(1.375 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 35.974 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G035B-66-D48-032-064-A-B Spur Gears - 66 tooth - 34.93x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each
Teeth 66	Pitch Circle Diameter (PD) 34.93 mm _{(1.375 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 35.974 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G035B-66-D48-032-064-A-B Spur Gears - 66 tooth - 34.93x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Each View the product page first if you are unsure.
G035B-66-D48-032-064-A-B --- Spur Gears - 66 tooth - 34.93x6.35 mm - Acetal G035B-66-D48-032-064-A-B --- Spur Gears - 66 tooth - 34.93x6.35 mm - Acetal Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Out of stock! Backorder Now
Teeth 72	Pitch Circle Diameter (PD) 38.10 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 39.149 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G038B-72-D48-032-064-A-B Spur Gears - 72 tooth - 38.1x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each
Teeth 72	Pitch Circle Diameter (PD) 38.10 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 39.149 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G038B-72-D48-032-064-A-B Spur Gears - 72 tooth - 38.1x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each View the product page first if you are unsure.
G038B-72-D48-032-064-A-B --- Spur Gears - 72 tooth - 38.1x6.35 mm - Acetal G038B-72-D48-032-064-A-B --- Spur Gears - 72 tooth - 38.1x6.35 mm - Acetal Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Out of stock! Backorder Now
Teeth 72	Pitch Circle Diameter (PD) 38.10 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 39.149 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G038B-72-D48-032-064-AB-G Spur Gears - 72 tooth - 38.1x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Each
Teeth 72	Pitch Circle Diameter (PD) 38.10 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 39.149 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G038B-72-D48-032-064-AB-G Spur Gears - 72 tooth - 38.1x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Each View the product page first if you are unsure.
G038B-72-D48-032-064-AB-G --- Spur Gears - 72 tooth - 38.1x6.35 mm - Acetal - Brass insert G038B-72-D48-032-064-AB-G --- Spur Gears - 72 tooth - 38.1x6.35 mm - Acetal - Brass insert Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Out of stock! Backorder Now
Teeth 80	Pitch Circle Diameter (PD) 42.34 mm _{(1.667 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 43.391 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G042B-80-D48-032-064-AB-G Spur Gears - 80 tooth - 42.34x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $19.14 AUD Regular price Sale price $19.14 AUD Unit price per Each
Teeth 80	Pitch Circle Diameter (PD) 42.34 mm _{(1.667 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 43.391 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G042B-80-D48-032-064-AB-G Spur Gears - 80 tooth - 42.34x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $19.14 AUD Regular price Sale price $19.14 AUD Unit price per Each View the product page first if you are unsure.
G042B-80-D48-032-064-AB-G --- Spur Gears - 80 tooth - 42.34x6.35 mm - Acetal - Brass insert G042B-80-D48-032-064-AB-G --- Spur Gears - 80 tooth - 42.34x6.35 mm - Acetal - Brass insert Regular price $19.14 AUD Regular price Sale price $19.14 AUD Unit price per Out of stock! Backorder Now
Teeth 80	Pitch Circle Diameter (PD) 42.34 mm _{(1.667 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 43.391 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree

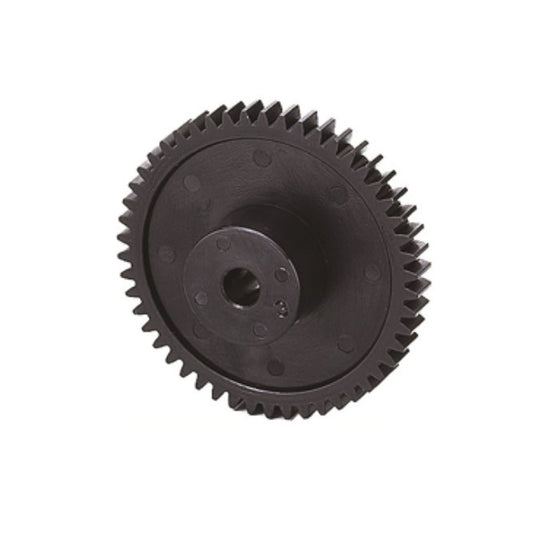

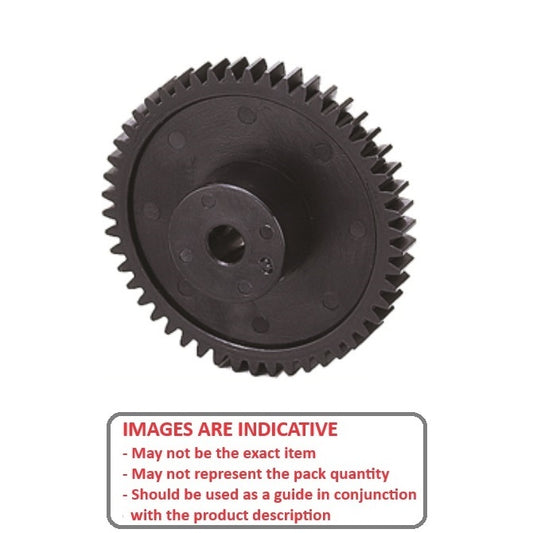

Part Number: G042B-80-D48-032-064-A-P Spur Gears - 80 tooth - 42.34x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each
Teeth 80	Pitch Circle Diameter (PD) 42.34 mm _{(1.667 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 43.391 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G042B-80-D48-032-064-A-P Spur Gears - 80 tooth - 42.34x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each View the product page first if you are unsure.
G042B-80-D48-032-064-A-P --- Spur Gears - 80 tooth - 42.34x6.35 mm - Acetal G042B-80-D48-032-064-A-P --- Spur Gears - 80 tooth - 42.34x6.35 mm - Acetal Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Out of stock! Backorder Now
Teeth 84	Pitch Circle Diameter (PD) 44.45 mm _{(1.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 45.499 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G044B-84-D48-032-064-A-B Spur Gears - 84 tooth - 44.45x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each
Teeth 84	Pitch Circle Diameter (PD) 44.45 mm _{(1.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 45.499 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G044B-84-D48-032-064-A-B Spur Gears - 84 tooth - 44.45x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Each View the product page first if you are unsure.
G044B-84-D48-032-064-A-B --- Spur Gears - 84 tooth - 44.45x6.35 mm - Acetal G044B-84-D48-032-064-A-B --- Spur Gears - 84 tooth - 44.45x6.35 mm - Acetal Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Out of stock! Backorder Now
