Collection: Gears - Spur - Standard - 48DP

Gears (With Images)

Spur

Standard

20 Degree

75 Products in this selection

This is a combined category of 48DP Standard Spur Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
48DP Gear Racks

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - 48DP. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type	Indicative Image

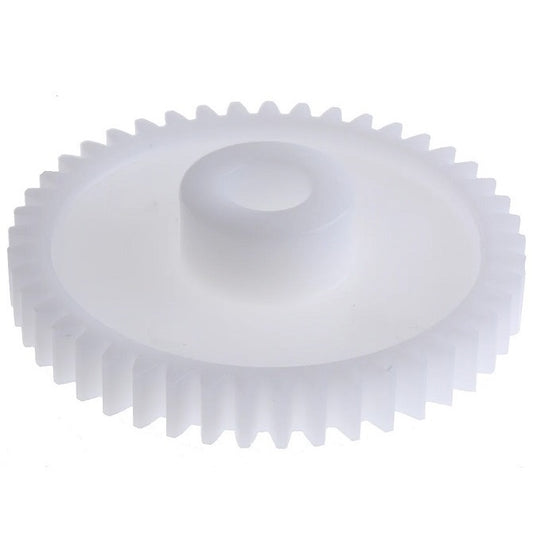

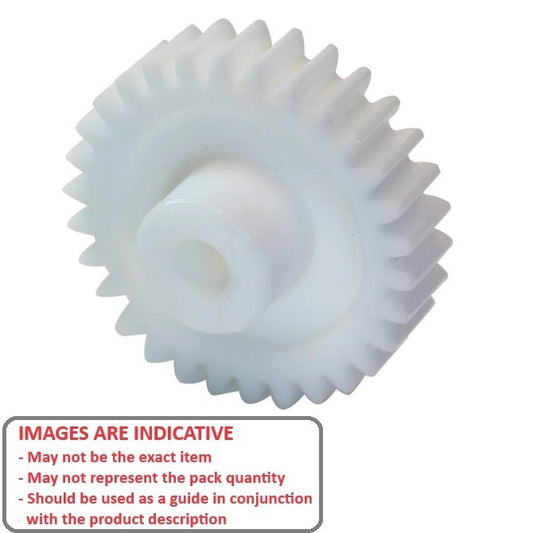

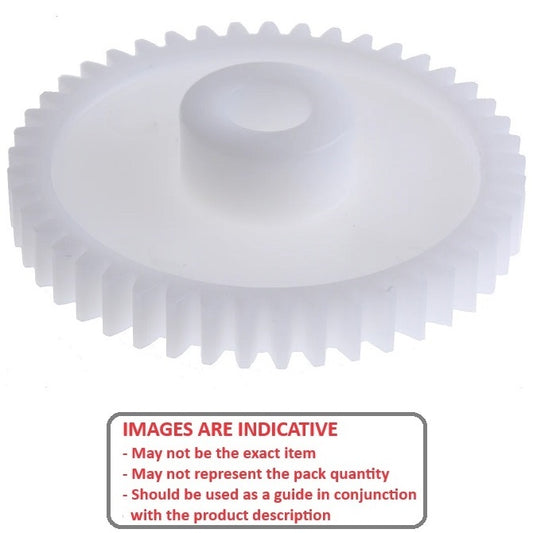

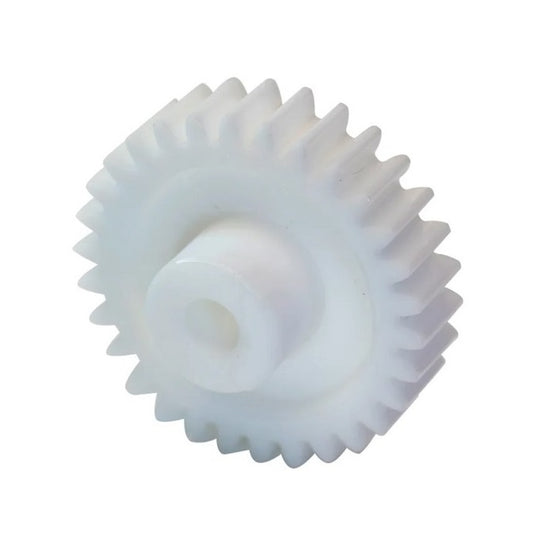

Teeth 27	Pitch Circle Diameter (PD) 14.30 mm _{(0.563 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 15.349 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G014B-27-D48-032-040-A-P Spur Gears - 27 tooth - 14.3x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 27	Pitch Circle Diameter (PD) 14.30 mm _{(0.563 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 15.349 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 11.51 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G014B-27-D48-032-040-A-P Spur Gears - 27 tooth - 14.3x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G014B-27-D48-032-040-A-P --- Spur Gears - 27 tooth - 14.3x3.97 mm - Acetal G014B-27-D48-032-040-A-P --- Spur Gears - 27 tooth - 14.3x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Pitch Circle Diameter (PD) 14.81 mm _{(0.583 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 15.857 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 12.30 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G015B-28-D48-032-040-A-P Spur Gears - 28 tooth - 14.81x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 28	Pitch Circle Diameter (PD) 14.81 mm _{(0.583 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 15.857 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 12.30 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G015B-28-D48-032-040-A-P Spur Gears - 28 tooth - 14.81x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G015B-28-D48-032-040-A-P --- Spur Gears - 28 tooth - 14.81x3.97 mm - Acetal G015B-28-D48-032-040-A-P --- Spur Gears - 28 tooth - 14.81x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 29	Pitch Circle Diameter (PD) 15.34 mm _{(0.604 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 16.391 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 12.30 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G015B-29-D48-032-040-A-P Spur Gears - 29 tooth - 15.34x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 29	Pitch Circle Diameter (PD) 15.34 mm _{(0.604 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 16.391 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 12.30 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G015B-29-D48-032-040-A-P Spur Gears - 29 tooth - 15.34x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G015B-29-D48-032-040-A-P --- Spur Gears - 29 tooth - 15.34x3.97 mm - Acetal G015B-29-D48-032-040-A-P --- Spur Gears - 29 tooth - 15.34x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Pitch Circle Diameter (PD) 15.88 mm _{(0.625 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 16.924 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G016B-30-D48-032-040-A-P Spur Gears - 30 tooth - 15.88x3.97 mm - Acetal 6 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 30	Pitch Circle Diameter (PD) 15.88 mm _{(0.625 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 16.924 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G016B-30-D48-032-040-A-P Spur Gears - 30 tooth - 15.88x3.97 mm - Acetal 6 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G016B-30-D48-032-040-A-P --- Spur Gears - 30 tooth - 15.88x3.97 mm - Acetal G016B-30-D48-032-040-A-P --- Spur Gears - 30 tooth - 15.88x3.97 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per 6 Available Now
Teeth 31	Pitch Circle Diameter (PD) 16.41 mm _{(0.646 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.457 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G016B-31-D48-032-048-A-P Spur Gears - 31 tooth - 16.41x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 31	Pitch Circle Diameter (PD) 16.41 mm _{(0.646 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.457 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G016B-31-D48-032-048-A-P Spur Gears - 31 tooth - 16.41x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G016B-31-D48-032-048-A-P --- Spur Gears - 31 tooth - 16.41x4.762 mm - Acetal G016B-31-D48-032-048-A-P --- Spur Gears - 31 tooth - 16.41x4.762 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now

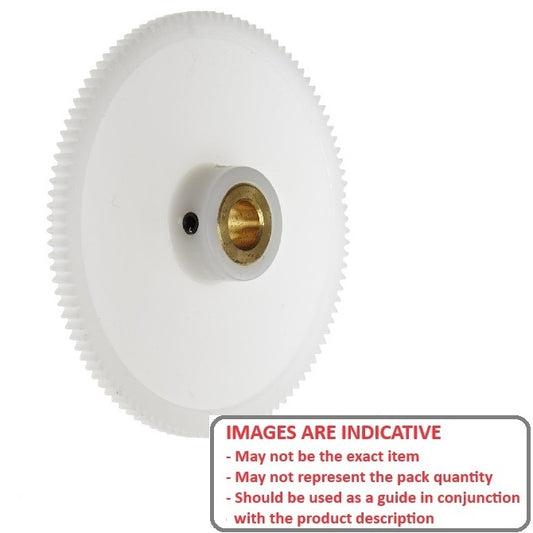

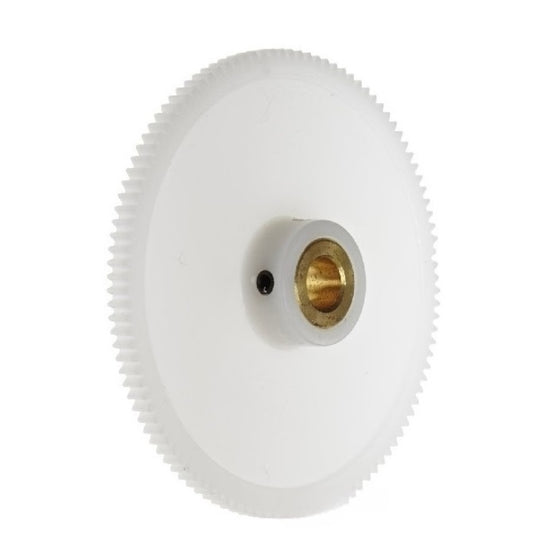

Teeth 31	Pitch Circle Diameter (PD) 16.41 mm _{(0.646 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.457 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G016B-31-D48-032-048-AB-B Spur Gears - 31 tooth - 16.41x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Each
Teeth 31	Pitch Circle Diameter (PD) 16.41 mm _{(0.646 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.457 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G016B-31-D48-032-048-AB-B Spur Gears - 31 tooth - 16.41x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Each View the product page first if you are unsure.
G016B-31-D48-032-048-AB-B --- Spur Gears - 31 tooth - 16.41x4.762 mm - Acetal - Brass insert G016B-31-D48-032-048-AB-B --- Spur Gears - 31 tooth - 16.41x4.762 mm - Acetal - Brass insert Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Pitch Circle Diameter (PD) 16.94 mm _{(0.667 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.991 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G017B-32-D48-032-048-A-P Spur Gears - 32 tooth - 16.94x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 32	Pitch Circle Diameter (PD) 16.94 mm _{(0.667 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.991 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G017B-32-D48-032-048-A-P Spur Gears - 32 tooth - 16.94x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G017B-32-D48-032-048-A-P --- Spur Gears - 32 tooth - 16.94x4.762 mm - Acetal G017B-32-D48-032-048-A-P --- Spur Gears - 32 tooth - 16.94x4.762 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 33	Pitch Circle Diameter (PD) 17.48 mm _{(0.688 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 18.524 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G017B-33-D48-032-048-A-P Spur Gears - 33 tooth - 17.48x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 33	Pitch Circle Diameter (PD) 17.48 mm _{(0.688 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 18.524 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G017B-33-D48-032-048-A-P Spur Gears - 33 tooth - 17.48x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G017B-33-D48-032-048-A-P --- Spur Gears - 33 tooth - 17.48x4.762 mm - Acetal G017B-33-D48-032-048-A-P --- Spur Gears - 33 tooth - 17.48x4.762 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 33	Pitch Circle Diameter (PD) 17.48 mm _{(0.688 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 18.524 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G017B-33-D48-032-048-AB-B Spur Gears - 33 tooth - 17.48x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each
Teeth 33	Pitch Circle Diameter (PD) 17.48 mm _{(0.688 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 18.524 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G017B-33-D48-032-048-AB-B Spur Gears - 33 tooth - 17.48x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each View the product page first if you are unsure.
G017B-33-D48-032-048-AB-B --- Spur Gears - 33 tooth - 17.48x4.762 mm - Acetal - Brass insert G017B-33-D48-032-048-AB-B --- Spur Gears - 33 tooth - 17.48x4.762 mm - Acetal - Brass insert Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Out of stock! Backorder Now
Teeth 34	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.032 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G018B-34-D48-032-048-AB-B Spur Gears - 34 tooth - 17.98x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Each
Teeth 34	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.032 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G018B-34-D48-032-048-AB-B Spur Gears - 34 tooth - 17.98x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Each View the product page first if you are unsure.
G018B-34-D48-032-048-AB-B --- Spur Gears - 34 tooth - 17.98x4.762 mm - Acetal - Brass insert G018B-34-D48-032-048-AB-B --- Spur Gears - 34 tooth - 17.98x4.762 mm - Acetal - Brass insert Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Out of stock! Backorder Now
Teeth 34	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.032 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G018B-34-D48-032-048-A-P Spur Gears - 34 tooth - 17.98x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Teeth 34	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.032 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G018B-34-D48-032-048-A-P Spur Gears - 34 tooth - 17.98x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
G018B-34-D48-032-048-A-P --- Spur Gears - 34 tooth - 17.98x4.762 mm - Acetal G018B-34-D48-032-048-A-P --- Spur Gears - 34 tooth - 17.98x4.762 mm - Acetal Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Out of stock! Backorder Now
Teeth 35	Pitch Circle Diameter (PD) 18.52 mm _{(0.729 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.566 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G019B-35-D48-032-048-AB-B Spur Gears - 35 tooth - 18.52x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each
Teeth 35	Pitch Circle Diameter (PD) 18.52 mm _{(0.729 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.566 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G019B-35-D48-032-048-AB-B Spur Gears - 35 tooth - 18.52x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each View the product page first if you are unsure.
G019B-35-D48-032-048-AB-B --- Spur Gears - 35 tooth - 18.52x4.762 mm - Acetal - Brass insert G019B-35-D48-032-048-AB-B --- Spur Gears - 35 tooth - 18.52x4.762 mm - Acetal - Brass insert Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Out of stock! Backorder Now
Teeth 35	Pitch Circle Diameter (PD) 18.52 mm _{(0.729 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.566 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G019B-35-D48-032-048-A-P Spur Gears - 35 tooth - 18.52x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Teeth 35	Pitch Circle Diameter (PD) 18.52 mm _{(0.729 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.566 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G019B-35-D48-032-048-A-P Spur Gears - 35 tooth - 18.52x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
G019B-35-D48-032-048-A-P --- Spur Gears - 35 tooth - 18.52x4.762 mm - Acetal G019B-35-D48-032-048-A-P --- Spur Gears - 35 tooth - 18.52x4.762 mm - Acetal Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.099 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G019B-36-D48-032-048-A-P Spur Gears - 36 tooth - 19.05x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Teeth 36	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.099 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G019B-36-D48-032-048-A-P Spur Gears - 36 tooth - 19.05x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
G019B-36-D48-032-048-A-P --- Spur Gears - 36 tooth - 19.05x4.762 mm - Acetal G019B-36-D48-032-048-A-P --- Spur Gears - 36 tooth - 19.05x4.762 mm - Acetal Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.099 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G019B-36-D48-032-048-AB-B Spur Gears - 36 tooth - 19.05x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Each
Teeth 36	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.099 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G019B-36-D48-032-048-AB-B Spur Gears - 36 tooth - 19.05x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Each View the product page first if you are unsure.
G019B-36-D48-032-048-AB-B --- Spur Gears - 36 tooth - 19.05x4.762 mm - Acetal - Brass insert G019B-36-D48-032-048-AB-B --- Spur Gears - 36 tooth - 19.05x4.762 mm - Acetal - Brass insert Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Out of stock! Backorder Now
Teeth 37	Pitch Circle Diameter (PD) 19.58 mm _{(0.771 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.632 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G020B-37-D48-032-048-AB-B Spur Gears - 37 tooth - 19.58x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Each
Teeth 37	Pitch Circle Diameter (PD) 19.58 mm _{(0.771 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.632 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G020B-37-D48-032-048-AB-B Spur Gears - 37 tooth - 19.58x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Each View the product page first if you are unsure.
G020B-37-D48-032-048-AB-B --- Spur Gears - 37 tooth - 19.58x4.762 mm - Acetal - Brass insert G020B-37-D48-032-048-AB-B --- Spur Gears - 37 tooth - 19.58x4.762 mm - Acetal - Brass insert Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Out of stock! Backorder Now
Teeth 37	Pitch Circle Diameter (PD) 19.58 mm _{(0.771 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.632 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G020B-37-D48-032-048-A-P Spur Gears - 37 tooth - 19.58x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Teeth 37	Pitch Circle Diameter (PD) 19.58 mm _{(0.771 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.632 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G020B-37-D48-032-048-A-P Spur Gears - 37 tooth - 19.58x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
G020B-37-D48-032-048-A-P --- Spur Gears - 37 tooth - 19.58x4.762 mm - Acetal G020B-37-D48-032-048-A-P --- Spur Gears - 37 tooth - 19.58x4.762 mm - Acetal Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
Teeth 38	Pitch Circle Diameter (PD) 20.12 mm _{(0.792 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.166 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G020B-38-D48-032-048-AB-B Spur Gears - 38 tooth - 20.12x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Each
Teeth 38	Pitch Circle Diameter (PD) 20.12 mm _{(0.792 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.166 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G020B-38-D48-032-048-AB-B Spur Gears - 38 tooth - 20.12x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Each View the product page first if you are unsure.
G020B-38-D48-032-048-AB-B --- Spur Gears - 38 tooth - 20.12x4.762 mm - Acetal - Brass insert G020B-38-D48-032-048-AB-B --- Spur Gears - 38 tooth - 20.12x4.762 mm - Acetal - Brass insert Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Out of stock! Backorder Now
Teeth 38	Pitch Circle Diameter (PD) 20.12 mm _{(0.792 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.166 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G020B-38-D48-032-048-A-P Spur Gears - 38 tooth - 20.12x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Teeth 38	Pitch Circle Diameter (PD) 20.12 mm _{(0.792 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.166 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G020B-38-D48-032-048-A-P Spur Gears - 38 tooth - 20.12x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
G020B-38-D48-032-048-A-P --- Spur Gears - 38 tooth - 20.12x4.762 mm - Acetal G020B-38-D48-032-048-A-P --- Spur Gears - 38 tooth - 20.12x4.762 mm - Acetal Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
Teeth 39	Pitch Circle Diameter (PD) 20.65 mm _{(0.813 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.699 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G021B-39-D48-032-048-AB-B Spur Gears - 39 tooth - 20.65x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Each
Teeth 39	Pitch Circle Diameter (PD) 20.65 mm _{(0.813 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.699 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G021B-39-D48-032-048-AB-B Spur Gears - 39 tooth - 20.65x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Each View the product page first if you are unsure.
G021B-39-D48-032-048-AB-B --- Spur Gears - 39 tooth - 20.65x4.762 mm - Acetal - Brass insert G021B-39-D48-032-048-AB-B --- Spur Gears - 39 tooth - 20.65x4.762 mm - Acetal - Brass insert Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Out of stock! Backorder Now
Teeth 39	Pitch Circle Diameter (PD) 20.65 mm _{(0.813 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.699 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G021B-39-D48-032-048-A-P Spur Gears - 39 tooth - 20.65x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Teeth 39	Pitch Circle Diameter (PD) 20.65 mm _{(0.813 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.699 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G021B-39-D48-032-048-A-P Spur Gears - 39 tooth - 20.65x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
G021B-39-D48-032-048-A-P --- Spur Gears - 39 tooth - 20.65x4.762 mm - Acetal G021B-39-D48-032-048-A-P --- Spur Gears - 39 tooth - 20.65x4.762 mm - Acetal Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Pitch Circle Diameter (PD) 21.16 mm _{(0.833 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.207 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G021B-40-D48-032-048-A-P Spur Gears - 40 tooth - 21.16x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Teeth 40	Pitch Circle Diameter (PD) 21.16 mm _{(0.833 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.207 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G021B-40-D48-032-048-A-P Spur Gears - 40 tooth - 21.16x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
G021B-40-D48-032-048-A-P --- Spur Gears - 40 tooth - 21.16x4.762 mm - Acetal G021B-40-D48-032-048-A-P --- Spur Gears - 40 tooth - 21.16x4.762 mm - Acetal Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Pitch Circle Diameter (PD) 21.16 mm _{(0.833 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.207 mm	Face Width (FW) 3.18 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G021B-40-D48-032-048-AB-B Spur Gears - 40 tooth - 21.16x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Each
Teeth 40	Pitch Circle Diameter (PD) 21.16 mm _{(0.833 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.207 mm
Material: Acetal - Brass insert Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G021B-40-D48-032-048-AB-B Spur Gears - 40 tooth - 21.16x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Each View the product page first if you are unsure.
G021B-40-D48-032-048-AB-B --- Spur Gears - 40 tooth - 21.16x4.762 mm - Acetal - Brass insert G021B-40-D48-032-048-AB-B --- Spur Gears - 40 tooth - 21.16x4.762 mm - Acetal - Brass insert Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Out of stock! Backorder Now
Teeth 42	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.274 mm	Face Width (FW) 3.18 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G022B-42-D48-032-048-A-P Spur Gears - 42 tooth - 22.23x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each
Teeth 42	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.274 mm
Material: Acetal Face Width (FW): 3.18 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 48DP - 20 Degree
Part Number: G022B-42-D48-032-048-A-P Spur Gears - 42 tooth - 22.23x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Each View the product page first if you are unsure.
G022B-42-D48-032-048-A-P --- Spur Gears - 42 tooth - 22.23x4.762 mm - Acetal G022B-42-D48-032-048-A-P --- Spur Gears - 42 tooth - 22.23x4.762 mm - Acetal Regular price $7.86 AUD Regular price Sale price $7.86 AUD Unit price per Out of stock! Backorder Now
