Collection: Gears - Spur - Standard - 24DP

Gears (With Images)

Spur

Standard

100 Products in this selection

This is a combined category of 24DP Standard Spur Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
24DP Gear Racks

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - 24DP. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type	Indicative Image
Teeth 44	Pitch Circle Diameter (PD) 46.56 mm _{(1.833 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 48.666 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G047B-44-D24-064-079-AB-G Spur Gears - 44 tooth - 46.56x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Each
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 44	Pitch Circle Diameter (PD) 46.56 mm _{(1.833 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 48.666 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G047B-44-D24-064-079-AB-G Spur Gears - 44 tooth - 46.56x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Each View the product page first if you are unsure.
G047B-44-D24-064-079-AB-G --- Spur Gears - 44 tooth - 46.56x7.938 mm - Acetal - Brass insert G047B-44-D24-064-079-AB-G --- Spur Gears - 44 tooth - 46.56x7.938 mm - Acetal - Brass insert Regular price $21.95 AUD Regular price Sale price $21.95 AUD Unit price per Out of stock! Backorder Now
Teeth 44	Pitch Circle Diameter (PD) 46.56 mm _{(1.833 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 48.666 mm	Face Width (FW) 6.35 mm

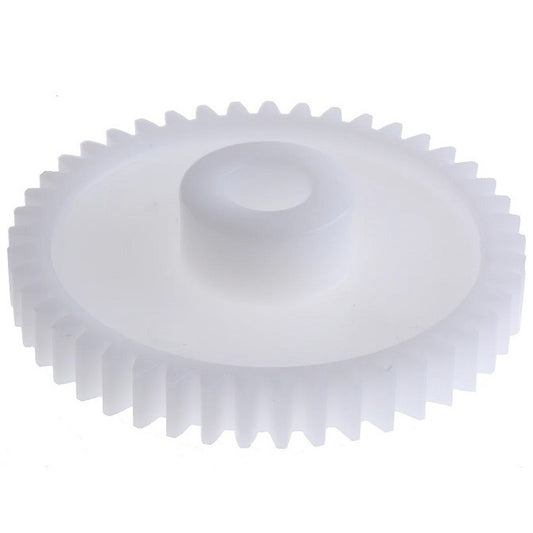

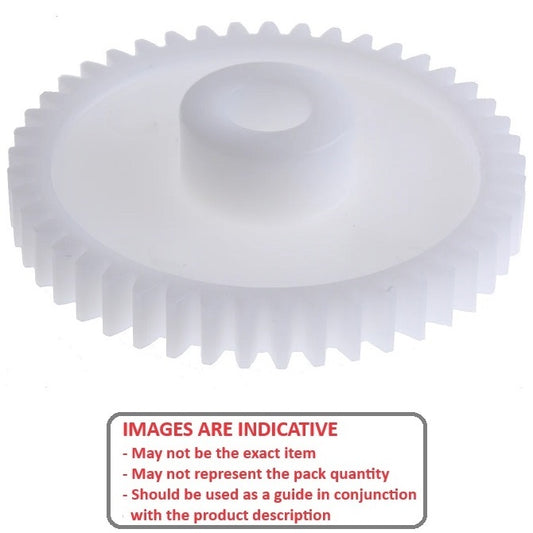

Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G047B-44-D24-064-079-A-P Spur Gears - 44 tooth - 46.56x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Each
Teeth 44	Pitch Circle Diameter (PD) 46.56 mm _{(1.833 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 48.666 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G047B-44-D24-064-079-A-P Spur Gears - 44 tooth - 46.56x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Each View the product page first if you are unsure.
G047B-44-D24-064-079-A-P --- Spur Gears - 44 tooth - 46.56x7.938 mm - Acetal G047B-44-D24-064-079-A-P --- Spur Gears - 44 tooth - 46.56x7.938 mm - Acetal Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Out of stock! Backorder Now
Teeth 45	Pitch Circle Diameter (PD) 22.500 mm _{(0.886 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 23.50 mm	Face Width (FW) 3.00 mm
Material: Acetal Hub Diameter (D1): 12.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G023B-45-M05-030-050-A-P Spur Gears - 45 tooth - 22.5x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each
Teeth 45	Pitch Circle Diameter (PD) 22.500 mm _{(0.886 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 23.50 mm
Material: Acetal Face Width (FW): 3.00 mm Hub Diameter (D1): 12.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G023B-45-M05-030-050-A-P Spur Gears - 45 tooth - 22.5x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each View the product page first if you are unsure.
G023B-45-M05-030-050-A-P --- Spur Gears - 45 tooth - 22.5x5 mm - Acetal G023B-45-M05-030-050-A-P --- Spur Gears - 45 tooth - 22.5x5 mm - Acetal Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Out of stock! Backorder Now
Teeth 45	Pitch Circle Diameter (PD) 47.63 mm _{(1.875 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 49.733 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G048B-45-D24-064-079-A-P Spur Gears - 45 tooth - 47.63x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Each
Teeth 45	Pitch Circle Diameter (PD) 47.63 mm _{(1.875 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 49.733 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G048B-45-D24-064-079-A-P Spur Gears - 45 tooth - 47.63x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Each View the product page first if you are unsure.
G048B-45-D24-064-079-A-P --- Spur Gears - 45 tooth - 47.63x7.938 mm - Acetal G048B-45-D24-064-079-A-P --- Spur Gears - 45 tooth - 47.63x7.938 mm - Acetal Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Out of stock! Backorder Now
Teeth 45	Pitch Circle Diameter (PD) 47.63 mm _{(1.875 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 49.733 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G048B-45-D24-064-079-AB-G Spur Gears - 45 tooth - 47.63x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Each
Teeth 45	Pitch Circle Diameter (PD) 47.63 mm _{(1.875 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 49.733 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G048B-45-D24-064-079-AB-G Spur Gears - 45 tooth - 47.63x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Each View the product page first if you are unsure.
G048B-45-D24-064-079-AB-G --- Spur Gears - 45 tooth - 47.63x7.938 mm - Acetal - Brass insert G048B-45-D24-064-079-AB-G --- Spur Gears - 45 tooth - 47.63x7.938 mm - Acetal - Brass insert Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Out of stock! Backorder Now
Teeth 48	Pitch Circle Diameter (PD) 19.050 mm _{(0.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 19.81 mm	Face Width (FW) 4.78 mm

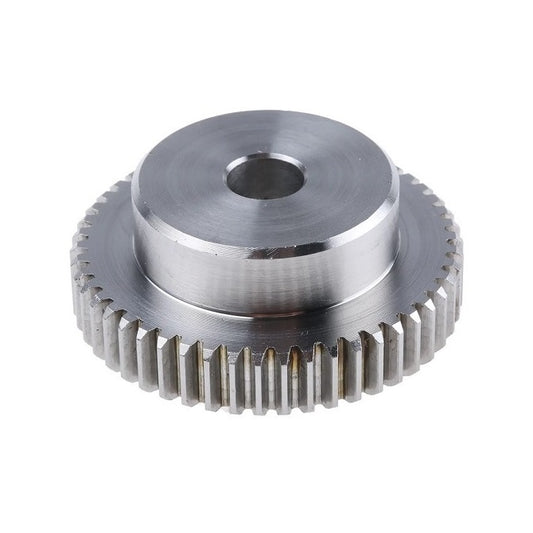

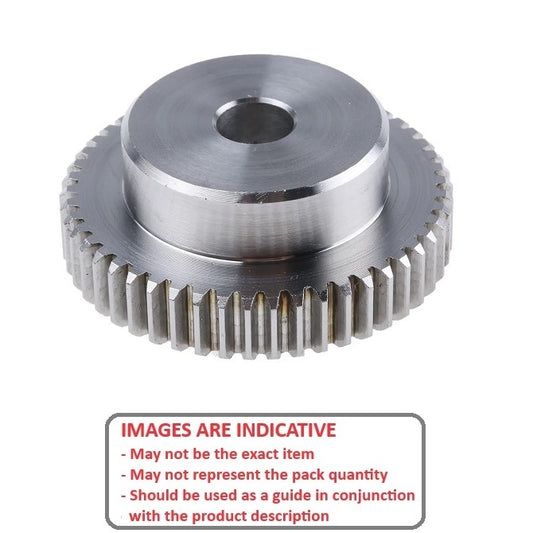

Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G019H-48-D64-032-064-S3-N Spur Gears - 48 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $50.68 AUD Regular price Sale price $50.68 AUD Unit price per Each
Teeth 48	Pitch Circle Diameter (PD) 19.050 mm _{(0.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 19.81 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G019H-48-D64-032-064-S3-N Spur Gears - 48 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $50.68 AUD Regular price Sale price $50.68 AUD Unit price per Each View the product page first if you are unsure.
G019H-48-D64-032-064-S3-N --- Spur Gears - 48 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G019H-48-D64-032-064-S3-N --- Spur Gears - 48 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $50.68 AUD Regular price Sale price $50.68 AUD Unit price per 2 Available Now
Teeth 48	Pitch Circle Diameter (PD) 25.400 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 26.42 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025H-48-D48-032-064-S3-N Spur Gears - 48 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $53.68 AUD Regular price Sale price $53.68 AUD Unit price per Each
Teeth 48	Pitch Circle Diameter (PD) 25.400 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 26.42 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025H-48-D48-032-064-S3-N Spur Gears - 48 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $53.68 AUD Regular price Sale price $53.68 AUD Unit price per Each View the product page first if you are unsure.
G025H-48-D48-032-064-S3-N --- Spur Gears - 48 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G025H-48-D48-032-064-S3-N --- Spur Gears - 48 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $53.68 AUD Regular price Sale price $53.68 AUD Unit price per 2 Available Now
Teeth 48	Pitch Circle Diameter (PD) 38.100 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 39.70 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G038H-48-D32-032-064-S3-N Spur Gears - 48 tooth - 38.1x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $56.86 AUD Regular price Sale price $56.86 AUD Unit price per Each
Teeth 48	Pitch Circle Diameter (PD) 38.100 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 39.70 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G038H-48-D32-032-064-S3-N Spur Gears - 48 tooth - 38.1x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $56.86 AUD Regular price Sale price $56.86 AUD Unit price per Each View the product page first if you are unsure.
G038H-48-D32-032-064-S3-N --- Spur Gears - 48 tooth - 38.1x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G038H-48-D32-032-064-S3-N --- Spur Gears - 48 tooth - 38.1x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $56.86 AUD Regular price Sale price $56.86 AUD Unit price per 2 Available Now
Teeth 48	Pitch Circle Diameter (PD) 50.800 mm _{(2 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 52.83 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G051B-48-D24-032-064-S3-N Spur Gears - 48 tooth - 50.8x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $74.14 AUD Regular price Sale price $74.14 AUD Unit price per Each
Teeth 48	Pitch Circle Diameter (PD) 50.800 mm _{(2 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 52.83 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G051B-48-D24-032-064-S3-N Spur Gears - 48 tooth - 50.8x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $74.14 AUD Regular price Sale price $74.14 AUD Unit price per Each View the product page first if you are unsure.
G051B-48-D24-032-064-S3-N --- Spur Gears - 48 tooth - 50.8x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G051B-48-D24-032-064-S3-N --- Spur Gears - 48 tooth - 50.8x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $74.14 AUD Regular price Sale price $74.14 AUD Unit price per 2 Available Now
Teeth 48	Pitch Circle Diameter (PD) 50.80 mm _{(2 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 52.908 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G051B-48-D24-064-079-A-P Spur Gears - 48 tooth - 50.8x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Each
Teeth 48	Pitch Circle Diameter (PD) 50.80 mm _{(2 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 52.908 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G051B-48-D24-064-079-A-P Spur Gears - 48 tooth - 50.8x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Each View the product page first if you are unsure.
G051B-48-D24-064-079-A-P --- Spur Gears - 48 tooth - 50.8x7.938 mm - Acetal G051B-48-D24-064-079-A-P --- Spur Gears - 48 tooth - 50.8x7.938 mm - Acetal Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Out of stock! Backorder Now
Teeth 48	Pitch Circle Diameter (PD) 50.80 mm _{(2 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 52.908 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G051B-48-D24-064-079-AB-G Spur Gears - 48 tooth - 50.8x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Each
Teeth 48	Pitch Circle Diameter (PD) 50.80 mm _{(2 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 52.908 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G051B-48-D24-064-079-AB-G Spur Gears - 48 tooth - 50.8x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Each View the product page first if you are unsure.
G051B-48-D24-064-079-AB-G --- Spur Gears - 48 tooth - 50.8x7.938 mm - Acetal - Brass insert G051B-48-D24-064-079-AB-G --- Spur Gears - 48 tooth - 50.8x7.938 mm - Acetal - Brass insert Regular price $22.95 AUD Regular price Sale price $22.95 AUD Unit price per Out of stock! Backorder Now
Teeth 50	Pitch Circle Diameter (PD) 26.000 mm _{(1.024 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 26.00 mm	Face Width (FW) 3.00 mm
Material: Acetal Hub Diameter (D1): 12.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025B-50-M05-030-050-A-P Spur Gears - 50 tooth - 26x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each
Teeth 50	Pitch Circle Diameter (PD) 26.000 mm _{(1.024 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 26.00 mm
Material: Acetal Face Width (FW): 3.00 mm Hub Diameter (D1): 12.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025B-50-M05-030-050-A-P Spur Gears - 50 tooth - 26x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Each View the product page first if you are unsure.
G025B-50-M05-030-050-A-P --- Spur Gears - 50 tooth - 26x5 mm - Acetal G025B-50-M05-030-050-A-P --- Spur Gears - 50 tooth - 26x5 mm - Acetal Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Out of stock! Backorder Now
Teeth 50	Pitch Circle Diameter (PD) 52.91 mm _{(2.083 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 55.016 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G053B-50-D24-064-079-AB-G Spur Gears - 50 tooth - 52.91x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per Each
Teeth 50	Pitch Circle Diameter (PD) 52.91 mm _{(2.083 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 55.016 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G053B-50-D24-064-079-AB-G Spur Gears - 50 tooth - 52.91x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per Each View the product page first if you are unsure.
G053B-50-D24-064-079-AB-G --- Spur Gears - 50 tooth - 52.91x7.938 mm - Acetal - Brass insert G053B-50-D24-064-079-AB-G --- Spur Gears - 50 tooth - 52.91x7.938 mm - Acetal - Brass insert Regular price $23.50 AUD Regular price Sale price $23.50 AUD Unit price per Out of stock! Backorder Now
Teeth 50	Pitch Circle Diameter (PD) 52.91 mm _{(2.083 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 55.016 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G053B-50-D24-064-079-A-P Spur Gears - 50 tooth - 52.91x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Each
Teeth 50	Pitch Circle Diameter (PD) 52.91 mm _{(2.083 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 55.016 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G053B-50-D24-064-079-A-P Spur Gears - 50 tooth - 52.91x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Each View the product page first if you are unsure.
G053B-50-D24-064-079-A-P --- Spur Gears - 50 tooth - 52.91x7.938 mm - Acetal G053B-50-D24-064-079-A-P --- Spur Gears - 50 tooth - 52.91x7.938 mm - Acetal Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Out of stock! Backorder Now
Teeth 52	Pitch Circle Diameter (PD) 55.04 mm _{(2.167 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 57.150 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G055B-52-D24-064-079-AB-G Spur Gears - 52 tooth - 55.04x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each
Teeth 52	Pitch Circle Diameter (PD) 55.04 mm _{(2.167 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 57.150 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G055B-52-D24-064-079-AB-G Spur Gears - 52 tooth - 55.04x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Each View the product page first if you are unsure.
G055B-52-D24-064-079-AB-G --- Spur Gears - 52 tooth - 55.04x7.938 mm - Acetal - Brass insert G055B-52-D24-064-079-AB-G --- Spur Gears - 52 tooth - 55.04x7.938 mm - Acetal - Brass insert Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Out of stock! Backorder Now
Teeth 52	Pitch Circle Diameter (PD) 55.04 mm _{(2.167 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 57.150 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G055B-52-D24-064-079-A-P Spur Gears - 52 tooth - 55.04x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Each
Teeth 52	Pitch Circle Diameter (PD) 55.04 mm _{(2.167 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 57.150 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G055B-52-D24-064-079-A-P Spur Gears - 52 tooth - 55.04x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Each View the product page first if you are unsure.
G055B-52-D24-064-079-A-P --- Spur Gears - 52 tooth - 55.04x7.938 mm - Acetal G055B-52-D24-064-079-A-P --- Spur Gears - 52 tooth - 55.04x7.938 mm - Acetal Regular price $10.23 AUD Regular price Sale price $10.23 AUD Unit price per Out of stock! Backorder Now
Teeth 54	Pitch Circle Diameter (PD) 57.15 mm _{(2.25 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 59.258 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G057B-54-D24-064-079-AB-G Spur Gears - 54 tooth - 57.15x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Each
Teeth 54	Pitch Circle Diameter (PD) 57.15 mm _{(2.25 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 59.258 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G057B-54-D24-064-079-AB-G Spur Gears - 54 tooth - 57.15x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Each View the product page first if you are unsure.
G057B-54-D24-064-079-AB-G --- Spur Gears - 54 tooth - 57.15x7.938 mm - Acetal - Brass insert G057B-54-D24-064-079-AB-G --- Spur Gears - 54 tooth - 57.15x7.938 mm - Acetal - Brass insert Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Out of stock! Backorder Now
Teeth 54	Pitch Circle Diameter (PD) 57.15 mm _{(2.25 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 59.258 mm	Face Width (FW) 6.35 mm

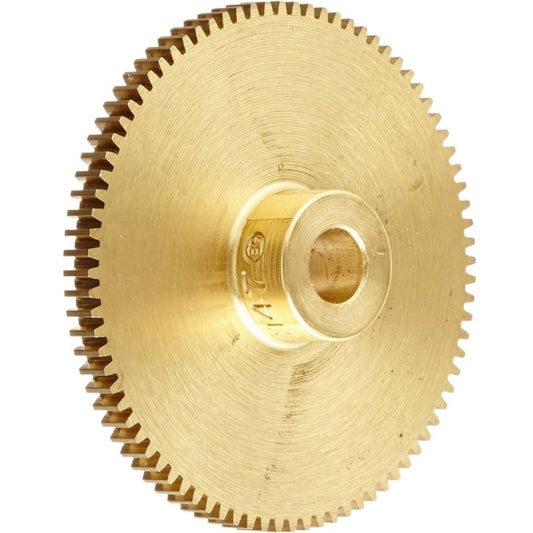

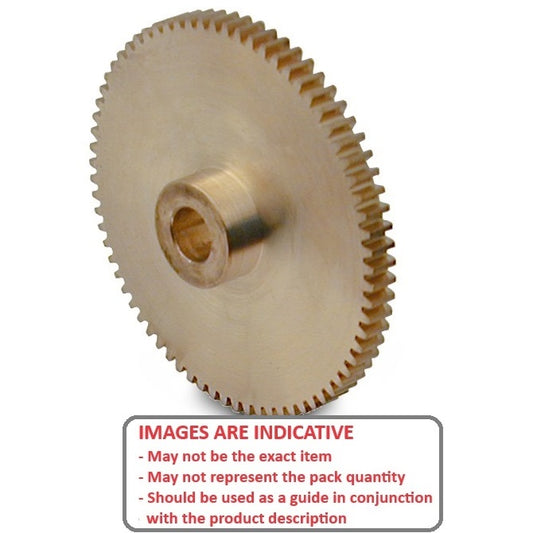

Material: Brass Hub Diameter (D1): 17.46 mm Hub Projection (HL): 7.94 mm Locking Method: No Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G057B-54-V24-064-079-B-P Spur Gears - 54 tooth - 57.15x7.938 mm - Brass 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $25.00 AUD Regular price ~~$47.50 AUD~~ Sale price $25.00 AUD Unit price per Each
Teeth 54	Pitch Circle Diameter (PD) 57.15 mm _{(2.25 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 59.258 mm
Material: Brass Face Width (FW): 6.35 mm Hub Diameter (D1): 17.46 mm Hub Projection (HL): 7.94 mm Locking Method: No Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G057B-54-V24-064-079-B-P Spur Gears - 54 tooth - 57.15x7.938 mm - Brass 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $25.00 AUD Regular price ~~$47.50 AUD~~ Sale price $25.00 AUD Unit price per Each
G057B-54-V24-064-079-B-P --- Spur Gears - 54 tooth - 57.15x7.938 mm - Brass Sale G057B-54-V24-064-079-B-P --- Spur Gears - 54 tooth - 57.15x7.938 mm - Brass Regular price $25.00 AUD Regular price ~~$47.50 AUD~~ Sale price $25.00 AUD Unit price per 1 Available Now Sale
Teeth 54	Pitch Circle Diameter (PD) 57.15 mm _{(2.25 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 59.258 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G057B-54-D24-064-079-A-P Spur Gears - 54 tooth - 57.15x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Each
Teeth 54	Pitch Circle Diameter (PD) 57.15 mm _{(2.25 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 59.258 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G057B-54-D24-064-079-A-P Spur Gears - 54 tooth - 57.15x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Each View the product page first if you are unsure.
G057B-54-D24-064-079-A-P --- Spur Gears - 54 tooth - 57.15x7.938 mm - Acetal G057B-54-D24-064-079-A-P --- Spur Gears - 54 tooth - 57.15x7.938 mm - Acetal Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Out of stock! Backorder Now
Teeth 56	Pitch Circle Diameter (PD) 59.26 mm _{(2.333 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 61.366 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G059B-56-D24-064-079-A-P Spur Gears - 56 tooth - 59.26x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Each
Teeth 56	Pitch Circle Diameter (PD) 59.26 mm _{(2.333 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 61.366 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G059B-56-D24-064-079-A-P Spur Gears - 56 tooth - 59.26x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Each View the product page first if you are unsure.
G059B-56-D24-064-079-A-P --- Spur Gears - 56 tooth - 59.26x7.938 mm - Acetal G059B-56-D24-064-079-A-P --- Spur Gears - 56 tooth - 59.26x7.938 mm - Acetal Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Out of stock! Backorder Now
Teeth 56	Pitch Circle Diameter (PD) 59.26 mm _{(2.333 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 61.366 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G059B-56-D24-064-079-AB-G Spur Gears - 56 tooth - 59.26x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $24.50 AUD Regular price Sale price $24.50 AUD Unit price per Each
Teeth 56	Pitch Circle Diameter (PD) 59.26 mm _{(2.333 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 61.366 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G059B-56-D24-064-079-AB-G Spur Gears - 56 tooth - 59.26x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $24.50 AUD Regular price Sale price $24.50 AUD Unit price per Each View the product page first if you are unsure.
G059B-56-D24-064-079-AB-G --- Spur Gears - 56 tooth - 59.26x7.938 mm - Acetal - Brass insert G059B-56-D24-064-079-AB-G --- Spur Gears - 56 tooth - 59.26x7.938 mm - Acetal - Brass insert Regular price $24.50 AUD Regular price Sale price $24.50 AUD Unit price per Out of stock! Backorder Now
Teeth 60	Pitch Circle Diameter (PD) 57.150 mm _{(2.25 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 59.26 mm	Face Width (FW) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 22.35 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G064B-60-D24-032-079-S3-N Spur Gears - 60 tooth - 57.15x7.938 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $81.41 AUD Regular price Sale price $81.41 AUD Unit price per Each
Teeth 60	Pitch Circle Diameter (PD) 57.150 mm _{(2.25 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 59.26 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 6.35 mm Hub Diameter (D1): 22.35 mm Hub Projection (HL): 7.9 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G064B-60-D24-032-079-S3-N Spur Gears - 60 tooth - 57.15x7.938 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $81.41 AUD Regular price Sale price $81.41 AUD Unit price per Each View the product page first if you are unsure.
G064B-60-D24-032-079-S3-N --- Spur Gears - 60 tooth - 57.15x7.938 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G064B-60-D24-032-079-S3-N --- Spur Gears - 60 tooth - 57.15x7.938 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $81.41 AUD Regular price Sale price $81.41 AUD Unit price per 2 Available Now
Teeth 60	Pitch Circle Diameter (PD) 63.50 mm _{(2.5 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 65.608 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G064B-60-D24-064-079-AB-G Spur Gears - 60 tooth - 63.5x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Each
Teeth 60	Pitch Circle Diameter (PD) 63.50 mm _{(2.5 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 65.608 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G064B-60-D24-064-079-AB-G Spur Gears - 60 tooth - 63.5x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Each View the product page first if you are unsure.
G064B-60-D24-064-079-AB-G --- Spur Gears - 60 tooth - 63.5x7.938 mm - Acetal - Brass insert G064B-60-D24-064-079-AB-G --- Spur Gears - 60 tooth - 63.5x7.938 mm - Acetal - Brass insert Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Out of stock! Backorder Now
Teeth 60	Pitch Circle Diameter (PD) 63.50 mm _{(2.5 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 65.608 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G064B-60-D24-064-079-A-P Spur Gears - 60 tooth - 63.5x7.938 mm - Acetal 3 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Each
Teeth 60	Pitch Circle Diameter (PD) 63.50 mm _{(2.5 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 65.608 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G064B-60-D24-064-079-A-P Spur Gears - 60 tooth - 63.5x7.938 mm - Acetal 3 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Each View the product page first if you are unsure.
G064B-60-D24-064-079-A-P --- Spur Gears - 60 tooth - 63.5x7.938 mm - Acetal G064B-60-D24-064-079-A-P --- Spur Gears - 60 tooth - 63.5x7.938 mm - Acetal Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per 3 Available Now
