Collection: Gears - Spur - Standard - 24DP

Gears (With Images)

Spur

Standard

100 Products in this selection

This is a combined category of 24DP Standard Spur Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
24DP Gear Racks

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - 24DP. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type	Indicative Image
Teeth 20	Pitch Circle Diameter (PD) 21.16 mm _{(0.833 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 23.266 mm	Face Width (FW) 6.35 mm	Type Hubless
Material: Carbon Steel Locking Method: None Category: Gears - Spur - Hubless - 24DP - Steel
Part Number: G021B-20-V24-064-064-C-N Spur Gears - 20 tooth - 21.16x6.35 mm - Carbon Steel 2 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $22.00 AUD Regular price ~~$41.80 AUD~~ Sale price $22.00 AUD Unit price per Each
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 20	Pitch Circle Diameter (PD) 21.16 mm _{(0.833 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 23.266 mm
Material: Carbon Steel Face Width (FW): 6.35 mm Type: Hubless Locking Method: None Category: Gears - Spur - Hubless - 24DP - Steel
Part Number: G021B-20-V24-064-064-C-N Spur Gears - 20 tooth - 21.16x6.35 mm - Carbon Steel 2 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $22.00 AUD Regular price ~~$41.80 AUD~~ Sale price $22.00 AUD Unit price per Each
G021B-20-V24-064-064-C-N --- Spur Gears - 20 tooth - 21.16x6.35 mm - Carbon Steel Sale G021B-20-V24-064-064-C-N --- Spur Gears - 20 tooth - 21.16x6.35 mm - Carbon Steel Regular price $22.00 AUD Regular price ~~$41.80 AUD~~ Sale price $22.00 AUD Unit price per 2 Available Now Sale
Teeth 21	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.333 mm	Face Width (FW) 6.35 mm

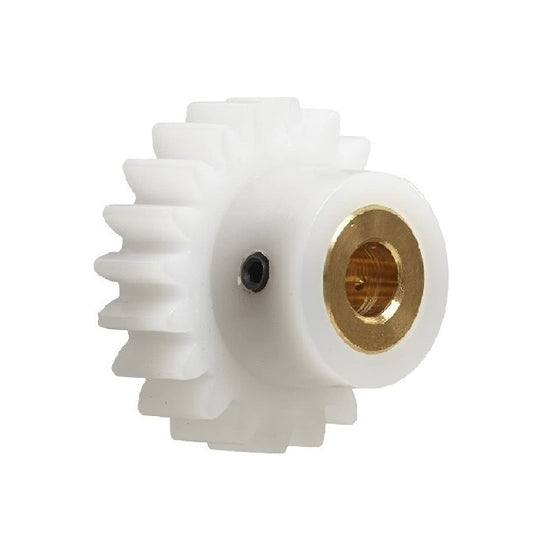

Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G022B-21-D24-064-048-AB-G Spur Gears - 21 tooth - 22.23x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Each
Teeth 21	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.333 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G022B-21-D24-064-048-AB-G Spur Gears - 21 tooth - 22.23x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Each View the product page first if you are unsure.
G022B-21-D24-064-048-AB-G --- Spur Gears - 21 tooth - 22.23x4.762 mm - Acetal - Brass insert G022B-21-D24-064-048-AB-G --- Spur Gears - 21 tooth - 22.23x4.762 mm - Acetal - Brass insert Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Out of stock! Backorder Now
Teeth 21	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.333 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G022B-21-D24-064-048-A-P Spur Gears - 21 tooth - 22.23x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each
Teeth 21	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 24.333 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G022B-21-D24-064-048-A-P Spur Gears - 21 tooth - 22.23x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each View the product page first if you are unsure.
G022B-21-D24-064-048-A-P --- Spur Gears - 21 tooth - 22.23x4.762 mm - Acetal G022B-21-D24-064-048-A-P --- Spur Gears - 21 tooth - 22.23x4.762 mm - Acetal Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Pitch Circle Diameter (PD) 23.29 mm _{(0.917 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 25.400 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G023B-22-D24-064-048-AB-G Spur Gears - 22 tooth - 23.29x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each
Teeth 22	Pitch Circle Diameter (PD) 23.29 mm _{(0.917 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 25.400 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G023B-22-D24-064-048-AB-G Spur Gears - 22 tooth - 23.29x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each View the product page first if you are unsure.
G023B-22-D24-064-048-AB-G --- Spur Gears - 22 tooth - 23.29x4.762 mm - Acetal - Brass insert G023B-22-D24-064-048-AB-G --- Spur Gears - 22 tooth - 23.29x4.762 mm - Acetal - Brass insert Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Pitch Circle Diameter (PD) 23.29 mm _{(0.917 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 25.400 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G023B-22-D24-064-048-A-P Spur Gears - 22 tooth - 23.29x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Each
Teeth 22	Pitch Circle Diameter (PD) 23.29 mm _{(0.917 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 25.400 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G023B-22-D24-064-048-A-P Spur Gears - 22 tooth - 23.29x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Each View the product page first if you are unsure.
G023B-22-D24-064-048-A-P --- Spur Gears - 22 tooth - 23.29x4.762 mm - Acetal G023B-22-D24-064-048-A-P --- Spur Gears - 22 tooth - 23.29x4.762 mm - Acetal Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Out of stock! Backorder Now
Teeth 23	Pitch Circle Diameter (PD) 24.33 mm _{(0.958 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 26.441 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G024B-23-D24-064-048-A-P Spur Gears - 23 tooth - 24.33x4.762 mm - Acetal 6 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Each
Teeth 23	Pitch Circle Diameter (PD) 24.33 mm _{(0.958 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 26.441 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G024B-23-D24-064-048-A-P Spur Gears - 23 tooth - 24.33x4.762 mm - Acetal 6 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Each View the product page first if you are unsure.
G024B-23-D24-064-048-A-P --- Spur Gears - 23 tooth - 24.33x4.762 mm - Acetal G024B-23-D24-064-048-A-P --- Spur Gears - 23 tooth - 24.33x4.762 mm - Acetal Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per 6 Available Now
Teeth 23	Pitch Circle Diameter (PD) 24.33 mm _{(0.958 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 26.441 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G024B-23-D24-064-048-AB-G Spur Gears - 23 tooth - 24.33x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each
Teeth 23	Pitch Circle Diameter (PD) 24.33 mm _{(0.958 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 26.441 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G024B-23-D24-064-048-AB-G Spur Gears - 23 tooth - 24.33x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each View the product page first if you are unsure.
G024B-23-D24-064-048-AB-G --- Spur Gears - 23 tooth - 24.33x4.762 mm - Acetal - Brass insert G024B-23-D24-064-048-AB-G --- Spur Gears - 23 tooth - 24.33x4.762 mm - Acetal - Brass insert Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Out of stock! Backorder Now
Teeth 23	Pitch Circle Diameter (PD) 24.33 mm _{(0.958 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 26.441 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G024B-23-D24-064-079-A-P Spur Gears - 23 tooth - 24.33x7.938 mm - Acetal 10 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Each
Teeth 23	Pitch Circle Diameter (PD) 24.33 mm _{(0.958 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 26.441 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G024B-23-D24-064-079-A-P Spur Gears - 23 tooth - 24.33x7.938 mm - Acetal 10 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Each View the product page first if you are unsure.
G024B-23-D24-064-079-A-P --- Spur Gears - 23 tooth - 24.33x7.938 mm - Acetal G024B-23-D24-064-079-A-P --- Spur Gears - 23 tooth - 24.33x7.938 mm - Acetal Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per 10 Available Now
Teeth 24	Pitch Circle Diameter (PD) 19.050 mm _{(0.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 20.65 mm	Face Width (FW) 4.78 mm

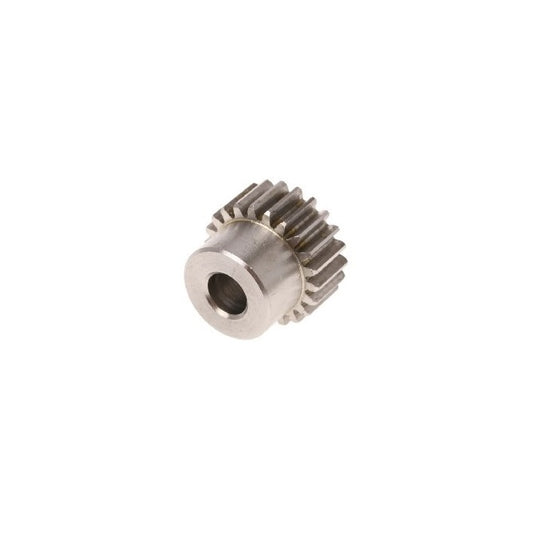

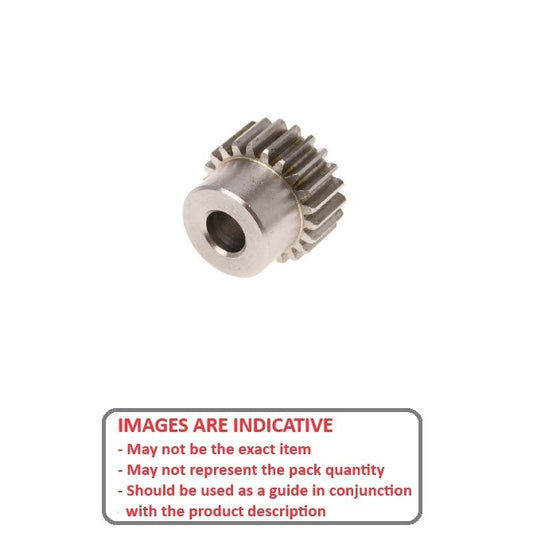

Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G019H-24-D32-032-064-S3-N Spur Gears - 24 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $47.86 AUD Regular price Sale price $47.86 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 19.050 mm _{(0.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 20.65 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G019H-24-D32-032-064-S3-N Spur Gears - 24 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $47.86 AUD Regular price Sale price $47.86 AUD Unit price per Each View the product page first if you are unsure.
G019H-24-D32-032-064-S3-N --- Spur Gears - 24 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G019H-24-D32-032-064-S3-N --- Spur Gears - 24 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $47.86 AUD Regular price Sale price $47.86 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 25.40 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 27.508 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025B-24-D24-064-064-AB-G Spur Gears - 24 tooth - 25.4x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 25.40 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 27.508 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025B-24-D24-064-064-AB-G Spur Gears - 24 tooth - 25.4x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Each View the product page first if you are unsure.
G025B-24-D24-064-064-AB-G --- Spur Gears - 24 tooth - 25.4x6.35 mm - Acetal - Brass insert G025B-24-D24-064-064-AB-G --- Spur Gears - 24 tooth - 25.4x6.35 mm - Acetal - Brass insert Regular price $17.14 AUD Regular price Sale price $17.14 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 25.40 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 27.508 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025B-24-D24-064-064-A-P Spur Gears - 24 tooth - 25.4x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 25.40 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 27.508 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025B-24-D24-064-064-A-P Spur Gears - 24 tooth - 25.4x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each View the product page first if you are unsure.
G025B-24-D24-064-064-A-P --- Spur Gears - 24 tooth - 25.4x6.35 mm - Acetal G025B-24-D24-064-064-A-P --- Spur Gears - 24 tooth - 25.4x6.35 mm - Acetal Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 25.400 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 21.08 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025B-24-D24-032-064-S3-N Spur Gears - 24 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 25.400 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 21.08 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025B-24-D24-032-064-S3-N Spur Gears - 24 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per Each View the product page first if you are unsure.
G025B-24-D24-032-064-S3-N --- Spur Gears - 24 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G025B-24-D24-032-064-S3-N --- Spur Gears - 24 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $42.68 AUD Regular price Sale price $42.68 AUD Unit price per 2 Available Now
Teeth 24	Pitch Circle Diameter (PD) 25.400 mm _{(1 in.)}	Bore (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (OD) 27.508 mm	Face Width (FW) 6.350 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 22.098 mm Hub Projection (HL): 9.652 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G025B-24-V24-064-095-CG Spur Gears - 24 tooth - 25.4x9.525 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $133.41 AUD Regular price Sale price $133.41 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 25.400 mm _{(1 in.)}	Bore (d) 9.525 mm _{(0.375 in.)}	Outside Diameter (OD) 27.508 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 6.350 mm Hub Diameter (D1): 22.098 mm Hub Projection (HL): 9.652 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G025B-24-V24-064-095-CG Spur Gears - 24 tooth - 25.4x9.525 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $133.41 AUD Regular price Sale price $133.41 AUD Unit price per Each View the product page first if you are unsure.
G025B-24-V24-064-095-CG --- Spur Gears - 24 tooth - 25.4x9.525 mm - Steel 0.20 carbon steel with no subsequent treatment G025B-24-V24-064-095-CG --- Spur Gears - 24 tooth - 25.4x9.525 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $133.41 AUD Regular price Sale price $133.41 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Pitch Circle Diameter (PD) 26.47 mm _{(1.042 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 28.575 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G026B-25-D24-064-064-A-P Spur Gears - 25 tooth - 26.47x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each
Teeth 25	Pitch Circle Diameter (PD) 26.47 mm _{(1.042 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 28.575 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G026B-25-D24-064-064-A-P Spur Gears - 25 tooth - 26.47x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each View the product page first if you are unsure.
G026B-25-D24-064-064-A-P --- Spur Gears - 25 tooth - 26.47x6.35 mm - Acetal G026B-25-D24-064-064-A-P --- Spur Gears - 25 tooth - 26.47x6.35 mm - Acetal Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Pitch Circle Diameter (PD) 26.47 mm _{(1.042 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 28.575 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G026B-25-D24-064-064-AB-G Spur Gears - 25 tooth - 26.47x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $17.50 AUD Regular price Sale price $17.50 AUD Unit price per Each
Teeth 25	Pitch Circle Diameter (PD) 26.47 mm _{(1.042 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 28.575 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G026B-25-D24-064-064-AB-G Spur Gears - 25 tooth - 26.47x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $17.50 AUD Regular price Sale price $17.50 AUD Unit price per Each View the product page first if you are unsure.
G026B-25-D24-064-064-AB-G --- Spur Gears - 25 tooth - 26.47x6.35 mm - Acetal - Brass insert G026B-25-D24-064-064-AB-G --- Spur Gears - 25 tooth - 26.47x6.35 mm - Acetal - Brass insert Regular price $17.50 AUD Regular price Sale price $17.50 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Pitch Circle Diameter (PD) 27.51 mm _{(1.083 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 29.616 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G028B-26-D24-064-064-AB-G Spur Gears - 26 tooth - 27.51x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Each
Teeth 26	Pitch Circle Diameter (PD) 27.51 mm _{(1.083 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 29.616 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G028B-26-D24-064-064-AB-G Spur Gears - 26 tooth - 27.51x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Each View the product page first if you are unsure.
G028B-26-D24-064-064-AB-G --- Spur Gears - 26 tooth - 27.51x6.35 mm - Acetal - Brass insert G028B-26-D24-064-064-AB-G --- Spur Gears - 26 tooth - 27.51x6.35 mm - Acetal - Brass insert Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Pitch Circle Diameter (PD) 27.51 mm _{(1.083 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 29.616 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G028B-26-D24-064-064-A-P Spur Gears - 26 tooth - 27.51x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Each
Teeth 26	Pitch Circle Diameter (PD) 27.51 mm _{(1.083 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 29.616 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G028B-26-D24-064-064-A-P Spur Gears - 26 tooth - 27.51x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Each View the product page first if you are unsure.
G028B-26-D24-064-064-A-P --- Spur Gears - 26 tooth - 27.51x6.35 mm - Acetal G028B-26-D24-064-064-A-P --- Spur Gears - 26 tooth - 27.51x6.35 mm - Acetal Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Out of stock! Backorder Now
Teeth 27	Pitch Circle Diameter (PD) 28.58 mm _{(1.125 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 30.683 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G029B-27-D24-064-064-AB-G Spur Gears - 27 tooth - 28.58x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Each
Teeth 27	Pitch Circle Diameter (PD) 28.58 mm _{(1.125 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 30.683 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G029B-27-D24-064-064-AB-G Spur Gears - 27 tooth - 28.58x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Each View the product page first if you are unsure.
G029B-27-D24-064-064-AB-G --- Spur Gears - 27 tooth - 28.58x6.35 mm - Acetal - Brass insert G029B-27-D24-064-064-AB-G --- Spur Gears - 27 tooth - 28.58x6.35 mm - Acetal - Brass insert Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Out of stock! Backorder Now
Teeth 27	Pitch Circle Diameter (PD) 28.58 mm _{(1.125 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 30.683 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G029B-27-D24-064-064-A-P Spur Gears - 27 tooth - 28.58x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Each
Teeth 27	Pitch Circle Diameter (PD) 28.58 mm _{(1.125 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 30.683 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G029B-27-D24-064-064-A-P Spur Gears - 27 tooth - 28.58x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Each View the product page first if you are unsure.
G029B-27-D24-064-064-A-P --- Spur Gears - 27 tooth - 28.58x6.35 mm - Acetal G029B-27-D24-064-064-A-P --- Spur Gears - 27 tooth - 28.58x6.35 mm - Acetal Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Pitch Circle Diameter (PD) 22.400 mm _{(0.882 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 24.00 mm	Face Width (FW) 4.00 mm
Material: Acetal Hub Diameter (D1): 8.00 mm Hub Projection (HL): 3.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G022B-28-M08-040-060-A-P Spur Gears - 28 tooth - 22.4x6 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Each
Teeth 28	Pitch Circle Diameter (PD) 22.400 mm _{(0.882 in.)}	Bore (d) 6.000 mm _{(0.236 in.)}	Outside Diameter (OD) 24.00 mm
Material: Acetal Face Width (FW): 4.00 mm Hub Diameter (D1): 8.00 mm Hub Projection (HL): 3.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G022B-28-M08-040-060-A-P Spur Gears - 28 tooth - 22.4x6 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Each View the product page first if you are unsure.
G022B-28-M08-040-060-A-P --- Spur Gears - 28 tooth - 22.4x6 mm - Acetal G022B-28-M08-040-060-A-P --- Spur Gears - 28 tooth - 22.4x6 mm - Acetal Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Pitch Circle Diameter (PD) 29.64 mm _{(1.167 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 31.750 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G030B-28-D24-064-064-AB-G Spur Gears - 28 tooth - 29.64x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each
Teeth 28	Pitch Circle Diameter (PD) 29.64 mm _{(1.167 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 31.750 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G030B-28-D24-064-064-AB-G Spur Gears - 28 tooth - 29.64x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Each View the product page first if you are unsure.
G030B-28-D24-064-064-AB-G --- Spur Gears - 28 tooth - 29.64x6.35 mm - Acetal - Brass insert G030B-28-D24-064-064-AB-G --- Spur Gears - 28 tooth - 29.64x6.35 mm - Acetal - Brass insert Regular price $18.41 AUD Regular price Sale price $18.41 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Pitch Circle Diameter (PD) 29.64 mm _{(1.167 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 31.750 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G030B-28-D24-064-064-A-P Spur Gears - 28 tooth - 29.64x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Each
Teeth 28	Pitch Circle Diameter (PD) 29.64 mm _{(1.167 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 31.750 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G030B-28-D24-064-064-A-P Spur Gears - 28 tooth - 29.64x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Each View the product page first if you are unsure.
G030B-28-D24-064-064-A-P --- Spur Gears - 28 tooth - 29.64x6.35 mm - Acetal G030B-28-D24-064-064-A-P --- Spur Gears - 28 tooth - 29.64x6.35 mm - Acetal Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Pitch Circle Diameter (PD) 15.000 mm _{(0.591 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 15.50 mm	Face Width (FW) 3.00 mm
Material: Acetal Hub Diameter (D1): 10.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G015B-30-M05-030-050-A-P Spur Gears - 30 tooth - 15x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Each
Teeth 30	Pitch Circle Diameter (PD) 15.000 mm _{(0.591 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 15.50 mm
Material: Acetal Face Width (FW): 3.00 mm Hub Diameter (D1): 10.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G015B-30-M05-030-050-A-P Spur Gears - 30 tooth - 15x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Each View the product page first if you are unsure.
G015B-30-M05-030-050-A-P --- Spur Gears - 30 tooth - 15x5 mm - Acetal G015B-30-M05-030-050-A-P --- Spur Gears - 30 tooth - 15x5 mm - Acetal Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Pitch Circle Diameter (PD) 15.875 mm _{(0.625 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 17.02 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016H-30-D48-032-064-S3-N Spur Gears - 30 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $45.05 AUD Regular price Sale price $45.05 AUD Unit price per Each
Teeth 30	Pitch Circle Diameter (PD) 15.875 mm _{(0.625 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 17.02 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016H-30-D48-032-064-S3-N Spur Gears - 30 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $45.05 AUD Regular price Sale price $45.05 AUD Unit price per Each View the product page first if you are unsure.
G016H-30-D48-032-064-S3-N --- Spur Gears - 30 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G016H-30-D48-032-064-S3-N --- Spur Gears - 30 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $45.05 AUD Regular price Sale price $45.05 AUD Unit price per 2 Available Now
