Collection: Gears - Spur - Standard - 24DP

Gears (With Images)

Spur

Standard

100 Products in this selection

This is a combined category of 24DP Standard Spur Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
24DP Gear Racks

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - 24DP. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type	Indicative Image
Teeth 12	Pitch Circle Diameter (PD) 12.70 mm _{(0.5 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 14.808 mm	Face Width (FW) 6.35 mm

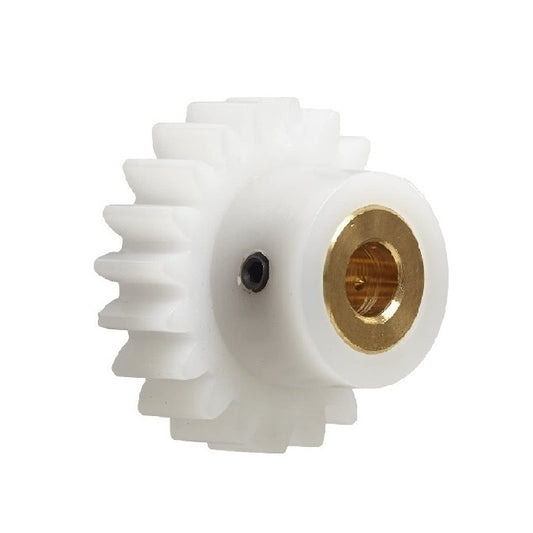

Material: Acetal - Brass insert Hub Diameter (D1): 9.53 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G013B-12-D24-064-048-AB-G Spur Gears - 12 tooth - 12.7x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Each
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 12	Pitch Circle Diameter (PD) 12.70 mm _{(0.5 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 14.808 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 9.53 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G013B-12-D24-064-048-AB-G Spur Gears - 12 tooth - 12.7x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Each View the product page first if you are unsure.
G013B-12-D24-064-048-AB-G --- Spur Gears - 12 tooth - 12.7x4.762 mm - Acetal - Brass insert G013B-12-D24-064-048-AB-G --- Spur Gears - 12 tooth - 12.7x4.762 mm - Acetal - Brass insert Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Out of stock! Backorder Now
Teeth 12	Pitch Circle Diameter (PD) 12.700 mm _{(0.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 14.808 mm	Face Width (FW) 6.350 mm

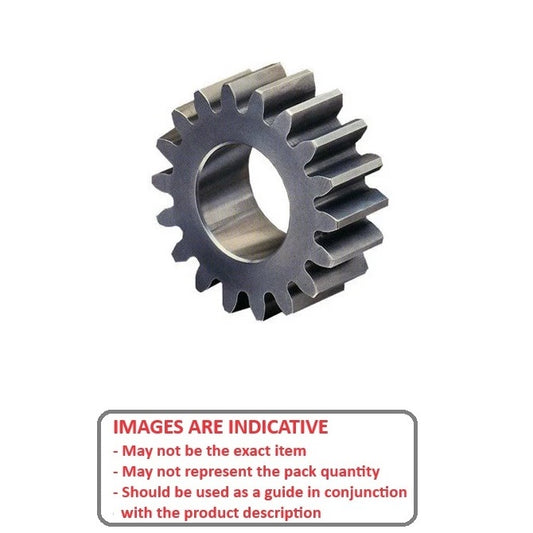

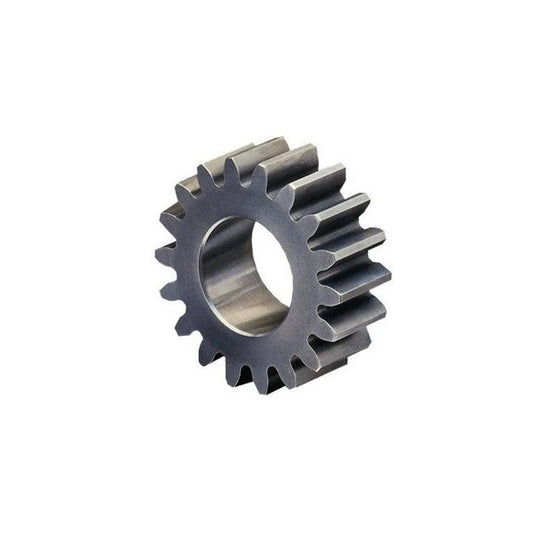

Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 9.144 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G013B-12-V24-064-064-CG Spur Gears - 12 tooth - 12.7x6.35 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $83.86 AUD Regular price Sale price $83.86 AUD Unit price per Each
Teeth 12	Pitch Circle Diameter (PD) 12.700 mm _{(0.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 14.808 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 6.350 mm Hub Diameter (D1): 9.144 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G013B-12-V24-064-064-CG Spur Gears - 12 tooth - 12.7x6.35 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $83.86 AUD Regular price Sale price $83.86 AUD Unit price per Each View the product page first if you are unsure.
G013B-12-V24-064-064-CG --- Spur Gears - 12 tooth - 12.7x6.35 mm - Steel 0.20 carbon steel with no subsequent treatment G013B-12-V24-064-064-CG --- Spur Gears - 12 tooth - 12.7x6.35 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $83.86 AUD Regular price Sale price $83.86 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Pitch Circle Diameter (PD) 14.81 mm _{(0.583 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 16.916 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 11.11 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G015B-14-D24-064-048-A-P Spur Gears - 14 tooth - 14.81x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per Each
Teeth 14	Pitch Circle Diameter (PD) 14.81 mm _{(0.583 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 16.916 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 11.11 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G015B-14-D24-064-048-A-P Spur Gears - 14 tooth - 14.81x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per Each View the product page first if you are unsure.
G015B-14-D24-064-048-A-P --- Spur Gears - 14 tooth - 14.81x4.762 mm - Acetal G015B-14-D24-064-048-A-P --- Spur Gears - 14 tooth - 14.81x4.762 mm - Acetal Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Pitch Circle Diameter (PD) 14.81 mm _{(0.583 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 16.916 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 11.11 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G015B-14-D24-064-048-AB-G Spur Gears - 14 tooth - 14.81x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Each
Teeth 14	Pitch Circle Diameter (PD) 14.81 mm _{(0.583 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 16.916 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 11.11 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G015B-14-D24-064-048-AB-G Spur Gears - 14 tooth - 14.81x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Each View the product page first if you are unsure.
G015B-14-D24-064-048-AB-G --- Spur Gears - 14 tooth - 14.81x4.762 mm - Acetal - Brass insert G015B-14-D24-064-048-AB-G --- Spur Gears - 14 tooth - 14.81x4.762 mm - Acetal - Brass insert Regular price $14.50 AUD Regular price Sale price $14.50 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Pitch Circle Diameter (PD) 7.500 mm _{(0.295 in.)}	Bore (d) 2.000 mm _{(0.079 in.)}	Outside Diameter (OD) 8.50 mm	Face Width (FW) 3.00 mm
Material: Acetal Hub Diameter (D1): 4.50 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G008B-15-M05-030-020-A-P Spur Gears - 15 tooth - 7.5x2 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each
Teeth 15	Pitch Circle Diameter (PD) 7.500 mm _{(0.295 in.)}	Bore (d) 2.000 mm _{(0.079 in.)}	Outside Diameter (OD) 8.50 mm
Material: Acetal Face Width (FW): 3.00 mm Hub Diameter (D1): 4.50 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G008B-15-M05-030-020-A-P Spur Gears - 15 tooth - 7.5x2 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each View the product page first if you are unsure.
G008B-15-M05-030-020-A-P --- Spur Gears - 15 tooth - 7.5x2 mm - Acetal G008B-15-M05-030-020-A-P --- Spur Gears - 15 tooth - 7.5x2 mm - Acetal Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Pitch Circle Diameter (PD) 15.875 mm _{(0.625 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 18.03 mm	Face Width (FW) 4.78 mm

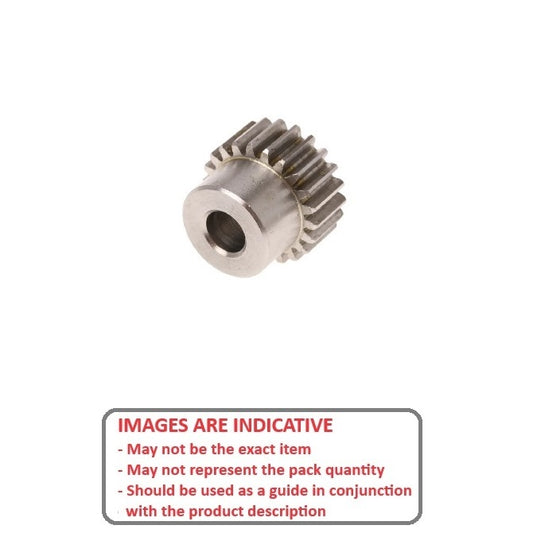

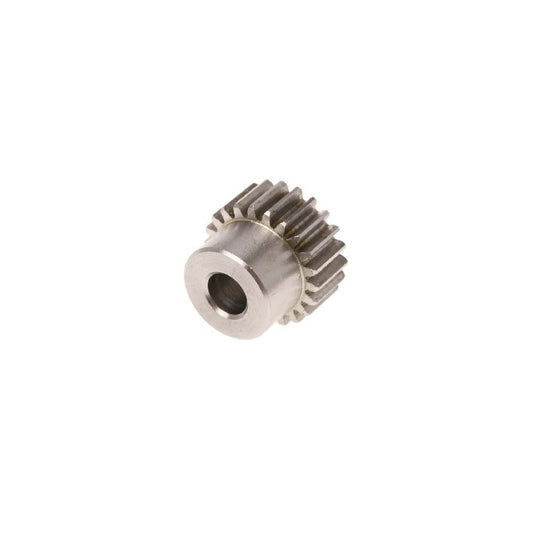

Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016B-15-D24-032-064-S3-N Spur Gears - 15 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Each
Teeth 15	Pitch Circle Diameter (PD) 15.875 mm _{(0.625 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 18.03 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016B-15-D24-032-064-S3-N Spur Gears - 15 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Each View the product page first if you are unsure.
G016B-15-D24-032-064-S3-N --- Spur Gears - 15 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G016B-15-D24-032-064-S3-N --- Spur Gears - 15 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per 2 Available Now
Teeth 15	Pitch Circle Diameter (PD) 15.88 mm _{(0.625 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.983 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016B-15-D24-064-048-AB-G Spur Gears - 15 tooth - 15.88x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Each
Teeth 15	Pitch Circle Diameter (PD) 15.88 mm _{(0.625 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.983 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016B-15-D24-064-048-AB-G Spur Gears - 15 tooth - 15.88x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Each View the product page first if you are unsure.
G016B-15-D24-064-048-AB-G --- Spur Gears - 15 tooth - 15.88x4.762 mm - Acetal - Brass insert G016B-15-D24-064-048-AB-G --- Spur Gears - 15 tooth - 15.88x4.762 mm - Acetal - Brass insert Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Pitch Circle Diameter (PD) 15.88 mm _{(0.625 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.983 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016B-15-D24-064-048-A-P Spur Gears - 15 tooth - 15.88x4.762 mm - Acetal 8 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per Each
Teeth 15	Pitch Circle Diameter (PD) 15.88 mm _{(0.625 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.983 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016B-15-D24-064-048-A-P Spur Gears - 15 tooth - 15.88x4.762 mm - Acetal 8 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per Each View the product page first if you are unsure.
G016B-15-D24-064-048-A-P --- Spur Gears - 15 tooth - 15.88x4.762 mm - Acetal G016B-15-D24-064-048-A-P --- Spur Gears - 15 tooth - 15.88x4.762 mm - Acetal Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per 8 Available Now
Teeth 16	Pitch Circle Diameter (PD) 16.94 mm _{(0.667 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.050 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G017B-16-D24-064-048-AB-G Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 16.94 mm _{(0.667 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.050 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G017B-16-D24-064-048-AB-G Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Each View the product page first if you are unsure.
G017B-16-D24-064-048-AB-G --- Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal - Brass insert G017B-16-D24-064-048-AB-G --- Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal - Brass insert Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Pitch Circle Diameter (PD) 16.94 mm _{(0.667 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.050 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G017B-16-D24-064-048-A-P Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 16.94 mm _{(0.667 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.050 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 12.30 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G017B-16-D24-064-048-A-P Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each View the product page first if you are unsure.
G017B-16-D24-064-048-A-P --- Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal G017B-16-D24-064-048-A-P --- Spur Gears - 16 tooth - 16.94x4.762 mm - Acetal Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Pitch Circle Diameter (PD) 16.942 mm _{(0.667 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 19.050 mm	Face Width (FW) 6.350 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 13.716 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G017B-16-V24-064-079-CG Spur Gears - 16 tooth - 16.942x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $119.23 AUD Regular price Sale price $119.23 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 16.942 mm _{(0.667 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 19.050 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 6.350 mm Hub Diameter (D1): 13.716 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G017B-16-V24-064-079-CG Spur Gears - 16 tooth - 16.942x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $119.23 AUD Regular price Sale price $119.23 AUD Unit price per Each View the product page first if you are unsure.
G017B-16-V24-064-079-CG --- Spur Gears - 16 tooth - 16.942x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment G017B-16-V24-064-079-CG --- Spur Gears - 16 tooth - 16.942x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $119.23 AUD Regular price Sale price $119.23 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.091 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G018B-17-D24-064-048-AB-G Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Each
Teeth 17	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.091 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G018B-17-D24-064-048-AB-G Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Each View the product page first if you are unsure.
G018B-17-D24-064-048-AB-G --- Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal - Brass insert G018B-17-D24-064-048-AB-G --- Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal - Brass insert Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Out of stock! Backorder Now
Teeth 17	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.091 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G018B-17-D24-064-048-A-P Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal 6 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each
Teeth 17	Pitch Circle Diameter (PD) 17.98 mm _{(0.708 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.091 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G018B-17-D24-064-048-A-P Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal 6 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each View the product page first if you are unsure.
G018B-17-D24-064-048-A-P --- Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal G018B-17-D24-064-048-A-P --- Spur Gears - 17 tooth - 17.98x4.762 mm - Acetal Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per 6 Available Now
Teeth 18	Pitch Circle Diameter (PD) 9.000 mm _{(0.354 in.)}	Bore (d) 3.000 mm _{(0.118 in.)}	Outside Diameter (OD) 10.00 mm	Face Width (FW) 3.00 mm
Material: Acetal Hub Diameter (D1): 6.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G009B-18-M05-030-030-A-P Spur Gears - 18 tooth - 9x3 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 9.000 mm _{(0.354 in.)}	Bore (d) 3.000 mm _{(0.118 in.)}	Outside Diameter (OD) 10.00 mm
Material: Acetal Face Width (FW): 3.00 mm Hub Diameter (D1): 6.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G009B-18-M05-030-030-A-P Spur Gears - 18 tooth - 9x3 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each View the product page first if you are unsure.
G009B-18-M05-030-030-A-P --- Spur Gears - 18 tooth - 9x3 mm - Acetal G009B-18-M05-030-030-A-P --- Spur Gears - 18 tooth - 9x3 mm - Acetal Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G019B-18-D24-064-048-A-P Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G019B-18-D24-064-048-A-P Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each View the product page first if you are unsure.
G019B-18-D24-064-048-A-P --- Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal G019B-18-D24-064-048-A-P --- Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm	Face Width (FW) 6.35 mm

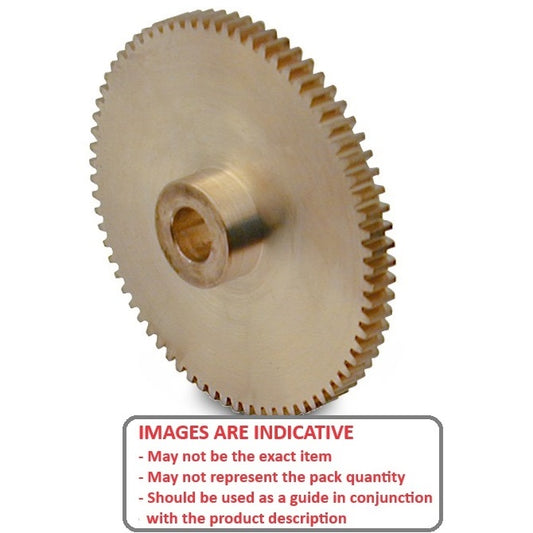

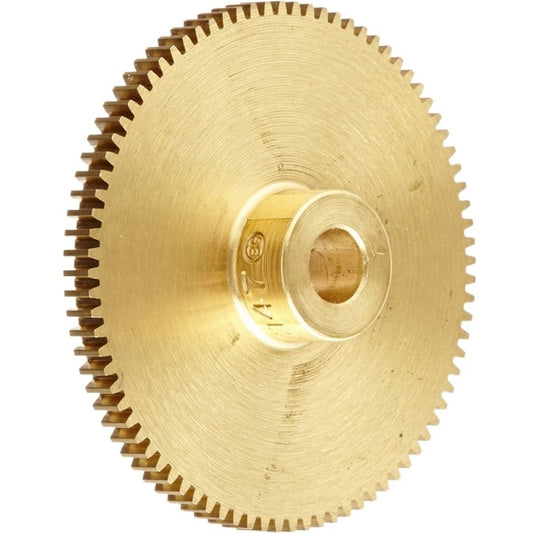

Material: Brass Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.35 mm Locking Method: No Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G019B-18-V24-064-048-B-P Spur Gears - 18 tooth - 19.05x4.762 mm - Brass 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm
Material: Brass Face Width (FW): 6.35 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.35 mm Locking Method: No Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G019B-18-V24-064-048-B-P Spur Gears - 18 tooth - 19.05x4.762 mm - Brass 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Each
G019B-18-V24-064-048-B-P --- Spur Gears - 18 tooth - 19.05x4.762 mm - Brass Sale G019B-18-V24-064-048-B-P --- Spur Gears - 18 tooth - 19.05x4.762 mm - Brass Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 1 Available Now Sale
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G019B-18-D24-064-048-AB-G Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 21.158 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G019B-18-D24-064-048-AB-G Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Each View the product page first if you are unsure.
G019B-18-D24-064-048-AB-G --- Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal - Brass insert G019B-18-D24-064-048-AB-G --- Spur Gears - 18 tooth - 19.05x4.762 mm - Acetal - Brass insert Regular price $15.59 AUD Regular price Sale price $15.59 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 19.050 mm _{(0.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 21.08 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G019B-18-D24-032-064-S3-N Spur Gears - 18 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $42.50 AUD Regular price Sale price $42.50 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 19.050 mm _{(0.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 21.08 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G019B-18-D24-032-064-S3-N Spur Gears - 18 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $42.50 AUD Regular price Sale price $42.50 AUD Unit price per Each View the product page first if you are unsure.
G019B-18-D24-032-064-S3-N --- Spur Gears - 18 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G019B-18-D24-032-064-S3-N --- Spur Gears - 18 tooth - 19.05x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $42.50 AUD Regular price Sale price $42.50 AUD Unit price per 2 Available Now
Teeth 19	Pitch Circle Diameter (PD) 20.12 mm _{(0.792 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.225 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G020B-19-D24-064-048-A-P Spur Gears - 19 tooth - 20.12x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each
Teeth 19	Pitch Circle Diameter (PD) 20.12 mm _{(0.792 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.225 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G020B-19-D24-064-048-A-P Spur Gears - 19 tooth - 20.12x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each View the product page first if you are unsure.
G020B-19-D24-064-048-A-P --- Spur Gears - 19 tooth - 20.12x4.762 mm - Acetal G020B-19-D24-064-048-A-P --- Spur Gears - 19 tooth - 20.12x4.762 mm - Acetal Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Pitch Circle Diameter (PD) 20.12 mm _{(0.792 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.225 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G020B-19-D24-064-048-AB-G Spur Gears - 19 tooth - 20.12x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Each
Teeth 19	Pitch Circle Diameter (PD) 20.12 mm _{(0.792 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.225 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G020B-19-D24-064-048-AB-G Spur Gears - 19 tooth - 20.12x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Each View the product page first if you are unsure.
G020B-19-D24-064-048-AB-G --- Spur Gears - 19 tooth - 20.12x4.762 mm - Acetal - Brass insert G020B-19-D24-064-048-AB-G --- Spur Gears - 19 tooth - 20.12x4.762 mm - Acetal - Brass insert Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 15.875 mm _{(0.625 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 17.48 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016H-20-D32-032-064-S3-N Spur Gears - 20 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $45.05 AUD Regular price Sale price $45.05 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 15.875 mm _{(0.625 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 17.48 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016H-20-D32-032-064-S3-N Spur Gears - 20 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Mon, Jun 30, 2025 Regular price $45.05 AUD Regular price Sale price $45.05 AUD Unit price per Each View the product page first if you are unsure.
G016H-20-D32-032-064-S3-N --- Spur Gears - 20 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G016H-20-D32-032-064-S3-N --- Spur Gears - 20 tooth - 15.875x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $45.05 AUD Regular price Sale price $45.05 AUD Unit price per 2 Available Now
Teeth 20	Pitch Circle Diameter (PD) 21.158 mm _{(0.833 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 23.266 mm	Face Width (FW) 6.350 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 17.780 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G021B-20-V24-064-079-CG Spur Gears - 20 tooth - 21.158x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $113.95 AUD Regular price Sale price $113.95 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 21.158 mm _{(0.833 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 23.266 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 6.350 mm Hub Diameter (D1): 17.780 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 24DP - 14.5 Degree
Part Number: G021B-20-V24-064-079-CG Spur Gears - 20 tooth - 21.158x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $113.95 AUD Regular price Sale price $113.95 AUD Unit price per Each View the product page first if you are unsure.
G021B-20-V24-064-079-CG --- Spur Gears - 20 tooth - 21.158x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment G021B-20-V24-064-079-CG --- Spur Gears - 20 tooth - 21.158x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $113.95 AUD Regular price Sale price $113.95 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 21.16 mm _{(0.833 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.266 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G021B-20-D24-064-048-A-P Spur Gears - 20 tooth - 21.16x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 21.16 mm _{(0.833 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.266 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G021B-20-D24-064-048-A-P Spur Gears - 20 tooth - 21.16x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Each View the product page first if you are unsure.
G021B-20-D24-064-048-A-P --- Spur Gears - 20 tooth - 21.16x4.762 mm - Acetal G021B-20-D24-064-048-A-P --- Spur Gears - 20 tooth - 21.16x4.762 mm - Acetal Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 21.16 mm _{(0.833 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.266 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G021B-20-D24-064-048-AB-G Spur Gears - 20 tooth - 21.16x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $16.14 AUD Regular price Sale price $16.14 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 21.16 mm _{(0.833 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.266 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 13.89 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G021B-20-D24-064-048-AB-G Spur Gears - 20 tooth - 21.16x4.762 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $16.14 AUD Regular price Sale price $16.14 AUD Unit price per Each View the product page first if you are unsure.
G021B-20-D24-064-048-AB-G --- Spur Gears - 20 tooth - 21.16x4.762 mm - Acetal - Brass insert G021B-20-D24-064-048-AB-G --- Spur Gears - 20 tooth - 21.16x4.762 mm - Acetal - Brass insert Regular price $16.14 AUD Regular price Sale price $16.14 AUD Unit price per Out of stock! Backorder Now
