Collection: Gears - Spur - Standard - 24DP

Gears (With Images)

Spur

Standard

100 Products in this selection

This is a combined category of 24DP Standard Spur Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
24DP Gear Racks

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - 24DP. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type	Indicative Image
Teeth 30	Pitch Circle Diameter (PD) 31.75 mm _{(1.25 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 33.858 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G032B-30-D24-064-064-AB-G Spur Gears - 30 tooth - 31.75x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $18.68 AUD Regular price Sale price $18.68 AUD Unit price per Each
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 30	Pitch Circle Diameter (PD) 31.75 mm _{(1.25 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 33.858 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G032B-30-D24-064-064-AB-G Spur Gears - 30 tooth - 31.75x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $18.68 AUD Regular price Sale price $18.68 AUD Unit price per Each View the product page first if you are unsure.
G032B-30-D24-064-064-AB-G --- Spur Gears - 30 tooth - 31.75x6.35 mm - Acetal - Brass insert G032B-30-D24-064-064-AB-G --- Spur Gears - 30 tooth - 31.75x6.35 mm - Acetal - Brass insert Regular price $18.68 AUD Regular price Sale price $18.68 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Pitch Circle Diameter (PD) 31.75 mm _{(1.25 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 33.858 mm	Face Width (FW) 6.35 mm

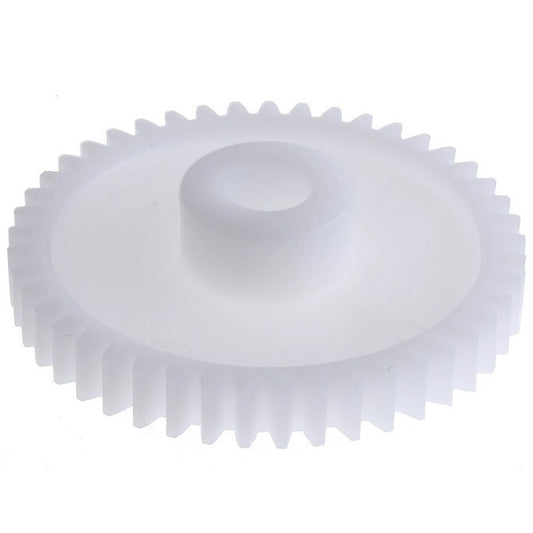

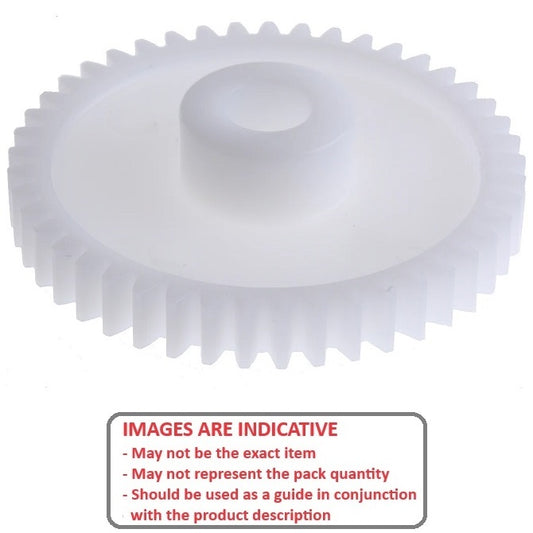

Material: Acetal Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G032B-30-D24-064-064-A-P Spur Gears - 30 tooth - 31.75x6.35 mm - Acetal 8 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each
Teeth 30	Pitch Circle Diameter (PD) 31.75 mm _{(1.25 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 33.858 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G032B-30-D24-064-064-A-P Spur Gears - 30 tooth - 31.75x6.35 mm - Acetal 8 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each View the product page first if you are unsure.
G032B-30-D24-064-064-A-P --- Spur Gears - 30 tooth - 31.75x6.35 mm - Acetal G032B-30-D24-064-064-A-P --- Spur Gears - 30 tooth - 31.75x6.35 mm - Acetal Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per 8 Available Now
Teeth 30	Pitch Circle Diameter (PD) 31.750 mm _{(1.25 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 33.86 mm	Face Width (FW) 4.78 mm

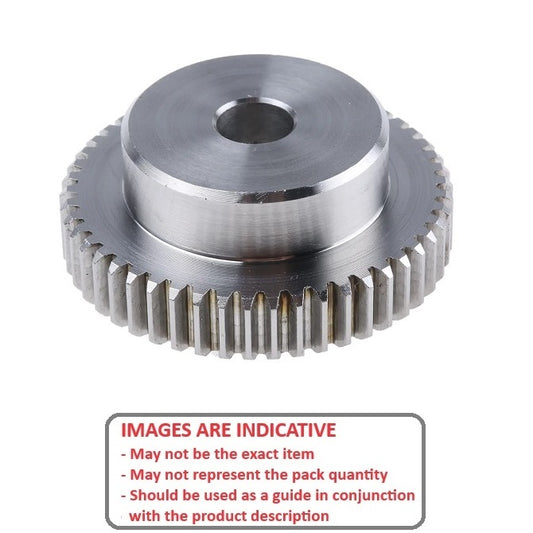

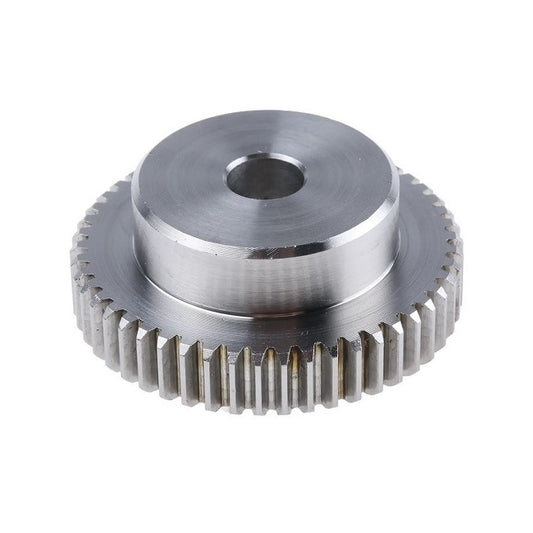

Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G032B-30-D24-032-064-S3-N Spur Gears - 30 tooth - 31.75x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $55.05 AUD Regular price Sale price $55.05 AUD Unit price per Each
Teeth 30	Pitch Circle Diameter (PD) 31.750 mm _{(1.25 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 33.86 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G032B-30-D24-032-064-S3-N Spur Gears - 30 tooth - 31.75x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $55.05 AUD Regular price Sale price $55.05 AUD Unit price per Each View the product page first if you are unsure.
G032B-30-D24-032-064-S3-N --- Spur Gears - 30 tooth - 31.75x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G032B-30-D24-032-064-S3-N --- Spur Gears - 30 tooth - 31.75x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $55.05 AUD Regular price Sale price $55.05 AUD Unit price per 2 Available Now
Teeth 32	Pitch Circle Diameter (PD) 16.000 mm _{(0.63 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 17.00 mm	Face Width (FW) 3.00 mm
Material: Acetal Hub Diameter (D1): 10.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016B-32-M05-030-050-A-P Spur Gears - 32 tooth - 16x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Each
Teeth 32	Pitch Circle Diameter (PD) 16.000 mm _{(0.63 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 17.00 mm
Material: Acetal Face Width (FW): 3.00 mm Hub Diameter (D1): 10.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G016B-32-M05-030-050-A-P Spur Gears - 32 tooth - 16x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Each View the product page first if you are unsure.
G016B-32-M05-030-050-A-P --- Spur Gears - 32 tooth - 16x5 mm - Acetal G016B-32-M05-030-050-A-P --- Spur Gears - 32 tooth - 16x5 mm - Acetal Regular price $9.95 AUD Regular price Sale price $9.95 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Pitch Circle Diameter (PD) 25.400 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 27.00 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025H-32-D32-032-064-S3-N Spur Gears - 32 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $50.68 AUD Regular price Sale price $50.68 AUD Unit price per Each
Teeth 32	Pitch Circle Diameter (PD) 25.400 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 27.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G025H-32-D32-032-064-S3-N Spur Gears - 32 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $50.68 AUD Regular price Sale price $50.68 AUD Unit price per Each View the product page first if you are unsure.
G025H-32-D32-032-064-S3-N --- Spur Gears - 32 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G025H-32-D32-032-064-S3-N --- Spur Gears - 32 tooth - 25.4x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $50.68 AUD Regular price Sale price $50.68 AUD Unit price per 2 Available Now
Teeth 32	Pitch Circle Diameter (PD) 33.86 mm _{(1.333 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 35.966 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G034B-32-D24-064-064-A-P Spur Gears - 32 tooth - 33.86x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each
Teeth 32	Pitch Circle Diameter (PD) 33.86 mm _{(1.333 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 35.966 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G034B-32-D24-064-064-A-P Spur Gears - 32 tooth - 33.86x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each View the product page first if you are unsure.
G034B-32-D24-064-064-A-P --- Spur Gears - 32 tooth - 33.86x6.35 mm - Acetal G034B-32-D24-064-064-A-P --- Spur Gears - 32 tooth - 33.86x6.35 mm - Acetal Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Pitch Circle Diameter (PD) 33.86 mm _{(1.333 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 35.966 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G034B-32-D24-064-064-AB-G Spur Gears - 32 tooth - 33.86x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Each
Teeth 32	Pitch Circle Diameter (PD) 33.86 mm _{(1.333 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 35.966 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G034B-32-D24-064-064-AB-G Spur Gears - 32 tooth - 33.86x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Each View the product page first if you are unsure.
G034B-32-D24-064-064-AB-G --- Spur Gears - 32 tooth - 33.86x6.35 mm - Acetal - Brass insert G034B-32-D24-064-064-AB-G --- Spur Gears - 32 tooth - 33.86x6.35 mm - Acetal - Brass insert Regular price $19.32 AUD Regular price Sale price $19.32 AUD Unit price per Out of stock! Backorder Now
Teeth 33	Pitch Circle Diameter (PD) 34.93 mm _{(1.375 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 37.033 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G035B-33-D24-064-064-A-P Spur Gears - 33 tooth - 34.93x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each
Teeth 33	Pitch Circle Diameter (PD) 34.93 mm _{(1.375 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 37.033 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G035B-33-D24-064-064-A-P Spur Gears - 33 tooth - 34.93x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each View the product page first if you are unsure.
G035B-33-D24-064-064-A-P --- Spur Gears - 33 tooth - 34.93x6.35 mm - Acetal G035B-33-D24-064-064-A-P --- Spur Gears - 33 tooth - 34.93x6.35 mm - Acetal Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Out of stock! Backorder Now
Teeth 33	Pitch Circle Diameter (PD) 34.93 mm _{(1.375 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 37.033 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G035B-33-D24-064-064-AB-G Spur Gears - 33 tooth - 34.93x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each
Teeth 33	Pitch Circle Diameter (PD) 34.93 mm _{(1.375 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 37.033 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G035B-33-D24-064-064-AB-G Spur Gears - 33 tooth - 34.93x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Each View the product page first if you are unsure.
G035B-33-D24-064-064-AB-G --- Spur Gears - 33 tooth - 34.93x6.35 mm - Acetal - Brass insert G035B-33-D24-064-064-AB-G --- Spur Gears - 33 tooth - 34.93x6.35 mm - Acetal - Brass insert Regular price $19.41 AUD Regular price Sale price $19.41 AUD Unit price per Out of stock! Backorder Now
Teeth 34	Pitch Circle Diameter (PD) 35.99 mm _{(1.417 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 38.100 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G036B-34-D24-064-064-A-P Spur Gears - 34 tooth - 35.99x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each
Teeth 34	Pitch Circle Diameter (PD) 35.99 mm _{(1.417 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 38.100 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G036B-34-D24-064-064-A-P Spur Gears - 34 tooth - 35.99x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each View the product page first if you are unsure.
G036B-34-D24-064-064-A-P --- Spur Gears - 34 tooth - 35.99x6.35 mm - Acetal G036B-34-D24-064-064-A-P --- Spur Gears - 34 tooth - 35.99x6.35 mm - Acetal Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Out of stock! Backorder Now
Teeth 34	Pitch Circle Diameter (PD) 35.99 mm _{(1.417 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 38.100 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G036B-34-D24-064-064-AB-G Spur Gears - 34 tooth - 35.99x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Each
Teeth 34	Pitch Circle Diameter (PD) 35.99 mm _{(1.417 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 38.100 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 15.48 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G036B-34-D24-064-064-AB-G Spur Gears - 34 tooth - 35.99x6.35 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Each View the product page first if you are unsure.
G036B-34-D24-064-064-AB-G --- Spur Gears - 34 tooth - 35.99x6.35 mm - Acetal - Brass insert G036B-34-D24-064-064-AB-G --- Spur Gears - 34 tooth - 35.99x6.35 mm - Acetal - Brass insert Regular price $19.77 AUD Regular price Sale price $19.77 AUD Unit price per Out of stock! Backorder Now
Teeth 35	Pitch Circle Diameter (PD) 17.500 mm _{(0.689 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 18.50 mm	Face Width (FW) 3.00 mm
Material: Acetal Hub Diameter (D1): 10.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G018B-35-M05-030-050-A-P Spur Gears - 35 tooth - 17.5x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each
Teeth 35	Pitch Circle Diameter (PD) 17.500 mm _{(0.689 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 18.50 mm
Material: Acetal Face Width (FW): 3.00 mm Hub Diameter (D1): 10.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G018B-35-M05-030-050-A-P Spur Gears - 35 tooth - 17.5x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each View the product page first if you are unsure.
G018B-35-M05-030-050-A-P --- Spur Gears - 35 tooth - 17.5x5 mm - Acetal G018B-35-M05-030-050-A-P --- Spur Gears - 35 tooth - 17.5x5 mm - Acetal Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Pitch Circle Diameter (PD) 28.575 mm _{(1.125 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 30.18 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G029H-36-D32-032-064-S3-N Spur Gears - 36 tooth - 28.575x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $50.95 AUD Regular price Sale price $50.95 AUD Unit price per Each
Teeth 36	Pitch Circle Diameter (PD) 28.575 mm _{(1.125 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 30.18 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G029H-36-D32-032-064-S3-N Spur Gears - 36 tooth - 28.575x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $50.95 AUD Regular price Sale price $50.95 AUD Unit price per Each View the product page first if you are unsure.
G029H-36-D32-032-064-S3-N --- Spur Gears - 36 tooth - 28.575x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G029H-36-D32-032-064-S3-N --- Spur Gears - 36 tooth - 28.575x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $50.95 AUD Regular price Sale price $50.95 AUD Unit price per 2 Available Now
Teeth 36	Pitch Circle Diameter (PD) 38.10 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 40.208 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G038B-36-D24-064-064-A-P Spur Gears - 36 tooth - 38.1x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each
Teeth 36	Pitch Circle Diameter (PD) 38.10 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 40.208 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G038B-36-D24-064-064-A-P Spur Gears - 36 tooth - 38.1x6.35 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Each View the product page first if you are unsure.
G038B-36-D24-064-064-A-P --- Spur Gears - 36 tooth - 38.1x6.35 mm - Acetal G038B-36-D24-064-064-A-P --- Spur Gears - 36 tooth - 38.1x6.35 mm - Acetal Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Pitch Circle Diameter (PD) 38.10 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 40.208 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G038B-36-D24-064-064-AB-G Spur Gears - 36 tooth - 38.1x6.35 mm - Acetal - Brass insert 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Each
Teeth 36	Pitch Circle Diameter (PD) 38.10 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 40.208 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G038B-36-D24-064-064-AB-G Spur Gears - 36 tooth - 38.1x6.35 mm - Acetal - Brass insert 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Each View the product page first if you are unsure.
G038B-36-D24-064-064-AB-G --- Spur Gears - 36 tooth - 38.1x6.35 mm - Acetal - Brass insert G038B-36-D24-064-064-AB-G --- Spur Gears - 36 tooth - 38.1x6.35 mm - Acetal - Brass insert Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per 2 Available Now
Teeth 36	Pitch Circle Diameter (PD) 38.100 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 21.08 mm	Face Width (FW) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G038B-36-D24-032-064-S3-N Spur Gears - 36 tooth - 38.1x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $56.86 AUD Regular price Sale price $56.86 AUD Unit price per Each
Teeth 36	Pitch Circle Diameter (PD) 38.100 mm _{(1.5 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 21.08 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Face Width (FW): 4.78 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 6.4 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G038B-36-D24-032-064-S3-N Spur Gears - 36 tooth - 38.1x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $56.86 AUD Regular price Sale price $56.86 AUD Unit price per Each View the product page first if you are unsure.
G038B-36-D24-032-064-S3-N --- Spur Gears - 36 tooth - 38.1x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 G038B-36-D24-032-064-S3-N --- Spur Gears - 36 tooth - 38.1x6.35 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $56.86 AUD Regular price Sale price $56.86 AUD Unit price per 2 Available Now
Teeth 36	Pitch Circle Diameter (PD) 38.10 mm _{(1.5 in.)}	Bore (d) 7.874 mm _{(0.31 in.)}	Outside Diameter (OD) 40.208 mm	Face Width (FW) 9.53 mm
Material: Nylon (Polyamide 6/6) Hub Diameter (D1): 18.75 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G038B-36-D24-095-079-N-P Spur Gears - 36 tooth - 38.1x7.874 mm - Nylon Polyamide 6/6 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per Each
Teeth 36	Pitch Circle Diameter (PD) 38.10 mm _{(1.5 in.)}	Bore (d) 7.874 mm _{(0.31 in.)}	Outside Diameter (OD) 40.208 mm
Material: Nylon (Polyamide 6/6) Face Width (FW): 9.53 mm Hub Diameter (D1): 18.75 mm Hub Projection (HL): 6.35 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G038B-36-D24-095-079-N-P Spur Gears - 36 tooth - 38.1x7.874 mm - Nylon Polyamide 6/6 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per Each
G038B-36-D24-095-079-N-P --- Spur Gears - 36 tooth - 38.1x7.874 mm - Nylon Polyamide 6/6 Sale G038B-36-D24-095-079-N-P --- Spur Gears - 36 tooth - 38.1x7.874 mm - Nylon Polyamide 6/6 Regular price $3.00 AUD Regular price ~~$5.70 AUD~~ Sale price $3.00 AUD Unit price per 1 Available Now Sale
Teeth 39	Pitch Circle Diameter (PD) 41.28 mm _{(1.625 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 43.383 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G041B-39-D24-064-079-A-P Spur Gears - 39 tooth - 41.28x7.938 mm - Acetal 8 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Each
Teeth 39	Pitch Circle Diameter (PD) 41.28 mm _{(1.625 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 43.383 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G041B-39-D24-064-079-A-P Spur Gears - 39 tooth - 41.28x7.938 mm - Acetal 8 Available Immediately \| Further orders can be expected around Tue, Jul 01, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Each View the product page first if you are unsure.
G041B-39-D24-064-079-A-P --- Spur Gears - 39 tooth - 41.28x7.938 mm - Acetal G041B-39-D24-064-079-A-P --- Spur Gears - 39 tooth - 41.28x7.938 mm - Acetal Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per 8 Available Now
Teeth 39	Pitch Circle Diameter (PD) 41.28 mm _{(1.625 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 43.383 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G041B-39-D24-064-079-AB-G Spur Gears - 39 tooth - 41.28x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each
Teeth 39	Pitch Circle Diameter (PD) 41.28 mm _{(1.625 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 43.383 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G041B-39-D24-064-079-AB-G Spur Gears - 39 tooth - 41.28x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Each View the product page first if you are unsure.
G041B-39-D24-064-079-AB-G --- Spur Gears - 39 tooth - 41.28x7.938 mm - Acetal - Brass insert G041B-39-D24-064-079-AB-G --- Spur Gears - 39 tooth - 41.28x7.938 mm - Acetal - Brass insert Regular price $20.86 AUD Regular price Sale price $20.86 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Pitch Circle Diameter (PD) 20.000 mm _{(0.787 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 20.50 mm	Face Width (FW) 3.00 mm
Material: Acetal Hub Diameter (D1): 12.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G020B-40-M05-030-050-A-P Spur Gears - 40 tooth - 20x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each
Teeth 40	Pitch Circle Diameter (PD) 20.000 mm _{(0.787 in.)}	Bore (d) 5.000 mm _{(0.197 in.)}	Outside Diameter (OD) 20.50 mm
Material: Acetal Face Width (FW): 3.00 mm Hub Diameter (D1): 12.00 mm Hub Projection (HL): 4.0 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G020B-40-M05-030-050-A-P Spur Gears - 40 tooth - 20x5 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each View the product page first if you are unsure.
G020B-40-M05-030-050-A-P --- Spur Gears - 40 tooth - 20x5 mm - Acetal G020B-40-M05-030-050-A-P --- Spur Gears - 40 tooth - 20x5 mm - Acetal Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Pitch Circle Diameter (PD) 42.34 mm _{(1.667 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 44.450 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G042B-40-D24-064-079-A-P Spur Gears - 40 tooth - 42.34x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Each
Teeth 40	Pitch Circle Diameter (PD) 42.34 mm _{(1.667 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 44.450 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G042B-40-D24-064-079-A-P Spur Gears - 40 tooth - 42.34x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Each View the product page first if you are unsure.
G042B-40-D24-064-079-A-P --- Spur Gears - 40 tooth - 42.34x7.938 mm - Acetal G042B-40-D24-064-079-A-P --- Spur Gears - 40 tooth - 42.34x7.938 mm - Acetal Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Pitch Circle Diameter (PD) 42.34 mm _{(1.667 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 44.450 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G042B-40-D24-064-079-AB-G Spur Gears - 40 tooth - 42.34x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Each
Teeth 40	Pitch Circle Diameter (PD) 42.34 mm _{(1.667 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 44.450 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G042B-40-D24-064-079-AB-G Spur Gears - 40 tooth - 42.34x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Each View the product page first if you are unsure.
G042B-40-D24-064-079-AB-G --- Spur Gears - 40 tooth - 42.34x7.938 mm - Acetal - Brass insert G042B-40-D24-064-079-AB-G --- Spur Gears - 40 tooth - 42.34x7.938 mm - Acetal - Brass insert Regular price $21.23 AUD Regular price Sale price $21.23 AUD Unit price per Out of stock! Backorder Now
Teeth 42	Pitch Circle Diameter (PD) 44.45 mm _{(1.75 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 46.558 mm	Face Width (FW) 6.35 mm
Material: Acetal Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G044B-42-D24-064-079-A-P Spur Gears - 42 tooth - 44.45x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Each
Teeth 42	Pitch Circle Diameter (PD) 44.45 mm _{(1.75 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 46.558 mm
Material: Acetal Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G044B-42-D24-064-079-A-P Spur Gears - 42 tooth - 44.45x7.938 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Each View the product page first if you are unsure.
G044B-42-D24-064-079-A-P --- Spur Gears - 42 tooth - 44.45x7.938 mm - Acetal G044B-42-D24-064-079-A-P --- Spur Gears - 42 tooth - 44.45x7.938 mm - Acetal Regular price $9.86 AUD Regular price Sale price $9.86 AUD Unit price per Out of stock! Backorder Now
Teeth 42	Pitch Circle Diameter (PD) 44.45 mm _{(1.75 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 46.558 mm	Face Width (FW) 6.35 mm
Material: Acetal - Brass insert Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G044B-42-D24-064-079-AB-G Spur Gears - 42 tooth - 44.45x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Each
Teeth 42	Pitch Circle Diameter (PD) 44.45 mm _{(1.75 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 46.558 mm
Material: Acetal - Brass insert Face Width (FW): 6.35 mm Hub Diameter (D1): 17.07 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 24DP - 20 Degree
Part Number: G044B-42-D24-064-079-AB-G Spur Gears - 42 tooth - 44.45x7.938 mm - Acetal - Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Each View the product page first if you are unsure.
G044B-42-D24-064-079-AB-G --- Spur Gears - 42 tooth - 44.45x7.938 mm - Acetal - Brass insert G044B-42-D24-064-079-AB-G --- Spur Gears - 42 tooth - 44.45x7.938 mm - Acetal - Brass insert Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Out of stock! Backorder Now
