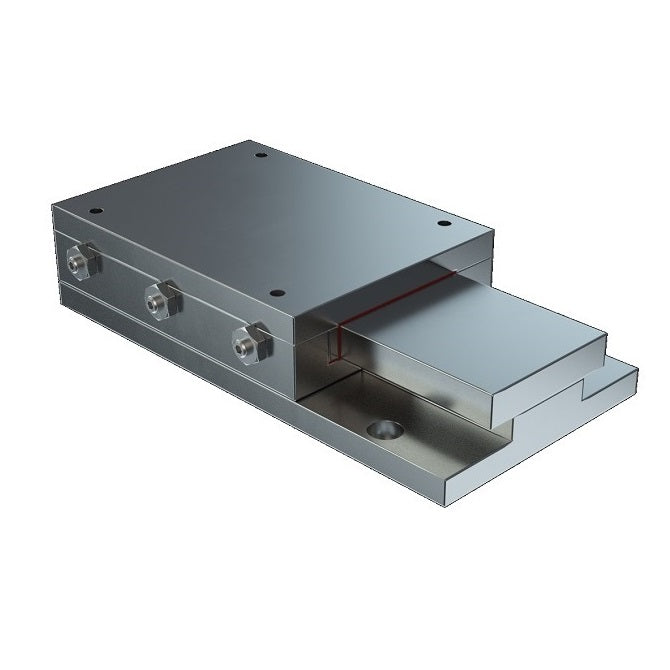

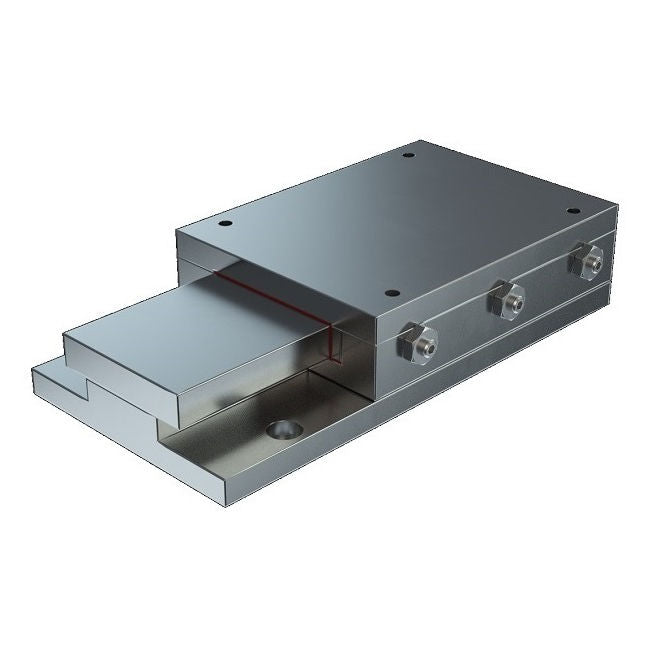

KD-180RS

Slide Assemblies Linear - 50.8 mm - 2721.6 Kg - 41.275 mm

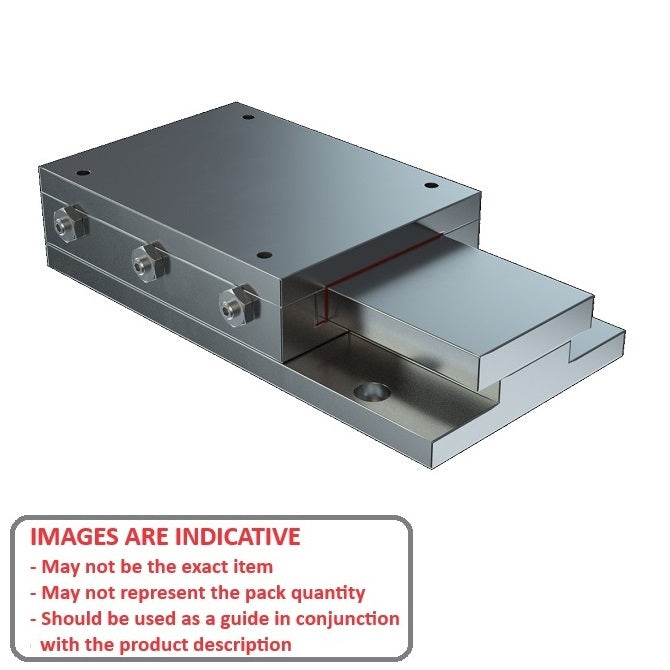

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Slide Assemblies Linear - 50.8 mm - 2721.6 Kg - 41.275 mm
1 4

MBA

Price:
$3,438.14 AUD
$3,438.14 AUD
Each
Out Of Stock
Order 50 or more for $3,094.33 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 03, 2025

Base Category: Linear - Slide Assemblies

Top Level Category: Linear - Slide Assemblies - Low Profile High Load

Product Details:

Travel: 50.800mm
(50.800mm is 2 in.)
  • Load Capacity: 2721.6Kg

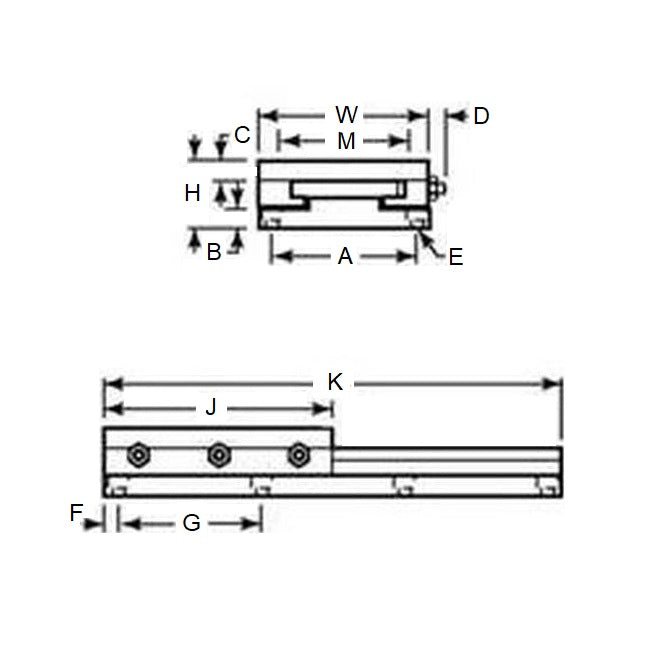

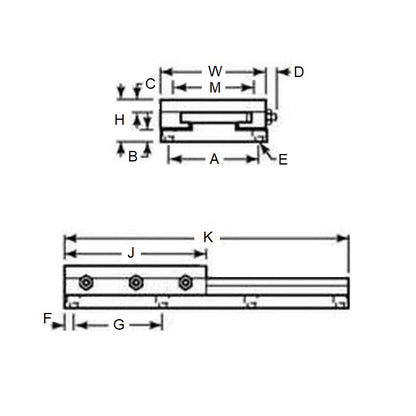

  • Bolt Hole Centres (A): 41.275mm
    (41.275mm is 1.625 in.)
  • Slide Height (B): 6.350mm
  • Carriage Height (C): 7.112mm
  • Gip Adjustment (D): 5.334mm
  • End to Bolt Hole (F): 25.400mm
  • Length Between Bolt Holes (G): 38.100mm
  • Overall Height (H): 25.400mm
  • Carraige Length (J): 152.400mm
  • Slide Length (K): 203.200mm
  • Overall Width (W): 50.800mm

Brand: MBA
Country of Origin: US

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
