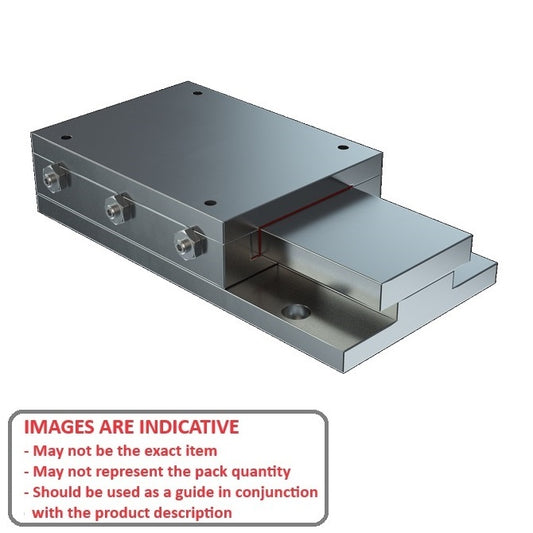

Linear - Slide Assemblies - Low Profile High Load

1 Item Available
  • High capacity, square gib slides are ideal for precision machine tool applications.
  • The square gib design offers high load capacity and accuracy and withstands force in any direction.
  • Gib is adjustable. Straight line accuracy 0.00254mm. Base is fabricated from A2 tool steel and hardened to Rc58-62.
  • Saddle or riding portion of the slide is fabricated from low carbon steel and can be drilled, tapped and milled for mounting purposes.
  • All slides feature Rulon bearing material for low friction. Stick-slip is virtually non existent as friction at startup and low speeds is virtually eliminated.
  • No lubrication required. Rulon is practically inert to acids, bases and solvents making these slides a good choice for contaminated environments. Temp range minus 240 oC to +300 Deg C.
Additional resources:
A more concise listing may be found on the Smallparts store at Linear - Slide Assemblies - Low Profile High Load. Smallparts promote the most popular MBA products.
Travel Load Capacity Bolt Hole Centres (A) Slide Height (B) Carriage Height (C) Gip Adjustment (D) Indicative
Travel
50.800
mm

(2 in.)
Load Capacity
2721.6
Kg
Bolt Hole Centres (A)
41.275
mm

(1.625 in.)
Slide Height (B)
6.350
mm
Carriage Height (C)
7.112
mm
Gip Adjustment (D)
5.334
mm
Slide Assemblies Linear - 50.8 mm - 2721.6 Kg - 41.275 mm
End to Bolt Hole (F): 25.400 mm    Length Between Bolt Holes (G): 38.100 mm    Overall Height (H): 25.400 mm    Carraige Length (J): 152.400 mm    Slide Length (K): 203.200 mm    Overall Width (W): 50.800 mm
Part Number: KD-180RS Slide Assemblies Linear - 50.8 mm - 2721.6 Kg - 41.275 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$3,438.14 AUD
$3,438.14 AUD
Each
Travel Load Capacity Bolt Hole Centres (A) Slide Height (B) Indicative
Travel
50.800
mm

(2 in.)
Load Capacity
2721.6
Kg
Bolt Hole Centres (A)
41.275
mm

(1.625 in.)
Slide Height (B)
6.350
mm
Slide Assemblies Linear - 50.8 mm - 2721.6 Kg - 41.275 mm
Carriage Height (C): 7.112 mm    Gip Adjustment (D): 5.334 mm    End to Bolt Hole (F): 25.400 mm    Length Between Bolt Holes (G): 38.100 mm    Overall Height (H): 25.400 mm    Carraige Length (J): 152.400 mm    Slide Length (K): 203.200 mm    Overall Width (W): 50.800 mm
Part Number: KD-180RS Slide Assemblies Linear - 50.8 mm - 2721.6 Kg - 41.275 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$3,438.14 AUD
$3,438.14 AUD
Each
View the product page first if you are unsure.
