SHLD032-003-SKT-P-S3 (50 Pcs)

Shoulder Screws - 3.175x3.21 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

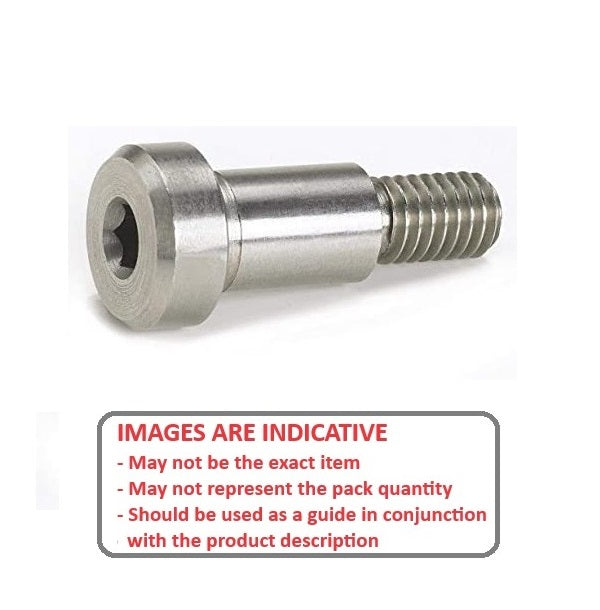

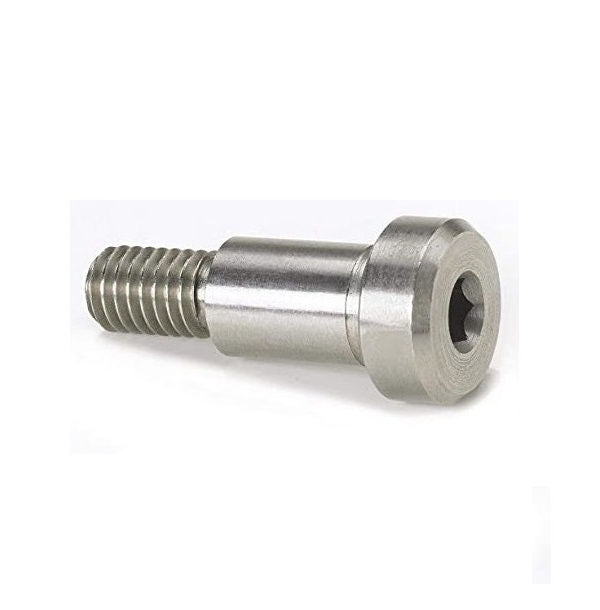

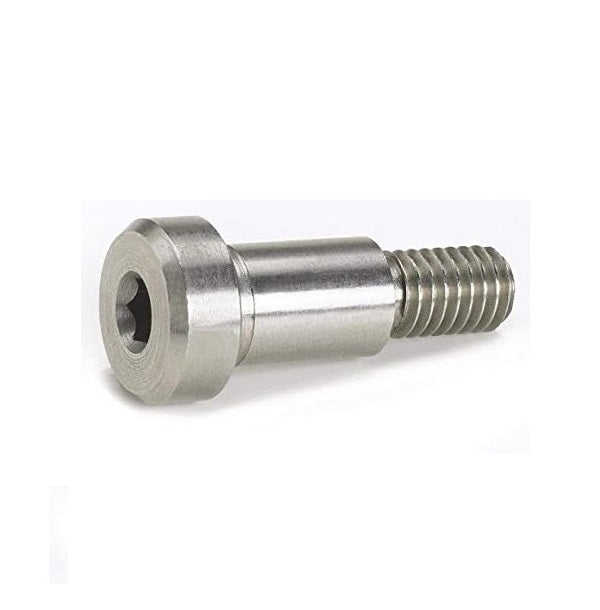

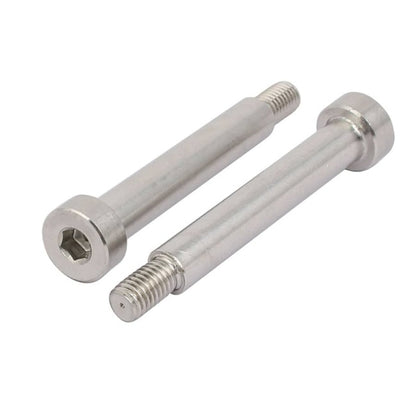

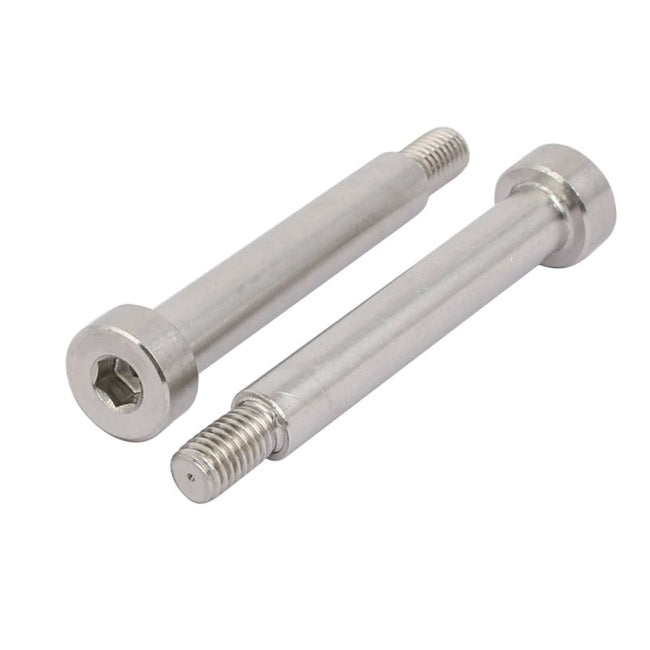

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Shoulder Screws - 3.175x3.21 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
1 4

MBA

Store Name: Miniature Bearings Australia (Minibearings)

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$263.05 AUD
$263.05 AUD
per 50
Backorder
Order 50 or more pack (2500 pcs) for $236.75 AUD per 50
Backorder now! Backorders for more than the stock quantity are expected before Sep 03, 2025

Base Category: Screws - Shoulder

Top Level Category: Screws - Shoulder - Socket Head - 303 Stainless

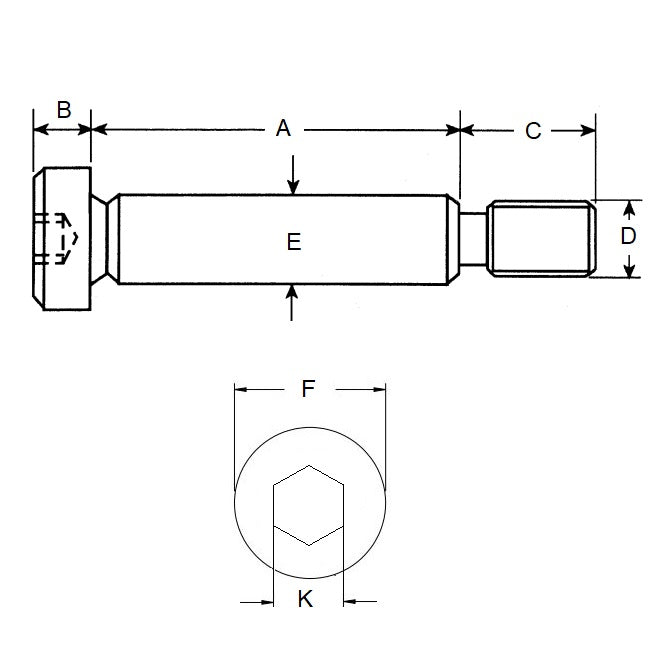

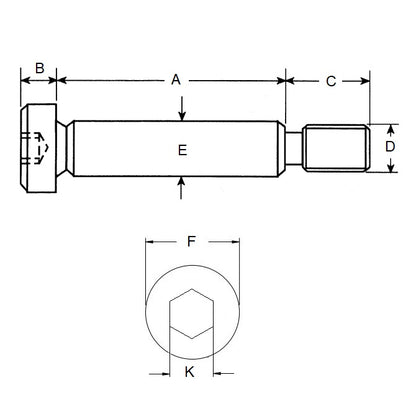

Product Details:

Shoulder Diameter (E): 3.175mm
- 0.013 / - 0.038
(3.175mm is 0.125 in.)

Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
  • Shoulder Length (A): 3.210mm
    (3.210mm is 0.126 in.)
  • Thread (D): 4-40 UNC
  • Max. Thread Length (C): 3.96mm
  • Head Height (B): 3.18mm
  • Head Diameter (F): 6.35mm
  • Allen Key Size: 1.98mm
  • Thread Type: Class 3A Thread

Brand: MBA
Country of Origin: US

Alternative Parts Include: 94035A511, S7092YG440404, S7092Y-G44-0404, ALTPART

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
