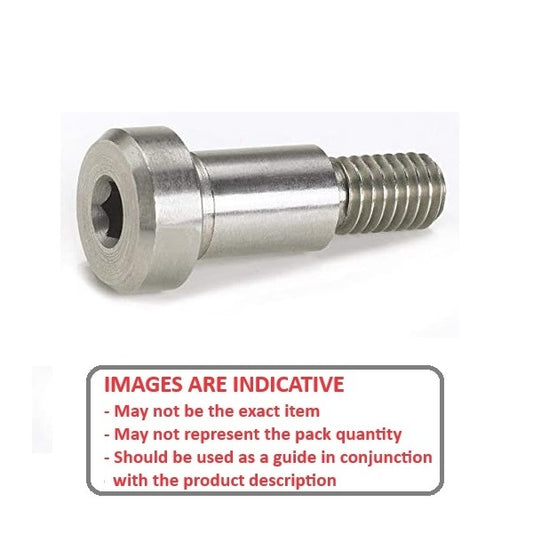

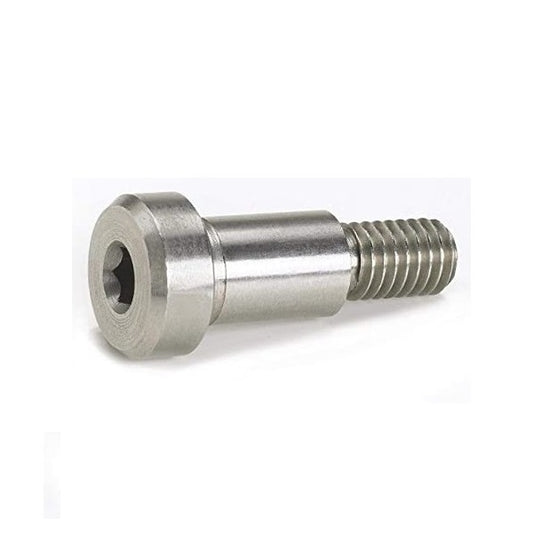

Collection: Screws - Shoulder - Socket Head - 303 Stainless

Screws (With Images)

Shoulder

Socket Head

148 Products in this selection

Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
303 Stainless Steel

Additional resources:
PDF Screws Catalogue
Washers
Nuts

A more concise listing may be found on the Smallparts store at Screws - Shoulder - Socket Head - 303 Stainless. Smallparts promote the most popular MBA products.

Shoulder Diameter (E)	Shoulder Length (A)	Thread (D)	Max. Thread Length (C)	Head Height (B)	Head Diameter (F)	Indicative Image
Shoulder Diameter (E) 3.175 mm + 0.000 / - 0.076 _{(0.125 in.)}	Shoulder Length (A) 3.180 mm _{(0.125 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 1.98 mm
Part Number: SHLD032-003-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x3.18 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $197.05 AUD Regular price Sale price $197.05 AUD Unit price per Per 50
Shoulder Diameter (E)	Shoulder Length (A)	Thread (D)	Max. Thread Length (C)	Indicative Image
Shoulder Diameter (E) 3.175 mm + 0.000 / - 0.076 _{(0.125 in.)}	Shoulder Length (A) 3.180 mm _{(0.125 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Allen Key Size: 1.98 mm
Part Number: SHLD032-003-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x3.18 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $197.05 AUD Regular price Sale price $197.05 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD032-003-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.18 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD032-003-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.18 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $197.05 AUD Regular price Sale price $197.05 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm - 0.013 / - 0.038 _{(0.125 in.)}	Shoulder Length (A) 3.210 mm _{(0.126 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 1.98 mm Thread Type: Class 3A Thread
Part Number: SHLD032-003-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x3.21 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $266.32 AUD Regular price Sale price $266.32 AUD Unit price per Per 50
Shoulder Diameter (E) 3.175 mm - 0.013 / - 0.038 _{(0.125 in.)}	Shoulder Length (A) 3.210 mm _{(0.126 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Allen Key Size: 1.98 mm Thread Type: Class 3A Thread
Part Number: SHLD032-003-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x3.21 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $266.32 AUD Regular price Sale price $266.32 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD032-003-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.21 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD032-003-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.21 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $266.32 AUD Regular price Sale price $266.32 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm + 0.000 / - 0.076 _{(0.125 in.)}	Shoulder Length (A) 4.780 mm _{(0.188 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 1.98 mm
Part Number: SHLD032-005-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x4.78 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $197.05 AUD Regular price Sale price $197.05 AUD Unit price per Per 50
Shoulder Diameter (E) 3.175 mm + 0.000 / - 0.076 _{(0.125 in.)}	Shoulder Length (A) 4.780 mm _{(0.188 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Allen Key Size: 1.98 mm
Part Number: SHLD032-005-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x4.78 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $197.05 AUD Regular price Sale price $197.05 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD032-005-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x4.78 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD032-005-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x4.78 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $197.05 AUD Regular price Sale price $197.05 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm - 0.013 / - 0.038 _{(0.125 in.)}	Shoulder Length (A) 4.800 mm _{(0.189 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 1.98 mm Thread Type: Class 3A Thread
Part Number: SHLD032-005-SKT-P-S3 Shoulder Screws - 3.175x4.8 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Sat, Jul 19, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Each
Shoulder Diameter (E) 3.175 mm - 0.013 / - 0.038 _{(0.125 in.)}	Shoulder Length (A) 4.800 mm _{(0.189 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Allen Key Size: 1.98 mm Thread Type: Class 3A Thread
Part Number: SHLD032-005-SKT-P-S3 Shoulder Screws - 3.175x4.8 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 2 Available Immediately \| Further orders can be expected around Sat, Jul 19, 2025 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per Each View the product page first if you are unsure.
SHLD032-005-SKT-P-S3 --- Shoulder Screws - 3.175x4.8 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD032-005-SKT-P-S3 --- Shoulder Screws - 3.175x4.8 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $8.14 AUD Regular price Sale price $8.14 AUD Unit price per 2 Available Now
Shoulder Diameter (E) 3.175 mm + 0.000 / - 0.076 _{(0.125 in.)}	Shoulder Length (A) 6.350 mm _{(0.25 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 1.98 mm
Part Number: SHLD032-006-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x6.35 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $252.50 AUD Regular price Sale price $252.50 AUD Unit price per Per 50
Shoulder Diameter (E) 3.175 mm + 0.000 / - 0.076 _{(0.125 in.)}	Shoulder Length (A) 6.350 mm _{(0.25 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Allen Key Size: 1.98 mm
Part Number: SHLD032-006-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x6.35 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $252.50 AUD Regular price Sale price $252.50 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD032-006-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x6.35 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD032-006-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x6.35 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $252.50 AUD Regular price Sale price $252.50 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm - 0.013 / - 0.038 _{(0.125 in.)}	Shoulder Length (A) 6.390 mm _{(0.252 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 1.98 mm Thread Type: Class 3A Thread
Part Number: SHLD032-006-SKT-P-S3 Shoulder Screws - 3.175x6.39 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Each
Shoulder Diameter (E) 3.175 mm - 0.013 / - 0.038 _{(0.125 in.)}	Shoulder Length (A) 6.390 mm _{(0.252 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Allen Key Size: 1.98 mm Thread Type: Class 3A Thread
Part Number: SHLD032-006-SKT-P-S3 Shoulder Screws - 3.175x6.39 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Each View the product page first if you are unsure.
SHLD032-006-SKT-P-S3 --- Shoulder Screws - 3.175x6.39 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD032-006-SKT-P-S3 --- Shoulder Screws - 3.175x6.39 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm + 0.000 / - 0.076 _{(0.125 in.)}	Shoulder Length (A) 7.930 mm _{(0.312 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 1.98 mm
Part Number: SHLD032-008-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x7.93 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $223.23 AUD Regular price Sale price $223.23 AUD Unit price per Per 50
Shoulder Diameter (E) 3.175 mm + 0.000 / - 0.076 _{(0.125 in.)}	Shoulder Length (A) 7.930 mm _{(0.312 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Allen Key Size: 1.98 mm
Part Number: SHLD032-008-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x7.93 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $223.23 AUD Regular price Sale price $223.23 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD032-008-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x7.93 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD032-008-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x7.93 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $223.23 AUD Regular price Sale price $223.23 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm - 0.013 / - 0.038 _{(0.125 in.)}	Shoulder Length (A) 7.980 mm _{(0.314 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 1.98 mm Thread Type: Class 3A Thread
Part Number: SHLD032-008-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x7.98 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $286.41 AUD Regular price Sale price $286.41 AUD Unit price per Per 50
Shoulder Diameter (E) 3.175 mm - 0.013 / - 0.038 _{(0.125 in.)}	Shoulder Length (A) 7.980 mm _{(0.314 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Allen Key Size: 1.98 mm Thread Type: Class 3A Thread
Part Number: SHLD032-008-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x7.98 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $286.41 AUD Regular price Sale price $286.41 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD032-008-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x7.98 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD032-008-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x7.98 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $286.41 AUD Regular price Sale price $286.41 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm + 0.000 / - 0.076 _{(0.125 in.)}	Shoulder Length (A) 9.530 mm _{(0.375 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 1.98 mm
Part Number: SHLD032-010-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x9.53 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $252.50 AUD Regular price Sale price $252.50 AUD Unit price per Per 50
Shoulder Diameter (E) 3.175 mm + 0.000 / - 0.076 _{(0.125 in.)}	Shoulder Length (A) 9.530 mm _{(0.375 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Allen Key Size: 1.98 mm
Part Number: SHLD032-010-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x9.53 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $252.50 AUD Regular price Sale price $252.50 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD032-010-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x9.53 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD032-010-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x9.53 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $252.50 AUD Regular price Sale price $252.50 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm - 0.013 / - 0.038 _{(0.125 in.)}	Shoulder Length (A) 9.560 mm _{(0.376 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 1.98 mm Thread Type: Class 3A Thread
Part Number: SHLD032-010-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x9.56 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $290.95 AUD Regular price Sale price $290.95 AUD Unit price per Per 50
Shoulder Diameter (E) 3.175 mm - 0.013 / - 0.038 _{(0.125 in.)}	Shoulder Length (A) 9.560 mm _{(0.376 in.)}	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Allen Key Size: 1.98 mm Thread Type: Class 3A Thread
Part Number: SHLD032-010-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x9.56 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $290.95 AUD Regular price Sale price $290.95 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD032-010-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x9.56 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD032-010-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x9.56 mm - 4-40 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $290.95 AUD Regular price Sale price $290.95 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 4.000 mm _{(0.157 in.)}	Shoulder Length (A) 4.000 mm _{(0.157 in.)}	Thread (D) M3x0.5	Max. Thread Length (C) 4.00 mm	Head Height (B) 3.00 mm	Head Diameter (F) 6.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.00 mm
Part Number: SHLD040-004-SKT-S3 (2 Pcs) Shoulder Screws - 4x4 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 215 units (430 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 17, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Per 2
Shoulder Diameter (E) 4.000 mm _{(0.157 in.)}	Shoulder Length (A) 4.000 mm _{(0.157 in.)}	Thread (D) M3x0.5	Max. Thread Length (C) 4.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.00 mm Head Diameter (F): 6.00 mm Allen Key Size: 2.00 mm
Part Number: SHLD040-004-SKT-S3 (2 Pcs) Shoulder Screws - 4x4 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 215 units (430 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 17, 2025 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per Per 2 View the product page first if you are unsure.
SHLD040-004-SKT-S3 (2 Pcs) --- Shoulder Screws - 4x4 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD040-004-SKT-S3 (2 Pcs) --- Shoulder Screws - 4x4 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $4.23 AUD Regular price Sale price $4.23 AUD Unit price per 215 Available Now
Shoulder Diameter (E) 4.000 mm + 0.000 / - 0.076 _{(0.157 in.)}	Shoulder Length (A) 5.000 mm + 0.05 / + 0.2 _{(0.197 in.)}	Thread (D) M3x0.5	Max. Thread Length (C) 4.00 mm	Head Height (B) 3.00 mm	Head Diameter (F) 6.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.00 mm
Part Number: SHLD040-005-SKT-S3 (50 Pcs) Shoulder Screws - 4x5 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $303.32 AUD Regular price Sale price $303.32 AUD Unit price per Per 50
Shoulder Diameter (E) 4.000 mm + 0.000 / - 0.076 _{(0.157 in.)}	Shoulder Length (A) 5.000 mm + 0.05 / + 0.2 _{(0.197 in.)}	Thread (D) M3x0.5	Max. Thread Length (C) 4.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.00 mm Head Diameter (F): 6.00 mm Allen Key Size: 2.00 mm
Part Number: SHLD040-005-SKT-S3 (50 Pcs) Shoulder Screws - 4x5 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $303.32 AUD Regular price Sale price $303.32 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD040-005-SKT-S3 (50 Pcs) --- Shoulder Screws - 4x5 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD040-005-SKT-S3 (50 Pcs) --- Shoulder Screws - 4x5 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $303.32 AUD Regular price Sale price $303.32 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 4.000 mm + 0.000 / - 0.076 _{(0.157 in.)}	Shoulder Length (A) 6.000 mm + 0.05 / + 0.2 _{(0.236 in.)}	Thread (D) M3x0.5	Max. Thread Length (C) 4.00 mm	Head Height (B) 3.00 mm	Head Diameter (F) 6.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.00 mm
Part Number: SHLD040-006-SKT-S3 (50 Pcs) Shoulder Screws - 4x6 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $286.41 AUD Regular price Sale price $286.41 AUD Unit price per Per 50
Shoulder Diameter (E) 4.000 mm + 0.000 / - 0.076 _{(0.157 in.)}	Shoulder Length (A) 6.000 mm + 0.05 / + 0.2 _{(0.236 in.)}	Thread (D) M3x0.5	Max. Thread Length (C) 4.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.00 mm Head Diameter (F): 6.00 mm Allen Key Size: 2.00 mm
Part Number: SHLD040-006-SKT-S3 (50 Pcs) Shoulder Screws - 4x6 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $286.41 AUD Regular price Sale price $286.41 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD040-006-SKT-S3 (50 Pcs) --- Shoulder Screws - 4x6 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD040-006-SKT-S3 (50 Pcs) --- Shoulder Screws - 4x6 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $286.41 AUD Regular price Sale price $286.41 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 4.000 mm + 0.000 / - 0.076 _{(0.157 in.)}	Shoulder Length (A) 8.000 mm + 0.05 / + 0.2 _{(0.315 in.)}	Thread (D) M3x0.5	Max. Thread Length (C) 4.00 mm	Head Height (B) 3.00 mm	Head Diameter (F) 6.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.00 mm
Part Number: SHLD040-008-SKT-S3 (2 Pcs) Shoulder Screws - 4x8 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 73 units (146 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 17, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Per 2
Shoulder Diameter (E) 4.000 mm + 0.000 / - 0.076 _{(0.157 in.)}	Shoulder Length (A) 8.000 mm + 0.05 / + 0.2 _{(0.315 in.)}	Thread (D) M3x0.5	Max. Thread Length (C) 4.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.00 mm Head Diameter (F): 6.00 mm Allen Key Size: 2.00 mm
Part Number: SHLD040-008-SKT-S3 (2 Pcs) Shoulder Screws - 4x8 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 73 units (146 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 17, 2025 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Per 2 View the product page first if you are unsure.
SHLD040-008-SKT-S3 (2 Pcs) --- Shoulder Screws - 4x8 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD040-008-SKT-S3 (2 Pcs) --- Shoulder Screws - 4x8 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 73 Available Now
Shoulder Diameter (E) 4.000 mm + 0.000 / - 0.076 _{(0.157 in.)}	Shoulder Length (A) 10.000 mm + 0.05 / + 0.2 _{(0.394 in.)}	Thread (D) M3x0.5	Max. Thread Length (C) 4.00 mm	Head Height (B) 3.00 mm	Head Diameter (F) 6.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.00 mm
Part Number: SHLD040-010-SKT-S3 (2 Pcs) Shoulder Screws - 4x10 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 420 units (840 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 17, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Per 2
Shoulder Diameter (E) 4.000 mm + 0.000 / - 0.076 _{(0.157 in.)}	Shoulder Length (A) 10.000 mm + 0.05 / + 0.2 _{(0.394 in.)}	Thread (D) M3x0.5	Max. Thread Length (C) 4.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.00 mm Head Diameter (F): 6.00 mm Allen Key Size: 2.00 mm
Part Number: SHLD040-010-SKT-S3 (2 Pcs) Shoulder Screws - 4x10 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 420 units (840 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 17, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Per 2 View the product page first if you are unsure.
SHLD040-010-SKT-S3 (2 Pcs) --- Shoulder Screws - 4x10 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD040-010-SKT-S3 (2 Pcs) --- Shoulder Screws - 4x10 mm - M3x0.5 - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 420 Available Now
Shoulder Diameter (E) 4.762 mm + 0.000 / - 0.076 _{(0.187 in.)}	Shoulder Length (A) 3.180 mm _{(0.125 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.76 mm	Head Height (B) 3.97 mm	Head Diameter (F) 7.94 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.38 mm
Part Number: SHLD048-003-SKT-S3 (50 Pcs) Shoulder Screws - 4.762x3.18 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $249.41 AUD Regular price Sale price $249.41 AUD Unit price per Per 50
Shoulder Diameter (E) 4.762 mm + 0.000 / - 0.076 _{(0.187 in.)}	Shoulder Length (A) 3.180 mm _{(0.125 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.76 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.97 mm Head Diameter (F): 7.94 mm Allen Key Size: 2.38 mm
Part Number: SHLD048-003-SKT-S3 (50 Pcs) Shoulder Screws - 4.762x3.18 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $249.41 AUD Regular price Sale price $249.41 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD048-003-SKT-S3 (50 Pcs) --- Shoulder Screws - 4.762x3.18 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD048-003-SKT-S3 (50 Pcs) --- Shoulder Screws - 4.762x3.18 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $249.41 AUD Regular price Sale price $249.41 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 4.762 mm - 0.013 / - 0.038 _{(0.187 in.)}	Shoulder Length (A) 3.210 mm _{(0.126 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.78 mm	Head Height (B) 3.96 mm	Head Diameter (F) 7.94 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.38 mm Thread Type: Class 3A Thread
Part Number: SHLD048-003-SKT-P-S3 (50 Pcs) Shoulder Screws - 4.762x3.21 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $272.41 AUD Regular price Sale price $272.41 AUD Unit price per Per 50
Shoulder Diameter (E) 4.762 mm - 0.013 / - 0.038 _{(0.187 in.)}	Shoulder Length (A) 3.210 mm _{(0.126 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.96 mm Head Diameter (F): 7.94 mm Allen Key Size: 2.38 mm Thread Type: Class 3A Thread
Part Number: SHLD048-003-SKT-P-S3 (50 Pcs) Shoulder Screws - 4.762x3.21 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $272.41 AUD Regular price Sale price $272.41 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD048-003-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 4.762x3.21 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD048-003-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 4.762x3.21 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $272.41 AUD Regular price Sale price $272.41 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 4.762 mm + 0.000 / - 0.076 _{(0.187 in.)}	Shoulder Length (A) 4.780 mm _{(0.188 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.76 mm	Head Height (B) 3.97 mm	Head Diameter (F) 7.94 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.38 mm
Part Number: SHLD048-005-SKT-S3 (50 Pcs) Shoulder Screws - 4.762x4.78 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $266.32 AUD Regular price Sale price $266.32 AUD Unit price per Per 50
Shoulder Diameter (E) 4.762 mm + 0.000 / - 0.076 _{(0.187 in.)}	Shoulder Length (A) 4.780 mm _{(0.188 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.76 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.97 mm Head Diameter (F): 7.94 mm Allen Key Size: 2.38 mm
Part Number: SHLD048-005-SKT-S3 (50 Pcs) Shoulder Screws - 4.762x4.78 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $266.32 AUD Regular price Sale price $266.32 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD048-005-SKT-S3 (50 Pcs) --- Shoulder Screws - 4.762x4.78 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD048-005-SKT-S3 (50 Pcs) --- Shoulder Screws - 4.762x4.78 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $266.32 AUD Regular price Sale price $266.32 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 4.762 mm - 0.013 / - 0.038 _{(0.187 in.)}	Shoulder Length (A) 4.800 mm _{(0.189 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.78 mm	Head Height (B) 3.96 mm	Head Diameter (F) 7.94 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.38 mm Thread Type: Class 3A Thread
Part Number: SHLD048-005-SKT-P-S3 (50 Pcs) Shoulder Screws - 4.762x4.8 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $278.68 AUD Regular price Sale price $278.68 AUD Unit price per Per 50
Shoulder Diameter (E) 4.762 mm - 0.013 / - 0.038 _{(0.187 in.)}	Shoulder Length (A) 4.800 mm _{(0.189 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.96 mm Head Diameter (F): 7.94 mm Allen Key Size: 2.38 mm Thread Type: Class 3A Thread
Part Number: SHLD048-005-SKT-P-S3 (50 Pcs) Shoulder Screws - 4.762x4.8 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $278.68 AUD Regular price Sale price $278.68 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD048-005-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 4.762x4.8 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD048-005-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 4.762x4.8 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $278.68 AUD Regular price Sale price $278.68 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 4.762 mm + 0.000 / - 0.076 _{(0.187 in.)}	Shoulder Length (A) 6.350 mm _{(0.25 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.76 mm	Head Height (B) 3.97 mm	Head Diameter (F) 7.94 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.38 mm
Part Number: SHLD048-006-SKT-S3 Shoulder Screws - 4.762x6.35 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 4 Available Immediately \| Further orders can be expected around Sat, Jul 19, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Each
Shoulder Diameter (E) 4.762 mm + 0.000 / - 0.076 _{(0.187 in.)}	Shoulder Length (A) 6.350 mm _{(0.25 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.76 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.97 mm Head Diameter (F): 7.94 mm Allen Key Size: 2.38 mm
Part Number: SHLD048-006-SKT-S3 Shoulder Screws - 4.762x6.35 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 4 Available Immediately \| Further orders can be expected around Sat, Jul 19, 2025 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per Each View the product page first if you are unsure.
SHLD048-006-SKT-S3 --- Shoulder Screws - 4.762x6.35 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD048-006-SKT-S3 --- Shoulder Screws - 4.762x6.35 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $8.23 AUD Regular price Sale price $8.23 AUD Unit price per 4 Available Now
Shoulder Diameter (E) 4.762 mm - 0.013 / - 0.038 _{(0.187 in.)}	Shoulder Length (A) 6.390 mm _{(0.252 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.78 mm	Head Height (B) 3.96 mm	Head Diameter (F) 7.94 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.38 mm Thread Type: Class 3A Thread
Part Number: SHLD048-006-SKT-P-S3 (50 Pcs) Shoulder Screws - 4.762x6.39 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $290.95 AUD Regular price Sale price $290.95 AUD Unit price per Per 50
Shoulder Diameter (E) 4.762 mm - 0.013 / - 0.038 _{(0.187 in.)}	Shoulder Length (A) 6.390 mm _{(0.252 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.96 mm Head Diameter (F): 7.94 mm Allen Key Size: 2.38 mm Thread Type: Class 3A Thread
Part Number: SHLD048-006-SKT-P-S3 (50 Pcs) Shoulder Screws - 4.762x6.39 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $290.95 AUD Regular price Sale price $290.95 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD048-006-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 4.762x6.39 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD048-006-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 4.762x6.39 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $290.95 AUD Regular price Sale price $290.95 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 4.762 mm + 0.000 / - 0.076 _{(0.187 in.)}	Shoulder Length (A) 7.930 mm _{(0.312 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.76 mm	Head Height (B) 3.97 mm	Head Diameter (F) 7.94 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.38 mm
Part Number: SHLD048-008-SKT-S3 (50 Pcs) Shoulder Screws - 4.762x7.93 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $278.68 AUD Regular price Sale price $278.68 AUD Unit price per Per 50
Shoulder Diameter (E) 4.762 mm + 0.000 / - 0.076 _{(0.187 in.)}	Shoulder Length (A) 7.930 mm _{(0.312 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.76 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.97 mm Head Diameter (F): 7.94 mm Allen Key Size: 2.38 mm
Part Number: SHLD048-008-SKT-S3 (50 Pcs) Shoulder Screws - 4.762x7.93 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $278.68 AUD Regular price Sale price $278.68 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD048-008-SKT-S3 (50 Pcs) --- Shoulder Screws - 4.762x7.93 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD048-008-SKT-S3 (50 Pcs) --- Shoulder Screws - 4.762x7.93 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $278.68 AUD Regular price Sale price $278.68 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 4.762 mm - 0.013 / - 0.038 _{(0.187 in.)}	Shoulder Length (A) 7.980 mm _{(0.314 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.78 mm	Head Height (B) 3.96 mm	Head Diameter (F) 7.94 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.38 mm Thread Type: Class 3A Thread
Part Number: SHLD048-008-SKT-P-S3 (50 Pcs) Shoulder Screws - 4.762x7.98 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $304.77 AUD Regular price Sale price $304.77 AUD Unit price per Per 50
Shoulder Diameter (E) 4.762 mm - 0.013 / - 0.038 _{(0.187 in.)}	Shoulder Length (A) 7.980 mm _{(0.314 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.78 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.96 mm Head Diameter (F): 7.94 mm Allen Key Size: 2.38 mm Thread Type: Class 3A Thread
Part Number: SHLD048-008-SKT-P-S3 (50 Pcs) Shoulder Screws - 4.762x7.98 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $304.77 AUD Regular price Sale price $304.77 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD048-008-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 4.762x7.98 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD048-008-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 4.762x7.98 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $304.77 AUD Regular price Sale price $304.77 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 4.762 mm + 0.000 / - 0.076 _{(0.187 in.)}	Shoulder Length (A) 9.530 mm _{(0.375 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.76 mm	Head Height (B) 3.97 mm	Head Diameter (F) 7.94 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Allen Key Size: 2.38 mm
Part Number: SHLD048-010-SKT-S3 (50 Pcs) Shoulder Screws - 4.762x9.53 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $303.32 AUD Regular price Sale price $303.32 AUD Unit price per Per 50
Shoulder Diameter (E) 4.762 mm + 0.000 / - 0.076 _{(0.187 in.)}	Shoulder Length (A) 9.530 mm _{(0.375 in.)}	Thread (D) 8-32 UNC	Max. Thread Length (C) 4.76 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.97 mm Head Diameter (F): 7.94 mm Allen Key Size: 2.38 mm
Part Number: SHLD048-010-SKT-S3 (50 Pcs) Shoulder Screws - 4.762x9.53 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 19, 2025 Regular price $303.32 AUD Regular price Sale price $303.32 AUD Unit price per Per 50 View the product page first if you are unsure.
SHLD048-010-SKT-S3 (50 Pcs) --- Shoulder Screws - 4.762x9.53 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 SHLD048-010-SKT-S3 (50 Pcs) --- Shoulder Screws - 4.762x9.53 mm - 8-32 UNC - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Regular price $303.32 AUD Regular price Sale price $303.32 AUD Unit price per Out of stock! Backorder Now
