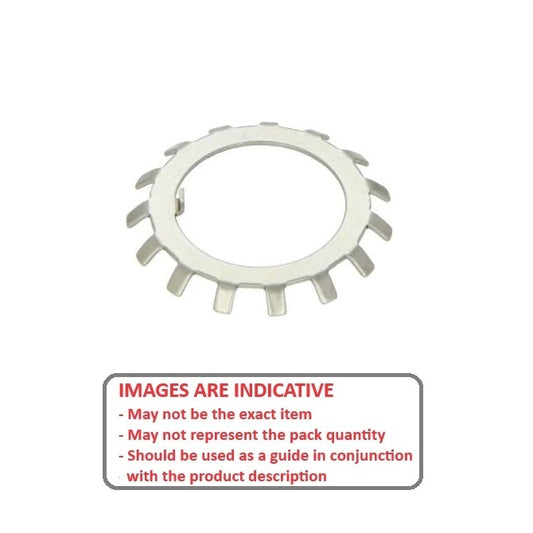

Collection: Washers - Lock - Tabbed - for Bearing Locknuts

Washers (With Images)

Lock

Tabbed

for Bearing Locknuts

76 Products in this selection

This category includes equivalents to AW, W, TW, MB, WH and WT types
For use with bearing lock nuts

Additional resources:
Screws

A more concise listing may be found on the Smallparts store at Washers - Lock - Tabbed - for Bearing Locknuts. Smallparts promote the most popular MBA products.

Approx. ID (D1)	Approx OD (D5)	Tabs	Inner Tab Width (E)	Outer Tab Width (S)	Inner Face (D4)	Indicative Image
Approx. ID (D1) 10.00 mm _{(0.394 in.)}	Approx OD (D5) 22.2 mm _{(0.874 in.)}	Tabs 9 Nr.
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: N-00 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB010-022-12BO (500 Pcs) Lock Washers - 10x22.2 mm - 9 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Mar 04, 2026 Regular price $1,328.95 AUD Regular price Sale price $1,328.95 AUD Unit price per Per 500
Approx. ID (D1)	Approx OD (D5)	Tabs	Inner Tab Width (E)	Indicative Image
Approx. ID (D1) 10.00 mm _{(0.394 in.)}	Approx OD (D5) 22.2 mm _{(0.874 in.)}	Tabs 9 Nr.
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: N-00 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB010-022-12BO (500 Pcs) Lock Washers - 10x22.2 mm - 9 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Mar 04, 2026 Regular price $1,328.95 AUD Regular price Sale price $1,328.95 AUD Unit price per Per 500 View the product page first if you are unsure.
WLB010-022-12BO (500 Pcs) --- Lock Washers - 10x22.2 mm - 9 Nr. - Spring Steel WLB010-022-12BO (500 Pcs) --- Lock Washers - 10x22.2 mm - 9 Nr. - Spring Steel Regular price $1,328.95 AUD Regular price Sale price $1,328.95 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 12.00 mm _{(0.472 in.)}	Approx OD (D5) 24.21 mm _{(0.953 in.)}	Tabs 9 Nr.
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: N-01 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB012-024-12BO (6 Pcs) Lock Washers - 12x24.21 mm - 9 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Per 6
Approx. ID (D1) 12.00 mm _{(0.472 in.)}	Approx OD (D5) 24.21 mm _{(0.953 in.)}	Tabs 9 Nr.
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: N-01 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB012-024-12BO (6 Pcs) Lock Washers - 12x24.21 mm - 9 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Per 6 View the product page first if you are unsure.
WLB012-024-12BO (6 Pcs) --- Lock Washers - 12x24.21 mm - 9 Nr. - Spring Steel WLB012-024-12BO (6 Pcs) --- Lock Washers - 12x24.21 mm - 9 Nr. - Spring Steel Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 15.00 mm _{(0.591 in.)}	Approx OD (D5) 27.78 mm _{(1.094 in.)}	Tabs 11 Nr.
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: N-02 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB015-028-12BO (6 Pcs) Lock Washers - 15x27.78 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Per 6
Approx. ID (D1) 15.00 mm _{(0.591 in.)}	Approx OD (D5) 27.78 mm _{(1.094 in.)}	Tabs 11 Nr.
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: N-02 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB015-028-12BO (6 Pcs) Lock Washers - 15x27.78 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Per 6 View the product page first if you are unsure.
WLB015-028-12BO (6 Pcs) --- Lock Washers - 15x27.78 mm - 11 Nr. - Spring Steel WLB015-028-12BO (6 Pcs) --- Lock Washers - 15x27.78 mm - 11 Nr. - Spring Steel Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 15.00 mm _{(0.591 in.)}	Approx OD (D5) 28 mm _{(1.102 in.)}	Tabs 11 Nr.	Inner Tab Width (E) 4.00 mm	Outer Tab Width (S) 4.00 mm	Inner Face (D4) 21.0 mm
Material: Spring Steel thickness (t): 1.0 mm Matching Locknut: AN / KM02 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB015-028-10-ST (5 Pcs) Lock Washers - 15x28 mm - 11 Nr. - Spring Steel 1 pack (5 pcs) Available Immediately \| Further orders can be expected around Wed, May 21, 2025 Regular price $21.59 AUD Regular price Sale price $21.59 AUD Unit price per Per 5
Approx. ID (D1) 15.00 mm _{(0.591 in.)}	Approx OD (D5) 28 mm _{(1.102 in.)}	Tabs 11 Nr.	Inner Tab Width (E) 4.00 mm
Material: Spring Steel Outer Tab Width (S): 4.00 mm Inner Face (D4): 21.0 mm thickness (t): 1.0 mm Matching Locknut: AN / KM02 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB015-028-10-ST (5 Pcs) Lock Washers - 15x28 mm - 11 Nr. - Spring Steel 1 pack (5 pcs) Available Immediately \| Further orders can be expected around Wed, May 21, 2025 Regular price $21.59 AUD Regular price Sale price $21.59 AUD Unit price per Per 5 View the product page first if you are unsure.
WLB015-028-10-ST (5 Pcs) --- Lock Washers - 15x28 mm - 11 Nr. - Spring Steel WLB015-028-10-ST (5 Pcs) --- Lock Washers - 15x28 mm - 11 Nr. - Spring Steel Regular price $21.59 AUD Regular price Sale price $21.59 AUD Unit price per 1 Available Now
Approx. ID (D1) 17.00 mm _{(0.669 in.)}	Approx OD (D5) 28.97 mm _{(1.141 in.)}	Tabs 11 Nr.			Inner Face (D4) 22.7 mm
Material: Spring Steel thickness (t): 1.1 mm Matching Locknut: NT-03 Inner Tab Type: Bent Outwards Series: WT / Thin Type
Part Number: WLB017-029-11-BO (1500 Pcs) Lock Washers - 17x28.97 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Mar 04, 2026 Regular price $5,721.32 AUD Regular price Sale price $5,721.32 AUD Unit price per Per 1500
Approx. ID (D1) 17.00 mm _{(0.669 in.)}	Approx OD (D5) 28.97 mm _{(1.141 in.)}	Tabs 11 Nr.
Material: Spring Steel Inner Face (D4): 22.7 mm thickness (t): 1.1 mm Matching Locknut: NT-03 Inner Tab Type: Bent Outwards Series: WT / Thin Type
Part Number: WLB017-029-11-BO (1500 Pcs) Lock Washers - 17x28.97 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Mar 04, 2026 Regular price $5,721.32 AUD Regular price Sale price $5,721.32 AUD Unit price per Per 1500 View the product page first if you are unsure.
WLB017-029-11-BO (1500 Pcs) --- Lock Washers - 17x28.97 mm - 11 Nr. - Spring Steel WLB017-029-11-BO (1500 Pcs) --- Lock Washers - 17x28.97 mm - 11 Nr. - Spring Steel Regular price $5,721.32 AUD Regular price Sale price $5,721.32 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 17.00 mm _{(0.669 in.)}	Approx OD (D5) 32 mm _{(1.26 in.)}	Tabs 11 Nr.	Inner Tab Width (E) 4.00 mm	Outer Tab Width (S) 4.00 mm	Inner Face (D4) 24.0 mm
Material: Spring Steel thickness (t): 1.0 mm Matching Locknut: AN / KM03 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB017-032-10-ST (5 Pcs) Lock Washers - 17x32 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Per 5
Approx. ID (D1) 17.00 mm _{(0.669 in.)}	Approx OD (D5) 32 mm _{(1.26 in.)}	Tabs 11 Nr.	Inner Tab Width (E) 4.00 mm
Material: Spring Steel Outer Tab Width (S): 4.00 mm Inner Face (D4): 24.0 mm thickness (t): 1.0 mm Matching Locknut: AN / KM03 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB017-032-10-ST (5 Pcs) Lock Washers - 17x32 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Per 5 View the product page first if you are unsure.
WLB017-032-10-ST (5 Pcs) --- Lock Washers - 17x32 mm - 11 Nr. - Spring Steel WLB017-032-10-ST (5 Pcs) --- Lock Washers - 17x32 mm - 11 Nr. - Spring Steel Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 17.00 mm _{(0.669 in.)}	Approx OD (D5) 32.15 mm _{(1.266 in.)}	Tabs 11 Nr.
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: N-03 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB017-032-12BO (6 Pcs) Lock Washers - 17x32.15 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Per 6
Approx. ID (D1) 17.00 mm _{(0.669 in.)}	Approx OD (D5) 32.15 mm _{(1.266 in.)}	Tabs 11 Nr.
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: N-03 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB017-032-12BO (6 Pcs) Lock Washers - 17x32.15 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Per 6 View the product page first if you are unsure.
WLB017-032-12BO (6 Pcs) --- Lock Washers - 17x32.15 mm - 11 Nr. - Spring Steel WLB017-032-12BO (6 Pcs) --- Lock Washers - 17x32.15 mm - 11 Nr. - Spring Steel Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 17.00 mm _{(0.669 in.)}	Approx OD (D5) 32.54 mm _{(1.281 in.)}	Tabs 11 Nr.			Inner Face (D4) 24.2 mm
Material: Spring Steel thickness (t): 1.6 mm Matching Locknut: NH-03 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB017-033-16-BI (1500 Pcs) Lock Washers - 17x32.54 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Mar 04, 2026 Regular price $4,569.41 AUD Regular price Sale price $4,569.41 AUD Unit price per Per 1500
Approx. ID (D1) 17.00 mm _{(0.669 in.)}	Approx OD (D5) 32.54 mm _{(1.281 in.)}	Tabs 11 Nr.
Material: Spring Steel Inner Face (D4): 24.2 mm thickness (t): 1.6 mm Matching Locknut: NH-03 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB017-033-16-BI (1500 Pcs) Lock Washers - 17x32.54 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Mar 04, 2026 Regular price $4,569.41 AUD Regular price Sale price $4,569.41 AUD Unit price per Per 1500 View the product page first if you are unsure.
WLB017-033-16-BI (1500 Pcs) --- Lock Washers - 17x32.54 mm - 11 Nr. - Spring Steel WLB017-033-16-BI (1500 Pcs) --- Lock Washers - 17x32.54 mm - 11 Nr. - Spring Steel Regular price $4,569.41 AUD Regular price Sale price $4,569.41 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 20.00 mm _{(0.787 in.)}	Approx OD (D5) 33.34 mm _{(1.313 in.)}	Tabs 11 Nr.			Inner Face (D4) 25.9 mm
Material: Spring Steel thickness (t): 1.1 mm Matching Locknut: NT-04 Inner Tab Type: Bent Outwards Series: WT / Thin Type
Part Number: WLB020-033-11-BO (10 Pcs) Lock Washers - 20x33.34 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $372.86 AUD Regular price Sale price $372.86 AUD Unit price per Per 10
Approx. ID (D1) 20.00 mm _{(0.787 in.)}	Approx OD (D5) 33.34 mm _{(1.313 in.)}	Tabs 11 Nr.
Material: Spring Steel Inner Face (D4): 25.9 mm thickness (t): 1.1 mm Matching Locknut: NT-04 Inner Tab Type: Bent Outwards Series: WT / Thin Type
Part Number: WLB020-033-11-BO (10 Pcs) Lock Washers - 20x33.34 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $372.86 AUD Regular price Sale price $372.86 AUD Unit price per Per 10 View the product page first if you are unsure.
WLB020-033-11-BO (10 Pcs) --- Lock Washers - 20x33.34 mm - 11 Nr. - Spring Steel WLB020-033-11-BO (10 Pcs) --- Lock Washers - 20x33.34 mm - 11 Nr. - Spring Steel Regular price $372.86 AUD Regular price Sale price $372.86 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 20.00 mm _{(0.787 in.)}	Approx OD (D5) 36 mm _{(1.417 in.)}	Tabs 11 Nr.	Inner Tab Width (E) 4.00 mm	Outer Tab Width (S) 4.00 mm	Inner Face (D4) 26.0 mm
Material: Spring Steel Tab Projection (V): 2.5 mm thickness (t): 1.0 mm Matching Locknut: AN / KM04 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB020-036-10-ST (5 Pcs) Lock Washers - 20x36 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Per 5
Approx. ID (D1) 20.00 mm _{(0.787 in.)}	Approx OD (D5) 36 mm _{(1.417 in.)}	Tabs 11 Nr.	Inner Tab Width (E) 4.00 mm
Material: Spring Steel Outer Tab Width (S): 4.00 mm Inner Face (D4): 26.0 mm Tab Projection (V): 2.5 mm thickness (t): 1.0 mm Matching Locknut: AN / KM04 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB020-036-10-ST (5 Pcs) Lock Washers - 20x36 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Per 5 View the product page first if you are unsure.
WLB020-036-10-ST (5 Pcs) --- Lock Washers - 20x36 mm - 11 Nr. - Spring Steel WLB020-036-10-ST (5 Pcs) --- Lock Washers - 20x36 mm - 11 Nr. - Spring Steel Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 20.00 mm _{(0.787 in.)}	Approx OD (D5) 37.31 mm _{(1.469 in.)}	Tabs 11 Nr.
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: N-04 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB020-037-12BO (50 Pcs) Lock Washers - 20x37.31 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $379.77 AUD Regular price Sale price $379.77 AUD Unit price per Per 50
Approx. ID (D1) 20.00 mm _{(0.787 in.)}	Approx OD (D5) 37.31 mm _{(1.469 in.)}	Tabs 11 Nr.
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: N-04 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB020-037-12BO (50 Pcs) Lock Washers - 20x37.31 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $379.77 AUD Regular price Sale price $379.77 AUD Unit price per Per 50 View the product page first if you are unsure.
WLB020-037-12BO (50 Pcs) --- Lock Washers - 20x37.31 mm - 11 Nr. - Spring Steel WLB020-037-12BO (50 Pcs) --- Lock Washers - 20x37.31 mm - 11 Nr. - Spring Steel Regular price $379.77 AUD Regular price Sale price $379.77 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 20.00 mm _{(0.787 in.)}	Approx OD (D5) 38.10 mm _{(1.5 in.)}	Tabs 11 Nr.			Inner Face (D4) 29.0 mm
Material: Spring Steel thickness (t): 1.6 mm Matching Locknut: NH-04 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB020-038-16-BI (100 Pcs) Lock Washers - 20x38.1 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $651.05 AUD Regular price Sale price $651.05 AUD Unit price per Per 100
Approx. ID (D1) 20.00 mm _{(0.787 in.)}	Approx OD (D5) 38.10 mm _{(1.5 in.)}	Tabs 11 Nr.
Material: Spring Steel Inner Face (D4): 29.0 mm thickness (t): 1.6 mm Matching Locknut: NH-04 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB020-038-16-BI (100 Pcs) Lock Washers - 20x38.1 mm - 11 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 01, 2025 Regular price $651.05 AUD Regular price Sale price $651.05 AUD Unit price per Per 100 View the product page first if you are unsure.
WLB020-038-16-BI (100 Pcs) --- Lock Washers - 20x38.1 mm - 11 Nr. - Spring Steel WLB020-038-16-BI (100 Pcs) --- Lock Washers - 20x38.1 mm - 11 Nr. - Spring Steel Regular price $651.05 AUD Regular price Sale price $651.05 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 25.00 mm _{(0.984 in.)}	Approx OD (D5) 42 mm _{(1.654 in.)}	Tabs 13 Nr.	Inner Tab Width (E) 5.00 mm	Outer Tab Width (S) 5.00 mm	Inner Face (D4) 32.0 mm
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: AN / KM05 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB025-042-12-ST (50 Pcs) Lock Washers - 25x42 mm - 13 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Per 50
Approx. ID (D1) 25.00 mm _{(0.984 in.)}	Approx OD (D5) 42 mm _{(1.654 in.)}	Tabs 13 Nr.	Inner Tab Width (E) 5.00 mm
Material: Spring Steel Outer Tab Width (S): 5.00 mm Inner Face (D4): 32.0 mm thickness (t): 1.2 mm Matching Locknut: AN / KM05 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB025-042-12-ST (50 Pcs) Lock Washers - 25x42 mm - 13 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Per 50 View the product page first if you are unsure.
WLB025-042-12-ST (50 Pcs) --- Lock Washers - 25x42 mm - 13 Nr. - Spring Steel WLB025-042-12-ST (50 Pcs) --- Lock Washers - 25x42 mm - 13 Nr. - Spring Steel Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 25.00 mm _{(0.984 in.)}	Approx OD (D5) 43.63 mm _{(1.718 in.)}	Tabs 11 Nr.
Material: Spring Steel thickness (t): 1.4 mm Matching Locknut: N-05 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB025-044-14-BO Lock Washers - 25x43.63 mm - 11 Nr. - Spring Steel 80 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Each
Approx. ID (D1) 25.00 mm _{(0.984 in.)}	Approx OD (D5) 43.63 mm _{(1.718 in.)}	Tabs 11 Nr.
Material: Spring Steel thickness (t): 1.4 mm Matching Locknut: N-05 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB025-044-14-BO Lock Washers - 25x43.63 mm - 11 Nr. - Spring Steel 80 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per Each View the product page first if you are unsure.
WLB025-044-14-BO --- Lock Washers - 25x43.63 mm - 11 Nr. - Spring Steel WLB025-044-14-BO --- Lock Washers - 25x43.63 mm - 11 Nr. - Spring Steel Regular price $2.68 AUD Regular price Sale price $2.68 AUD Unit price per 80 Available Now
Approx. ID (D1) 30.00 mm _{(1.181 in.)}	Approx OD (D5) 47.23 mm _{(1.859 in.)}	Tabs 13 Nr.
Material: Spring Steel thickness (t): 1.4 mm Matching Locknut: N-06 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB030-047-14BO (5 Pcs) Lock Washers - 30x47.23 mm - 13 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Per 5
Approx. ID (D1) 30.00 mm _{(1.181 in.)}	Approx OD (D5) 47.23 mm _{(1.859 in.)}	Tabs 13 Nr.
Material: Spring Steel thickness (t): 1.4 mm Matching Locknut: N-06 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB030-047-14BO (5 Pcs) Lock Washers - 30x47.23 mm - 13 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Per 5 View the product page first if you are unsure.
WLB030-047-14BO (5 Pcs) --- Lock Washers - 30x47.23 mm - 13 Nr. - Spring Steel WLB030-047-14BO (5 Pcs) --- Lock Washers - 30x47.23 mm - 13 Nr. - Spring Steel Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 30.00 mm _{(1.181 in.)}	Approx OD (D5) 48.02 mm _{(1.891 in.)}	Tabs 13 Nr.			Inner Face (D4) 38.5 mm
Material: Spring Steel thickness (t): 1.7 mm Matching Locknut: NH-06 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB030-048-17-BI (4 Pcs) Lock Washers - 30x48.02 mm - 13 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Per 4
Approx. ID (D1) 30.00 mm _{(1.181 in.)}	Approx OD (D5) 48.02 mm _{(1.891 in.)}	Tabs 13 Nr.
Material: Spring Steel Inner Face (D4): 38.5 mm thickness (t): 1.7 mm Matching Locknut: NH-06 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB030-048-17-BI (4 Pcs) Lock Washers - 30x48.02 mm - 13 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Per 4 View the product page first if you are unsure.
WLB030-048-17-BI (4 Pcs) --- Lock Washers - 30x48.02 mm - 13 Nr. - Spring Steel WLB030-048-17-BI (4 Pcs) --- Lock Washers - 30x48.02 mm - 13 Nr. - Spring Steel Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 30.00 mm _{(1.181 in.)}	Approx OD (D5) 49 mm _{(1.929 in.)}	Tabs 13 Nr.	Inner Tab Width (E) 5.00 mm	Outer Tab Width (S) 5.00 mm	Inner Face (D4) 38.0 mm
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: AN / KM06 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB030-049-12-ST (5 Pcs) Lock Washers - 30x49 mm - 13 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Per 5
Approx. ID (D1) 30.00 mm _{(1.181 in.)}	Approx OD (D5) 49 mm _{(1.929 in.)}	Tabs 13 Nr.	Inner Tab Width (E) 5.00 mm
Material: Spring Steel Outer Tab Width (S): 5.00 mm Inner Face (D4): 38.0 mm thickness (t): 1.2 mm Matching Locknut: AN / KM06 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB030-049-12-ST (5 Pcs) Lock Washers - 30x49 mm - 13 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Per 5 View the product page first if you are unsure.
WLB030-049-12-ST (5 Pcs) --- Lock Washers - 30x49 mm - 13 Nr. - Spring Steel WLB030-049-12-ST (5 Pcs) --- Lock Washers - 30x49 mm - 13 Nr. - Spring Steel Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 33.33 mm _{(1.312 in.)}	Approx OD (D5) 55.17 mm _{(2.172 in.)}	Tabs 15 Nr.			Inner Face (D4) 46.4 mm
Material: Spring Steel thickness (t): 1.7 mm Matching Locknut: NH-065 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB033-055-17-BI (4 Pcs) Lock Washers - 33.33x55.17 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Per 4
Approx. ID (D1) 33.33 mm _{(1.312 in.)}	Approx OD (D5) 55.17 mm _{(2.172 in.)}	Tabs 15 Nr.
Material: Spring Steel Inner Face (D4): 46.4 mm thickness (t): 1.7 mm Matching Locknut: NH-065 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB033-055-17-BI (4 Pcs) Lock Washers - 33.33x55.17 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Per 4 View the product page first if you are unsure.
WLB033-055-17-BI (4 Pcs) --- Lock Washers - 33.33x55.17 mm - 15 Nr. - Spring Steel WLB033-055-17-BI (4 Pcs) --- Lock Washers - 33.33x55.17 mm - 15 Nr. - Spring Steel Regular price $18.05 AUD Regular price Sale price $18.05 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 35.00 mm _{(1.378 in.)}	Approx OD (D5) 55.56 mm _{(2.187 in.)}	Tabs 15 Nr.
Material: Spring Steel thickness (t): 1.4 mm Matching Locknut: N-07 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB035-056-14BO (4 Pcs) Lock Washers - 35x55.56 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Per 4
Approx. ID (D1) 35.00 mm _{(1.378 in.)}	Approx OD (D5) 55.56 mm _{(2.187 in.)}	Tabs 15 Nr.
Material: Spring Steel thickness (t): 1.4 mm Matching Locknut: N-07 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB035-056-14BO (4 Pcs) Lock Washers - 35x55.56 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Per 4 View the product page first if you are unsure.
WLB035-056-14BO (4 Pcs) --- Lock Washers - 35x55.56 mm - 15 Nr. - Spring Steel WLB035-056-14BO (4 Pcs) --- Lock Washers - 35x55.56 mm - 15 Nr. - Spring Steel Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 35.00 mm _{(1.378 in.)}	Approx OD (D5) 55.56 mm _{(2.187 in.)}	Tabs 15 Nr.			Inner Face (D4) 46.4 mm
Material: Spring Steel thickness (t): 1.7 mm Matching Locknut: NH-07 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB035-056-17-BI (2 Pcs) Lock Washers - 35x55.56 mm - 15 Nr. - Spring Steel 1 pack (2 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Per 2
Approx. ID (D1) 35.00 mm _{(1.378 in.)}	Approx OD (D5) 55.56 mm _{(2.187 in.)}	Tabs 15 Nr.
Material: Spring Steel Inner Face (D4): 46.4 mm thickness (t): 1.7 mm Matching Locknut: NH-07 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB035-056-17-BI (2 Pcs) Lock Washers - 35x55.56 mm - 15 Nr. - Spring Steel 1 pack (2 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Per 2 View the product page first if you are unsure.
WLB035-056-17-BI (2 Pcs) --- Lock Washers - 35x55.56 mm - 15 Nr. - Spring Steel WLB035-056-17-BI (2 Pcs) --- Lock Washers - 35x55.56 mm - 15 Nr. - Spring Steel Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per 1 Available Now
Approx. ID (D1) 35.00 mm _{(1.378 in.)}	Approx OD (D5) 57 mm _{(2.244 in.)}	Tabs 15 Nr.	Inner Tab Width (E) 6.00 mm	Outer Tab Width (S) 5.00 mm	Inner Face (D4) 44.0 mm
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: AN / KM07 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB035-057-12-ST (5 Pcs) Lock Washers - 35x57 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $17.41 AUD Regular price Sale price $17.41 AUD Unit price per Per 5
Approx. ID (D1) 35.00 mm _{(1.378 in.)}	Approx OD (D5) 57 mm _{(2.244 in.)}	Tabs 15 Nr.	Inner Tab Width (E) 6.00 mm
Material: Spring Steel Outer Tab Width (S): 5.00 mm Inner Face (D4): 44.0 mm thickness (t): 1.2 mm Matching Locknut: AN / KM07 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB035-057-12-ST (5 Pcs) Lock Washers - 35x57 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $17.41 AUD Regular price Sale price $17.41 AUD Unit price per Per 5 View the product page first if you are unsure.
WLB035-057-12-ST (5 Pcs) --- Lock Washers - 35x57 mm - 15 Nr. - Spring Steel WLB035-057-12-ST (5 Pcs) --- Lock Washers - 35x57 mm - 15 Nr. - Spring Steel Regular price $17.41 AUD Regular price Sale price $17.41 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 40.00 mm _{(1.575 in.)}	Approx OD (D5) 61.12 mm _{(2.406 in.)}	Tabs 15 Nr.
Material: Spring Steel thickness (t): 1.4 mm Matching Locknut: N-08 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB040-061-14BO (4 Pcs) Lock Washers - 40x61.12 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Per 4
Approx. ID (D1) 40.00 mm _{(1.575 in.)}	Approx OD (D5) 61.12 mm _{(2.406 in.)}	Tabs 15 Nr.
Material: Spring Steel thickness (t): 1.4 mm Matching Locknut: N-08 Inner Tab Type: Bent Outwards Series: W / Standard Duty
Part Number: WLB040-061-14BO (4 Pcs) Lock Washers - 40x61.12 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Per 4 View the product page first if you are unsure.
WLB040-061-14BO (4 Pcs) --- Lock Washers - 40x61.12 mm - 15 Nr. - Spring Steel WLB040-061-14BO (4 Pcs) --- Lock Washers - 40x61.12 mm - 15 Nr. - Spring Steel Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 40.00 mm _{(1.575 in.)}	Approx OD (D5) 61.52 mm _{(2.422 in.)}	Tabs 15 Nr.			Inner Face (D4) 51.6 mm
Material: Spring Steel thickness (t): 2.0 mm Matching Locknut: NH-08 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB040-062-20-BI (3 Pcs) Lock Washers - 40x61.52 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Per 3
Approx. ID (D1) 40.00 mm _{(1.575 in.)}	Approx OD (D5) 61.52 mm _{(2.422 in.)}	Tabs 15 Nr.
Material: Spring Steel Inner Face (D4): 51.6 mm thickness (t): 2.0 mm Matching Locknut: NH-08 Inner Tab Type: Bent Inwards Series: WH / Heavy Duty
Part Number: WLB040-062-20-BI (3 Pcs) Lock Washers - 40x61.52 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Per 3 View the product page first if you are unsure.
WLB040-062-20-BI (3 Pcs) --- Lock Washers - 40x61.52 mm - 15 Nr. - Spring Steel WLB040-062-20-BI (3 Pcs) --- Lock Washers - 40x61.52 mm - 15 Nr. - Spring Steel Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 40.00 mm _{(1.575 in.)}	Approx OD (D5) 62 mm _{(2.441 in.)}	Tabs 15 Nr.	Inner Tab Width (E) 6.00 mm	Outer Tab Width (S) 6.00 mm	Inner Face (D4) 50.0 mm
Material: Spring Steel thickness (t): 1.2 mm Matching Locknut: AN / KM08 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB040-062-12-ST (5 Pcs) Lock Washers - 40x62 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 5
Approx. ID (D1) 40.00 mm _{(1.575 in.)}	Approx OD (D5) 62 mm _{(2.441 in.)}	Tabs 15 Nr.	Inner Tab Width (E) 6.00 mm
Material: Spring Steel Outer Tab Width (S): 6.00 mm Inner Face (D4): 50.0 mm thickness (t): 1.2 mm Matching Locknut: AN / KM08 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB040-062-12-ST (5 Pcs) Lock Washers - 40x62 mm - 15 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 5 View the product page first if you are unsure.
WLB040-062-12-ST (5 Pcs) --- Lock Washers - 40x62 mm - 15 Nr. - Spring Steel WLB040-062-12-ST (5 Pcs) --- Lock Washers - 40x62 mm - 15 Nr. - Spring Steel Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Out of stock! Backorder Now
