Collection: Washers - Lock - Tabbed - for Bearing Locknuts

Washers (With Images)

Lock

Tabbed

for Bearing Locknuts

76 Products in this selection

This category includes equivalents to AW, W, TW, MB, WH and WT types
For use with bearing lock nuts

Additional resources:
Screws

A more concise listing may be found on the Smallparts store at Washers - Lock - Tabbed - for Bearing Locknuts. Smallparts promote the most popular MBA products.

Approx. ID (D1)	Approx OD (D5)	Tabs	Inner Tab Width (E)	Outer Tab Width (S)	Inner Face (D4)
Approx. ID (D1) 170.00 mm _{(6.693 in.)}	Approx OD (D5) 232 mm _{(9.134 in.)}	Tabs 19 Nr.	Inner Tab Width (E) 18.00 mm	Outer Tab Width (S) 16.00 mm	Inner Face (D4) 193.0 mm
Material: Spring Steel thickness (t): 2.5 mm Matching Locknut: AN / KM34 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB170-232-25-ST Lock Washers - 170x232 mm - 19 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $133.32 AUD Regular price Sale price $133.32 AUD Unit price per Each

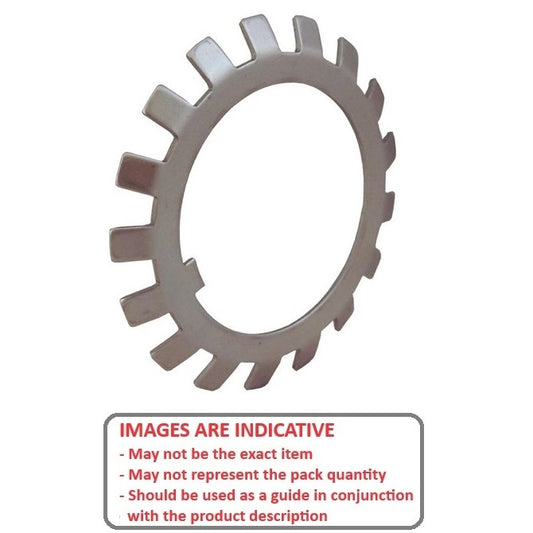

Approx. ID (D1)	Approx OD (D5)	Tabs	Inner Tab Width (E)	Indicative Image
Approx. ID (D1) 170.00 mm _{(6.693 in.)}	Approx OD (D5) 232 mm _{(9.134 in.)}	Tabs 19 Nr.	Inner Tab Width (E) 18.00 mm
Material: Spring Steel Outer Tab Width (S): 16.00 mm Inner Face (D4): 193.0 mm thickness (t): 2.5 mm Matching Locknut: AN / KM34 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB170-232-25-ST Lock Washers - 170x232 mm - 19 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $133.32 AUD Regular price Sale price $133.32 AUD Unit price per Each View the product page first if you are unsure.
WLB170-232-25-ST --- Lock Washers - 170x232 mm - 19 Nr. - Spring Steel WLB170-232-25-ST --- Lock Washers - 170x232 mm - 19 Nr. - Spring Steel Regular price $133.32 AUD Regular price Sale price $133.32 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 180.00 mm _{(7.087 in.)}	Approx OD (D5) 242 mm _{(9.528 in.)}	Tabs 19 Nr.	Inner Tab Width (E) 20.00 mm	Outer Tab Width (S) 18.00 mm	Inner Face (D4) 203.0 mm
Material: Spring Steel thickness (t): 2.5 mm Matching Locknut: AN / KM36 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB180-242-25-ST Lock Washers - 180x242 mm - 19 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $142.95 AUD Regular price Sale price $142.95 AUD Unit price per Each
Approx. ID (D1) 180.00 mm _{(7.087 in.)}	Approx OD (D5) 242 mm _{(9.528 in.)}	Tabs 19 Nr.	Inner Tab Width (E) 20.00 mm
Material: Spring Steel Outer Tab Width (S): 18.00 mm Inner Face (D4): 203.0 mm thickness (t): 2.5 mm Matching Locknut: AN / KM36 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB180-242-25-ST Lock Washers - 180x242 mm - 19 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $142.95 AUD Regular price Sale price $142.95 AUD Unit price per Each View the product page first if you are unsure.
WLB180-242-25-ST --- Lock Washers - 180x242 mm - 19 Nr. - Spring Steel WLB180-242-25-ST --- Lock Washers - 180x242 mm - 19 Nr. - Spring Steel Regular price $142.95 AUD Regular price Sale price $142.95 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 190.00 mm _{(7.48 in.)}	Approx OD (D5) 252 mm _{(9.921 in.)}	Tabs 19 Nr.	Inner Tab Width (E) 20.00 mm	Outer Tab Width (S) 18.00 mm	Inner Face (D4) 214.0 mm
Material: Spring Steel thickness (t): 2.5 mm Matching Locknut: AN / KM38 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB190-252-25-ST Lock Washers - 190x252 mm - 19 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $200.95 AUD Regular price Sale price $200.95 AUD Unit price per Each
Approx. ID (D1) 190.00 mm _{(7.48 in.)}	Approx OD (D5) 252 mm _{(9.921 in.)}	Tabs 19 Nr.	Inner Tab Width (E) 20.00 mm
Material: Spring Steel Outer Tab Width (S): 18.00 mm Inner Face (D4): 214.0 mm thickness (t): 2.5 mm Matching Locknut: AN / KM38 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB190-252-25-ST Lock Washers - 190x252 mm - 19 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $200.95 AUD Regular price Sale price $200.95 AUD Unit price per Each View the product page first if you are unsure.
WLB190-252-25-ST --- Lock Washers - 190x252 mm - 19 Nr. - Spring Steel WLB190-252-25-ST --- Lock Washers - 190x252 mm - 19 Nr. - Spring Steel Regular price $200.95 AUD Regular price Sale price $200.95 AUD Unit price per Out of stock! Backorder Now
Approx. ID (D1) 200.00 mm _{(7.874 in.)}	Approx OD (D5) 262 mm _{(10.315 in.)}	Tabs 19 Nr.	Inner Tab Width (E) 20.00 mm	Outer Tab Width (S) 18.00 mm	Inner Face (D4) 226.0 mm
Material: Spring Steel thickness (t): 2.5 mm Matching Locknut: AN / KM40 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB200-262-25-ST Lock Washers - 200x262 mm - 19 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $222.05 AUD Regular price Sale price $222.05 AUD Unit price per Each
Approx. ID (D1) 200.00 mm _{(7.874 in.)}	Approx OD (D5) 262 mm _{(10.315 in.)}	Tabs 19 Nr.	Inner Tab Width (E) 20.00 mm
Material: Spring Steel Outer Tab Width (S): 18.00 mm Inner Face (D4): 226.0 mm thickness (t): 2.5 mm Matching Locknut: AN / KM40 Inner Tab Type: Straight ISO 2982 Series: MB / AW-X
Part Number: WLB200-262-25-ST Lock Washers - 200x262 mm - 19 Nr. - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, May 21, 2025 Regular price $222.05 AUD Regular price Sale price $222.05 AUD Unit price per Each View the product page first if you are unsure.
WLB200-262-25-ST --- Lock Washers - 200x262 mm - 19 Nr. - Spring Steel WLB200-262-25-ST --- Lock Washers - 200x262 mm - 19 Nr. - Spring Steel Regular price $222.05 AUD Regular price Sale price $222.05 AUD Unit price per Out of stock! Backorder Now
