Collection: Retaining Rings - Internal
1202 Products in this selection

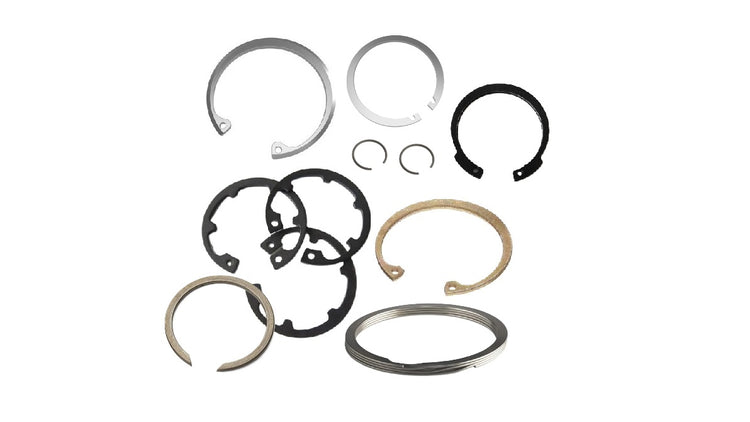

This is a combined category of Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - Internal. Smallparts promote the most popular MBA products.
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
6.35
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
6.81
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
7.11
mm + 0.25 / - 0.13 |
Groove Width (W)
0.51
mm + 0.05 / - 0.00 |
|
|
|

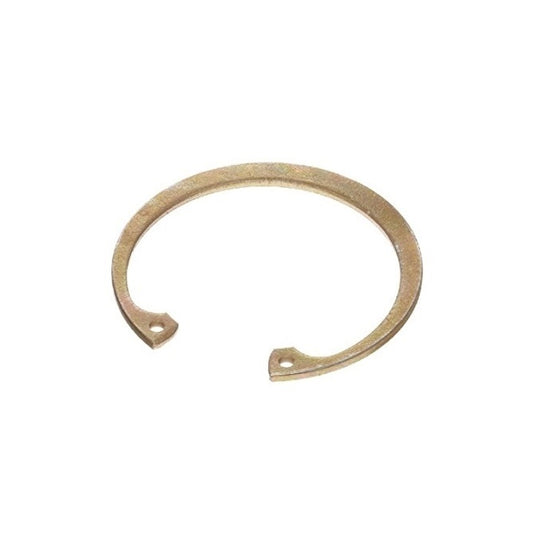

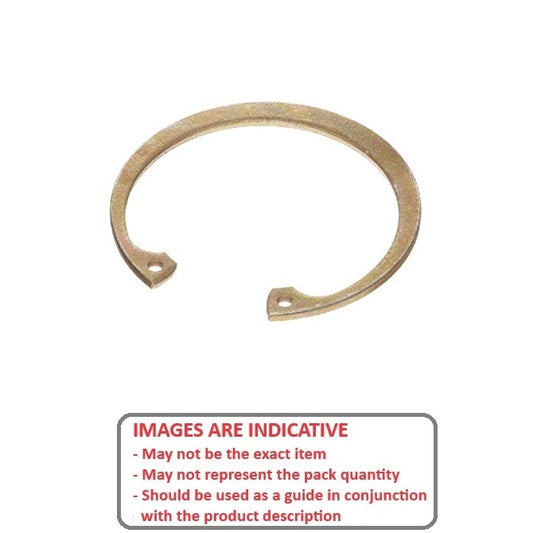

Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 2.79 mm
Clearance in Groove (C1): 3.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00635-CZY (100 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$49.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
6.35
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
6.81
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
7.11
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 0.51 mm + 0.05 / - 0.00
Clearance in Bore (C): 2.79 mm
Clearance in Groove (C1): 3.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00635-CZY (100 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$49.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
6.35
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
6.81
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
7.11
mm + 0.25 / - 0.13 |
Groove Width (W)
0.51
mm + 0.05 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 2.79 mm
Clearance in Groove (C1): 3.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00635-S15 (2 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm - Stainless Steel Grade PH15-7 Mo
150 units (300 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
6.35
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
6.81
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
7.11
mm + 0.25 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.51 mm + 0.05 / - 0.00
Clearance in Bore (C): 2.79 mm
Clearance in Groove (C1): 3.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00635-S15 (2 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm - Stainless Steel Grade PH15-7 Mo
150 units (300 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
6.35
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
6.81
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
7.11
mm + 0.25 / - 0.13 |
Groove Width (W)
0.51
mm + 0.05 / - 0.00 |
|
|
|

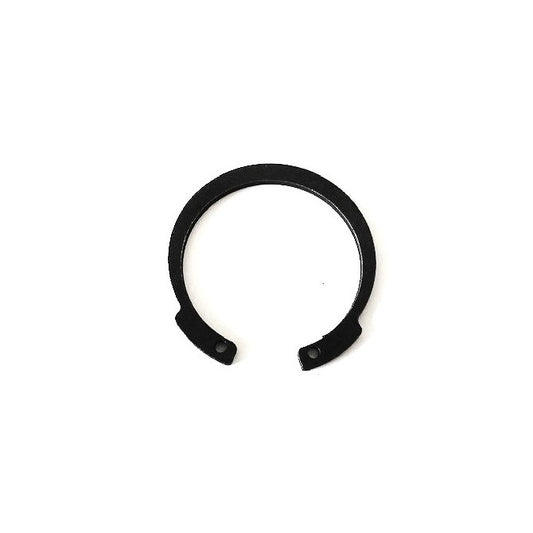

Material: Carbon Steel
Clearance in Bore (C): 2.79 mm
Clearance in Groove (C1): 3.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00635-C (50 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$13.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
6.35
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
6.81
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
7.11
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.51 mm + 0.05 / - 0.00
Clearance in Bore (C): 2.79 mm
Clearance in Groove (C1): 3.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00635-C (50 Pcs) Internal Retaining Rings - 6.35x0.31x6.81 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$13.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
7.00
mm |
Clip Thickness (T)
0.80
mm + 0 / - 0.10 |
Groove Dia. (Dg)
7.30
mm + 0.09 / - 0.00 |
Approx. Loose Circlip OD (Dr)
7.50
mm |
Radial Wall (S)
1.00
mm + 0 / - 0.10 |
Groove Width (W)
0.90
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 5.5 mm

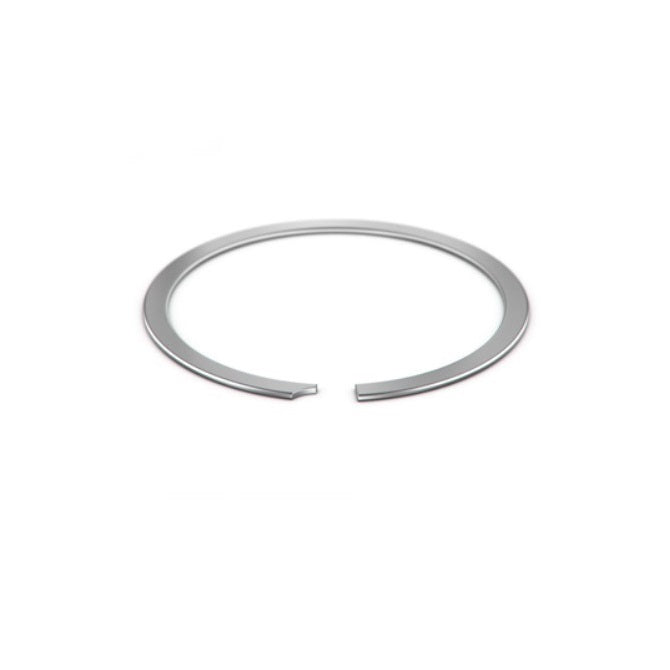

Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0070-LS Internal Retaining Rings - 7x0.8x7.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
7.00
mm |
Clip Thickness (T)
0.80
mm + 0 / - 0.10 |
Groove Dia. (Dg)
7.30
mm + 0.09 / - 0.00 |
Approx. Loose Circlip OD (Dr)
7.50
mm |
|
||
|
Material: Spring Steel
Radial Wall (S): 1.00 mm + 0 / - 0.10
Groove Width (W): 0.90 mm
Clearance in Groove (C1): 5.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0070-LS Internal Retaining Rings - 7x0.8x7.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
7.00
mm |
Clip Thickness (T)
0.8
mm B DIN 2076 |
Groove Dia. (Dg)
7.80
mm + 0.3 / - 0.0 |
Approx. Loose Circlip OD (Dr)
7.90
mm |
Groove Width (W)
1.00
mm |
|
|
|
Material: Spring Steel
Clearance in Bore (C): 6.3 mm

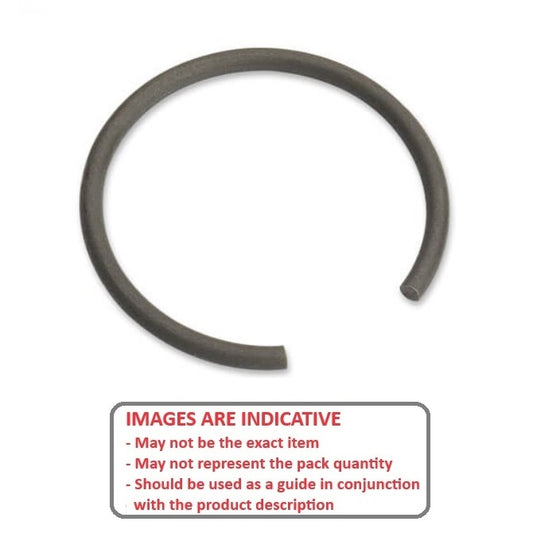

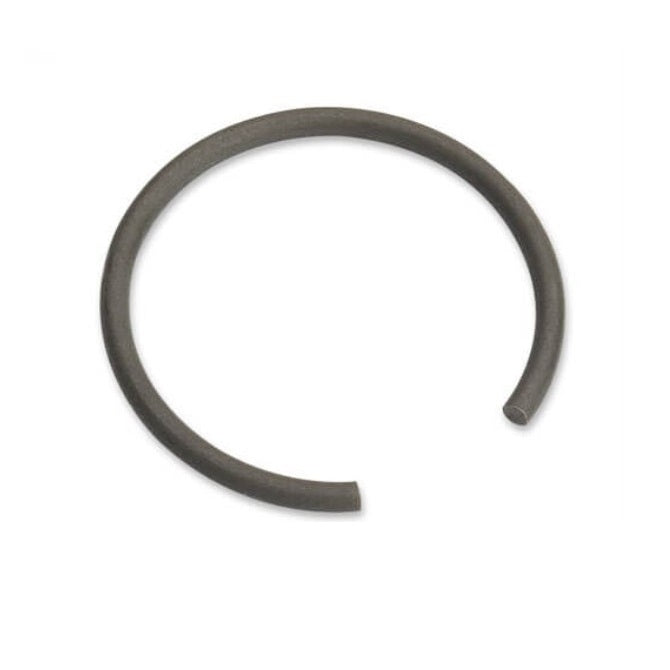

Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0070-RD Internal Retaining Rings - 7x0.8x7.8 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$9.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
7.00
mm |
Clip Thickness (T)
0.8
mm B DIN 2076 |
Groove Dia. (Dg)
7.80
mm + 0.3 / - 0.0 |
Approx. Loose Circlip OD (Dr)
7.90
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 1.00 mm
Clearance in Bore (C): 6.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0070-RD Internal Retaining Rings - 7x0.8x7.8 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$9.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
7.94
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
8.38
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
8.79
mm + 0.25 / - 0.13 |
Groove Width (W)
0.51
mm + 0.05 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 4.32 mm
Clearance in Groove (C1): 4.83 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00794-S15 (5 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm - Stainless Steel Grade PH15-7 Mo
4 units (20 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
7.94
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
8.38
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
8.79
mm + 0.25 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.51 mm + 0.05 / - 0.00
Clearance in Bore (C): 4.32 mm
Clearance in Groove (C1): 4.83 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00794-S15 (5 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm - Stainless Steel Grade PH15-7 Mo
4 units (20 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
7.94
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
8.38
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
8.79
mm + 0.25 / - 0.13 |
Groove Width (W)
0.51
mm + 0.05 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 4.32 mm
Clearance in Groove (C1): 4.83 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00794-CZY (100 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$50.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
7.94
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
8.38
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
8.79
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 0.51 mm + 0.05 / - 0.00
Clearance in Bore (C): 4.32 mm
Clearance in Groove (C1): 4.83 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00794-CZY (100 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$50.95 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
7.94
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
8.38
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
8.79
mm + 0.25 / - 0.13 |
Groove Width (W)
0.51
mm + 0.05 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 4.32 mm
Clearance in Groove (C1): 4.83 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00794-C (20 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm - Carbon Steel
4 units (80 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$5.59 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
Housing Bore (B)
7.94
mm |
Clip Thickness (T)
0.31
mm +/- 0.025 |
Groove Dia. (Dg)
8.38
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
8.79
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.51 mm + 0.05 / - 0.00
Clearance in Bore (C): 4.32 mm
Clearance in Groove (C1): 4.83 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00794-C (20 Pcs) Internal Retaining Rings - 7.94x0.31x8.38 mm - Carbon Steel
4 units (80 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$5.59 AUD
Regular price
Unit price
per
Per 20
|
||||||
|
||||||
|
Housing Bore (B)
8.00
mm |
Clip Thickness (T)
0.80
mm + 0 / - 0.10 |
Groove Dia. (Dg)
8.30
mm + 0.09 / - 0.00 |
Approx. Loose Circlip OD (Dr)
8.50
mm |
Radial Wall (S)
1.00
mm + 0 / - 0.10 |
Groove Width (W)
0.90
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 6.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0080-LS Internal Retaining Rings - 8x0.8x8.3 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 16, 2025 Regular price
$5.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
8.00
mm |
Clip Thickness (T)
0.80
mm + 0 / - 0.10 |
Groove Dia. (Dg)
8.30
mm + 0.09 / - 0.00 |
Approx. Loose Circlip OD (Dr)
8.50
mm |
|
||
|
Material: Spring Steel
Radial Wall (S): 1.00 mm + 0 / - 0.10
Groove Width (W): 0.90 mm
Clearance in Groove (C1): 6.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0080-LS Internal Retaining Rings - 8x0.8x8.3 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 16, 2025 Regular price
$5.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
8.00
mm |
Clip Thickness (T)
0.80
mm + 0.09 / - 0.00 |
Groove Dia. (Dg)
8.40
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
8.70
mm + 0.36 / - 0.10 |
Groove Width (W)
0.90
mm + 0.05 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 3.00 mm
Clearance in Groove (C1): 3.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00800-S15 (5 Pcs) Internal Retaining Rings - 8x0.8x8.4 mm - Stainless Steel Grade PH15-7 Mo
3 units (15 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$14.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
8.00
mm |
Clip Thickness (T)
0.80
mm + 0.09 / - 0.00 |
Groove Dia. (Dg)
8.40
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
8.70
mm + 0.36 / - 0.10 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.90 mm + 0.05 / - 0.00
Clearance in Bore (C): 3.00 mm
Clearance in Groove (C1): 3.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00800-S15 (5 Pcs) Internal Retaining Rings - 8x0.8x8.4 mm - Stainless Steel Grade PH15-7 Mo
3 units (15 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$14.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
8.00
mm |
Clip Thickness (T)
0.80
mm + 0.09 / - 0.00 |
Groove Dia. (Dg)
8.40
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
8.70
mm + 0.36 / - 0.10 |
Groove Width (W)
0.90
mm + 0.05 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 3.00 mm
Clearance in Groove (C1): 3.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00800-C (50 Pcs) Internal Retaining Rings - 8x0.8x8.4 mm - Carbon Steel
373 units (18650 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
8.00
mm |
Clip Thickness (T)
0.80
mm + 0.09 / - 0.00 |
Groove Dia. (Dg)
8.40
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
8.70
mm + 0.36 / - 0.10 |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.90 mm + 0.05 / - 0.00
Clearance in Bore (C): 3.00 mm
Clearance in Groove (C1): 3.60 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00800-C (50 Pcs) Internal Retaining Rings - 8x0.8x8.4 mm - Carbon Steel
373 units (18650 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
8.00
mm |
Clip Thickness (T)
0.8
mm B DIN 2076 |
Groove Dia. (Dg)
8.80
mm + 0.3 / - 0.0 |
Approx. Loose Circlip OD (Dr)
8.90
mm |
Groove Width (W)
1.00
mm |
|
|
|
Material: Spring Steel
Clearance in Bore (C): 7.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0080-RD (31 Pcs) Internal Retaining Rings - 8x0.8x8.8 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$21.50 AUD
Regular price
Unit price
per
Per 31
|
||||||
|
Housing Bore (B)
8.00
mm |
Clip Thickness (T)
0.8
mm B DIN 2076 |
Groove Dia. (Dg)
8.80
mm + 0.3 / - 0.0 |
Approx. Loose Circlip OD (Dr)
8.90
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 1.00 mm
Clearance in Bore (C): 7.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0080-RD (31 Pcs) Internal Retaining Rings - 8x0.8x8.8 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$21.50 AUD
Regular price
Unit price
per
Per 31
|
||||||
|
||||||
|
Housing Bore (B)
9.00
mm |
Clip Thickness (T)
0.80
mm + 0 / - 0.10 |
Groove Dia. (Dg)
9.30
mm + 0.09 / - 0.00 |
Approx. Loose Circlip OD (Dr)
9.50
mm |
Radial Wall (S)
1.10
mm + 0 / - 0.10 |
Groove Width (W)
0.90
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 7.3 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0090-LS Internal Retaining Rings - 9x0.8x9.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
9.00
mm |
Clip Thickness (T)
0.80
mm + 0 / - 0.10 |
Groove Dia. (Dg)
9.30
mm + 0.09 / - 0.00 |
Approx. Loose Circlip OD (Dr)
9.50
mm |
|
||
|
Material: Spring Steel
Radial Wall (S): 1.10 mm + 0 / - 0.10
Groove Width (W): 0.90 mm
Clearance in Groove (C1): 7.3 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0090-LS Internal Retaining Rings - 9x0.8x9.3 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
9.00
mm |
Clip Thickness (T)
0.80
mm + 0.09 / - 0.00 |
Groove Dia. (Dg)
9.40
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
9.80
mm + 0.36 / - 0.10 |
Groove Width (W)
0.90
mm + 0.05 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 3.70 mm
Clearance in Groove (C1): 4.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00900-C (50 Pcs) Internal Retaining Rings - 9x0.8x9.4 mm - Carbon Steel
20 units (1000 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
9.00
mm |
Clip Thickness (T)
0.80
mm + 0.09 / - 0.00 |
Groove Dia. (Dg)
9.40
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
9.80
mm + 0.36 / - 0.10 |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.90 mm + 0.05 / - 0.00
Clearance in Bore (C): 3.70 mm
Clearance in Groove (C1): 4.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00900-C (50 Pcs) Internal Retaining Rings - 9x0.8x9.4 mm - Carbon Steel
20 units (1000 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
9.00
mm |
Clip Thickness (T)
0.80
mm + 0.09 / - 0.00 |
Groove Dia. (Dg)
9.40
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
9.80
mm + 0.36 / - 0.10 |
Groove Width (W)
0.90
mm + 0.05 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 3.70 mm
Clearance in Groove (C1): 4.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00900-S15 (2 Pcs) Internal Retaining Rings - 9x0.8x9.4 mm - Stainless Steel Grade PH15-7 Mo
38 units (76 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
9.00
mm |
Clip Thickness (T)
0.80
mm + 0.09 / - 0.00 |
Groove Dia. (Dg)
9.40
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
9.80
mm + 0.36 / - 0.10 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.90 mm + 0.05 / - 0.00
Clearance in Bore (C): 3.70 mm
Clearance in Groove (C1): 4.40 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00900-S15 (2 Pcs) Internal Retaining Rings - 9x0.8x9.4 mm - Stainless Steel Grade PH15-7 Mo
38 units (76 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
9.53
mm |
Clip Thickness (T)
0.64
mm +/- 0.05 |
Groove Dia. (Dg)
10.03
mm +/- 0.08 |
Approx. Loose Circlip OD (Dr)
10.16
mm + 0.51 / - 0.00 |
Radial Wall (S)
0.89
mm +/- 0.08 |
Groove Width (W)
0.71
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 8.38 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0095-LS-O Internal Retaining Rings - 9.53x0.64x10.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
9.53
mm |
Clip Thickness (T)
0.64
mm +/- 0.05 |
Groove Dia. (Dg)
10.03
mm +/- 0.08 |
Approx. Loose Circlip OD (Dr)
10.16
mm + 0.51 / - 0.00 |
|
||
|
Material: Spring Steel
Radial Wall (S): 0.89 mm +/- 0.08
Groove Width (W): 0.71 mm
Clearance in Groove (C1): 8.38 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0095-LS-O Internal Retaining Rings - 9.53x0.64x10.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
9.53
mm |
Clip Thickness (T)
0.64
mm +/- 0.050 |
Groove Dia. (Dg)
10.08
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
10.54
mm + 0.25 / - 0.13 |
Groove Width (W)
0.74
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 5.08 mm
Clearance in Groove (C1): 5.59 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00953-C (100 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$26.05 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
9.53
mm |
Clip Thickness (T)
0.64
mm +/- 0.050 |
Groove Dia. (Dg)
10.08
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
10.54
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.74 mm + 0.08 / - 0.00
Clearance in Bore (C): 5.08 mm
Clearance in Groove (C1): 5.59 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00953-C (100 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$26.05 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
9.53
mm |
Clip Thickness (T)
0.64
mm +/- 0.050 |
Groove Dia. (Dg)
10.08
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
10.54
mm + 0.25 / - 0.13 |
Groove Width (W)
0.74
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 5.08 mm
Clearance in Groove (C1): 5.59 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00953-S15 (2 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm - Stainless Steel Grade PH15-7 Mo
75 units (150 pcs) Available Immediately | Further orders can be expected around Tue, Sep 09, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
9.53
mm |
Clip Thickness (T)
0.64
mm +/- 0.050 |
Groove Dia. (Dg)
10.08
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
10.54
mm + 0.25 / - 0.13 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 0.74 mm + 0.08 / - 0.00
Clearance in Bore (C): 5.08 mm
Clearance in Groove (C1): 5.59 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00953-S15 (2 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm - Stainless Steel Grade PH15-7 Mo
75 units (150 pcs) Available Immediately | Further orders can be expected around Tue, Sep 09, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
9.53
mm |
Clip Thickness (T)
0.64
mm +/- 0.050 |
Groove Dia. (Dg)
10.08
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
10.54
mm + 0.25 / - 0.13 |
Groove Width (W)
0.74
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 5.08 mm
Clearance in Groove (C1): 5.59 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00953-CZY (5 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm - Carbon Steel Zinc Plated
38 units (190 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$2.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
9.53
mm |
Clip Thickness (T)
0.64
mm +/- 0.050 |
Groove Dia. (Dg)
10.08
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
10.54
mm + 0.25 / - 0.13 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 0.74 mm + 0.08 / - 0.00
Clearance in Bore (C): 5.08 mm
Clearance in Groove (C1): 5.59 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-00953-CZY (5 Pcs) Internal Retaining Rings - 9.53x0.64x10.08 mm - Carbon Steel Zinc Plated
38 units (190 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$2.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
10.00
mm |
Clip Thickness (T)
0.60
mm + 0.11 / - 0.00 |
Groove Dia. (Dg)
10.50
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
10.90
mm + 0.42 / - 0.13 |
Radial Wall (S)
1.4 - 1.5
mm |
Groove Width (W)
0.70
mm |
|
|
Material: Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01000-C-V Internal Retaining Rings - 10x0.6x10.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
10.00
mm |
Clip Thickness (T)
0.60
mm + 0.11 / - 0.00 |
Groove Dia. (Dg)
10.50
mm + 0.00 / - 0.05 |
Approx. Loose Circlip OD (Dr)
10.90
mm + 0.42 / - 0.13 |
|
||
|
Material: Spring Steel
Radial Wall (S): 1.4 - 1.5 mm
Groove Width (W): 0.70 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01000-C-V Internal Retaining Rings - 10x0.6x10.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
10.00
mm |
Clip Thickness (T)
0.80
mm + 0 / - 0.10 |
Groove Dia. (Dg)
10.40
mm + 0.09 / - 0.00 |
Approx. Loose Circlip OD (Dr)
10.60
mm |
Radial Wall (S)
1.20
mm + 0 / - 0.10 |
Groove Width (W)
0.90
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 8.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0100-LS Internal Retaining Rings - 10x0.8x10.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
10.00
mm |
Clip Thickness (T)
0.80
mm + 0 / - 0.10 |
Groove Dia. (Dg)
10.40
mm + 0.09 / - 0.00 |
Approx. Loose Circlip OD (Dr)
10.60
mm |
|
||
|
Material: Spring Steel
Radial Wall (S): 1.20 mm + 0 / - 0.10
Groove Width (W): 0.90 mm
Clearance in Groove (C1): 8.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0100-LS Internal Retaining Rings - 10x0.8x10.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
10.00
mm |
Clip Thickness (T)
0.8
mm B DIN 2076 |
Groove Dia. (Dg)
10.80
mm + 0.3 / - 0.0 |
Approx. Loose Circlip OD (Dr)
10.90
mm |
Groove Width (W)
1.00
mm |
|
|
|
Material: Spring Steel
Clearance in Bore (C): 9.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0100-RD (50 Pcs) Internal Retaining Rings - 10x0.8x10.8 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 02, 2026 Regular price
$7.41 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
10.00
mm |
Clip Thickness (T)
0.8
mm B DIN 2076 |
Groove Dia. (Dg)
10.80
mm + 0.3 / - 0.0 |
Approx. Loose Circlip OD (Dr)
10.90
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 1.00 mm
Clearance in Bore (C): 9.3 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0100-RD (50 Pcs) Internal Retaining Rings - 10x0.8x10.8 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 02, 2026 Regular price
$7.41 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
10.00
mm |
Clip Thickness (T)
0.9
mm + 0.08 / - 0.04 |
Groove Dia. (Dg)
11.20
mm Min. |
Approx. Loose Circlip OD (Dr)
11.80
mm |
Groove Width (W)
1.00
mm + 0.08 / - 0.00 |
|
|
|
Material: Spring Steel
Clearance in Bore (C): 10 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0100A-RD Internal Retaining Rings - 10x0.9x11.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
10.00
mm |
Clip Thickness (T)
0.9
mm + 0.08 / - 0.04 |
Groove Dia. (Dg)
11.20
mm Min. |
Approx. Loose Circlip OD (Dr)
11.80
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 1.00 mm + 0.08 / - 0.00
Clearance in Bore (C): 10 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0100A-RD Internal Retaining Rings - 10x0.9x11.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
10.00
mm |
Clip Thickness (T)
1.00
mm + 0.11 / - 0.00 |
Groove Dia. (Dg)
10.40
mm + 0.00 / - 0.06 |
Approx. Loose Circlip OD (Dr)
10.80
mm + 0.36 / - 0.10 |
Groove Width (W)
1.10
mm + 0.05 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 3.30 mm
Clearance in Groove (C1): 4.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01000-S15 (5 Pcs) Internal Retaining Rings - 10x1x10.4 mm - Stainless Steel Grade PH15-7 Mo
13 units (65 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$15.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
10.00
mm |
Clip Thickness (T)
1.00
mm + 0.11 / - 0.00 |
Groove Dia. (Dg)
10.40
mm + 0.00 / - 0.06 |
Approx. Loose Circlip OD (Dr)
10.80
mm + 0.36 / - 0.10 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.10 mm + 0.05 / - 0.00
Clearance in Bore (C): 3.30 mm
Clearance in Groove (C1): 4.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-01000-S15 (5 Pcs) Internal Retaining Rings - 10x1x10.4 mm - Stainless Steel Grade PH15-7 Mo
13 units (65 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$15.86 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
