Collection: Retaining Rings - Internal - Round Wire

Retaining Rings (With Images)

Internal

57 Products in this selection

Includes DIN7993B / RB / M1700 / BN826. Retaining rings. Snap Rings (USA). Round section circlips.

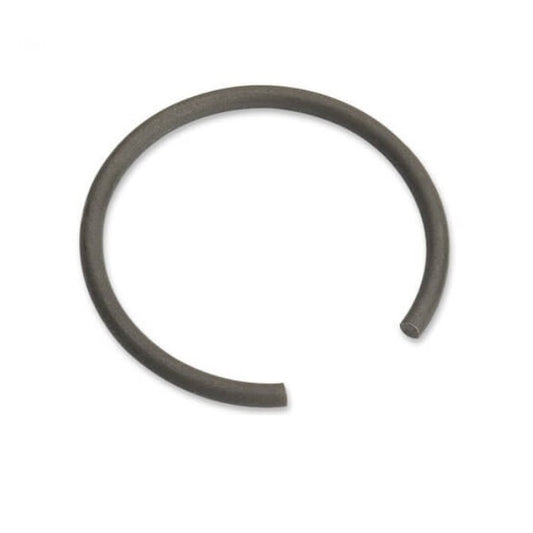

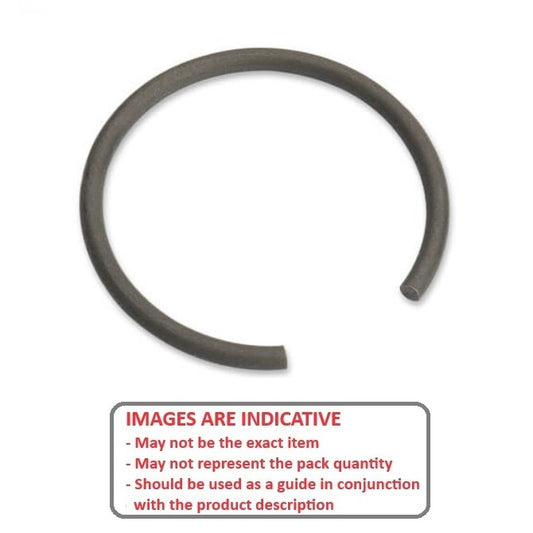

Round section wire rings are mostly used in semicircular grooves.
Applications include gear systems, automotive engineering and open gudgeon pins.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Round Wire. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
Housing Bore (B) 7.00 mm _{(0.276 in.)}	Clip Thickness (T) 0.8 mm B DIN 2076 _{(0.031 in.)}	Groove Dia. (Dg) 7.80 mm + 0.3 / - 0.0 _{(0.307 in.)}	Approx. Loose Circlip OD (Dr) 7.90 mm		Groove Width (W) 1.00
Material: Spring Steel Free Inside Diameter (D): 6.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.50 mm Gap (g): 4.000 mm
Part Number: WRI-0070-RD Internal Retaining Rings - 7x0.8x7.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 7.00 mm _{(0.276 in.)}	Clip Thickness (T) 0.8 mm B DIN 2076 _{(0.031 in.)}	Groove Dia. (Dg) 7.80 mm + 0.3 / - 0.0 _{(0.307 in.)}	Approx. Loose Circlip OD (Dr) 7.90 mm
Material: Spring Steel Groove Width (W): 1.00 Free Inside Diameter (D): 6.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.50 mm Gap (g): 4.000 mm
Part Number: WRI-0070-RD Internal Retaining Rings - 7x0.8x7.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Each View the product page first if you are unsure.
WRI-0070-RD --- Internal Retaining Rings - 7x0.8x7.8 mm - Spring Steel WRI-0070-RD --- Internal Retaining Rings - 7x0.8x7.8 mm - Spring Steel Regular price $9.32 AUD Regular price Sale price $9.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 8.00 mm _{(0.315 in.)}	Clip Thickness (T) 0.8 mm B DIN 2076 _{(0.031 in.)}	Groove Dia. (Dg) 8.80 mm + 0.3 / - 0.0 _{(0.346 in.)}	Approx. Loose Circlip OD (Dr) 8.90 mm		Groove Width (W) 1.00
Material: Spring Steel Free Inside Diameter (D): 7.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.50 mm Gap (g): 4.000 mm
Part Number: WRI-0080-RD (31 Pcs) Internal Retaining Rings - 8x0.8x8.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Per 31
Housing Bore (B) 8.00 mm _{(0.315 in.)}	Clip Thickness (T) 0.8 mm B DIN 2076 _{(0.031 in.)}	Groove Dia. (Dg) 8.80 mm + 0.3 / - 0.0 _{(0.346 in.)}	Approx. Loose Circlip OD (Dr) 8.90 mm
Material: Spring Steel Groove Width (W): 1.00 Free Inside Diameter (D): 7.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.50 mm Gap (g): 4.000 mm
Part Number: WRI-0080-RD (31 Pcs) Internal Retaining Rings - 8x0.8x8.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Per 31 View the product page first if you are unsure.
WRI-0080-RD (31 Pcs) --- Internal Retaining Rings - 8x0.8x8.8 mm - Spring Steel WRI-0080-RD (31 Pcs) --- Internal Retaining Rings - 8x0.8x8.8 mm - Spring Steel Regular price $21.50 AUD Regular price Sale price $21.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 0.8 mm B DIN 2076 _{(0.031 in.)}	Groove Dia. (Dg) 10.80 mm + 0.3 / - 0.0 _{(0.425 in.)}	Approx. Loose Circlip OD (Dr) 10.90 mm		Groove Width (W) 1.00
Material: Spring Steel Free Inside Diameter (D): 9.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.50 mm Gap (g): 4.00 mm
Part Number: WRI-0100-RD (50 Pcs) Internal Retaining Rings - 10x0.8x10.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 02, 2026 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Per 50
Housing Bore (B) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 0.8 mm B DIN 2076 _{(0.031 in.)}	Groove Dia. (Dg) 10.80 mm + 0.3 / - 0.0 _{(0.425 in.)}	Approx. Loose Circlip OD (Dr) 10.90 mm
Material: Spring Steel Groove Width (W): 1.00 Free Inside Diameter (D): 9.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.50 mm Gap (g): 4.00 mm
Part Number: WRI-0100-RD (50 Pcs) Internal Retaining Rings - 10x0.8x10.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jan 02, 2026 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Per 50 View the product page first if you are unsure.
WRI-0100-RD (50 Pcs) --- Internal Retaining Rings - 10x0.8x10.8 mm - Spring Steel WRI-0100-RD (50 Pcs) --- Internal Retaining Rings - 10x0.8x10.8 mm - Spring Steel Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 0.9 mm + 0.08 / - 0.04 _{(0.035 in.)}	Groove Dia. (Dg) 11.20 mm Min. _{(0.441 in.)}	Approx. Loose Circlip OD (Dr) 11.80 mm		Groove Width (W) 1.00 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 10 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.50 mm Gap (g): 7.000 mm
Part Number: WRI-0100A-RD Internal Retaining Rings - 10x0.9x11.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 10.00 mm _{(0.394 in.)}	Clip Thickness (T) 0.9 mm + 0.08 / - 0.04 _{(0.035 in.)}	Groove Dia. (Dg) 11.20 mm Min. _{(0.441 in.)}	Approx. Loose Circlip OD (Dr) 11.80 mm
Material: Spring Steel Groove Width (W): 1.00 + 0.08 / - 0.00 Free Inside Diameter (D): 10 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.50 mm Gap (g): 7.000 mm
Part Number: WRI-0100A-RD Internal Retaining Rings - 10x0.9x11.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.0 mm B DIN 2076 _{(0.039 in.)}	Groove Dia. (Dg) 13.00 mm + 0.4 / - 0.0 _{(0.512 in.)}	Approx. Loose Circlip OD (Dr) 13.20 mm		Groove Width (W) 1.20
Material: Spring Steel Free Inside Diameter (D): 11.2 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.60 mm Gap (g): 6.00 mm
Part Number: WRI-0120-RD (50 Pcs) Internal Retaining Rings - 12x1x13 mm - Spring Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Per 50
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.0 mm B DIN 2076 _{(0.039 in.)}	Groove Dia. (Dg) 13.00 mm + 0.4 / - 0.0 _{(0.512 in.)}	Approx. Loose Circlip OD (Dr) 13.20 mm
Material: Spring Steel Groove Width (W): 1.20 Free Inside Diameter (D): 11.2 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.60 mm Gap (g): 6.00 mm
Part Number: WRI-0120-RD (50 Pcs) Internal Retaining Rings - 12x1x13 mm - Spring Steel 9 units (450 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per Per 50 View the product page first if you are unsure.
WRI-0120-RD (50 Pcs) --- Internal Retaining Rings - 12x1x13 mm - Spring Steel WRI-0120-RD (50 Pcs) --- Internal Retaining Rings - 12x1x13 mm - Spring Steel Regular price $8.86 AUD Regular price Sale price $8.86 AUD Unit price per 9 Available Now
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.0 mm + 0.08 / - 0.04 _{(0.039 in.)}	Groove Dia. (Dg) 13.28 mm Min. _{(0.523 in.)}	Approx. Loose Circlip OD (Dr) 13.90 mm		Groove Width (W) 1.10 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 11.9 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.55 mm Gap (g): 7.000 mm
Part Number: WRI-0120A-RD Internal Retaining Rings - 12x1x13.28 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 12.00 mm _{(0.472 in.)}	Clip Thickness (T) 1.0 mm + 0.08 / - 0.04 _{(0.039 in.)}	Groove Dia. (Dg) 13.28 mm Min. _{(0.523 in.)}	Approx. Loose Circlip OD (Dr) 13.90 mm
Material: Spring Steel Groove Width (W): 1.10 + 0.08 / - 0.00 Free Inside Diameter (D): 11.9 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.55 mm Gap (g): 7.000 mm
Part Number: WRI-0120A-RD Internal Retaining Rings - 12x1x13.28 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 12.50 mm _{(0.492 in.)}	Clip Thickness (T) 1.0 mm + 0.08 / - 0.04 _{(0.039 in.)}	Groove Dia. (Dg) 13.79 mm Min. _{(0.543 in.)}	Approx. Loose Circlip OD (Dr) 14.40 mm		Groove Width (W) 1.10 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 12.4 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.55 mm Gap (g): 7.000 mm
Part Number: WRI-0125A-RD Internal Retaining Rings - 12.5x1x13.79 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 12.50 mm _{(0.492 in.)}	Clip Thickness (T) 1.0 mm + 0.08 / - 0.04 _{(0.039 in.)}	Groove Dia. (Dg) 13.79 mm Min. _{(0.543 in.)}	Approx. Loose Circlip OD (Dr) 14.40 mm
Material: Spring Steel Groove Width (W): 1.10 + 0.08 / - 0.00 Free Inside Diameter (D): 12.4 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.55 mm Gap (g): 7.000 mm
Part Number: WRI-0125A-RD Internal Retaining Rings - 12.5x1x13.79 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 13.00 mm _{(0.512 in.)}	Clip Thickness (T) 1.0 mm + 0.08 / - 0.04 _{(0.039 in.)}	Groove Dia. (Dg) 14.30 mm Min. _{(0.563 in.)}	Approx. Loose Circlip OD (Dr) 14.90 mm		Groove Width (W) 1.10 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 12.9 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.55 mm Gap (g): 7.000 mm
Part Number: WRI-0130A-RD Internal Retaining Rings - 13x1x14.3 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 13.00 mm _{(0.512 in.)}	Clip Thickness (T) 1.0 mm + 0.08 / - 0.04 _{(0.039 in.)}	Groove Dia. (Dg) 14.30 mm Min. _{(0.563 in.)}	Approx. Loose Circlip OD (Dr) 14.90 mm
Material: Spring Steel Groove Width (W): 1.10 + 0.08 / - 0.00 Free Inside Diameter (D): 12.9 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.55 mm Gap (g): 7.000 mm
Part Number: WRI-0130A-RD Internal Retaining Rings - 13x1x14.3 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 14.00 mm _{(0.551 in.)}	Clip Thickness (T) 1.0 mm B DIN 2076 _{(0.039 in.)}	Groove Dia. (Dg) 15.00 mm + 0.4 / - 0.0 _{(0.591 in.)}	Approx. Loose Circlip OD (Dr) 15.20 mm		Groove Width (W) 1.20
Material: Spring Steel Free Inside Diameter (D): 13.2 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.60 mm Gap (g): 6.000 mm
Part Number: WRI-0140-RD (100 Pcs) Internal Retaining Rings - 14x1x15 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Per 100
Housing Bore (B) 14.00 mm _{(0.551 in.)}	Clip Thickness (T) 1.0 mm B DIN 2076 _{(0.039 in.)}	Groove Dia. (Dg) 15.00 mm + 0.4 / - 0.0 _{(0.591 in.)}	Approx. Loose Circlip OD (Dr) 15.20 mm
Material: Spring Steel Groove Width (W): 1.20 Free Inside Diameter (D): 13.2 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.60 mm Gap (g): 6.000 mm
Part Number: WRI-0140-RD (100 Pcs) Internal Retaining Rings - 14x1x15 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Per 100 View the product page first if you are unsure.
WRI-0140-RD (100 Pcs) --- Internal Retaining Rings - 14x1x15 mm - Spring Steel WRI-0140-RD (100 Pcs) --- Internal Retaining Rings - 14x1x15 mm - Spring Steel Regular price $14.41 AUD Regular price Sale price $14.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 14.00 mm _{(0.551 in.)}	Clip Thickness (T) 1.2 mm + 0.08 / - 0.04 _{(0.047 in.)}	Groove Dia. (Dg) 15.49 mm Min. _{(0.61 in.)}	Approx. Loose Circlip OD (Dr) 16.10 mm		Groove Width (W) 1.30 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 13.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.65 mm Gap (g): 7.500 mm
Part Number: WRI-0140A-RD Internal Retaining Rings - 14x1.2x15.49 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 14.00 mm _{(0.551 in.)}	Clip Thickness (T) 1.2 mm + 0.08 / - 0.04 _{(0.047 in.)}	Groove Dia. (Dg) 15.49 mm Min. _{(0.61 in.)}	Approx. Loose Circlip OD (Dr) 16.10 mm
Material: Spring Steel Groove Width (W): 1.30 + 0.08 / - 0.00 Free Inside Diameter (D): 13.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.65 mm Gap (g): 7.500 mm
Part Number: WRI-0140A-RD Internal Retaining Rings - 14x1.2x15.49 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 15.00 mm _{(0.591 in.)}	Clip Thickness (T) 1.2 mm + 0.08 / - 0.04 _{(0.047 in.)}	Groove Dia. (Dg) 16.51 mm Min. _{(0.65 in.)}	Approx. Loose Circlip OD (Dr) 17.10 mm		Groove Width (W) 1.30 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 14.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.65 mm Gap (g): 7.500 mm
Part Number: WRI-0150A-RD Internal Retaining Rings - 15x1.2x16.51 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 15.00 mm _{(0.591 in.)}	Clip Thickness (T) 1.2 mm + 0.08 / - 0.04 _{(0.047 in.)}	Groove Dia. (Dg) 16.51 mm Min. _{(0.65 in.)}	Approx. Loose Circlip OD (Dr) 17.10 mm
Material: Spring Steel Groove Width (W): 1.30 + 0.08 / - 0.00 Free Inside Diameter (D): 14.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.65 mm Gap (g): 7.500 mm
Part Number: WRI-0150A-RD Internal Retaining Rings - 15x1.2x16.51 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.2 mm + 0.08 / - 0.04 _{(0.047 in.)}	Groove Dia. (Dg) 17.50 mm Min. _{(0.689 in.)}	Approx. Loose Circlip OD (Dr) 18.10 mm		Groove Width (W) 1.30 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 15.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.65 mm Gap (g): 7.500 mm
Part Number: WRI-0160A-RD Internal Retaining Rings - 16x1.2x17.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.2 mm + 0.08 / - 0.04 _{(0.047 in.)}	Groove Dia. (Dg) 17.50 mm Min. _{(0.689 in.)}	Approx. Loose Circlip OD (Dr) 18.10 mm
Material: Spring Steel Groove Width (W): 1.30 + 0.08 / - 0.00 Free Inside Diameter (D): 15.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.65 mm Gap (g): 7.500 mm
Part Number: WRI-0160A-RD Internal Retaining Rings - 16x1.2x17.5 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.6 mm B DIN 2076 _{(0.063 in.)}	Groove Dia. (Dg) 17.60 mm + 0.4 / - 0.0 _{(0.693 in.)}	Approx. Loose Circlip OD (Dr) 17.80 mm		Groove Width (W) 1.80
Material: Spring Steel Free Inside Diameter (D): 14.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.90 mm Gap (g): 8.000 mm
Part Number: WRI-0160-RD Internal Retaining Rings - 16x1.6x17.6 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 16.00 mm _{(0.63 in.)}	Clip Thickness (T) 1.6 mm B DIN 2076 _{(0.063 in.)}	Groove Dia. (Dg) 17.60 mm + 0.4 / - 0.0 _{(0.693 in.)}	Approx. Loose Circlip OD (Dr) 17.80 mm
Material: Spring Steel Groove Width (W): 1.80 Free Inside Diameter (D): 14.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.90 mm Gap (g): 8.000 mm
Part Number: WRI-0160-RD Internal Retaining Rings - 16x1.6x17.6 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 17.00 mm _{(0.669 in.)}	Clip Thickness (T) 1.4 mm + 0.08 / - 0.04 _{(0.055 in.)}	Groove Dia. (Dg) 18.69 mm Min. _{(0.736 in.)}	Approx. Loose Circlip OD (Dr) 19.30 mm		Groove Width (W) 1.50 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 16.5 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.75 mm Gap (g): 8.000 mm
Part Number: WRI-0170A-RD Internal Retaining Rings - 17x1.4x18.69 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 17.00 mm _{(0.669 in.)}	Clip Thickness (T) 1.4 mm + 0.08 / - 0.04 _{(0.055 in.)}	Groove Dia. (Dg) 18.69 mm Min. _{(0.736 in.)}	Approx. Loose Circlip OD (Dr) 19.30 mm
Material: Spring Steel Groove Width (W): 1.50 + 0.08 / - 0.00 Free Inside Diameter (D): 16.5 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.75 mm Gap (g): 8.000 mm
Part Number: WRI-0170A-RD Internal Retaining Rings - 17x1.4x18.69 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 17.50 mm _{(0.689 in.)}	Clip Thickness (T) 1.4 mm + 0.08 / - 0.04 _{(0.055 in.)}	Groove Dia. (Dg) 19.20 mm Min. _{(0.756 in.)}	Approx. Loose Circlip OD (Dr) 20.00 mm		Groove Width (W) 1.50 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 17.2 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.75 mm Gap (g): 9.000 mm
Part Number: WRI-0175A-RD Internal Retaining Rings - 17.5x1.4x19.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 17.50 mm _{(0.689 in.)}	Clip Thickness (T) 1.4 mm + 0.08 / - 0.04 _{(0.055 in.)}	Groove Dia. (Dg) 19.20 mm Min. _{(0.756 in.)}	Approx. Loose Circlip OD (Dr) 20.00 mm
Material: Spring Steel Groove Width (W): 1.50 + 0.08 / - 0.00 Free Inside Diameter (D): 17.2 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.75 mm Gap (g): 9.000 mm
Part Number: WRI-0175A-RD Internal Retaining Rings - 17.5x1.4x19.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 18.00 mm _{(0.709 in.)}	Clip Thickness (T) 1.4 mm + 0.08 / - 0.04 _{(0.055 in.)}	Groove Dia. (Dg) 19.71 mm Min. _{(0.776 in.)}	Approx. Loose Circlip OD (Dr) 20.50 mm		Groove Width (W) 1.50 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 17.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.75 mm Gap (g): 9.000 mm
Part Number: WRI-0180A-RD Internal Retaining Rings - 18x1.4x19.71 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 18.00 mm _{(0.709 in.)}	Clip Thickness (T) 1.4 mm + 0.08 / - 0.04 _{(0.055 in.)}	Groove Dia. (Dg) 19.71 mm Min. _{(0.776 in.)}	Approx. Loose Circlip OD (Dr) 20.50 mm
Material: Spring Steel Groove Width (W): 1.50 + 0.08 / - 0.00 Free Inside Diameter (D): 17.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.75 mm Gap (g): 9.000 mm
Part Number: WRI-0180A-RD Internal Retaining Rings - 18x1.4x19.71 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 18.00 mm _{(0.709 in.)}	Clip Thickness (T) 1.6 mm B DIN 2076 _{(0.063 in.)}	Groove Dia. (Dg) 19.60 mm + 0.4 / - 0.0 _{(0.772 in.)}	Approx. Loose Circlip OD (Dr) 19.80 mm		Groove Width (W) 1.80
Material: Spring Steel Free Inside Diameter (D): 16.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.90 mm Gap (g): 8.000 mm
Part Number: WRI-0180-RD Internal Retaining Rings - 18x1.6x19.6 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 18.00 mm _{(0.709 in.)}	Clip Thickness (T) 1.6 mm B DIN 2076 _{(0.063 in.)}	Groove Dia. (Dg) 19.60 mm + 0.4 / - 0.0 _{(0.772 in.)}	Approx. Loose Circlip OD (Dr) 19.80 mm
Material: Spring Steel Groove Width (W): 1.80 Free Inside Diameter (D): 16.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.90 mm Gap (g): 8.000 mm
Part Number: WRI-0180-RD Internal Retaining Rings - 18x1.6x19.6 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 19.00 mm _{(0.748 in.)}	Clip Thickness (T) 1.4 mm + 0.08 / - 0.04 _{(0.055 in.)}	Groove Dia. (Dg) 20.70 mm Min. _{(0.815 in.)}	Approx. Loose Circlip OD (Dr) 21.50 mm		Groove Width (W) 1.50 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 18.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.75 mm Gap (g): 9.000 mm
Part Number: WRI-0190A-RD Internal Retaining Rings - 19x1.4x20.7 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 19.00 mm _{(0.748 in.)}	Clip Thickness (T) 1.4 mm + 0.08 / - 0.04 _{(0.055 in.)}	Groove Dia. (Dg) 20.70 mm Min. _{(0.815 in.)}	Approx. Loose Circlip OD (Dr) 21.50 mm
Material: Spring Steel Groove Width (W): 1.50 + 0.08 / - 0.00 Free Inside Diameter (D): 18.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.75 mm Gap (g): 9.000 mm
Part Number: WRI-0190A-RD Internal Retaining Rings - 19x1.4x20.7 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.4 mm + 0.08 / - 0.04 _{(0.055 in.)}	Groove Dia. (Dg) 21.69 mm Min. _{(0.854 in.)}	Approx. Loose Circlip OD (Dr) 22.50 mm		Groove Width (W) 1.50 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 19.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.75 mm Gap (g): 9.000 mm
Part Number: WRI-0200A-RD Internal Retaining Rings - 20x1.4x21.69 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 1.4 mm + 0.08 / - 0.04 _{(0.055 in.)}	Groove Dia. (Dg) 21.69 mm Min. _{(0.854 in.)}	Approx. Loose Circlip OD (Dr) 22.50 mm
Material: Spring Steel Groove Width (W): 1.50 + 0.08 / - 0.00 Free Inside Diameter (D): 19.7 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.75 mm Gap (g): 9.000 mm
Part Number: WRI-0200A-RD Internal Retaining Rings - 20x1.4x21.69 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 2.0 mm B DIN 2076 _{(0.079 in.)}	Groove Dia. (Dg) 22.00 mm + 0.5 / - 0.0 _{(0.866 in.)}	Approx. Loose Circlip OD (Dr) 22.30 mm		Groove Width (W) 1.80
Material: Spring Steel Free Inside Diameter (D): 18.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.10 mm Gap (g): 10.000 mm
Part Number: WRI-0200-RD Internal Retaining Rings - 20x2x22 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 20.00 mm _{(0.787 in.)}	Clip Thickness (T) 2.0 mm B DIN 2076 _{(0.079 in.)}	Groove Dia. (Dg) 22.00 mm + 0.5 / - 0.0 _{(0.866 in.)}	Approx. Loose Circlip OD (Dr) 22.30 mm
Material: Spring Steel Groove Width (W): 1.80 Free Inside Diameter (D): 18.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.10 mm Gap (g): 10.000 mm
Part Number: WRI-0200-RD Internal Retaining Rings - 20x2x22 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 21.00 mm _{(0.827 in.)}	Clip Thickness (T) 1.6 mm + 0.08 / - 0.04 _{(0.063 in.)}	Groove Dia. (Dg) 22.89 mm Min. _{(0.901 in.)}	Approx. Loose Circlip OD (Dr) 23.70 mm		Groove Width (W) 1.70 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 20.5 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.85 mm Gap (g): 9.500 mm
Part Number: WRI-0210A-RD Internal Retaining Rings - 21x1.6x22.89 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 21.00 mm _{(0.827 in.)}	Clip Thickness (T) 1.6 mm + 0.08 / - 0.04 _{(0.063 in.)}	Groove Dia. (Dg) 22.89 mm Min. _{(0.901 in.)}	Approx. Loose Circlip OD (Dr) 23.70 mm
Material: Spring Steel Groove Width (W): 1.70 + 0.08 / - 0.00 Free Inside Diameter (D): 20.5 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.85 mm Gap (g): 9.500 mm
Part Number: WRI-0210A-RD Internal Retaining Rings - 21x1.6x22.89 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.6 mm + 0.08 / - 0.04 _{(0.063 in.)}	Groove Dia. (Dg) 23.90 mm Min. _{(0.941 in.)}	Approx. Loose Circlip OD (Dr) 24.70 mm		Groove Width (W) 1.70 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 21.5 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.85 mm Gap (g): 9.500 mm
Part Number: WRI-0220A-RD (3 Pcs) Internal Retaining Rings - 22x1.6x23.9 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Per 3
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.6 mm + 0.08 / - 0.04 _{(0.063 in.)}	Groove Dia. (Dg) 23.90 mm Min. _{(0.941 in.)}	Approx. Loose Circlip OD (Dr) 24.70 mm
Material: Spring Steel Groove Width (W): 1.70 + 0.08 / - 0.00 Free Inside Diameter (D): 21.5 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.85 mm Gap (g): 9.500 mm
Part Number: WRI-0220A-RD (3 Pcs) Internal Retaining Rings - 22x1.6x23.9 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Per 3 View the product page first if you are unsure.
WRI-0220A-RD (3 Pcs) --- Internal Retaining Rings - 22x1.6x23.9 mm - Spring Steel WRI-0220A-RD (3 Pcs) --- Internal Retaining Rings - 22x1.6x23.9 mm - Spring Steel Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 2.0 mm B DIN 2076 _{(0.079 in.)}	Groove Dia. (Dg) 24.00 mm + 0.5 / - 0.0 _{(0.945 in.)}	Approx. Loose Circlip OD (Dr) 24.30 mm		Groove Width (W) 2.20
Material: Spring Steel Free Inside Diameter (D): 20.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.10 mm Gap (g): 10.000 mm
Part Number: WRI-0220-RD Internal Retaining Rings - 22x2x24 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 2.0 mm B DIN 2076 _{(0.079 in.)}	Groove Dia. (Dg) 24.00 mm + 0.5 / - 0.0 _{(0.945 in.)}	Approx. Loose Circlip OD (Dr) 24.30 mm
Material: Spring Steel Groove Width (W): 2.20 Free Inside Diameter (D): 20.3 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.10 mm Gap (g): 10.000 mm
Part Number: WRI-0220-RD Internal Retaining Rings - 22x2x24 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 24.00 mm _{(0.945 in.)}	Clip Thickness (T) 1.8 mm + 0.08 / - 0.04 _{(0.071 in.)}	Groove Dia. (Dg) 26.11 mm Min. _{(1.028 in.)}	Approx. Loose Circlip OD (Dr) 27.00 mm		Groove Width (W) 1.90 + 0.08 / - 0.00
Material: Spring Steel Free Inside Diameter (D): 23.4 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.95 mm Gap (g): 10.000 mm
Part Number: WRI-0240A-RD Internal Retaining Rings - 24x1.8x26.11 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 24.00 mm _{(0.945 in.)}	Clip Thickness (T) 1.8 mm + 0.08 / - 0.04 _{(0.071 in.)}	Groove Dia. (Dg) 26.11 mm Min. _{(1.028 in.)}	Approx. Loose Circlip OD (Dr) 27.00 mm
Material: Spring Steel Groove Width (W): 1.90 + 0.08 / - 0.00 Free Inside Diameter (D): 23.4 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 0.95 mm Gap (g): 10.000 mm
Part Number: WRI-0240A-RD Internal Retaining Rings - 24x1.8x26.11 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
