Collection: Gears - Spur - Standard - 32DP

Gears (With Images)

Spur

Standard

55 Products in this selection

This is a combined category of 32DP Standard Spur Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
32DP Gear Racks

A more concise listing may be found on the Smallparts store at Gears - Spur - Standard - 32DP. Smallparts promote the most popular MBA products.

Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Face Width (FW)	Type	Indicative Image
Teeth 6	Pitch Circle Diameter (PD) 4.78 mm _{(0.188 in.)}	Bore (d) 1.588 mm _{(0.063 in.)}	Outside Diameter (OD) 6.375 mm	Face Width (FW) 4.76 mm	Type Hubless
Material: Brass Locking Method: None Category: Gears - Spur - Hubless - 32DP - Brass
Part Number: G005B-06-V32-048-016-B-N Spur Gears - 6 tooth - 4.78x1.588 mm - Brass Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth	Pitch Circle Diameter (PD)	Bore (d)	Outside Diameter (OD)	Indicative Image
Teeth 6	Pitch Circle Diameter (PD) 4.78 mm _{(0.188 in.)}	Bore (d) 1.588 mm _{(0.063 in.)}	Outside Diameter (OD) 6.375 mm
Material: Brass Face Width (FW): 4.76 mm Type: Hubless Locking Method: None Category: Gears - Spur - Hubless - 32DP - Brass
Part Number: G005B-06-V32-048-016-B-N Spur Gears - 6 tooth - 4.78x1.588 mm - Brass Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Teeth 11	Pitch Circle Diameter (PD) 8.74 mm _{(0.344 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 10.338 mm	Face Width (FW) 4.76 mm	Type Hubless
Material: Brass Locking Method: None Category: Gears - Spur - Hubless - 32DP - Brass
Part Number: G009B-11-V32-048-032-B-N Spur Gears - 11 tooth - 8.74x3.175 mm - Brass 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per Each
Teeth 11	Pitch Circle Diameter (PD) 8.74 mm _{(0.344 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 10.338 mm
Material: Brass Face Width (FW): 4.76 mm Type: Hubless Locking Method: None Category: Gears - Spur - Hubless - 32DP - Brass
Part Number: G009B-11-V32-048-032-B-N Spur Gears - 11 tooth - 8.74x3.175 mm - Brass 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per Each
G009B-11-V32-048-032-B-N --- Spur Gears - 11 tooth - 8.74x3.175 mm - Brass Sale G009B-11-V32-048-032-B-N --- Spur Gears - 11 tooth - 8.74x3.175 mm - Brass Regular price $5.00 AUD Regular price ~~$9.50 AUD~~ Sale price $5.00 AUD Unit price per 1 Available Now Sale
Teeth 12	Pitch Circle Diameter (PD) 9.53 mm _{(0.375 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 11.125 mm	Face Width (FW) 4.76 mm	Type Hubless
Material: Nylon (Polyamide 6/6) Locking Method: None Category: Gears - Spur - Hubless - 32DP - Plastic
Part Number: G010B-12-V32-048-032-N-N Spur Gears - 12 tooth - 9.53x3.175 mm - Nylon Polyamide 6/6 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
Teeth 12	Pitch Circle Diameter (PD) 9.53 mm _{(0.375 in.)}	Bore (d) 3.175 mm _{(0.125 in.)}	Outside Diameter (OD) 11.125 mm
Material: Nylon (Polyamide 6/6) Face Width (FW): 4.76 mm Type: Hubless Locking Method: None Category: Gears - Spur - Hubless - 32DP - Plastic
Part Number: G010B-12-V32-048-032-N-N Spur Gears - 12 tooth - 9.53x3.175 mm - Nylon Polyamide 6/6 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
G010B-12-V32-048-032-N-N --- Spur Gears - 12 tooth - 9.53x3.175 mm - Nylon Polyamide 6/6 Sale G010B-12-V32-048-032-N-N --- Spur Gears - 12 tooth - 9.53x3.175 mm - Nylon Polyamide 6/6 Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per 1 Available Now Sale

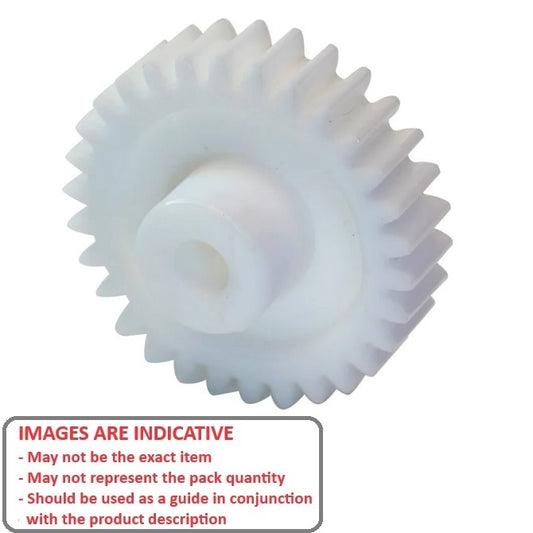

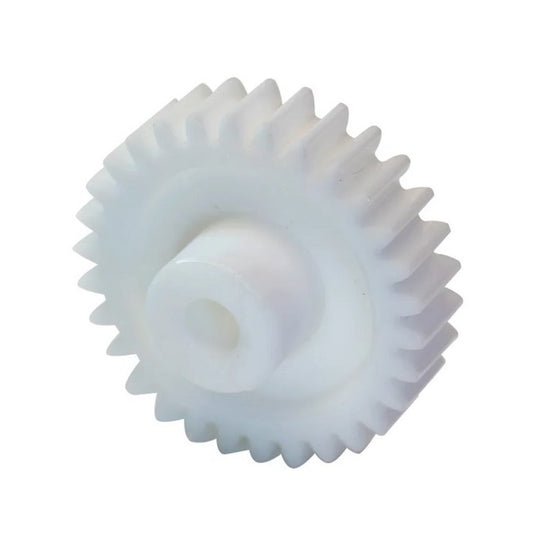

Teeth 12	Pitch Circle Diameter (PD) 9.53 mm _{(0.375 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 11.125 mm	Face Width (FW) 4.76 mm
Material: Acetal Hub Diameter (D1): 7.15 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G010B-12-D32-048-040-A-P Spur Gears - 12 tooth - 9.53x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each
Teeth 12	Pitch Circle Diameter (PD) 9.53 mm _{(0.375 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 11.125 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 7.15 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G010B-12-D32-048-040-A-P Spur Gears - 12 tooth - 9.53x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each View the product page first if you are unsure.
G010B-12-D32-048-040-A-P --- Spur Gears - 12 tooth - 9.53x3.97 mm - Acetal G010B-12-D32-048-040-A-P --- Spur Gears - 12 tooth - 9.53x3.97 mm - Acetal Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Pitch Circle Diameter (PD) 12.70 mm _{(0.5 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 14.300 mm	Face Width (FW) 4.76 mm
Material: Acetal Hub Diameter (D1): 8.73 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G013B-16-D32-048-040-A-P Spur Gears - 16 tooth - 12.7x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 12.70 mm _{(0.5 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 14.300 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 8.73 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G013B-16-D32-048-040-A-P Spur Gears - 16 tooth - 12.7x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each View the product page first if you are unsure.
G013B-16-D32-048-040-A-P --- Spur Gears - 16 tooth - 12.7x3.97 mm - Acetal G013B-16-D32-048-040-A-P --- Spur Gears - 16 tooth - 12.7x3.97 mm - Acetal Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Out of stock! Backorder Now

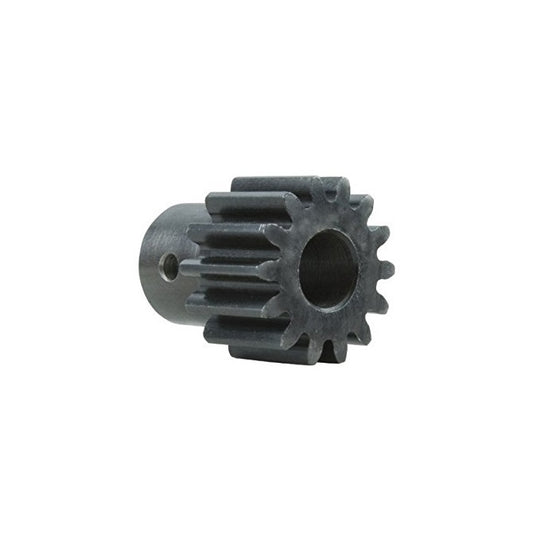

Teeth 16	Pitch Circle Diameter (PD) 12.700 mm _{(0.5 in.)}	Bore (d) 4.763 mm _{(0.188 in.)}	Outside Diameter (OD) 14.275 mm	Face Width (FW) 4.775 mm

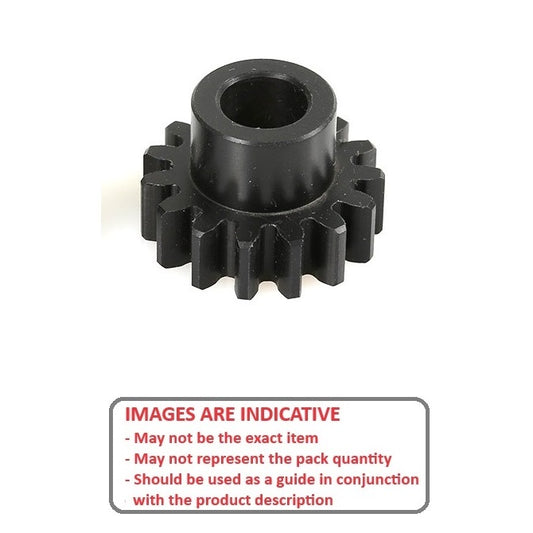

Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 9.906 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 32DP - 14.5 Degree
Part Number: G013B-16-V32-048-048-CG Spur Gears - 16 tooth - 12.7x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $66.41 AUD Regular price Sale price $66.41 AUD Unit price per Each
Teeth 16	Pitch Circle Diameter (PD) 12.700 mm _{(0.5 in.)}	Bore (d) 4.763 mm _{(0.188 in.)}	Outside Diameter (OD) 14.275 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 4.775 mm Hub Diameter (D1): 9.906 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 32DP - 14.5 Degree
Part Number: G013B-16-V32-048-048-CG Spur Gears - 16 tooth - 12.7x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $66.41 AUD Regular price Sale price $66.41 AUD Unit price per Each View the product page first if you are unsure.
G013B-16-V32-048-048-CG --- Spur Gears - 16 tooth - 12.7x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment G013B-16-V32-048-048-CG --- Spur Gears - 16 tooth - 12.7x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $66.41 AUD Regular price Sale price $66.41 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 14.275 mm _{(0.562 in.)}	Bore (d) 4.763 mm _{(0.188 in.)}	Outside Diameter (OD) 15.850 mm	Face Width (FW) 4.775 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 11.430 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 32DP - 14.5 Degree
Part Number: G014B-18-V32-048-048-CG Spur Gears - 18 tooth - 14.275x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $130.23 AUD Regular price Sale price $130.23 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 14.275 mm _{(0.562 in.)}	Bore (d) 4.763 mm _{(0.188 in.)}	Outside Diameter (OD) 15.850 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 4.775 mm Hub Diameter (D1): 11.430 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 32DP - 14.5 Degree
Part Number: G014B-18-V32-048-048-CG Spur Gears - 18 tooth - 14.275x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $130.23 AUD Regular price Sale price $130.23 AUD Unit price per Each View the product page first if you are unsure.
G014B-18-V32-048-048-CG --- Spur Gears - 18 tooth - 14.275x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment G014B-18-V32-048-048-CG --- Spur Gears - 18 tooth - 14.275x4.763 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $130.23 AUD Regular price Sale price $130.23 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Pitch Circle Diameter (PD) 14.29 mm _{(0.563 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 15.900 mm	Face Width (FW) 4.76 mm
Material: Acetal Hub Diameter (D1): 8.73 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G014B-18-D32-048-040-A-P Spur Gears - 18 tooth - 14.29x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each
Teeth 18	Pitch Circle Diameter (PD) 14.29 mm _{(0.563 in.)}	Bore (d) 3.970 mm _{(0.156 in.)}	Outside Diameter (OD) 15.900 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 8.73 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G014B-18-D32-048-040-A-P Spur Gears - 18 tooth - 14.29x3.97 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each View the product page first if you are unsure.
G014B-18-D32-048-040-A-P --- Spur Gears - 18 tooth - 14.29x3.97 mm - Acetal G014B-18-D32-048-040-A-P --- Spur Gears - 18 tooth - 14.29x3.97 mm - Acetal Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 15.875 mm _{(0.625 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 17.450 mm	Face Width (FW) 4.775 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 13.208 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 32DP - 14.5 Degree
Part Number: G016B-20-V32-048-064-CG Spur Gears - 20 tooth - 15.875x6.35 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $127.86 AUD Regular price Sale price $127.86 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 15.875 mm _{(0.625 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 17.450 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 4.775 mm Hub Diameter (D1): 13.208 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 32DP - 14.5 Degree
Part Number: G016B-20-V32-048-064-CG Spur Gears - 20 tooth - 15.875x6.35 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $127.86 AUD Regular price Sale price $127.86 AUD Unit price per Each View the product page first if you are unsure.
G016B-20-V32-048-064-CG --- Spur Gears - 20 tooth - 15.875x6.35 mm - Steel 0.20 carbon steel with no subsequent treatment G016B-20-V32-048-064-CG --- Spur Gears - 20 tooth - 15.875x6.35 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $127.86 AUD Regular price Sale price $127.86 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Pitch Circle Diameter (PD) 15.88 mm _{(0.625 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.475 mm	Face Width (FW) 4.76 mm
Material: Acetal Hub Diameter (D1): 11.91 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G016B-20-D32-048-048-A-P Spur Gears - 20 tooth - 15.88x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each
Teeth 20	Pitch Circle Diameter (PD) 15.88 mm _{(0.625 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 17.475 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 11.91 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G016B-20-D32-048-048-A-P Spur Gears - 20 tooth - 15.88x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each View the product page first if you are unsure.
G016B-20-D32-048-048-A-P --- Spur Gears - 20 tooth - 15.88x4.762 mm - Acetal G016B-20-D32-048-048-A-P --- Spur Gears - 20 tooth - 15.88x4.762 mm - Acetal Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Pitch Circle Diameter (PD) 17.48 mm _{(0.688 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.075 mm	Face Width (FW) 4.76 mm
Material: Acetal Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G017B-22-D32-048-048-A-P Spur Gears - 22 tooth - 17.48x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each
Teeth 22	Pitch Circle Diameter (PD) 17.48 mm _{(0.688 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.075 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G017B-22-D32-048-048-A-P Spur Gears - 22 tooth - 17.48x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each View the product page first if you are unsure.
G017B-22-D32-048-048-A-P --- Spur Gears - 22 tooth - 17.48x4.762 mm - Acetal G017B-22-D32-048-048-A-P --- Spur Gears - 22 tooth - 17.48x4.762 mm - Acetal Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Out of stock! Backorder Now

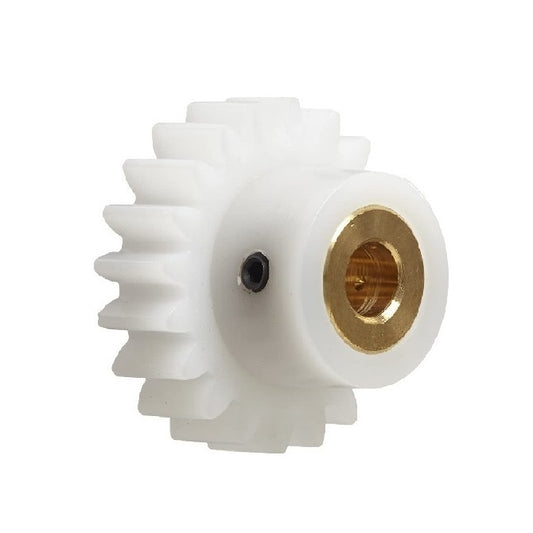

Teeth 22	Pitch Circle Diameter (PD) 17.48 mm _{(0.688 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.075 mm	Face Width (FW) 4.76 mm

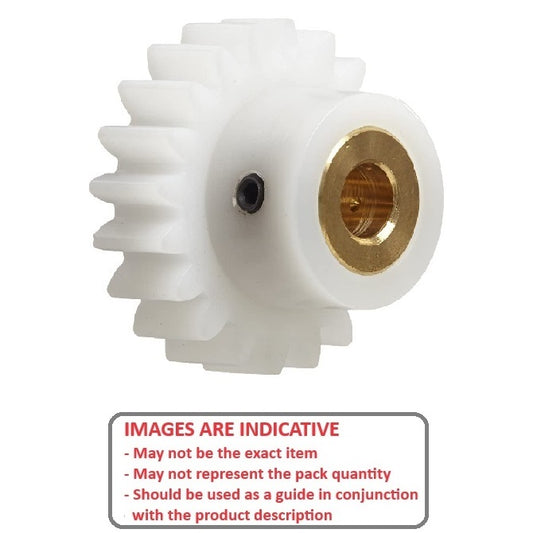

Material: Acetal with Brass insert Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G017B-22-D32-048-048-AB-G Spur Gears - 22 tooth - 17.48x4.762 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Each
Teeth 22	Pitch Circle Diameter (PD) 17.48 mm _{(0.688 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 19.075 mm
Material: Acetal with Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G017B-22-D32-048-048-AB-G Spur Gears - 22 tooth - 17.48x4.762 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Each View the product page first if you are unsure.
G017B-22-D32-048-048-AB-G --- Spur Gears - 22 tooth - 17.48x4.762 mm - Acetal with Brass insert G017B-22-D32-048-048-AB-G --- Spur Gears - 22 tooth - 17.48x4.762 mm - Acetal with Brass insert Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.650 mm	Face Width (FW) 4.76 mm
Material: Acetal Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G019B-24-D32-048-048-A-P Spur Gears - 24 tooth - 19.05x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.650 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G019B-24-D32-048-048-A-P Spur Gears - 24 tooth - 19.05x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each View the product page first if you are unsure.
G019B-24-D32-048-048-A-P --- Spur Gears - 24 tooth - 19.05x4.762 mm - Acetal G019B-24-D32-048-048-A-P --- Spur Gears - 24 tooth - 19.05x4.762 mm - Acetal Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.650 mm	Face Width (FW) 4.76 mm
Material: Acetal with Brass insert Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G019B-24-D32-048-048-AB-G Spur Gears - 24 tooth - 19.05x4.762 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.650 mm
Material: Acetal with Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G019B-24-D32-048-048-AB-G Spur Gears - 24 tooth - 19.05x4.762 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per Each View the product page first if you are unsure.
G019B-24-D32-048-048-AB-G --- Spur Gears - 24 tooth - 19.05x4.762 mm - Acetal with Brass insert G019B-24-D32-048-048-AB-G --- Spur Gears - 24 tooth - 19.05x4.762 mm - Acetal with Brass insert Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.650 mm	Face Width (FW) 4.76 mm	Type Hubless
Material: Nylon (Polyamide 6/6) Locking Method: None Category: Gears - Spur - Hubless - 32DP - Plastic
Part Number: G019B-24-V32-048-048-N-N Spur Gears - 24 tooth - 19.05x4.762 mm - Nylon Polyamide 6/6 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 20.650 mm
Material: Nylon (Polyamide 6/6) Face Width (FW): 4.76 mm Type: Hubless Locking Method: None Category: Gears - Spur - Hubless - 32DP - Plastic
Part Number: G019B-24-V32-048-048-N-N Spur Gears - 24 tooth - 19.05x4.762 mm - Nylon Polyamide 6/6 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
G019B-24-V32-048-048-N-N --- Spur Gears - 24 tooth - 19.05x4.762 mm - Nylon Polyamide 6/6 Sale G019B-24-V32-048-048-N-N --- Spur Gears - 24 tooth - 19.05x4.762 mm - Nylon Polyamide 6/6 Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per 1 Available Now Sale
Teeth 24	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 20.650 mm	Face Width (FW) 4.76 mm
Material: Acetal Hub Diameter (D1): 9.53 mm Hub Projection (HL): 4.76 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G019B-24-D32-048-064-A-P Spur Gears - 24 tooth - 19.05x6.35 mm - Acetal 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 19.05 mm _{(0.75 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 20.650 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 9.53 mm Hub Projection (HL): 4.76 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G019B-24-D32-048-064-A-P Spur Gears - 24 tooth - 19.05x6.35 mm - Acetal 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per Each
G019B-24-D32-048-064-A-P --- Spur Gears - 24 tooth - 19.05x6.35 mm - Acetal Sale G019B-24-D32-048-064-A-P --- Spur Gears - 24 tooth - 19.05x6.35 mm - Acetal Regular price $4.00 AUD Regular price ~~$7.60 AUD~~ Sale price $4.00 AUD Unit price per 1 Available Now Sale
Teeth 24	Pitch Circle Diameter (PD) 19.050 mm _{(0.75 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 20.625 mm	Face Width (FW) 4.775 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Hub Diameter (D1): 16.256 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 32DP - 14.5 Degree
Part Number: G019B-24-V32-048-079-CG Spur Gears - 24 tooth - 19.05x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $126.05 AUD Regular price Sale price $126.05 AUD Unit price per Each
Teeth 24	Pitch Circle Diameter (PD) 19.050 mm _{(0.75 in.)}	Bore (d) 7.938 mm _{(0.313 in.)}	Outside Diameter (OD) 20.625 mm
Material: Steel 0.20 carbon steel with no subsequent treatment Face Width (FW): 4.775 mm Hub Diameter (D1): 16.256 mm Hub Projection (HL): 7.874 mm Locking Method: Set Screw Category: Gears - Spur - Standard - 32DP - 14.5 Degree
Part Number: G019B-24-V32-048-079-CG Spur Gears - 24 tooth - 19.05x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $126.05 AUD Regular price Sale price $126.05 AUD Unit price per Each View the product page first if you are unsure.
G019B-24-V32-048-079-CG --- Spur Gears - 24 tooth - 19.05x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment G019B-24-V32-048-079-CG --- Spur Gears - 24 tooth - 19.05x7.938 mm - Steel 0.20 carbon steel with no subsequent treatment Regular price $126.05 AUD Regular price Sale price $126.05 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Pitch Circle Diameter (PD) 20.64 mm _{(0.813 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.250 mm	Face Width (FW) 4.76 mm
Material: Acetal Hub Diameter (D1): 14.29 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G021B-26-D32-048-048-A-P Spur Gears - 26 tooth - 20.64x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each
Teeth 26	Pitch Circle Diameter (PD) 20.64 mm _{(0.813 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.250 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 14.29 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G021B-26-D32-048-048-A-P Spur Gears - 26 tooth - 20.64x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each View the product page first if you are unsure.
G021B-26-D32-048-048-A-P --- Spur Gears - 26 tooth - 20.64x4.762 mm - Acetal G021B-26-D32-048-048-A-P --- Spur Gears - 26 tooth - 20.64x4.762 mm - Acetal Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Pitch Circle Diameter (PD) 20.64 mm _{(0.813 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.250 mm	Face Width (FW) 4.76 mm
Material: Acetal with Brass insert Hub Diameter (D1): 14.29 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G021B-26-D32-048-048-AB-G Spur Gears - 26 tooth - 20.64x4.762 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Each
Teeth 26	Pitch Circle Diameter (PD) 20.64 mm _{(0.813 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 22.250 mm
Material: Acetal with Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 14.29 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G021B-26-D32-048-048-AB-G Spur Gears - 26 tooth - 20.64x4.762 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Each View the product page first if you are unsure.
G021B-26-D32-048-048-AB-G --- Spur Gears - 26 tooth - 20.64x4.762 mm - Acetal with Brass insert G021B-26-D32-048-048-AB-G --- Spur Gears - 26 tooth - 20.64x4.762 mm - Acetal with Brass insert Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.825 mm	Face Width (FW) 4.76 mm
Material: Acetal with Brass insert Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G022B-28-D32-048-048-AB-G Spur Gears - 28 tooth - 22.23x4.762 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each
Teeth 28	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.825 mm
Material: Acetal with Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G022B-28-D32-048-048-AB-G Spur Gears - 28 tooth - 22.23x4.762 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Each View the product page first if you are unsure.
G022B-28-D32-048-048-AB-G --- Spur Gears - 28 tooth - 22.23x4.762 mm - Acetal with Brass insert G022B-28-D32-048-048-AB-G --- Spur Gears - 28 tooth - 22.23x4.762 mm - Acetal with Brass insert Regular price $16.32 AUD Regular price Sale price $16.32 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.825 mm	Face Width (FW) 4.76 mm
Material: Acetal Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G022B-28-D32-048-048-A-P Spur Gears - 28 tooth - 22.23x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each
Teeth 28	Pitch Circle Diameter (PD) 22.23 mm _{(0.875 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 23.825 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 12.70 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G022B-28-D32-048-048-A-P Spur Gears - 28 tooth - 22.23x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each View the product page first if you are unsure.
G022B-28-D32-048-048-A-P --- Spur Gears - 28 tooth - 22.23x4.762 mm - Acetal G022B-28-D32-048-048-A-P --- Spur Gears - 28 tooth - 22.23x4.762 mm - Acetal Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Pitch Circle Diameter (PD) 23.81 mm _{(0.937 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 25.425 mm	Face Width (FW) 4.76 mm
Material: Acetal with Brass insert Hub Diameter (D1): 14.29 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G024B-30-D32-048-048-AB-G Spur Gears - 30 tooth - 23.81x4.762 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each
Teeth 30	Pitch Circle Diameter (PD) 23.81 mm _{(0.937 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 25.425 mm
Material: Acetal with Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 14.29 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G024B-30-D32-048-048-AB-G Spur Gears - 30 tooth - 23.81x4.762 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Each View the product page first if you are unsure.
G024B-30-D32-048-048-AB-G --- Spur Gears - 30 tooth - 23.81x4.762 mm - Acetal with Brass insert G024B-30-D32-048-048-AB-G --- Spur Gears - 30 tooth - 23.81x4.762 mm - Acetal with Brass insert Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Pitch Circle Diameter (PD) 23.81 mm _{(0.937 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 25.425 mm	Face Width (FW) 4.76 mm

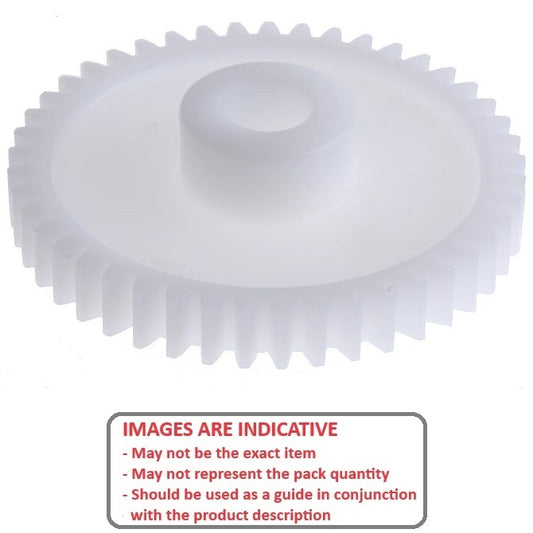

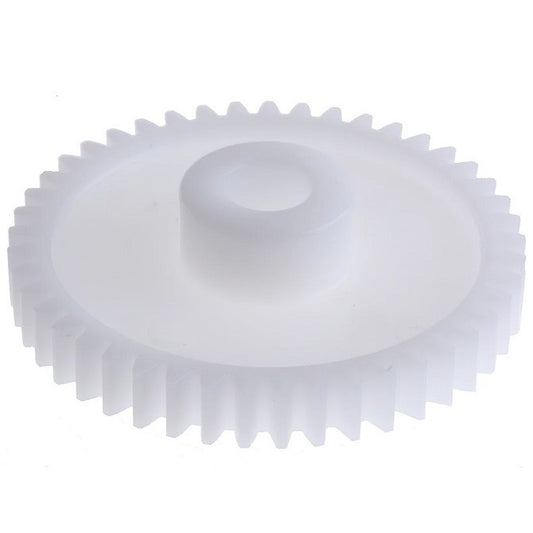

Material: Acetal Hub Diameter (D1): 14.29 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G024B-30-D32-048-048-A-P Spur Gears - 30 tooth - 23.81x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each
Teeth 30	Pitch Circle Diameter (PD) 23.81 mm _{(0.937 in.)}	Bore (d) 4.762 mm _{(0.187 in.)}	Outside Diameter (OD) 25.425 mm
Material: Acetal Face Width (FW): 4.76 mm Hub Diameter (D1): 14.29 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - No Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G024B-30-D32-048-048-A-P Spur Gears - 30 tooth - 23.81x4.762 mm - Acetal Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each View the product page first if you are unsure.
G024B-30-D32-048-048-A-P --- Spur Gears - 30 tooth - 23.81x4.762 mm - Acetal G024B-30-D32-048-048-A-P --- Spur Gears - 30 tooth - 23.81x4.762 mm - Acetal Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Pitch Circle Diameter (PD) 25.40 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 27.000 mm	Face Width (FW) 4.76 mm

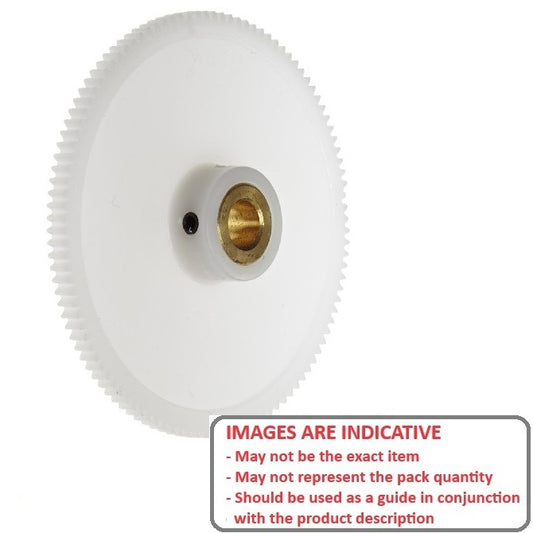

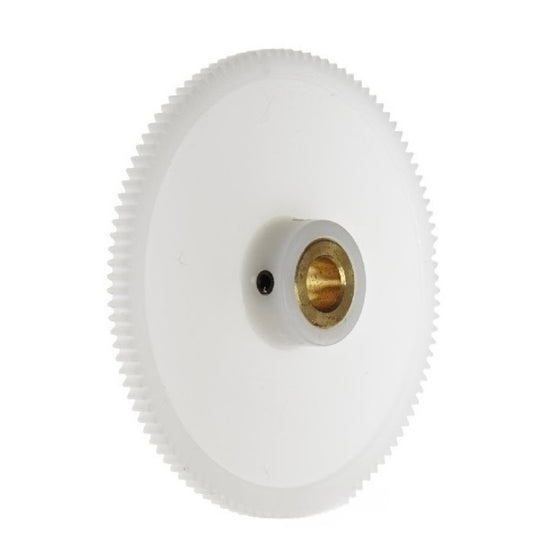

Material: Acetal with Brass insert Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G025B-32-D32-048-064-AB-G Spur Gears - 32 tooth - 25.4x6.35 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $17.32 AUD Regular price Sale price $17.32 AUD Unit price per Each
Teeth 32	Pitch Circle Diameter (PD) 25.40 mm _{(1 in.)}	Bore (d) 6.350 mm _{(0.25 in.)}	Outside Diameter (OD) 27.000 mm
Material: Acetal with Brass insert Face Width (FW): 4.76 mm Hub Diameter (D1): 15.88 mm Hub Projection (HL): 7.94 mm Locking Method: Pin Hub - Set Screw Category: Gears - Spur - Standard - 32DP - 20 Degree
Part Number: G025B-32-D32-048-064-AB-G Spur Gears - 32 tooth - 25.4x6.35 mm - Acetal with Brass insert Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 30, 2025 Regular price $17.32 AUD Regular price Sale price $17.32 AUD Unit price per Each View the product page first if you are unsure.
G025B-32-D32-048-064-AB-G --- Spur Gears - 32 tooth - 25.4x6.35 mm - Acetal with Brass insert G025B-32-D32-048-064-AB-G --- Spur Gears - 32 tooth - 25.4x6.35 mm - Acetal with Brass insert Regular price $17.32 AUD Regular price Sale price $17.32 AUD Unit price per Out of stock! Backorder Now
