Gears - Rack - Imperial - 32DP

2 Products in this selection
This is a combined category of 32DP Imperial Rack Gears.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Spur Gears
A more concise listing may be found on the Smallparts store at Gears - Rack - Imperial - 32DP. Smallparts promote the most popular MBA products.
Length (L) Face Width (fw) Height (h) Pitch Type Pitch Height (ph) Pressure Angle Indicative
Length (L)
304.80
mm

(12 in.)
Face Width (fw)
4.762
mm

(0.187 in.)
Height (h)
4.762
mm

(0.187 in.)
Pitch Type
32DP - 14.5 PA
mm
Pitch Height (ph)
3.970 °
Pressure Angle
14.5

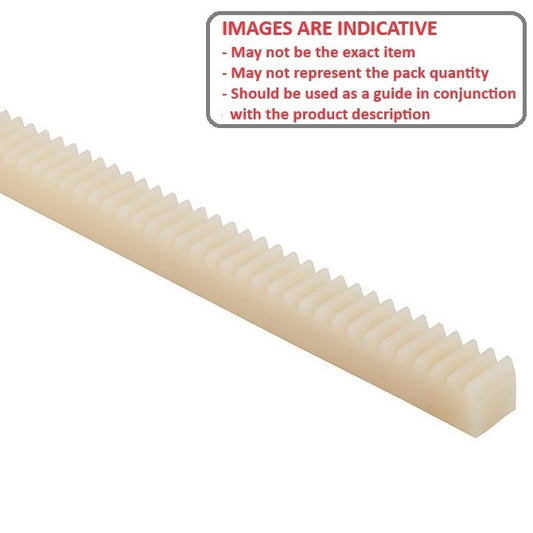

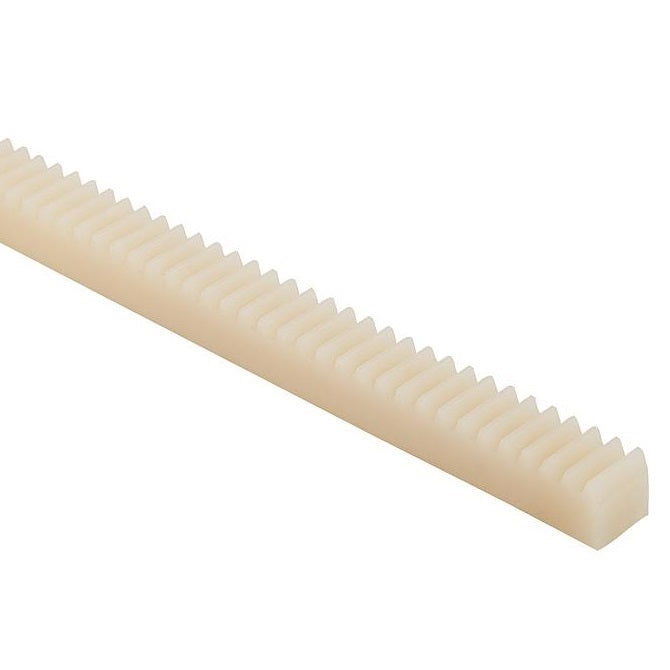

1213533 | GR-V32-05-0305-05-N --- Rack Gears - 304.8x4.762x4.762 mm - Nylon 101
Material: Nylon 101    Precision: Commercial    Mounting Holes: None    Shape: Square
Category: Gears - Rack - Imperial - 32DP - Plastic
Part Number: GR-V32-05-0305-05-N Rack Gears - 304.8x4.762x4.762 mm - Nylon 101
4 Available Immediately | Further orders can be expected around Mon, Jun 30, 2025
$8.68 AUD
$8.68 AUD
Each
Length (L) Face Width (fw) Height (h) Pitch Type Indicative
Length (L)
304.80
mm

(12 in.)
Face Width (fw)
4.762
mm

(0.187 in.)
Height (h)
4.762
mm

(0.187 in.)
Pitch Type
32DP - 14.5 PA
mm
1213533 | GR-V32-05-0305-05-N --- Rack Gears - 304.8x4.762x4.762 mm - Nylon 101
Material: Nylon 101    Pitch Height (ph): 3.970 °    Pressure Angle: 14.5    Precision: Commercial    Mounting Holes: None    Shape: Square
Category: Gears - Rack - Imperial - 32DP - Plastic
Part Number: GR-V32-05-0305-05-N Rack Gears - 304.8x4.762x4.762 mm - Nylon 101
4 Available Immediately | Further orders can be expected around Mon, Jun 30, 2025
$8.68 AUD
$8.68 AUD
Each
View the product page first if you are unsure.
Length (L)
457.20
mm

(18 in.)
Face Width (fw)
5.842
mm

(0.23 in.)
Height (h)
12.192
mm

(0.48 in.)
Pitch Type
32DP
mm
Pitch Height (ph)
11.397 °
Pressure Angle
20

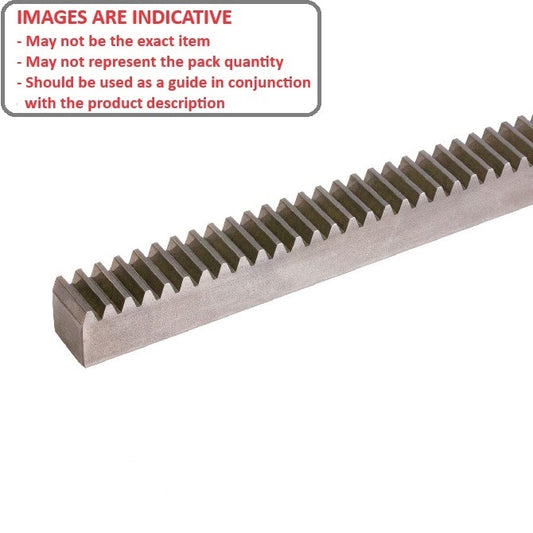

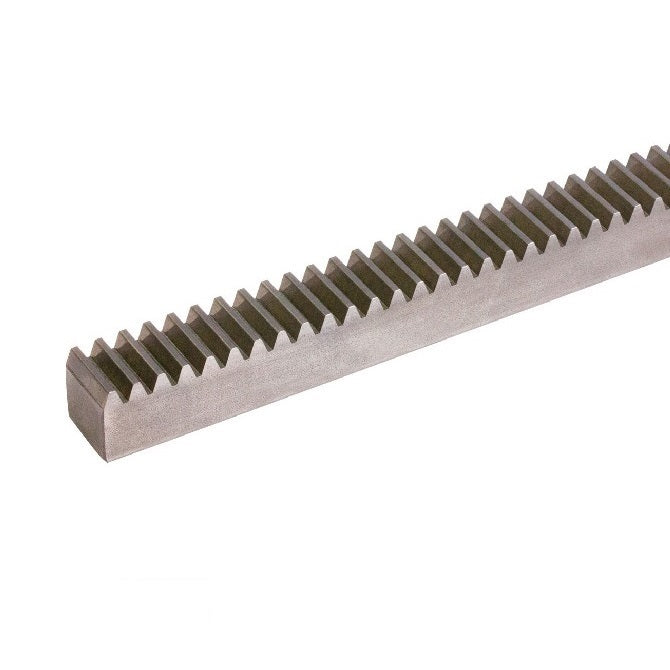

1217475 | GR-D32-06-0457-12-S41 --- Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Precision: Precision    Mounting Holes: None    Shape: Rectangular
Category: Gears - Rack - Imperial - 32DP - Stainless Steel
Part Number: GR-D32-06-0457-12-S41 Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42
1 Available Immediately | Further orders can be expected around Mon, Jun 30, 2025
$280.95 AUD
$280.95 AUD
Each
Length (L)
457.20
mm

(18 in.)
Face Width (fw)
5.842
mm

(0.23 in.)
Height (h)
12.192
mm

(0.48 in.)
Pitch Type
32DP
mm
1217475 | GR-D32-06-0457-12-S41 --- Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42
Material: Stainless Steel AISI 416 Rc 36-42    Pitch Height (ph): 11.397 °    Pressure Angle: 20    Precision: Precision    Mounting Holes: None    Shape: Rectangular
Category: Gears - Rack - Imperial - 32DP - Stainless Steel
Part Number: GR-D32-06-0457-12-S41 Rack Gears - 457.2x5.842x12.192 mm - Stainless Steel AISI 416 Rc 36-42
1 Available Immediately | Further orders can be expected around Mon, Jun 30, 2025
$280.95 AUD
$280.95 AUD
Each
View the product page first if you are unsure.
