FR6A-2RS-MC3

Name: FR6A-2RS-MC3 - Single Row Ball Bearings - 9.525x22.225x7.142 mm Flanged - Chrome Steel SAE 52100 Bearing
Brand: MBA
SKU: FR6A2RSMC3
Price: 9.41 AUD
Availability: InStock

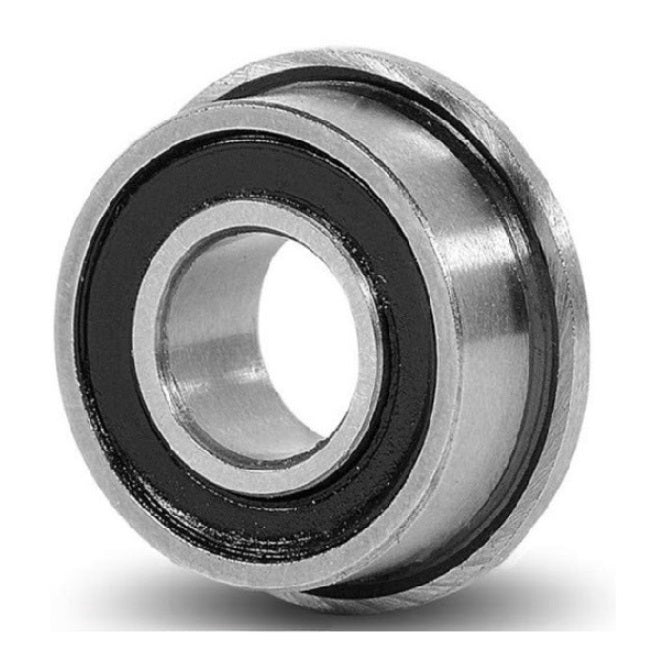

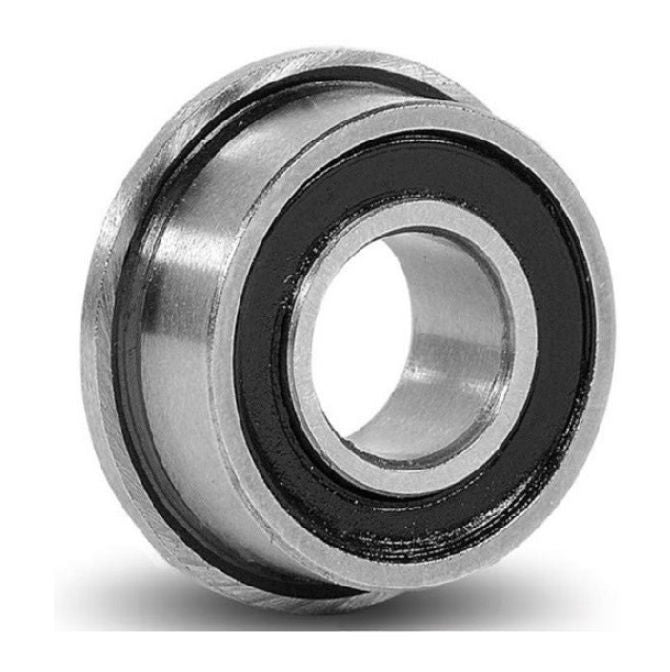

Single Row Ball Bearings - 9.525x22.225x7.142 mm Flanged - Chrome Steel SAE 52100 Bearing

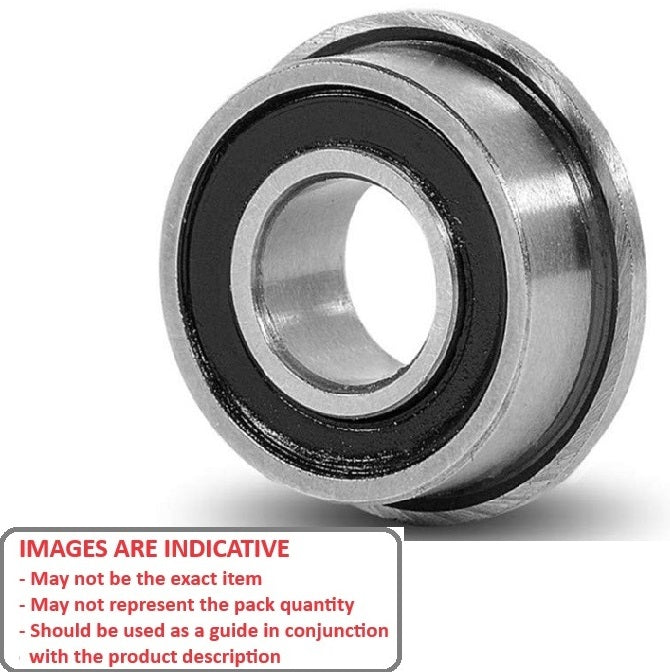

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$9.41 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 48 available now
Order 50 or more for $8.47 AUD

Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.

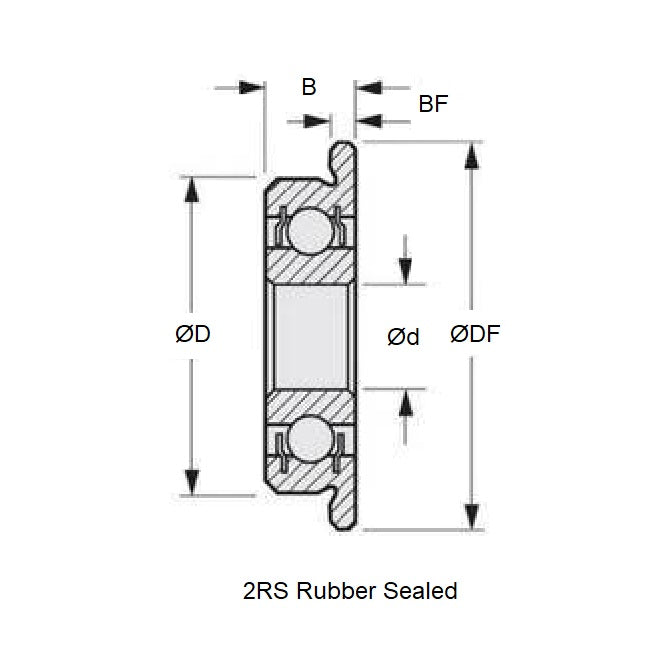

Product Details

ID (d): 9.525mm
_{+ 0.000 / - 0.0075}
_{(9.525mm is 0.375 in.)}

Chrome Steel SAE 52100

ID (d): 9.525mm
_{+ 0.000 / - 0.0075}
_{(9.525mm is 0.375 in.)}
OD (D): 22.225mm
_{+ 0.000 / - 0.010}
_{(22.225mm is 0.875 in.)}
Width (B): 7.142mm
_{+ 0.000 / - 0.125}
_{(7.142mm is 0.281 in.)}
Flange Diameter (DF): 24.613mm
Flange Width (BF): 1.575mm
Precision Grade: Abec 1
Closure Type: 2RS
Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

NTN FLR6-2RS
NTN FLR6-RS
Sealed Width A FR6 / 7
Sealed FR6A / 7
FAFNIR FS3KPP
FR6ARSMC3
FR6-RS
FR6RS
FR62RS
FR6A-RSMC3
FLR62RS
FR6A-2RSMC3
FR6A2RSMC3
FR6-2RS
FLR6RS
FR6ABASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
