ES-0500-0250-045-M (5 Pcs)

Extension Springs - 5x25x0.45 mm - Steel

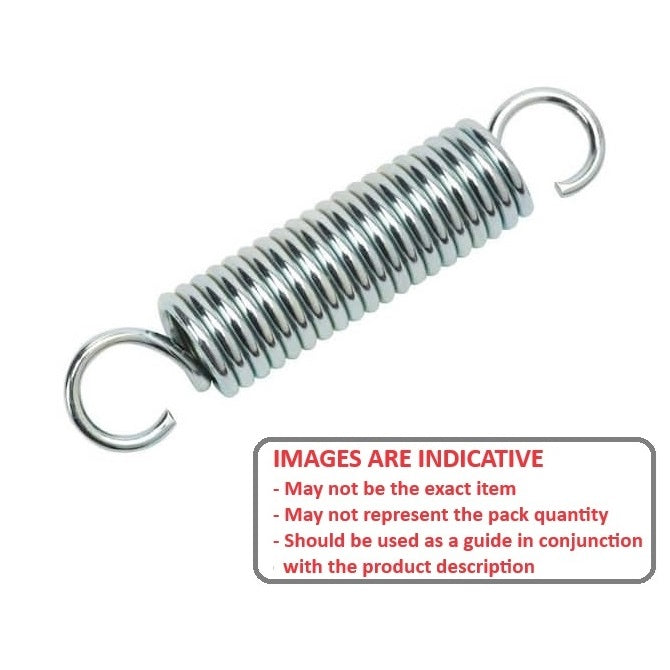

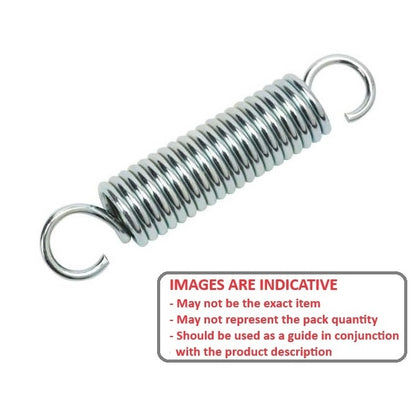

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Extension Springs - 5x25x0.45 mm - Steel
1 4

MBA

Additional resources:
Spings Catalogue PDF
Assortment Kits
Spring Anchors
Price:
$8.77 AUD
$10.53 AUD $8.77 AUD
per 5
Out Of Stock
Order 50 or more (250 pcs) for $7.89 AUD per 5
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 21, 2025

Base Category: Springs - Extension

Top Level Category: Springs - Extension - Music Wire

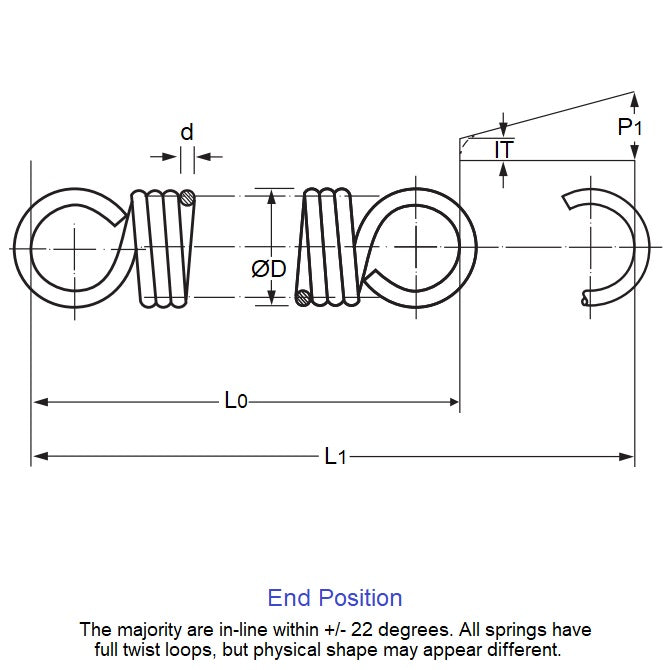

Product Details:

OD (D0): 5.00mm
(5.00mm is 0.197 in.)

Steel
  • Overall Length (L0): 25mm
    (25mm is 0.984 in.)
  • Wire Diameter (d): 0.450mm
    (0.450mm is 0.018 in.)
  • Max. Extension (L1): 46.50mm
  • Spring Rate: 0.13N/mm
  • Initial Tension (IT): 0.5N
  • Load at L1: 3.24N

Brand: MBA
Country of Origin: DE

Alternative Parts Include: CAWA525, C-AWA5-25, Misumi

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
