W0150-FP-022-0030-S4 (100 Pcs)

Name: W0150-FP-022-0030-S4 (100 Pack) - Flat Washers - 15x22x0.3 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer
Brand: MBA
SKU: W0150FP0220030S4
Price: 18.05 AUD
Availability: BackOrder

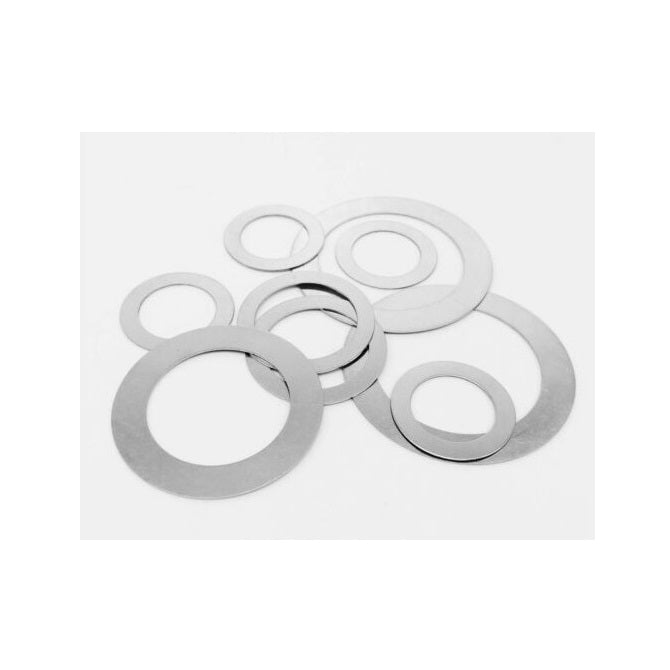

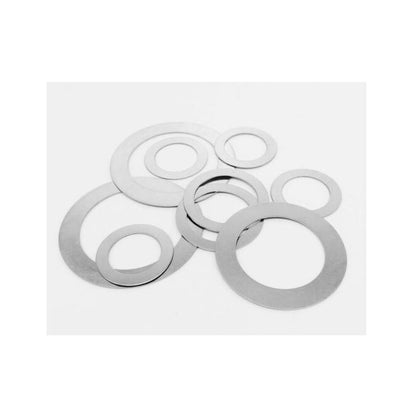

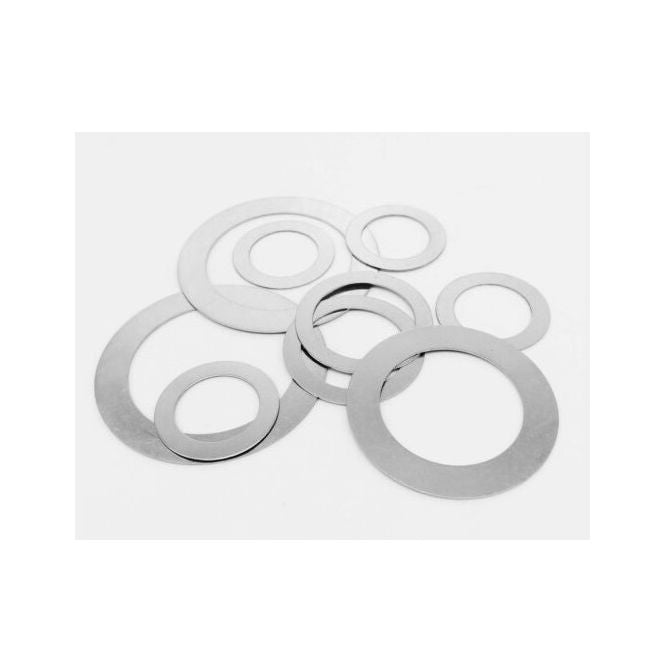

Flat Washers - 15x22x0.3 mm Precision Shim - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer

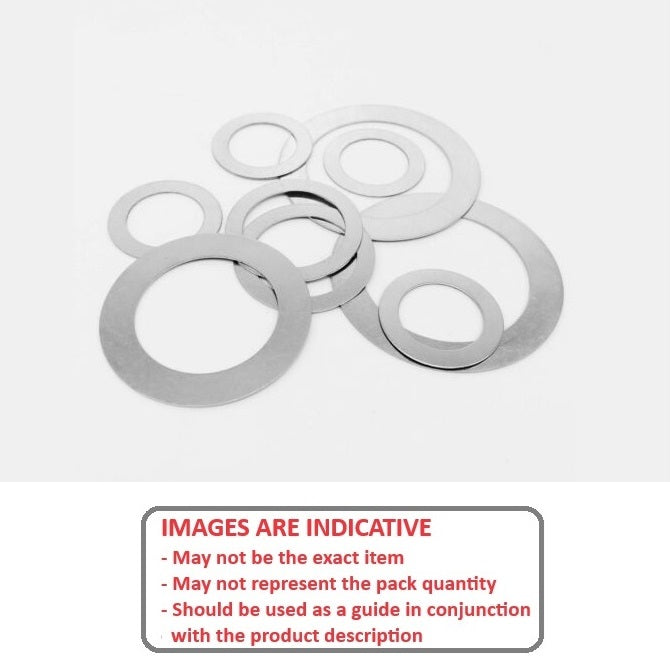

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Washers - Flat - Precision Shim - Stainless Steel

Additional resources:
Washers and Spacers PDF Catalogue
Precision Shim Washer PDF Catalogue
Screws

Price:

$18.05 AUD

Excludes GST and overseas Taxes & Duties

per 100
Backorder
Order 50 or more pack (5000 pcs) for $16.25 AUD per 100

Product Details

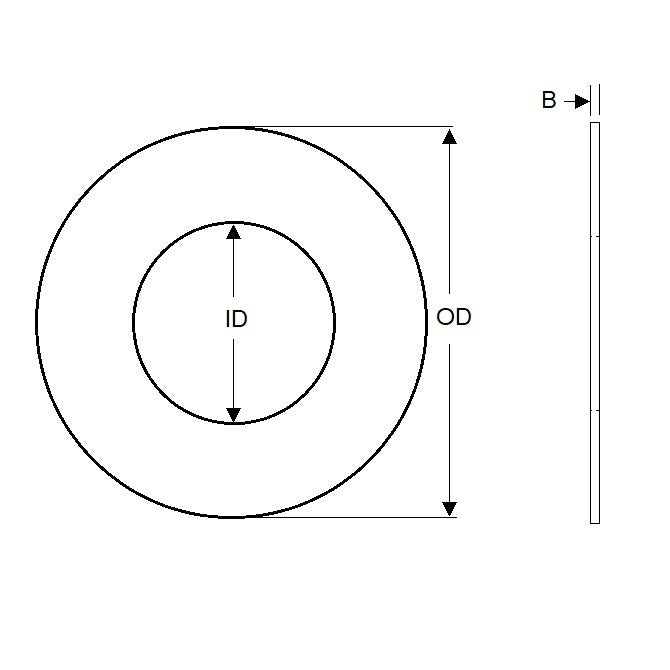

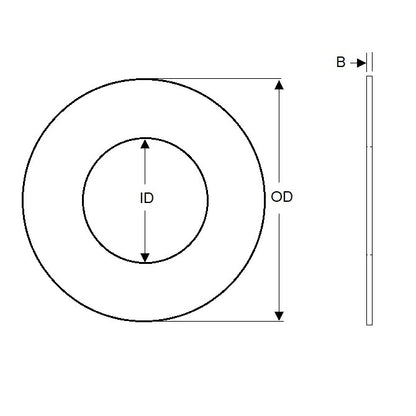

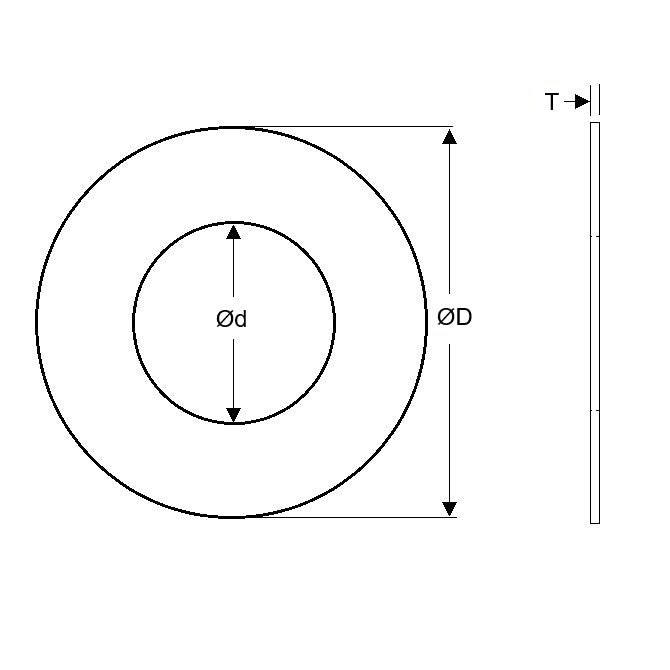

Nominal Inside Diameter (d): 15.000mm
_{+ 0.05 / + 0.23}
_{(15.000mm is 0.591 in.)}

Stainless Steel 304 (Similar to A2, 18-8) HRB80

Nominal Inside Diameter (d): 15.000mm
_{+ 0.05 / + 0.23}
_{(15.000mm is 0.591 in.)}
Nominal Outside Diameter (D): 22.000mm
_{- 0.065 / - 0.275}
_{(22.000mm is 0.866 in.)}
Thickness (T): 0.300mm
_{+ 0.000 / - 0.050}
_{(0.300mm is 0.012 in.)}
Grade: Precision
Min. Actual ID (Ref): 15.05mm

Brand: MBA
Country of Origin: GB

Product Compliance and Data

Similar to

Misumi PCIMRS15-22-0.3
ExaktKey S75980-SS
NoCor S75980-SS
Springmaster S75980-SS
XOSpring S75980-SS
P15x22x03SS
P15x22x0.3-SS
CPS15X22X0.3-SS
CPS15X22X03SS
W0150FP022003CLSS
W0150FP022003CL-SS
PCIMRS152203
S75980SS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
