G042B-120-D72-048-048-AL-G

Spur Gears - 120 tooth - 42.33x4.762 mm Hubbed - Aluminium Alloy 2024 Gear

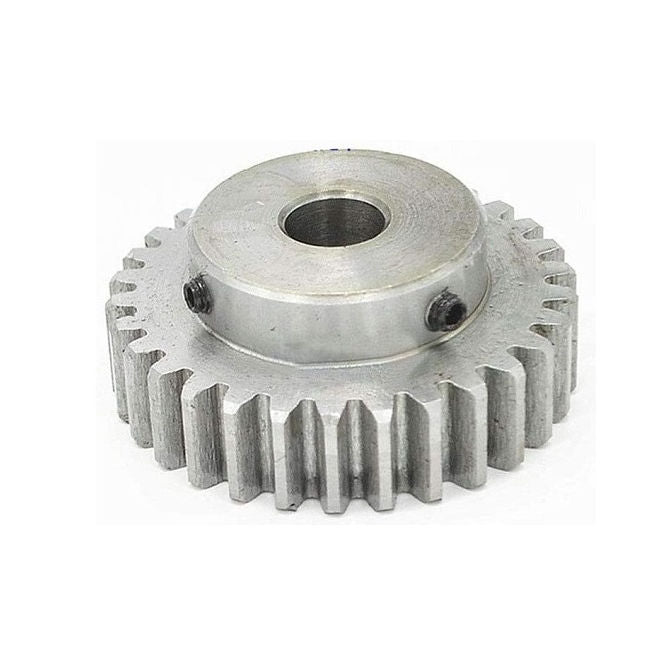

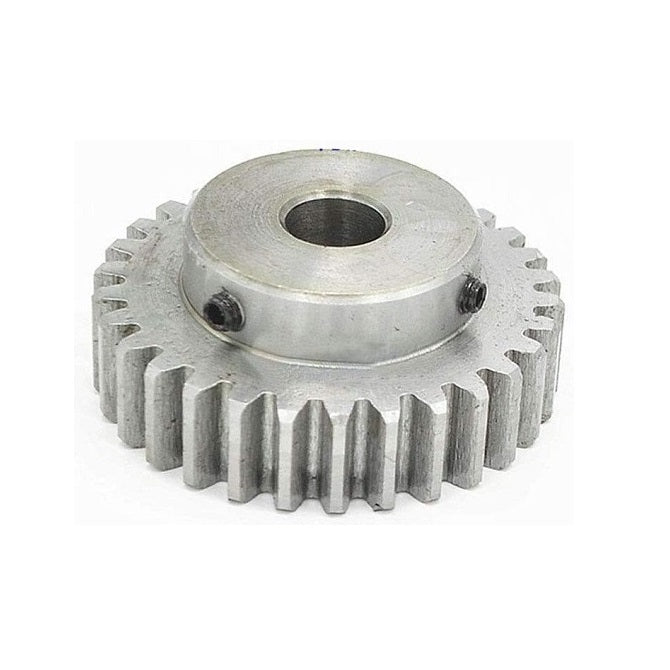

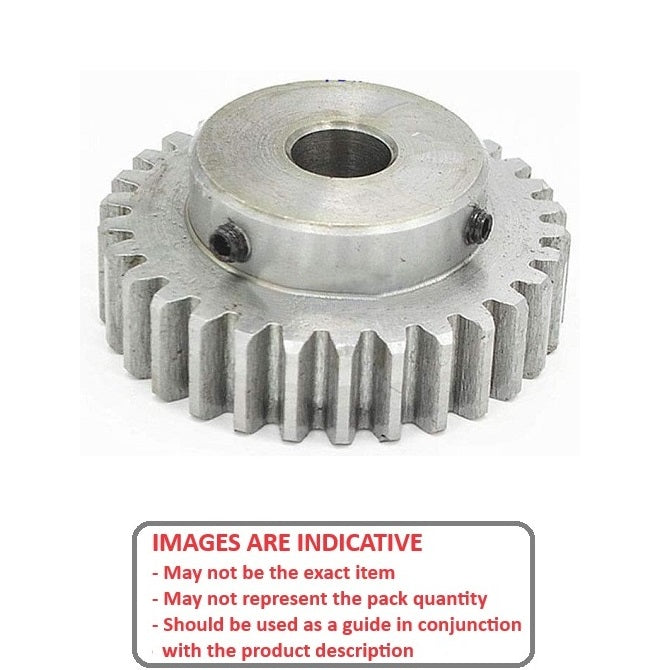

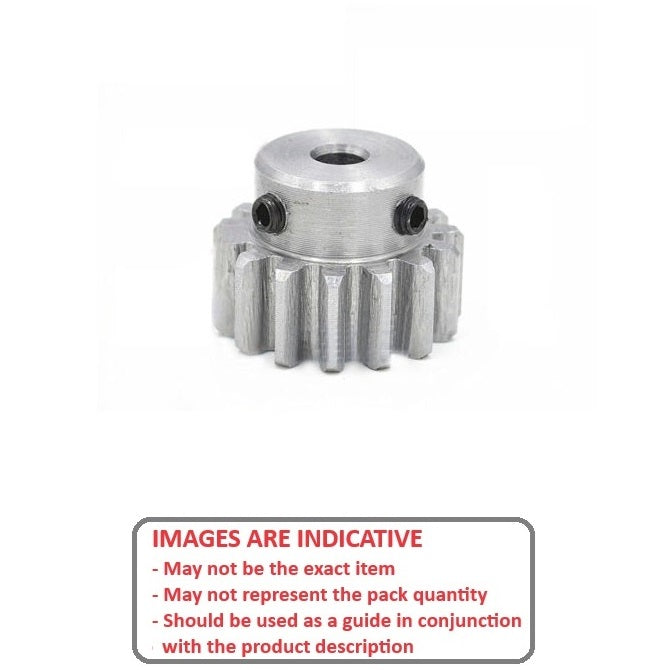

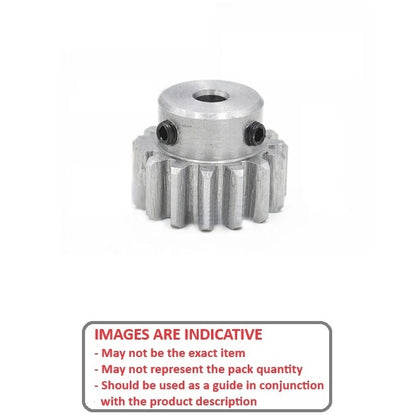

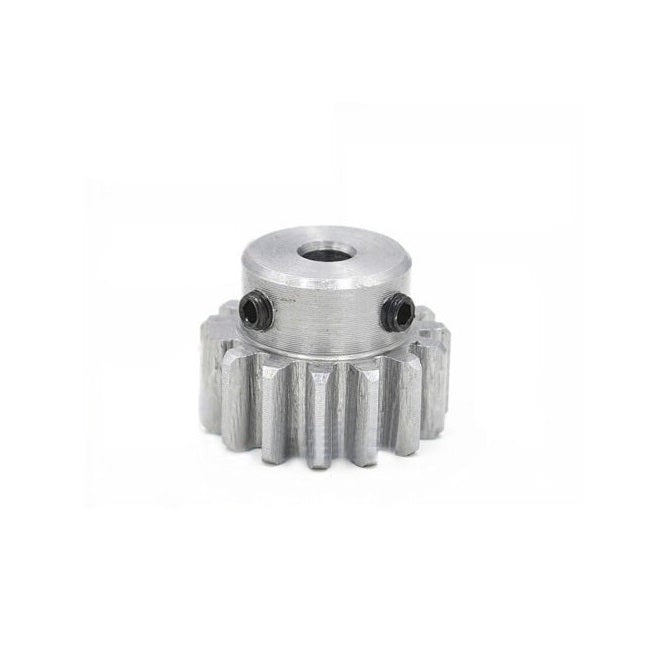

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spur Gears - 120 tooth - 42.33x4.762 mm Hubbed - Aluminium Alloy 2024 Gear
1 3

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
72DP Gear Racks
Price:
$40.00 AUD
$76.00 AUD $40.00 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Gears - Spur

Top Level Category: Gears - Spur - Hubbed - 72DP - Aluminium

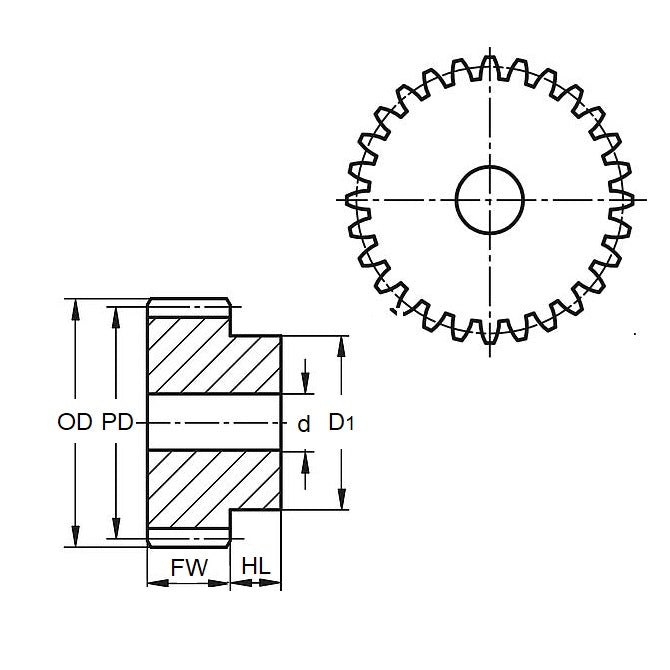

Product Details

Number of Teeth: 120

Aluminium Alloy 2024
  • Pitch Circle Diameter (PD): 42.33mm
    (42.33mm is 1.667 in.)
  • Bore (d): 4.762mm
    (4.762mm is 0.187 in.)
  • Outside Diameter (OD): 43.035mm
  • Face Width (FW): 4.75mm
  • Type: Hubbed
  • 9.53
  • 5.55
  • Locking Method: Set Screw
  • Quality: AGMA Q10

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • S1084Z072A120
  • S1084Z-072A120

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
