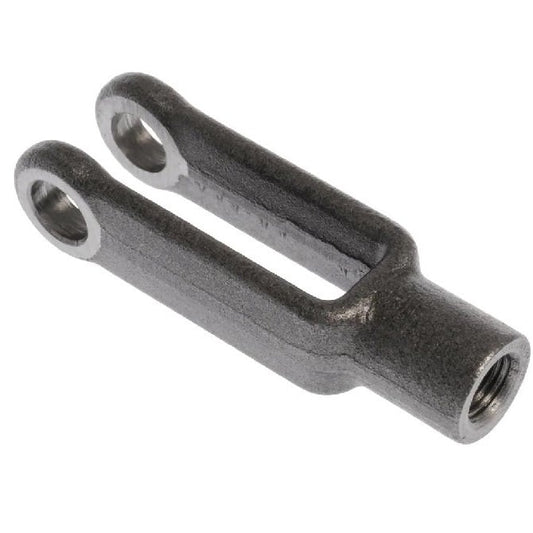

Collection: Yoke Ends - Threaded

Yoke Ends (With Images)

Threaded

9 Products in this selection

Linkage Connectors
Drop forged steel machined to SAE standards
Also see clevis joints

Additional resources:

A more concise listing may be found on the Smallparts store at Yoke Ends - Threaded. Smallparts promote the most popular MBA products.

Effective Lgth (A)	Hub Diameter (B)	Gap (E) +/- 0.38	Width (F) +/- 0.38	Hole Size (G) +0.25	Stud Height (H) (+0.79)
Effective Lgth (A) 50.800 mm _{(2 in.)}	Hub Diameter (B) 11.110 mm _{(0.437 in.)}	Gap (E) +/- 0.38 7.140 mm _{(0.281 in.)}	Width (F) +/- 0.38 15.88 mm	Hole Size (G) +0.25 6.35 mm	Stud Height (H) (+0.79) 19 mm
Housing Diameter (K): 13 mm Thread Size: 1/4-28 UNF (6.35mm)
Part Number: YE-2RS Threaded Yoke Ends - 50.8x11.11x7.14 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Each

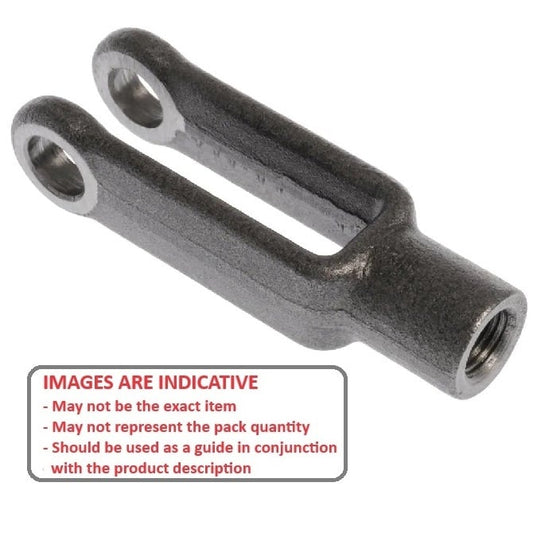

Effective Lgth (A)	Hub Diameter (B)	Gap (E) +/- 0.38	Width (F) +/- 0.38	Indicative Image
Effective Lgth (A) 50.800 mm _{(2 in.)}	Hub Diameter (B) 11.110 mm _{(0.437 in.)}	Gap (E) +/- 0.38 7.140 mm _{(0.281 in.)}	Width (F) +/- 0.38 15.88 mm
Hole Size (G) +0.25: 6.35 mm Stud Height (H) (+0.79): 19 mm Housing Diameter (K): 13 mm Thread Size: 1/4-28 UNF (6.35mm)
Part Number: YE-2RS Threaded Yoke Ends - 50.8x11.11x7.14 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Each View the product page first if you are unsure.
YE-2RS --- Threaded Yoke Ends - 50.8x11.11x7.14 mm YE-2RS --- Threaded Yoke Ends - 50.8x11.11x7.14 mm Regular price $25.59 AUD Regular price Sale price $25.59 AUD Unit price per Out of stock! Backorder Now
Effective Lgth (A) 57.150 mm _{(2.25 in.)}	Hub Diameter (B) 12.700 mm _{(0.5 in.)}	Gap (E) +/- 0.38 8.730 mm _{(0.344 in.)}	Width (F) +/- 0.38 19.05 mm	Hole Size (G) +0.25 7.94 mm	Stud Height (H) (+0.79) 21 mm
Housing Diameter (K): 15 mm Thread Size: 5/16-24 UNF
Part Number: YE-3RS Threaded Yoke Ends - 57.15x12.7x8.73 mm 4 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $32.77 AUD Regular price ~~$39.33 AUD~~ Sale price $32.77 AUD Unit price per Each
Effective Lgth (A) 57.150 mm _{(2.25 in.)}	Hub Diameter (B) 12.700 mm _{(0.5 in.)}	Gap (E) +/- 0.38 8.730 mm _{(0.344 in.)}	Width (F) +/- 0.38 19.05 mm
Hole Size (G) +0.25: 7.94 mm Stud Height (H) (+0.79): 21 mm Housing Diameter (K): 15 mm Thread Size: 5/16-24 UNF
Part Number: YE-3RS Threaded Yoke Ends - 57.15x12.7x8.73 mm 4 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $32.77 AUD Regular price ~~$39.33 AUD~~ Sale price $32.77 AUD Unit price per Each View the product page first if you are unsure.
YE-3RS --- Threaded Yoke Ends - 57.15x12.7x8.73 mm Sale YE-3RS --- Threaded Yoke Ends - 57.15x12.7x8.73 mm Regular price $32.77 AUD Regular price ~~$39.33 AUD~~ Sale price $32.77 AUD Unit price per 4 Available Now Sale
Effective Lgth (A) 63.500 mm _{(2.5 in.)}	Hub Diameter (B) 15.880 mm _{(0.625 in.)}	Gap (E) +/- 0.38 11.110 mm _{(0.437 in.)}	Width (F) +/- 0.38 22.23 mm	Hole Size (G) +0.25 9.53 mm	Stud Height (H) (+0.79) 22 mm
Housing Diameter (K): 17 mm Thread Size: 3/8-24 UNF
Part Number: YE-4RS Threaded Yoke Ends - 63.5x15.88x11.11 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Each
Effective Lgth (A) 63.500 mm _{(2.5 in.)}	Hub Diameter (B) 15.880 mm _{(0.625 in.)}	Gap (E) +/- 0.38 11.110 mm _{(0.437 in.)}	Width (F) +/- 0.38 22.23 mm
Hole Size (G) +0.25: 9.53 mm Stud Height (H) (+0.79): 22 mm Housing Diameter (K): 17 mm Thread Size: 3/8-24 UNF
Part Number: YE-4RS Threaded Yoke Ends - 63.5x15.88x11.11 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Each View the product page first if you are unsure.
YE-4RS --- Threaded Yoke Ends - 63.5x15.88x11.11 mm YE-4RS --- Threaded Yoke Ends - 63.5x15.88x11.11 mm Regular price $31.95 AUD Regular price Sale price $31.95 AUD Unit price per Out of stock! Backorder Now
Effective Lgth (A) 73.030 mm _{(2.875 in.)}	Hub Diameter (B) 18.260 mm _{(0.719 in.)}	Gap (E) +/- 0.38 12.700 mm _{(0.5 in.)}	Width (F) +/- 0.38 25.40 mm	Hole Size (G) +0.25 11.11 mm	Stud Height (H) (+0.79) 25 mm
Housing Diameter (K): 21 mm Thread Size: 7/16-20 UNF
Part Number: YE-5RS Threaded Yoke Ends - 73.03x18.26x12.7 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $52.68 AUD Regular price Sale price $52.68 AUD Unit price per Each
Effective Lgth (A) 73.030 mm _{(2.875 in.)}	Hub Diameter (B) 18.260 mm _{(0.719 in.)}	Gap (E) +/- 0.38 12.700 mm _{(0.5 in.)}	Width (F) +/- 0.38 25.40 mm
Hole Size (G) +0.25: 11.11 mm Stud Height (H) (+0.79): 25 mm Housing Diameter (K): 21 mm Thread Size: 7/16-20 UNF
Part Number: YE-5RS Threaded Yoke Ends - 73.03x18.26x12.7 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $52.68 AUD Regular price Sale price $52.68 AUD Unit price per Each View the product page first if you are unsure.
YE-5RS --- Threaded Yoke Ends - 73.03x18.26x12.7 mm YE-5RS --- Threaded Yoke Ends - 73.03x18.26x12.7 mm Regular price $52.68 AUD Regular price Sale price $52.68 AUD Unit price per Out of stock! Backorder Now
Effective Lgth (A) 76.200 mm _{(3 in.)}	Hub Diameter (B) 20.640 mm _{(0.813 in.)}	Gap (E) +/- 0.38 14.290 mm _{(0.563 in.)}	Width (F) +/- 0.38 28.58 mm	Hole Size (G) +0.25 12.70 mm	Stud Height (H) (+0.79) 29 mm
Housing Diameter (K): 24 mm Thread Size: 1/2-20 UNF
Part Number: YE-6RS Threaded Yoke Ends - 76.2x20.64x14.29 mm 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $40.50 AUD Regular price ~~$48.60 AUD~~ Sale price $40.50 AUD Unit price per Each
Effective Lgth (A) 76.200 mm _{(3 in.)}	Hub Diameter (B) 20.640 mm _{(0.813 in.)}	Gap (E) +/- 0.38 14.290 mm _{(0.563 in.)}	Width (F) +/- 0.38 28.58 mm
Hole Size (G) +0.25: 12.70 mm Stud Height (H) (+0.79): 29 mm Housing Diameter (K): 24 mm Thread Size: 1/2-20 UNF
Part Number: YE-6RS Threaded Yoke Ends - 76.2x20.64x14.29 mm 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $40.50 AUD Regular price ~~$48.60 AUD~~ Sale price $40.50 AUD Unit price per Each View the product page first if you are unsure.
YE-6RS --- Threaded Yoke Ends - 76.2x20.64x14.29 mm Sale YE-6RS --- Threaded Yoke Ends - 76.2x20.64x14.29 mm Regular price $40.50 AUD Regular price ~~$48.60 AUD~~ Sale price $40.50 AUD Unit price per 2 Available Now Sale
Effective Lgth (A) 101.600 mm _{(4 in.)}	Hub Diameter (B) 28.580 mm _{(1.125 in.)}	Gap (E) +/- 0.38 17.460 mm _{(0.687 in.)}	Width (F) +/- 0.38 38.10 mm	Hole Size (G) +0.25 15.88 mm	Stud Height (H) (+0.79) 32 mm
Housing Diameter (K): 35 mm Thread Size: 3/4-10 UNC (19.05mm)
Part Number: YE-8SPRS Threaded Yoke Ends - 101.6x28.58x17.46 mm 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $45.56 AUD Regular price ~~$111.04 AUD~~ Sale price $45.56 AUD Unit price per Each
Effective Lgth (A) 101.600 mm _{(4 in.)}	Hub Diameter (B) 28.580 mm _{(1.125 in.)}	Gap (E) +/- 0.38 17.460 mm _{(0.687 in.)}	Width (F) +/- 0.38 38.10 mm
Hole Size (G) +0.25: 15.88 mm Stud Height (H) (+0.79): 32 mm Housing Diameter (K): 35 mm Thread Size: 3/4-10 UNC (19.05mm)
Part Number: YE-8SPRS Threaded Yoke Ends - 101.6x28.58x17.46 mm 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $45.56 AUD Regular price ~~$111.04 AUD~~ Sale price $45.56 AUD Unit price per Each
YE-8SPRS --- Threaded Yoke Ends - 101.6x28.58x17.46 mm Sale YE-8SPRS --- Threaded Yoke Ends - 101.6x28.58x17.46 mm Regular price $45.56 AUD Regular price ~~$111.04 AUD~~ Sale price $45.56 AUD Unit price per 1 Available Now Sale
Effective Lgth (A) 106.360 mm _{(4.187 in.)}	Hub Diameter (B) 20.640 mm _{(0.813 in.)}	Gap (E) +/- 0.38 14.290 mm _{(0.563 in.)}	Width (F) +/- 0.38 28.58 mm	Hole Size (G) +0.25 12.70 mm	Stud Height (H) (+0.79) 29 mm
Housing Diameter (K): 24 mm Thread Size: 1/2-20 UNF
Part Number: YE-6BRS Threaded Yoke Ends - 106.36x20.64x14.29 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Each
Effective Lgth (A) 106.360 mm _{(4.187 in.)}	Hub Diameter (B) 20.640 mm _{(0.813 in.)}	Gap (E) +/- 0.38 14.290 mm _{(0.563 in.)}	Width (F) +/- 0.38 28.58 mm
Hole Size (G) +0.25: 12.70 mm Stud Height (H) (+0.79): 29 mm Housing Diameter (K): 24 mm Thread Size: 1/2-20 UNF
Part Number: YE-6BRS Threaded Yoke Ends - 106.36x20.64x14.29 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Each View the product page first if you are unsure.
YE-6BRS --- Threaded Yoke Ends - 106.36x20.64x14.29 mm YE-6BRS --- Threaded Yoke Ends - 106.36x20.64x14.29 mm Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Out of stock! Backorder Now
Effective Lgth (A) 125.410 mm _{(4.937 in.)}	Hub Diameter (B) 26.990 mm _{(1.063 in.)}	Gap (E) +/- 0.38 17.460 mm _{(0.687 in.)}	Width (F) +/- 0.38 34.93 mm	Hole Size (G) +0.25 15.88 mm	Stud Height (H) (+0.79) 32 mm
Housing Diameter (K): 30 mm Thread Size: 5/8-18 UNF
Part Number: YE-7RS Threaded Yoke Ends - 125.41x26.99x17.46 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $133.68 AUD Regular price Sale price $133.68 AUD Unit price per Each
Effective Lgth (A) 125.410 mm _{(4.937 in.)}	Hub Diameter (B) 26.990 mm _{(1.063 in.)}	Gap (E) +/- 0.38 17.460 mm _{(0.687 in.)}	Width (F) +/- 0.38 34.93 mm
Hole Size (G) +0.25: 15.88 mm Stud Height (H) (+0.79): 32 mm Housing Diameter (K): 30 mm Thread Size: 5/8-18 UNF
Part Number: YE-7RS Threaded Yoke Ends - 125.41x26.99x17.46 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $133.68 AUD Regular price Sale price $133.68 AUD Unit price per Each View the product page first if you are unsure.
YE-7RS --- Threaded Yoke Ends - 125.41x26.99x17.46 mm YE-7RS --- Threaded Yoke Ends - 125.41x26.99x17.46 mm Regular price $133.68 AUD Regular price Sale price $133.68 AUD Unit price per Out of stock! Backorder Now
Effective Lgth (A) 153.99 mm _{(6.063 in.)}	Hub Diameter (B) 31.75 mm _{(1.25 in.)}	Gap (E) +/- 0.38 20.64 mm _{(0.813 in.)}	Width (F) +/- 0.38 41.28 mm	Hole Size (G) +0.25 19.05 mm	Stud Height (H) (+0.79) 38.10 mm
Housing Diameter (K): 36.51 mm Thread Size: 3/4-16 UNF
Part Number: YE-8RS Threaded Yoke Ends - 153.99x31.75x20.64 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $230.23 AUD Regular price Sale price $230.23 AUD Unit price per Each
Effective Lgth (A) 153.99 mm _{(6.063 in.)}	Hub Diameter (B) 31.75 mm _{(1.25 in.)}	Gap (E) +/- 0.38 20.64 mm _{(0.813 in.)}	Width (F) +/- 0.38 41.28 mm
Hole Size (G) +0.25: 19.05 mm Stud Height (H) (+0.79): 38.10 mm Housing Diameter (K): 36.51 mm Thread Size: 3/4-16 UNF
Part Number: YE-8RS Threaded Yoke Ends - 153.99x31.75x20.64 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $230.23 AUD Regular price Sale price $230.23 AUD Unit price per Each View the product page first if you are unsure.
YE-8RS --- Threaded Yoke Ends - 153.99x31.75x20.64 mm YE-8RS --- Threaded Yoke Ends - 153.99x31.75x20.64 mm Regular price $230.23 AUD Regular price Sale price $230.23 AUD Unit price per Out of stock! Backorder Now
