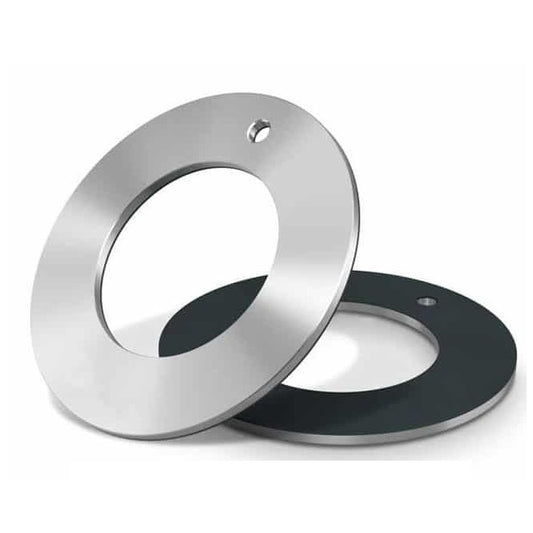

Collection: Washers - Thrust - DP4 Type

Washers (With Images)

Thrust

DP4 Type

9 Products in this selection

Wear resistant helping to prevent wear deposits in the lubricating oil after long working periods. Designed for use in oil pumps and dampers.
Operating Temperature -200^o to 280^o Celsius. Maximum load 250N per mm2.
Low static and dynamic friction coefficient, Suitable for sliding, oscillating, reiprocating and rotating applications.
High reistance to be cavitation and flow erosion damage of the polymer bearing surface by the lubricant, Excellent wear resistant.
Also suitable for use with non-lubricating fluids and in light duty unlubricated applications, Lead free.

Additional resources:
Screws

A more concise listing may be found on the Smallparts store at Washers - Thrust - DP4 Type. Smallparts promote the most popular MBA products.

Nom. ID (D1)	Outside Dia Do	Thickness ST	Dowel Hole Dia dD	Dowel Hole PCD Dp	Recess Depth Ha
Nom. ID (D1) 10.00 mm _{(0.394 in.)}	Outside Dia Do 20.00 mm _{(0.787 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 1.500 mm	Dowel Hole PCD Dp 15.000 mm	Recess Depth Ha 1.000 mm
Material: DP4 Recess Diameter: 20.000 mm
Part Number: W0100-T-020-015-DP4 Thrust Washers - 10x20x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $25.23 AUD Regular price Sale price $25.23 AUD Unit price per Each

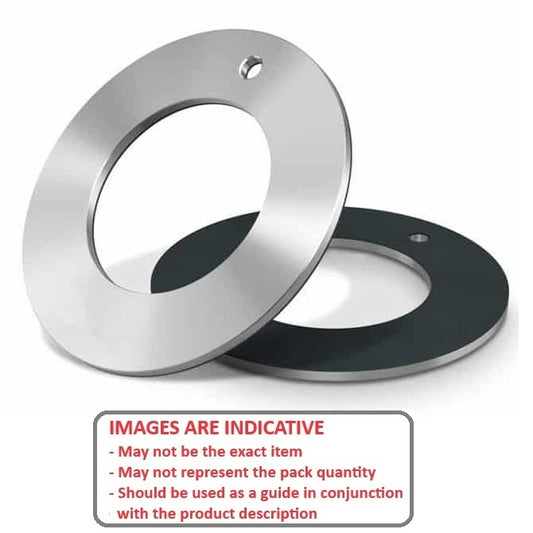

Nom. ID (D1)	Outside Dia Do	Thickness ST	Dowel Hole Dia dD	Indicative Image
Nom. ID (D1) 10.00 mm _{(0.394 in.)}	Outside Dia Do 20.00 mm _{(0.787 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 1.500 mm
Material: DP4 Dowel Hole PCD Dp: 15.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 20.000 mm
Part Number: W0100-T-020-015-DP4 Thrust Washers - 10x20x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $25.23 AUD Regular price Sale price $25.23 AUD Unit price per Each View the product page first if you are unsure.
W0100-T-020-015-DP4 --- Thrust Washers - 10x20x1.5 mm - DP4 W0100-T-020-015-DP4 --- Thrust Washers - 10x20x1.5 mm - DP4 Regular price $25.23 AUD Regular price Sale price $25.23 AUD Unit price per Out of stock! Backorder Now
Nom. ID (D1) 12.00 mm _{(0.472 in.)}	Outside Dia Do 24.00 mm _{(0.945 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 1.500 mm	Dowel Hole PCD Dp 18.000 mm	Recess Depth Ha 1.000 mm
Material: DP4 Recess Diameter: 24.000 mm
Part Number: W0120-T-024-015-DP4 Thrust Washers - 12x24x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $36.68 AUD Regular price Sale price $36.68 AUD Unit price per Each
Nom. ID (D1) 12.00 mm _{(0.472 in.)}	Outside Dia Do 24.00 mm _{(0.945 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 1.500 mm
Material: DP4 Dowel Hole PCD Dp: 18.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 24.000 mm
Part Number: W0120-T-024-015-DP4 Thrust Washers - 12x24x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $36.68 AUD Regular price Sale price $36.68 AUD Unit price per Each View the product page first if you are unsure.
W0120-T-024-015-DP4 --- Thrust Washers - 12x24x1.5 mm - DP4 W0120-T-024-015-DP4 --- Thrust Washers - 12x24x1.5 mm - DP4 Regular price $36.68 AUD Regular price Sale price $36.68 AUD Unit price per Out of stock! Backorder Now
Nom. ID (D1) 18.00 mm _{(0.709 in.)}	Outside Dia Do 32.00 mm _{(1.26 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 2.000 mm	Dowel Hole PCD Dp 25.000 mm	Recess Depth Ha 1.000 mm
Material: DP4 Recess Diameter: 32.000 mm
Part Number: W0180-T-032-015-DP4 Thrust Washers - 18x32x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each
Nom. ID (D1) 18.00 mm _{(0.709 in.)}	Outside Dia Do 32.00 mm _{(1.26 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 2.000 mm
Material: DP4 Dowel Hole PCD Dp: 25.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 32.000 mm
Part Number: W0180-T-032-015-DP4 Thrust Washers - 18x32x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each View the product page first if you are unsure.
W0180-T-032-015-DP4 --- Thrust Washers - 18x32x1.5 mm - DP4 W0180-T-032-015-DP4 --- Thrust Washers - 18x32x1.5 mm - DP4 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Out of stock! Backorder Now
Nom. ID (D1) 20.00 mm _{(0.787 in.)}	Outside Dia Do 36.00 mm _{(1.417 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 3.000 mm	Dowel Hole PCD Dp 28.000 mm	Recess Depth Ha 1.000 mm
Material: DP4 Recess Diameter: 36.000 mm
Part Number: W0200-T-036-015-DP4 Thrust Washers - 20x36x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $40.95 AUD Regular price Sale price $40.95 AUD Unit price per Each
Nom. ID (D1) 20.00 mm _{(0.787 in.)}	Outside Dia Do 36.00 mm _{(1.417 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 3.000 mm
Material: DP4 Dowel Hole PCD Dp: 28.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 36.000 mm
Part Number: W0200-T-036-015-DP4 Thrust Washers - 20x36x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $40.95 AUD Regular price Sale price $40.95 AUD Unit price per Each View the product page first if you are unsure.
W0200-T-036-015-DP4 --- Thrust Washers - 20x36x1.5 mm - DP4 W0200-T-036-015-DP4 --- Thrust Washers - 20x36x1.5 mm - DP4 Regular price $40.95 AUD Regular price Sale price $40.95 AUD Unit price per Out of stock! Backorder Now
Nom. ID (D1) 26.00 mm _{(1.024 in.)}	Outside Dia Do 44.00 mm _{(1.732 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 3.000 mm	Dowel Hole PCD Dp 35.000 mm	Recess Depth Ha 1.000 mm
Material: DP4 Recess Diameter: 44.000 mm
Part Number: W0260-T-044-015-DP4 Thrust Washers - 26x44x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $51.05 AUD Regular price Sale price $51.05 AUD Unit price per Each
Nom. ID (D1) 26.00 mm _{(1.024 in.)}	Outside Dia Do 44.00 mm _{(1.732 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 3.000 mm
Material: DP4 Dowel Hole PCD Dp: 35.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 44.000 mm
Part Number: W0260-T-044-015-DP4 Thrust Washers - 26x44x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $51.05 AUD Regular price Sale price $51.05 AUD Unit price per Each View the product page first if you are unsure.
W0260-T-044-015-DP4 --- Thrust Washers - 26x44x1.5 mm - DP4 W0260-T-044-015-DP4 --- Thrust Washers - 26x44x1.5 mm - DP4 Regular price $51.05 AUD Regular price Sale price $51.05 AUD Unit price per Out of stock! Backorder Now
Nom. ID (D1) 28.00 mm _{(1.102 in.)}	Outside Dia Do 48.00 mm _{(1.89 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 4.000 mm	Dowel Hole PCD Dp 38.000 mm	Recess Depth Ha 1.000 mm
Material: DP4 Recess Diameter: 48.000 mm
Part Number: W0280-T-048-015-DP4 Thrust Washers - 28x48x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $56.32 AUD Regular price Sale price $56.32 AUD Unit price per Each
Nom. ID (D1) 28.00 mm _{(1.102 in.)}	Outside Dia Do 48.00 mm _{(1.89 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 4.000 mm
Material: DP4 Dowel Hole PCD Dp: 38.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 48.000 mm
Part Number: W0280-T-048-015-DP4 Thrust Washers - 28x48x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $56.32 AUD Regular price Sale price $56.32 AUD Unit price per Each View the product page first if you are unsure.
W0280-T-048-015-DP4 --- Thrust Washers - 28x48x1.5 mm - DP4 W0280-T-048-015-DP4 --- Thrust Washers - 28x48x1.5 mm - DP4 Regular price $56.32 AUD Regular price Sale price $56.32 AUD Unit price per Out of stock! Backorder Now
Nom. ID (D1) 32.00 mm _{(1.26 in.)}	Outside Dia Do 54.00 mm _{(2.126 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 4.000 mm	Dowel Hole PCD Dp 43.000 mm	Recess Depth Ha 1.000 mm
Material: DP4 Recess Diameter: 54.000 mm
Part Number: W0320-T-054-015-DP4 Thrust Washers - 32x54x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $67.86 AUD Regular price Sale price $67.86 AUD Unit price per Each
Nom. ID (D1) 32.00 mm _{(1.26 in.)}	Outside Dia Do 54.00 mm _{(2.126 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 4.000 mm
Material: DP4 Dowel Hole PCD Dp: 43.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 54.000 mm
Part Number: W0320-T-054-015-DP4 Thrust Washers - 32x54x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $67.86 AUD Regular price Sale price $67.86 AUD Unit price per Each View the product page first if you are unsure.
W0320-T-054-015-DP4 --- Thrust Washers - 32x54x1.5 mm - DP4 W0320-T-054-015-DP4 --- Thrust Washers - 32x54x1.5 mm - DP4 Regular price $67.86 AUD Regular price Sale price $67.86 AUD Unit price per Out of stock! Backorder Now
Nom. ID (D1) 38.00 mm _{(1.496 in.)}	Outside Dia Do 62.00 mm _{(2.441 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 4.000 mm	Dowel Hole PCD Dp 50.000 mm	Recess Depth Ha 1.000 mm
Material: DP4 Recess Diameter: 62.000 mm
Part Number: W0380-T-062-015-DP4 Thrust Washers - 38x62x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $64.14 AUD Regular price Sale price $64.14 AUD Unit price per Each
Nom. ID (D1) 38.00 mm _{(1.496 in.)}	Outside Dia Do 62.00 mm _{(2.441 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 4.000 mm
Material: DP4 Dowel Hole PCD Dp: 50.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 62.000 mm
Part Number: W0380-T-062-015-DP4 Thrust Washers - 38x62x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $64.14 AUD Regular price Sale price $64.14 AUD Unit price per Each View the product page first if you are unsure.
W0380-T-062-015-DP4 --- Thrust Washers - 38x62x1.5 mm - DP4 W0380-T-062-015-DP4 --- Thrust Washers - 38x62x1.5 mm - DP4 Regular price $64.14 AUD Regular price Sale price $64.14 AUD Unit price per Out of stock! Backorder Now
Nom. ID (D1) 42.00 mm _{(1.654 in.)}	Outside Dia Do 66.00 mm _{(2.598 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 4.000 mm	Dowel Hole PCD Dp 54.000 mm	Recess Depth Ha 1.000 mm
Material: DP4 Recess Diameter: 66.000 mm
Part Number: W0420-T-066-015-DP4 Thrust Washers - 42x66x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $87.68 AUD Regular price Sale price $87.68 AUD Unit price per Each
Nom. ID (D1) 42.00 mm _{(1.654 in.)}	Outside Dia Do 66.00 mm _{(2.598 in.)}	Thickness ST 1.50 mm _{(0.059 in.)}	Dowel Hole Dia dD 4.000 mm
Material: DP4 Dowel Hole PCD Dp: 54.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 66.000 mm
Part Number: W0420-T-066-015-DP4 Thrust Washers - 42x66x1.5 mm - DP4 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $87.68 AUD Regular price Sale price $87.68 AUD Unit price per Each View the product page first if you are unsure.
W0420-T-066-015-DP4 --- Thrust Washers - 42x66x1.5 mm - DP4 W0420-T-066-015-DP4 --- Thrust Washers - 42x66x1.5 mm - DP4 Regular price $87.68 AUD Regular price Sale price $87.68 AUD Unit price per Out of stock! Backorder Now
