Collection: Washers - Spring - 3 Wave Type - Carbon Steel

Washers (With Images)

Spring

3 Wave Type

80 Products in this selection

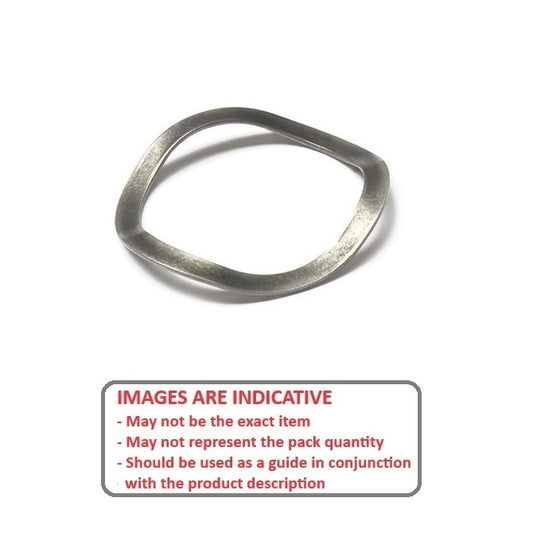

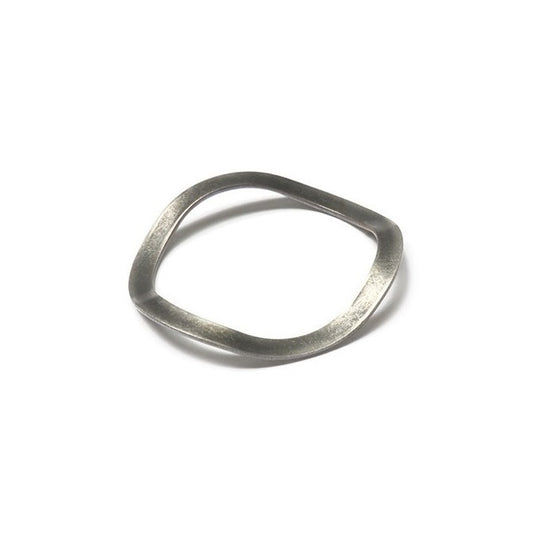

Wave Washers - also called crinkle wave. Includes 2 and 3 wave types. This category includes EPL type bearing pre-load washers.

Additional resources:
Screws

A more concise listing may be found on the Smallparts store at Washers - Spring - 3 Wave Type - Carbon Steel. Smallparts promote the most popular MBA products.

Nom. ID (d)	Nom. OD (D)	Nom. Height (H)	Thickness (s)	Info	Indicative Image
Nom. ID (d) 4.00 mm + 0.3 / + 0.7	Nom. OD (D) 10.00 mm - 0.3 / - 0.7	Nom. Height (H) 1.10 mm	Thickness (s) 0.20 mm	Info Suits OD of 623 Bearings (Equiv EPL001)
Material: Carbon Spring Steel Self Finish Type: 2 Wave Series Nominal Screw Size: M4 (4x0.7mm) Spring Rate: 30 N/mm Max Kg at Yeld Point: 1.6 Kg
Part Number: W0040-T-010-011-W2-C (2 Pcs) Spring Washers - 4x10x1.1 mm - Carbon Spring Steel Self Finish 97 units (194 pcs) Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2
Nom. ID (d)	Nom. OD (D)	Nom. Height (H)	Thickness (s)	Indicative Image
Nom. ID (d) 4.00 mm + 0.3 / + 0.7	Nom. OD (D) 10.00 mm - 0.3 / - 0.7	Nom. Height (H) 1.10 mm	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 623 Bearings (Equiv EPL001) Type: 2 Wave Series Nominal Screw Size: M4 (4x0.7mm) Spring Rate: 30 N/mm Max Kg at Yeld Point: 1.6 Kg
Part Number: W0040-T-010-011-W2-C (2 Pcs) Spring Washers - 4x10x1.1 mm - Carbon Spring Steel Self Finish 97 units (194 pcs) Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2 View the product page first if you are unsure.
W0040-T-010-011-W2-C (2 Pcs) --- Spring Washers - 4x10x1.1 mm - Carbon Spring Steel Self Finish W0040-T-010-011-W2-C (2 Pcs) --- Spring Washers - 4x10x1.1 mm - Carbon Spring Steel Self Finish Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 97 Available Now
Nom. ID (d) 7.00 mm + 0.3 / + 0.7	Nom. OD (D) 13.00 mm - 0.3 / - 0.7	Nom. Height (H) 1.40 mm	Thickness (s) 0.20 mm	Info Suits OD of 624 Bearings (Equiv EPL002)
Material: Carbon Spring Steel Self Finish Type: 2 Wave Series Nominal Screw Size: M7, 9/32 Spring Rate: 38 N/mm Max Kg at Yeld Point: 2.1 Kg
Part Number: W0070-T-013-014-W2-C Spring Washers - 7x13x1.4 mm - Carbon Spring Steel Self Finish 200 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Nom. ID (d) 7.00 mm + 0.3 / + 0.7	Nom. OD (D) 13.00 mm - 0.3 / - 0.7	Nom. Height (H) 1.40 mm	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 624 Bearings (Equiv EPL002) Type: 2 Wave Series Nominal Screw Size: M7, 9/32 Spring Rate: 38 N/mm Max Kg at Yeld Point: 2.1 Kg
Part Number: W0070-T-013-014-W2-C Spring Washers - 7x13x1.4 mm - Carbon Spring Steel Self Finish 200 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
W0070-T-013-014-W2-C --- Spring Washers - 7x13x1.4 mm - Carbon Spring Steel Self Finish W0070-T-013-014-W2-C --- Spring Washers - 7x13x1.4 mm - Carbon Spring Steel Self Finish Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 200 Available Now
Nom. ID (d) 7.94 mm	Nom. OD (D) 15.24 mm	Nom. Height (H) 1.32 mm	Thickness (s) 0.36 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 5/16 Actual ID (Ref): 8.4 mm Max Kg at Yeld Point: 21.4 Kg
Part Number: W0079-T-016-013-W3-C (20 Pcs) Spring Washers - 7.94x15.24x1.32 mm - Carbon Spring Steel Self Finish 43 units (860 pcs) Available Immediately \| Further orders can be expected around Wed, Jul 16, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Per 20
Nom. ID (d) 7.94 mm	Nom. OD (D) 15.24 mm	Nom. Height (H) 1.32 mm	Thickness (s) 0.36 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 5/16 Actual ID (Ref): 8.4 mm Max Kg at Yeld Point: 21.4 Kg
Part Number: W0079-T-016-013-W3-C (20 Pcs) Spring Washers - 7.94x15.24x1.32 mm - Carbon Spring Steel Self Finish 43 units (860 pcs) Available Immediately \| Further orders can be expected around Wed, Jul 16, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Per 20 View the product page first if you are unsure.
W0079-T-016-013-W3-C (20 Pcs) --- Spring Washers - 7.94x15.24x1.32 mm - Carbon Spring Steel Self Finish W0079-T-016-013-W3-C (20 Pcs) --- Spring Washers - 7.94x15.24x1.32 mm - Carbon Spring Steel Self Finish Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per 43 Available Now
Nom. ID (d) 8.73 mm	Nom. OD (D) 12.70 mm	Nom. Height (H) 0.89 mm	Thickness (s) 0.18 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 11/32
Part Number: W0087-T-013-009-W3-C (500 Pcs) Spring Washers - 8.73x12.7x0.89 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $319.86 AUD Regular price Sale price $319.86 AUD Unit price per Per 500
Nom. ID (d) 8.73 mm	Nom. OD (D) 12.70 mm	Nom. Height (H) 0.89 mm	Thickness (s) 0.18 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 11/32
Part Number: W0087-T-013-009-W3-C (500 Pcs) Spring Washers - 8.73x12.7x0.89 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $319.86 AUD Regular price Sale price $319.86 AUD Unit price per Per 500 View the product page first if you are unsure.
W0087-T-013-009-W3-C (500 Pcs) --- Spring Washers - 8.73x12.7x0.89 mm - Carbon Spring Steel Self Finish W0087-T-013-009-W3-C (500 Pcs) --- Spring Washers - 8.73x12.7x0.89 mm - Carbon Spring Steel Self Finish Regular price $319.86 AUD Regular price Sale price $319.86 AUD Unit price per Out of stock! Backorder Now
Nom. ID (d) 10.00 mm + 0.3 / + 0.7	Nom. OD (D) 16.00 mm - 0.3 / - 0.7	Nom. Height (H) 1.20 mm	Thickness (s) 0.15 mm	Info Suits OD of 625, 634 Bearings (Equiv EPL004)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M10 Spring Rate: 38 N/mm Actual ID (Ref): 10.5 mm Max Kg at Yeld Point: 2.1 Kg
Part Number: W0100-T-016-012-W3-C Spring Washers - 10x16x1.2 mm - Carbon Spring Steel Self Finish 374 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Nom. ID (d) 10.00 mm + 0.3 / + 0.7	Nom. OD (D) 16.00 mm - 0.3 / - 0.7	Nom. Height (H) 1.20 mm	Thickness (s) 0.15 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 625, 634 Bearings (Equiv EPL004) Type: 3 Wave Series Nominal Screw Size: M10 Spring Rate: 38 N/mm Actual ID (Ref): 10.5 mm Max Kg at Yeld Point: 2.1 Kg
Part Number: W0100-T-016-012-W3-C Spring Washers - 10x16x1.2 mm - Carbon Spring Steel Self Finish 374 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
W0100-T-016-012-W3-C --- Spring Washers - 10x16x1.2 mm - Carbon Spring Steel Self Finish W0100-T-016-012-W3-C --- Spring Washers - 10x16x1.2 mm - Carbon Spring Steel Self Finish Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 374 Available Now
Nom. ID (d) 10.00 mm + 0.3 / + 0.7	Nom. OD (D) 16.00 mm - 0.3 / - 0.7	Nom. Height (H) 1.30 mm	Thickness (s) 0.15 mm	Info Suits OD of 625, 634 Bearings (Equiv EPL005)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M10 Spring Rate: 38 N/mm Max Kg at Yeld Point: 2.5 Kg
Part Number: W0100-T-016-013-W3-C (2 Pcs) Spring Washers - 10x16x1.3 mm - Carbon Spring Steel Self Finish 47 units (94 pcs) Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2
Nom. ID (d) 10.00 mm + 0.3 / + 0.7	Nom. OD (D) 16.00 mm - 0.3 / - 0.7	Nom. Height (H) 1.30 mm	Thickness (s) 0.15 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 625, 634 Bearings (Equiv EPL005) Type: 3 Wave Series Nominal Screw Size: M10 Spring Rate: 38 N/mm Max Kg at Yeld Point: 2.5 Kg
Part Number: W0100-T-016-013-W3-C (2 Pcs) Spring Washers - 10x16x1.3 mm - Carbon Spring Steel Self Finish 47 units (94 pcs) Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2 View the product page first if you are unsure.
W0100-T-016-013-W3-C (2 Pcs) --- Spring Washers - 10x16x1.3 mm - Carbon Spring Steel Self Finish W0100-T-016-013-W3-C (2 Pcs) --- Spring Washers - 10x16x1.3 mm - Carbon Spring Steel Self Finish Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 47 Available Now
Nom. ID (d) 12.00 mm + 0.7 / + 1.0	Nom. OD (D) 19.00 mm - 0.7 / - 1.0	Nom. Height (H) 1.50 mm	Thickness (s) 0.20 mm	Info Suits OD of 607, 626, 635 Bearings (Equiv EPL008)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M12 Spring Rate: 29 N/mm Max Kg at Yeld Point: 14.0 Kg
Part Number: W0120-T-019-015-W3-C (2 Pcs) Spring Washers - 12x19x1.5 mm - Carbon Spring Steel Self Finish 110 units (220 pcs) Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2
Nom. ID (d) 12.00 mm + 0.7 / + 1.0	Nom. OD (D) 19.00 mm - 0.7 / - 1.0	Nom. Height (H) 1.50 mm	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 607, 626, 635 Bearings (Equiv EPL008) Type: 3 Wave Series Nominal Screw Size: M12 Spring Rate: 29 N/mm Max Kg at Yeld Point: 14.0 Kg
Part Number: W0120-T-019-015-W3-C (2 Pcs) Spring Washers - 12x19x1.5 mm - Carbon Spring Steel Self Finish 110 units (220 pcs) Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2 View the product page first if you are unsure.
W0120-T-019-015-W3-C (2 Pcs) --- Spring Washers - 12x19x1.5 mm - Carbon Spring Steel Self Finish W0120-T-019-015-W3-C (2 Pcs) --- Spring Washers - 12x19x1.5 mm - Carbon Spring Steel Self Finish Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 110 Available Now
Nom. ID (d) 12.70 mm	Nom. OD (D) 19.05 mm	Nom. Height (H) 1.27 mm	Thickness (s) 0.23 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 1/2 Actual ID (Ref): 13.5 mm
Part Number: W0127-T-020-013-W3-C Spring Washers - 12.7x19.05x1.27 mm - Carbon Spring Steel Self Finish 1210 Available Immediately \| Further orders can be expected around Tue, Jun 24, 2025 Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Each
Nom. ID (d) 12.70 mm	Nom. OD (D) 19.05 mm	Nom. Height (H) 1.27 mm	Thickness (s) 0.23 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 1/2 Actual ID (Ref): 13.5 mm
Part Number: W0127-T-020-013-W3-C Spring Washers - 12.7x19.05x1.27 mm - Carbon Spring Steel Self Finish 1210 Available Immediately \| Further orders can be expected around Tue, Jun 24, 2025 Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per Each View the product page first if you are unsure.
W0127-T-020-013-W3-C --- Spring Washers - 12.7x19.05x1.27 mm - Carbon Spring Steel Self Finish W0127-T-020-013-W3-C --- Spring Washers - 12.7x19.05x1.27 mm - Carbon Spring Steel Self Finish Regular price $4.59 AUD Regular price Sale price $4.59 AUD Unit price per 1210 Available Now
Nom. ID (d) 14.00 mm + 0.7 / + 1.0	Nom. OD (D) 21.00 mm - 0.7 / - 1.0	Nom. Height (H) 1.80 mm	Thickness (s) 0.20 mm	Info Equiv EPL010
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M14 Spring Rate: 29 N/mm Max Kg at Yeld Point: 14.0 Kg
Part Number: W0140-T-021-018-W3-C (2 Pcs) Spring Washers - 14x21x1.8 mm - Carbon Spring Steel Self Finish 344 units (688 pcs) Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2
Nom. ID (d) 14.00 mm + 0.7 / + 1.0	Nom. OD (D) 21.00 mm - 0.7 / - 1.0	Nom. Height (H) 1.80 mm	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Equiv EPL010 Type: 3 Wave Series Nominal Screw Size: M14 Spring Rate: 29 N/mm Max Kg at Yeld Point: 14.0 Kg
Part Number: W0140-T-021-018-W3-C (2 Pcs) Spring Washers - 14x21x1.8 mm - Carbon Spring Steel Self Finish 344 units (688 pcs) Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2 View the product page first if you are unsure.
W0140-T-021-018-W3-C (2 Pcs) --- Spring Washers - 14x21x1.8 mm - Carbon Spring Steel Self Finish W0140-T-021-018-W3-C (2 Pcs) --- Spring Washers - 14x21x1.8 mm - Carbon Spring Steel Self Finish Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 344 Available Now
Nom. ID (d) 15.00 mm + 0.7 / + 1.0	Nom. OD (D) 22.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.10 mm	Thickness (s) 0.20 mm	Info Suits OD of 608 and 627 and E7 Bearings (Equiv EPL012)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M15 Spring Rate: 34 N/mm Max Kg at Yeld Point: 16.0 Kg
Part Number: W0150-T-022-021-W3-C Spring Washers - 15x22x2.1 mm - Carbon Spring Steel Self Finish 270 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Nom. ID (d) 15.00 mm + 0.7 / + 1.0	Nom. OD (D) 22.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.10 mm	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 608 and 627 and E7 Bearings (Equiv EPL012) Type: 3 Wave Series Nominal Screw Size: M15 Spring Rate: 34 N/mm Max Kg at Yeld Point: 16.0 Kg
Part Number: W0150-T-022-021-W3-C Spring Washers - 15x22x2.1 mm - Carbon Spring Steel Self Finish 270 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
W0150-T-022-021-W3-C --- Spring Washers - 15x22x2.1 mm - Carbon Spring Steel Self Finish W0150-T-022-021-W3-C --- Spring Washers - 15x22x2.1 mm - Carbon Spring Steel Self Finish Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 270 Available Now
Nom. ID (d) 15.88 mm	Nom. OD (D) 22.23 mm	Nom. Height (H) 1.52 mm	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 5/8
Part Number: W0159-T-023-015-W3-C (5 Pcs) Spring Washers - 15.88x22.23x1.52 mm - Carbon Spring Steel Self Finish 268 units (1340 pcs) Available Immediately \| Further orders can be expected around Tue, Jun 24, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Per 5
Nom. ID (d) 15.88 mm	Nom. OD (D) 22.23 mm	Nom. Height (H) 1.52 mm	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 5/8
Part Number: W0159-T-023-015-W3-C (5 Pcs) Spring Washers - 15.88x22.23x1.52 mm - Carbon Spring Steel Self Finish 268 units (1340 pcs) Available Immediately \| Further orders can be expected around Tue, Jun 24, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Per 5 View the product page first if you are unsure.
W0159-T-023-015-W3-C (5 Pcs) --- Spring Washers - 15.88x22.23x1.52 mm - Carbon Spring Steel Self Finish W0159-T-023-015-W3-C (5 Pcs) --- Spring Washers - 15.88x22.23x1.52 mm - Carbon Spring Steel Self Finish Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per 268 Available Now
Nom. ID (d) 16.00 mm + 0.7 / + 1.0	Nom. OD (D) 24.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.20 mm	Thickness (s) 0.20 mm	Info Suits OD of 609 and E8 Bearing (Equiv EPL013)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M16 (16x2mm) Spring Rate: 23 N/mm Max Kg at Yeld Point: 16.0 Kg
Part Number: W0160-T-024-022-W3-C (2 Pcs) Spring Washers - 16x24x2.2 mm - Carbon Spring Steel Self Finish 12 units (24 pcs) Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2
Nom. ID (d) 16.00 mm + 0.7 / + 1.0	Nom. OD (D) 24.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.20 mm	Thickness (s) 0.20 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 609 and E8 Bearing (Equiv EPL013) Type: 3 Wave Series Nominal Screw Size: M16 (16x2mm) Spring Rate: 23 N/mm Max Kg at Yeld Point: 16.0 Kg
Part Number: W0160-T-024-022-W3-C (2 Pcs) Spring Washers - 16x24x2.2 mm - Carbon Spring Steel Self Finish 12 units (24 pcs) Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 2 View the product page first if you are unsure.
W0160-T-024-022-W3-C (2 Pcs) --- Spring Washers - 16x24x2.2 mm - Carbon Spring Steel Self Finish W0160-T-024-022-W3-C (2 Pcs) --- Spring Washers - 16x24x2.2 mm - Carbon Spring Steel Self Finish Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 12 Available Now
Nom. ID (d) 16.00 mm	Nom. OD (D) 22.00 mm - 0.4 / - 1.0	Nom. Height (H) 2.80 mm	Thickness (s) 0.30 mm

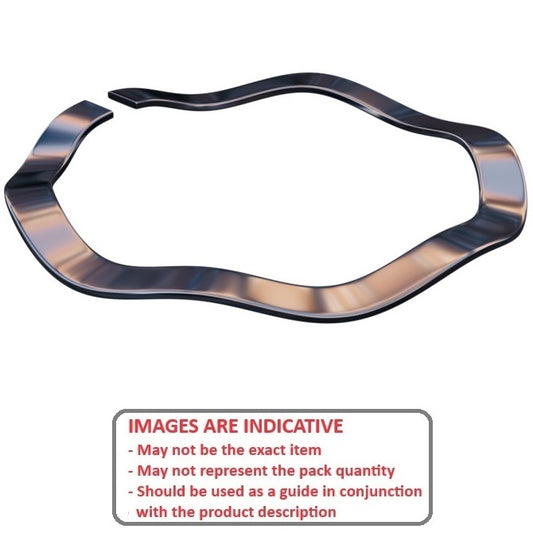

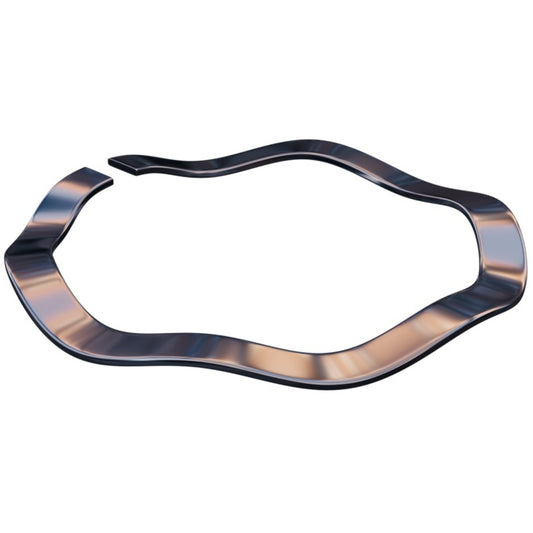

Material: Carbon Spring Steel Self Finish Type: 3 Wave Series - With Split Nominal Screw Size: M16 (16x2mm)
Part Number: W0160-T-022-028-W3S-C Spring Washers - 16x22x2.8 mm - Carbon Spring Steel Self Finish 50 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each
Nom. ID (d) 16.00 mm	Nom. OD (D) 22.00 mm - 0.4 / - 1.0	Nom. Height (H) 2.80 mm	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series - With Split Nominal Screw Size: M16 (16x2mm)
Part Number: W0160-T-022-028-W3S-C Spring Washers - 16x22x2.8 mm - Carbon Spring Steel Self Finish 50 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per Each View the product page first if you are unsure.
W0160-T-022-028-W3S-C --- Spring Washers - 16x22x2.8 mm - Carbon Spring Steel Self Finish Sale W0160-T-022-028-W3S-C --- Spring Washers - 16x22x2.8 mm - Carbon Spring Steel Self Finish Regular price $30.23 AUD Regular price ~~$36.27 AUD~~ Sale price $30.23 AUD Unit price per 50 Available Now Sale
Nom. ID (d) 17.46 mm	Nom. OD (D) 23.81 mm	Nom. Height (H) 2.30 mm	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 11/16
Part Number: W0175-T-024-023-W3-C Spring Washers - 17.46x23.81x2.3 mm - Carbon Spring Steel Self Finish 74 Available Immediately \| Further orders can be expected around Tue, Jun 24, 2025 Regular price $1.23 AUD Regular price Sale price $1.23 AUD Unit price per Each
Nom. ID (d) 17.46 mm	Nom. OD (D) 23.81 mm	Nom. Height (H) 2.30 mm	Thickness (s) 0.25 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 11/16
Part Number: W0175-T-024-023-W3-C Spring Washers - 17.46x23.81x2.3 mm - Carbon Spring Steel Self Finish 74 Available Immediately \| Further orders can be expected around Tue, Jun 24, 2025 Regular price $1.23 AUD Regular price Sale price $1.23 AUD Unit price per Each View the product page first if you are unsure.
W0175-T-024-023-W3-C --- Spring Washers - 17.46x23.81x2.3 mm - Carbon Spring Steel Self Finish W0175-T-024-023-W3-C --- Spring Washers - 17.46x23.81x2.3 mm - Carbon Spring Steel Self Finish Regular price $1.23 AUD Regular price Sale price $1.23 AUD Unit price per 74 Available Now
Nom. ID (d) 18.00 mm + 0.7 / + 1.0	Nom. OD (D) 26.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.00 mm	Thickness (s) 0.30 mm	Info Suits OD of 629 and 6000 Bearings (Equiv EPL015)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M18 Spring Rate: 26 N/mm Max Kg at Yeld Point: 18.0 Kg
Part Number: W0180-T-026-020-W3-C Spring Washers - 18x26x2 mm - Carbon Spring Steel Self Finish 112 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Nom. ID (d) 18.00 mm + 0.7 / + 1.0	Nom. OD (D) 26.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.00 mm	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 629 and 6000 Bearings (Equiv EPL015) Type: 3 Wave Series Nominal Screw Size: M18 Spring Rate: 26 N/mm Max Kg at Yeld Point: 18.0 Kg
Part Number: W0180-T-026-020-W3-C Spring Washers - 18x26x2 mm - Carbon Spring Steel Self Finish 112 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
W0180-T-026-020-W3-C --- Spring Washers - 18x26x2 mm - Carbon Spring Steel Self Finish W0180-T-026-020-W3-C --- Spring Washers - 18x26x2 mm - Carbon Spring Steel Self Finish Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 112 Available Now
Nom. ID (d) 18.00 mm + 0.7 / + 1.0	Nom. OD (D) 26.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.10 mm	Thickness (s) 0.30 mm	Info Suits OD of 629 and 6000 Bearings (Equiv EPL016)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M18 Spring Rate: 29 N/mm Max Kg at Yeld Point: 21.0 Kg
Part Number: W0180-T-026-021-W3-C Spring Washers - 18x26x2.1 mm - Carbon Spring Steel Self Finish 178 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Nom. ID (d) 18.00 mm + 0.7 / + 1.0	Nom. OD (D) 26.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.10 mm	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 629 and 6000 Bearings (Equiv EPL016) Type: 3 Wave Series Nominal Screw Size: M18 Spring Rate: 29 N/mm Max Kg at Yeld Point: 21.0 Kg
Part Number: W0180-T-026-021-W3-C Spring Washers - 18x26x2.1 mm - Carbon Spring Steel Self Finish 178 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
W0180-T-026-021-W3-C --- Spring Washers - 18x26x2.1 mm - Carbon Spring Steel Self Finish W0180-T-026-021-W3-C --- Spring Washers - 18x26x2.1 mm - Carbon Spring Steel Self Finish Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 178 Available Now
Nom. ID (d) 19.05 mm	Nom. OD (D) 26.99 mm	Nom. Height (H) 1.80 mm	Thickness (s) 0.28 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 3/4
Part Number: W0191-T-027-018-W3-C Spring Washers - 19.05x26.99x1.8 mm - Carbon Spring Steel Self Finish 9 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.90 AUD Regular price ~~$7.41 AUD~~ Sale price $3.90 AUD Unit price per Each
Nom. ID (d) 19.05 mm	Nom. OD (D) 26.99 mm	Nom. Height (H) 1.80 mm	Thickness (s) 0.28 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 3/4
Part Number: W0191-T-027-018-W3-C Spring Washers - 19.05x26.99x1.8 mm - Carbon Spring Steel Self Finish 9 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.90 AUD Regular price ~~$7.41 AUD~~ Sale price $3.90 AUD Unit price per Each
W0191-T-027-018-W3-C --- Spring Washers - 19.05x26.99x1.8 mm - Carbon Spring Steel Self Finish Sale W0191-T-027-018-W3-C --- Spring Washers - 19.05x26.99x1.8 mm - Carbon Spring Steel Self Finish Regular price $3.90 AUD Regular price ~~$7.41 AUD~~ Sale price $3.90 AUD Unit price per 9 Available Now Sale
Nom. ID (d) 20.00 mm + 0.7 / + 1.0	Nom. OD (D) 28.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.20 mm	Thickness (s) 0.30 mm	Info Suits OD of 6001 Bearings (Equiv EPL017)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M20 Spring Rate: 36 N/mm Max Kg at Yeld Point: 18.0 Kg
Part Number: W0200-T-028-022-W3-C Spring Washers - 20x28x2.2 mm - Carbon Spring Steel Self Finish 142 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Nom. ID (d) 20.00 mm + 0.7 / + 1.0	Nom. OD (D) 28.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.20 mm	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6001 Bearings (Equiv EPL017) Type: 3 Wave Series Nominal Screw Size: M20 Spring Rate: 36 N/mm Max Kg at Yeld Point: 18.0 Kg
Part Number: W0200-T-028-022-W3-C Spring Washers - 20x28x2.2 mm - Carbon Spring Steel Self Finish 142 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
W0200-T-028-022-W3-C --- Spring Washers - 20x28x2.2 mm - Carbon Spring Steel Self Finish W0200-T-028-022-W3-C --- Spring Washers - 20x28x2.2 mm - Carbon Spring Steel Self Finish Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 142 Available Now
Nom. ID (d) 20.00 mm + 0.7 / + 1.0	Nom. OD (D) 28.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.50 mm	Thickness (s) 0.30 mm	Info Suits OD of 6001 Bearings (Equiv EPL019)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M20 Spring Rate: 36 N/mm Max Kg at Yeld Point: 25.0 Kg
Part Number: W0200-T-028-025-W3-C Spring Washers - 20x28x2.5 mm - Carbon Spring Steel Self Finish 75 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Nom. ID (d) 20.00 mm + 0.7 / + 1.0	Nom. OD (D) 28.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.50 mm	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6001 Bearings (Equiv EPL019) Type: 3 Wave Series Nominal Screw Size: M20 Spring Rate: 36 N/mm Max Kg at Yeld Point: 25.0 Kg
Part Number: W0200-T-028-025-W3-C Spring Washers - 20x28x2.5 mm - Carbon Spring Steel Self Finish 75 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
W0200-T-028-025-W3-C --- Spring Washers - 20x28x2.5 mm - Carbon Spring Steel Self Finish W0200-T-028-025-W3-C --- Spring Washers - 20x28x2.5 mm - Carbon Spring Steel Self Finish Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 75 Available Now
Nom. ID (d) 20.64 mm	Nom. OD (D) 28.58 mm	Nom. Height (H) 2.50 mm	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 13/16
Part Number: W0206-T-029-025-W3-C (250 Pcs) Spring Washers - 20.64x28.58x2.5 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $777.23 AUD Regular price Sale price $777.23 AUD Unit price per Per 250
Nom. ID (d) 20.64 mm	Nom. OD (D) 28.58 mm	Nom. Height (H) 2.50 mm	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: 13/16
Part Number: W0206-T-029-025-W3-C (250 Pcs) Spring Washers - 20.64x28.58x2.5 mm - Carbon Spring Steel Self Finish Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $777.23 AUD Regular price Sale price $777.23 AUD Unit price per Per 250 View the product page first if you are unsure.
W0206-T-029-025-W3-C (250 Pcs) --- Spring Washers - 20.64x28.58x2.5 mm - Carbon Spring Steel Self Finish W0206-T-029-025-W3-C (250 Pcs) --- Spring Washers - 20.64x28.58x2.5 mm - Carbon Spring Steel Self Finish Regular price $777.23 AUD Regular price Sale price $777.23 AUD Unit price per Out of stock! Backorder Now
Nom. ID (d) 22.00 mm + 0.7 / + 1.0	Nom. OD (D) 30.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.50 mm	Thickness (s) 0.30 mm	Info Suits OD of 6200 Bearings (Equiv EPL020)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M22 Spring Rate: 22 N/mm Max Kg at Yeld Point: 21.0 Kg
Part Number: W0220-T-030-025-W3-C Spring Washers - 22x30x2.5 mm - Carbon Spring Steel Self Finish 104 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Nom. ID (d) 22.00 mm + 0.7 / + 1.0	Nom. OD (D) 30.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.50 mm	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6200 Bearings (Equiv EPL020) Type: 3 Wave Series Nominal Screw Size: M22 Spring Rate: 22 N/mm Max Kg at Yeld Point: 21.0 Kg
Part Number: W0220-T-030-025-W3-C Spring Washers - 22x30x2.5 mm - Carbon Spring Steel Self Finish 104 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
W0220-T-030-025-W3-C --- Spring Washers - 22x30x2.5 mm - Carbon Spring Steel Self Finish W0220-T-030-025-W3-C --- Spring Washers - 22x30x2.5 mm - Carbon Spring Steel Self Finish Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 104 Available Now
Nom. ID (d) 24.00 mm + 0.3 / + 0.7	Nom. OD (D) 32.00 mm - 0.3 / - 0.7	Nom. Height (H) 3.50 mm	Thickness (s) 0.30 mm	Info Suits OD of 6002, 6201 bearing (Equiv EPL025)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M24 Actual ID (Ref): 25.5 mm Max Kg at Yeld Point: 7.4 Kg
Part Number: W0240-T-032-035-W3-C Spring Washers - 24x32x3.5 mm - Carbon Spring Steel Self Finish 87 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Nom. ID (d) 24.00 mm + 0.3 / + 0.7	Nom. OD (D) 32.00 mm - 0.3 / - 0.7	Nom. Height (H) 3.50 mm	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6002, 6201 bearing (Equiv EPL025) Type: 3 Wave Series Nominal Screw Size: M24 Actual ID (Ref): 25.5 mm Max Kg at Yeld Point: 7.4 Kg
Part Number: W0240-T-032-035-W3-C Spring Washers - 24x32x3.5 mm - Carbon Spring Steel Self Finish 87 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
W0240-T-032-035-W3-C --- Spring Washers - 24x32x3.5 mm - Carbon Spring Steel Self Finish W0240-T-032-035-W3-C --- Spring Washers - 24x32x3.5 mm - Carbon Spring Steel Self Finish Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 87 Available Now
Nom. ID (d) 24.00 mm + 0.7 / + 1.0	Nom. OD (D) 32.00 mm - 0.7 / - 1.0	Nom. Height (H) 4.00 mm	Thickness (s) 0.35 mm	Info Suits OD of 6002 and 6201 Bearings
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M24 Spring Rate: 27 N/mm Max Kg at Yeld Point: 32.0 Kg
Part Number: W0240-T-032-040-W3-C (2 Pcs) Spring Washers - 24x32x4 mm - Carbon Spring Steel Self Finish 664 units (1328 pcs) Available Immediately \| Further orders can be expected around Tue, Jun 24, 2025 Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per Per 2
Nom. ID (d) 24.00 mm + 0.7 / + 1.0	Nom. OD (D) 32.00 mm - 0.7 / - 1.0	Nom. Height (H) 4.00 mm	Thickness (s) 0.35 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6002 and 6201 Bearings Type: 3 Wave Series Nominal Screw Size: M24 Spring Rate: 27 N/mm Max Kg at Yeld Point: 32.0 Kg
Part Number: W0240-T-032-040-W3-C (2 Pcs) Spring Washers - 24x32x4 mm - Carbon Spring Steel Self Finish 664 units (1328 pcs) Available Immediately \| Further orders can be expected around Tue, Jun 24, 2025 Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per Per 2 View the product page first if you are unsure.
W0240-T-032-040-W3-C (2 Pcs) --- Spring Washers - 24x32x4 mm - Carbon Spring Steel Self Finish W0240-T-032-040-W3-C (2 Pcs) --- Spring Washers - 24x32x4 mm - Carbon Spring Steel Self Finish Regular price $1.68 AUD Regular price Sale price $1.68 AUD Unit price per 664 Available Now
Nom. ID (d) 24.00 mm + 0.7 / + 1.0	Nom. OD (D) 32.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.80 mm	Thickness (s) 0.30 mm	Info Suits OD of 6002 and 6201 Bearings (Equiv EPL022)
Material: Carbon Spring Steel Self Finish Type: 3 Wave Series Nominal Screw Size: M24 Spring Rate: 27 N/mm Max Kg at Yeld Point: 22.0 Kg
Part Number: W0240-T-032-028-W3-C Spring Washers - 24x32x2.8 mm - Carbon Spring Steel Self Finish 197 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each
Nom. ID (d) 24.00 mm + 0.7 / + 1.0	Nom. OD (D) 32.00 mm - 0.7 / - 1.0	Nom. Height (H) 2.80 mm	Thickness (s) 0.30 mm
Material: Carbon Spring Steel Self Finish Info: Suits OD of 6002 and 6201 Bearings (Equiv EPL022) Type: 3 Wave Series Nominal Screw Size: M24 Spring Rate: 27 N/mm Max Kg at Yeld Point: 22.0 Kg
Part Number: W0240-T-032-028-W3-C Spring Washers - 24x32x2.8 mm - Carbon Spring Steel Self Finish 197 Available Immediately \| Further orders can be expected around Wed, Aug 06, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each View the product page first if you are unsure.
W0240-T-032-028-W3-C --- Spring Washers - 24x32x2.8 mm - Carbon Spring Steel Self Finish W0240-T-032-028-W3-C --- Spring Washers - 24x32x2.8 mm - Carbon Spring Steel Self Finish Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 197 Available Now
