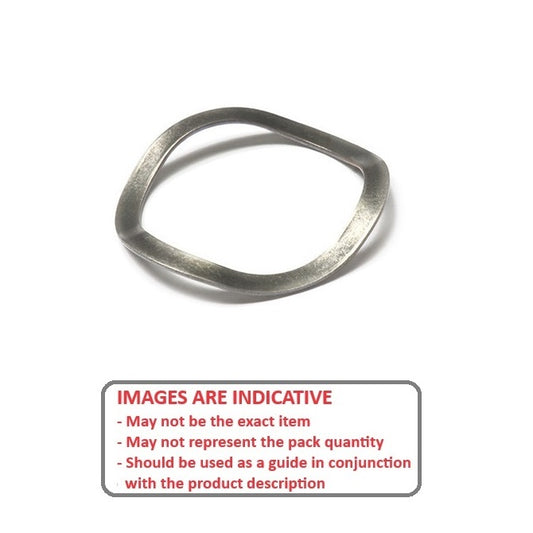

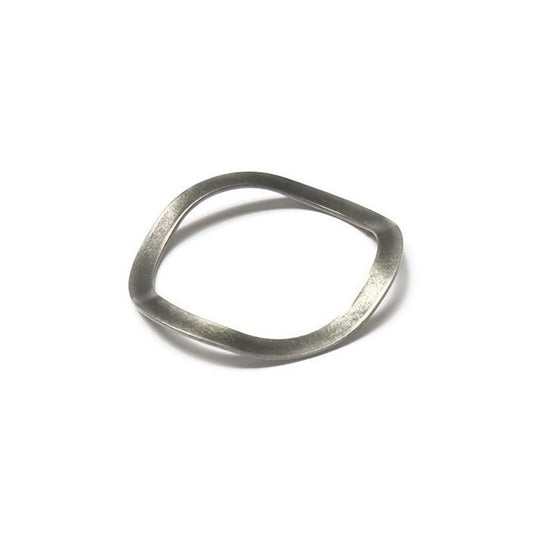

Washers - Spring - 3 Wave Type - 302 Stainless Steel

9 Products in this selection
  • Wave Washers - also called crinkle wave.
Additional resources:
Screws
A more concise listing may be found on the Smallparts store at Washers - Spring - 3 Wave Type - 302 Stainless Steel. Smallparts promote the most popular MBA products.
Nom. ID (d) Nom. OD (D) Nom. Height (H) Thickness (s) Info Indicative
Nom. ID (d)
3.00
mm
Nom. OD (D)
6.35
mm
Nom. Height (H)
0.53
mm
Thickness (s)
0.15
mm
1044634 | W0030-T-007-005-W3-S2 (10 Pcs) --- Spring Washers - 3x6.35x0.53 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: M3 (3x0.5mm) mm    Actual ID (Ref): 3.2 mm
Part Number: W0030-T-007-005-W3-S2 (10 Pcs) Spring Washers - 3x6.35x0.53 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
8 units (80 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Nom. ID (d) Nom. OD (D) Nom. Height (H) Thickness (s) Indicative
Nom. ID (d)
3.00
mm
Nom. OD (D)
6.35
mm
Nom. Height (H)
0.53
mm
Thickness (s)
0.15
mm
1044634 | W0030-T-007-005-W3-S2 (10 Pcs) --- Spring Washers - 3x6.35x0.53 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: M3 (3x0.5mm) mm    Actual ID (Ref): 3.2 mm
Part Number: W0030-T-007-005-W3-S2 (10 Pcs) Spring Washers - 3x6.35x0.53 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
8 units (80 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Nom. ID (d)
4.17
mm
Nom. OD (D)
8.64
mm
Nom. Height (H)
0.76
mm
Thickness (s)
0.25
mm
1057231 | W0042-T-009-008-W3-S2 (40 Pcs) --- Spring Washers - 4.17x8.64x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: 8-32, 8-36 mm    Actual ID (Ref): 4.5 mm
Part Number: W0042-T-009-008-W3-S2 (40 Pcs) Spring Washers - 4.17x8.64x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
1 pack (40 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 40
Nom. ID (d)
4.17
mm
Nom. OD (D)
8.64
mm
Nom. Height (H)
0.76
mm
Thickness (s)
0.25
mm
1057231 | W0042-T-009-008-W3-S2 (40 Pcs) --- Spring Washers - 4.17x8.64x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: 8-32, 8-36 mm    Actual ID (Ref): 4.5 mm
Part Number: W0042-T-009-008-W3-S2 (40 Pcs) Spring Washers - 4.17x8.64x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
1 pack (40 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 40
Nom. ID (d)
4.76
mm
Nom. OD (D)
6.35
mm
Nom. Height (H)
0.76
mm
Thickness (s)
0.15
mm
Info
Made In USA
1058005 | W0048-T-007-008-W3-S2 --- Spring Washers - 4.76x6.35x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: 10-24, 10-32, 3/16 mm
Part Number: W0048-T-007-008-W3-S2 Spring Washers - 4.76x6.35x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
340 Available Immediately | Further orders can be expected around Tue, Jun 24, 2025
$4.59 AUD
$4.59 AUD
Each
Nom. ID (d)
4.76
mm
Nom. OD (D)
6.35
mm
Nom. Height (H)
0.76
mm
Thickness (s)
0.15
mm
1058005 | W0048-T-007-008-W3-S2 --- Spring Washers - 4.76x6.35x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Info: Made In USA    Type: 3 Wave Series    Nominal Screw Size: 10-24, 10-32, 3/16 mm
Part Number: W0048-T-007-008-W3-S2 Spring Washers - 4.76x6.35x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
340 Available Immediately | Further orders can be expected around Tue, Jun 24, 2025
$4.59 AUD
$4.59 AUD
Each
View the product page first if you are unsure.
Nom. ID (d)
6.35
mm
Nom. OD (D)
9.32
mm
Nom. Height (H)
0.76
mm
Thickness (s)
0.15
mm
Info
Made In USA
1070728 | W0064-T-010-008-W3-S2 (20 Pcs) --- Spring Washers - 6.35x9.32x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: 1/4 mm    Actual ID (Ref): 6.7 mm
Part Number: W0064-T-010-008-W3-S2 (20 Pcs) Spring Washers - 6.35x9.32x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
39 units (780 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$17.59 AUD
$37.85 AUD $17.59 AUD
Per 20
Nom. ID (d)
6.35
mm
Nom. OD (D)
9.32
mm
Nom. Height (H)
0.76
mm
Thickness (s)
0.15
mm
1070728 | W0064-T-010-008-W3-S2 (20 Pcs) --- Spring Washers - 6.35x9.32x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Info: Made In USA    Type: 3 Wave Series    Nominal Screw Size: 1/4 mm    Actual ID (Ref): 6.7 mm
Part Number: W0064-T-010-008-W3-S2 (20 Pcs) Spring Washers - 6.35x9.32x0.76 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
39 units (780 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$17.59 AUD
$37.85 AUD $17.59 AUD
Per 20
Nom. ID (d)
8.73
mm
Nom. OD (D)
12.70
mm
Nom. Height (H)
0.89
mm
Thickness (s)
0.18
mm
Info
Made In USA
1083380 | W0087-T-013-009-W3-S2 --- Spring Washers - 8.73x12.7x0.89 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: 11/32 mm
Part Number: W0087-T-013-009-W3-S2 Spring Washers - 8.73x12.7x0.89 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
38 Available Immediately | Further orders can be expected around Tue, Jun 24, 2025
$1.14 AUD
$1.14 AUD
Each
Nom. ID (d)
8.73
mm
Nom. OD (D)
12.70
mm
Nom. Height (H)
0.89
mm
Thickness (s)
0.18
mm
1083380 | W0087-T-013-009-W3-S2 --- Spring Washers - 8.73x12.7x0.89 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Info: Made In USA    Type: 3 Wave Series    Nominal Screw Size: 11/32 mm
Part Number: W0087-T-013-009-W3-S2 Spring Washers - 8.73x12.7x0.89 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
38 Available Immediately | Further orders can be expected around Tue, Jun 24, 2025
$1.14 AUD
$1.14 AUD
Each
View the product page first if you are unsure.
Nom. ID (d)
10.00
mm
+ 0.50 / + 1.20
Nom. OD (D)
16.00
mm
- 0.10 / - 0.30
Nom. Height (H)
1.02
mm
Thickness (s)
0.20
mm
Info
Suits OD of 625, 634 Bearings
1090604 | W0100-T-016-010-W3-S2 (2 Pcs) --- Spring Washers - 10x16x1.02 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: M10 mm    Actual ID (Ref): 11.2 mm
Part Number: W0100-T-016-010-W3-S2 (2 Pcs) Spring Washers - 10x16x1.02 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
328 units (656 pcs) Available Immediately | Further orders can be expected around Tue, Jun 24, 2025
$7.68 AUD
$7.68 AUD
Per 2
Nom. ID (d)
10.00
mm
+ 0.50 / + 1.20
Nom. OD (D)
16.00
mm
- 0.10 / - 0.30
Nom. Height (H)
1.02
mm
Thickness (s)
0.20
mm
1090604 | W0100-T-016-010-W3-S2 (2 Pcs) --- Spring Washers - 10x16x1.02 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Info: Suits OD of 625, 634 Bearings    Type: 3 Wave Series    Nominal Screw Size: M10 mm    Actual ID (Ref): 11.2 mm
Part Number: W0100-T-016-010-W3-S2 (2 Pcs) Spring Washers - 10x16x1.02 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
328 units (656 pcs) Available Immediately | Further orders can be expected around Tue, Jun 24, 2025
$7.68 AUD
$7.68 AUD
Per 2
View the product page first if you are unsure.
Nom. ID (d)
12.70
mm
+ 0.50 / + 1.20
Nom. OD (D)
19.00
mm
- 0.10 / - 0.30
Nom. Height (H)
1.27
mm
Thickness (s)
0.23
mm
1101249 | W0127-T-020-013-W3-S2 (18 Pcs) --- Spring Washers - 12.7x19x1.27 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: 1/2 mm    Actual ID (Ref): 13.5 mm
Part Number: W0127-T-020-013-W3-S2 (18 Pcs) Spring Washers - 12.7x19x1.27 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
1 pack (18 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Per 18
Nom. ID (d)
12.70
mm
+ 0.50 / + 1.20
Nom. OD (D)
19.00
mm
- 0.10 / - 0.30
Nom. Height (H)
1.27
mm
Thickness (s)
0.23
mm
1101249 | W0127-T-020-013-W3-S2 (18 Pcs) --- Spring Washers - 12.7x19x1.27 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: 1/2 mm    Actual ID (Ref): 13.5 mm
Part Number: W0127-T-020-013-W3-S2 (18 Pcs) Spring Washers - 12.7x19x1.27 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
1 pack (18 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$9.00 AUD
$17.10 AUD $9.00 AUD
Per 18
Nom. ID (d)
15.88
mm
Nom. OD (D)
22.23
mm
Nom. Height (H)
1.52
mm
Thickness (s)
0.25
mm
Info
Made In USA
1111434 | W0159-T-023-015-W3-S2 (10 Pcs) --- Spring Washers - 15.88x22.23x1.52 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: 5/8 mm
Part Number: W0159-T-023-015-W3-S2 (10 Pcs) Spring Washers - 15.88x22.23x1.52 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
30 units (300 pcs) Available Immediately | Further orders can be expected around Sat, May 31, 2025
$24.23 AUD
$24.23 AUD
Per 10
Nom. ID (d)
15.88
mm
Nom. OD (D)
22.23
mm
Nom. Height (H)
1.52
mm
Thickness (s)
0.25
mm
1111434 | W0159-T-023-015-W3-S2 (10 Pcs) --- Spring Washers - 15.88x22.23x1.52 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Info: Made In USA    Type: 3 Wave Series    Nominal Screw Size: 5/8 mm
Part Number: W0159-T-023-015-W3-S2 (10 Pcs) Spring Washers - 15.88x22.23x1.52 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
30 units (300 pcs) Available Immediately | Further orders can be expected around Sat, May 31, 2025
$24.23 AUD
$24.23 AUD
Per 10
View the product page first if you are unsure.
Nom. ID (d)
22.23
mm
Nom. OD (D)
30.16
mm
Nom. Height (H)
2.50
mm
Thickness (s)
0.33
mm
Info
Made In USA
1127882 | W0222-T-031-025-W3-S2 --- Spring Washers - 22.23x30.16x2.5 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Type: 3 Wave Series    Nominal Screw Size: 7/8 mm
Part Number: W0222-T-031-025-W3-S2 Spring Washers - 22.23x30.16x2.5 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
77 Available Immediately | Further orders can be expected around Tue, Jun 24, 2025
$3.23 AUD
$3.23 AUD
Each
Nom. ID (d)
22.23
mm
Nom. OD (D)
30.16
mm
Nom. Height (H)
2.50
mm
Thickness (s)
0.33
mm
1127882 | W0222-T-031-025-W3-S2 --- Spring Washers - 22.23x30.16x2.5 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Info: Made In USA    Type: 3 Wave Series    Nominal Screw Size: 7/8 mm
Part Number: W0222-T-031-025-W3-S2 Spring Washers - 22.23x30.16x2.5 mm - Stainless Steel 302/304 (Similar to A2, 18-8)
77 Available Immediately | Further orders can be expected around Tue, Jun 24, 2025
$3.23 AUD
$3.23 AUD
Each
View the product page first if you are unsure.
