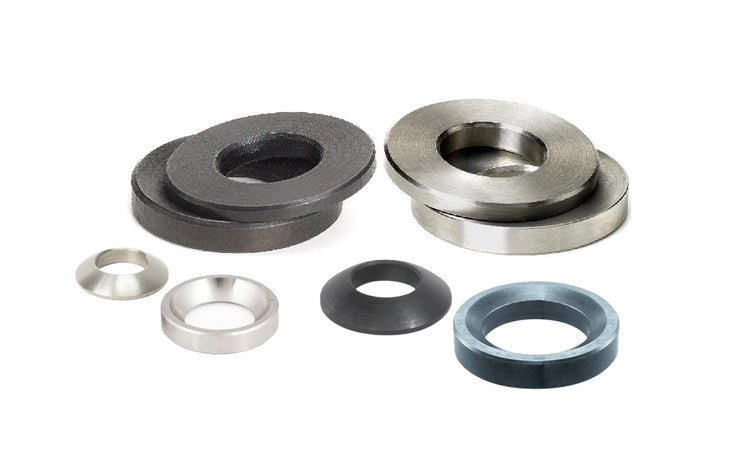

Collection: Washers - Self Aligning

Washers (With Images)

Self Aligning

32 Products in this selection

This is a combined category of Self Aligning Washers.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Washers - Self Aligning

Additional resources:
Screws

A more concise listing may be found on the Smallparts store at Washers - Self Aligning. Smallparts promote the most popular MBA products.

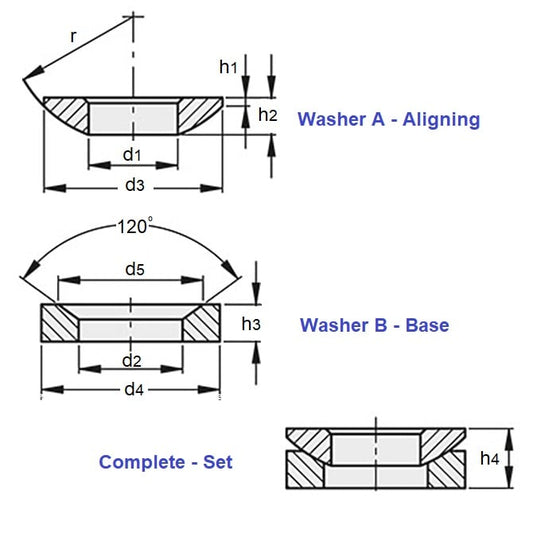

Suits Shaft or Bolt Size	Bore Size (d1 or d2)	OD (d3)	Thickness (h2 or h3)	Overall Thickness (h4)	Radius (r)	Indicative Image
Suits Shaft or Bolt Size 6.35 mm _{(0.25 in.)}	Bore Size (d1 or d2) 7.137 mm +/- 0.38 _{(0.281 in.)}	OD (d3) 15.88 mm + /- 0.38 _{(0.625 in.)}	Thickness (h2 or h3) 4.750 mm +/- 0.38

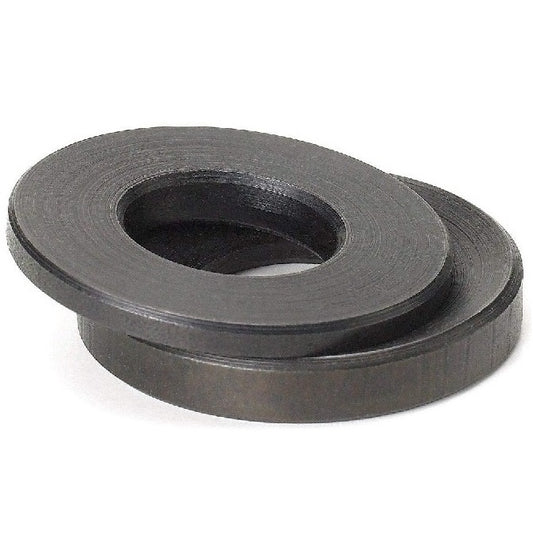

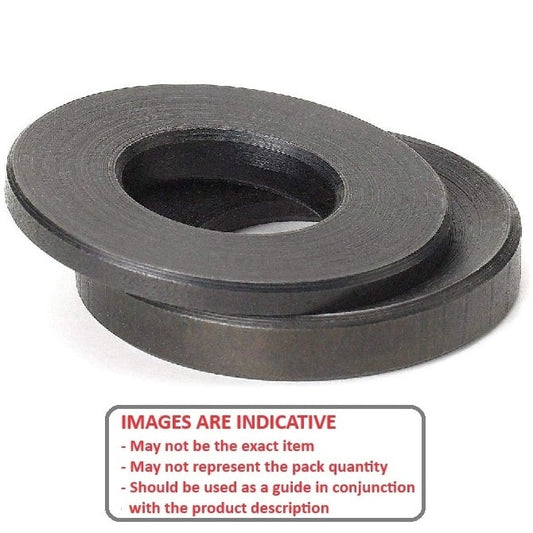

Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0064-ALN-C-SET Self Aligning Washers - 6.35x7.137x15.88 mm - Carbon Steel Hardened 5 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Each
Suits Shaft or Bolt Size	Bore Size (d1 or d2)	OD (d3)	Thickness (h2 or h3)	Indicative Image
Suits Shaft or Bolt Size 6.35 mm _{(0.25 in.)}	Bore Size (d1 or d2) 7.137 mm +/- 0.38 _{(0.281 in.)}	OD (d3) 15.88 mm + /- 0.38 _{(0.625 in.)}	Thickness (h2 or h3) 4.750 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0064-ALN-C-SET Self Aligning Washers - 6.35x7.137x15.88 mm - Carbon Steel Hardened 5 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Each View the product page first if you are unsure.
W0064-ALN-C-SET --- Self Aligning Washers - 6.35x7.137x15.88 mm - Carbon Steel Hardened Sale W0064-ALN-C-SET --- Self Aligning Washers - 6.35x7.137x15.88 mm - Carbon Steel Hardened Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per 5 Available Now Sale
Suits Shaft or Bolt Size 6.35 mm _{(0.25 in.)}	Bore Size (d1 or d2) 7.137 mm +/- 0.38 _{(0.281 in.)}	OD (d3) 15.88 mm + /- 0.38 _{(0.625 in.)}	Thickness (h2 or h3) 4.750 mm +/- 0.38

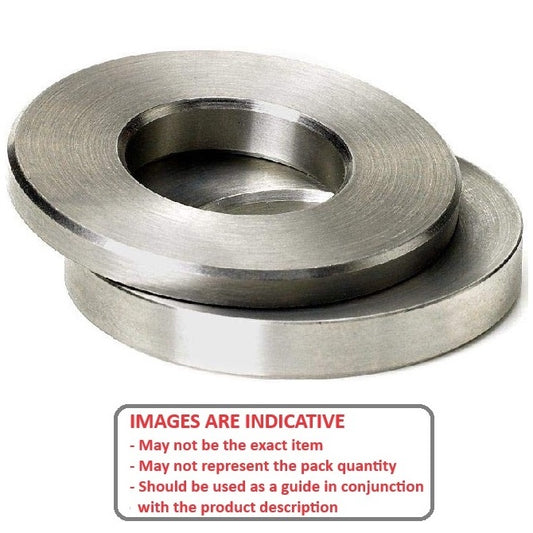

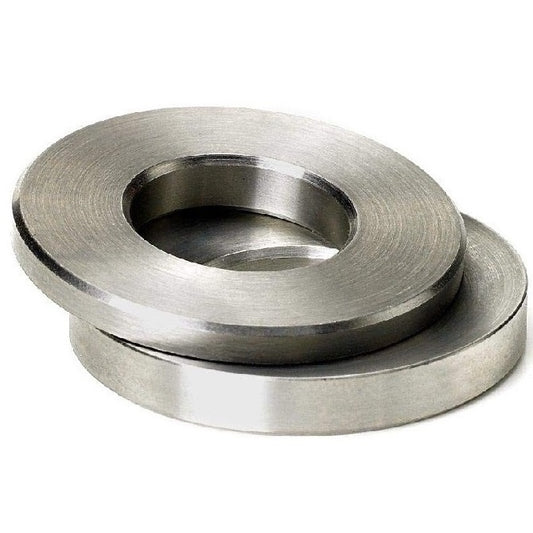

Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0064-ALN-SS-SET Self Aligning Washers - 6.35x7.137x15.88 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Each
Suits Shaft or Bolt Size 6.35 mm _{(0.25 in.)}	Bore Size (d1 or d2) 7.137 mm +/- 0.38 _{(0.281 in.)}	OD (d3) 15.88 mm + /- 0.38 _{(0.625 in.)}	Thickness (h2 or h3) 4.750 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0064-ALN-SS-SET Self Aligning Washers - 6.35x7.137x15.88 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Each View the product page first if you are unsure.
W0064-ALN-SS-SET --- Self Aligning Washers - 6.35x7.137x15.88 mm - Stainless Steel W0064-ALN-SS-SET --- Self Aligning Washers - 6.35x7.137x15.88 mm - Stainless Steel Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 7.94 mm _{(0.313 in.)}	Bore Size (d1 or d2) 8.712 mm +/- 0.38 _{(0.343 in.)}	OD (d3) 19.05 mm + /- 0.38 _{(0.75 in.)}	Thickness (h2 or h3) 6.350 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0079-ALN-C-SET Self Aligning Washers - 7.94x8.712x19.05 mm - Carbon Steel Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Each
Suits Shaft or Bolt Size 7.94 mm _{(0.313 in.)}	Bore Size (d1 or d2) 8.712 mm +/- 0.38 _{(0.343 in.)}	OD (d3) 19.05 mm + /- 0.38 _{(0.75 in.)}	Thickness (h2 or h3) 6.350 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0079-ALN-C-SET Self Aligning Washers - 7.94x8.712x19.05 mm - Carbon Steel Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Each View the product page first if you are unsure.
W0079-ALN-C-SET --- Self Aligning Washers - 7.94x8.712x19.05 mm - Carbon Steel Hardened W0079-ALN-C-SET --- Self Aligning Washers - 7.94x8.712x19.05 mm - Carbon Steel Hardened Regular price $16.23 AUD Regular price Sale price $16.23 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 7.94 mm _{(0.313 in.)}	Bore Size (d1 or d2) 8.712 mm +/- 0.38 _{(0.343 in.)}	OD (d3) 19.05 mm + /- 0.38 _{(0.75 in.)}	Thickness (h2 or h3) 6.350 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0079-ALN-SS-SET Self Aligning Washers - 7.94x8.712x19.05 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Each
Suits Shaft or Bolt Size 7.94 mm _{(0.313 in.)}	Bore Size (d1 or d2) 8.712 mm +/- 0.38 _{(0.343 in.)}	OD (d3) 19.05 mm + /- 0.38 _{(0.75 in.)}	Thickness (h2 or h3) 6.350 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0079-ALN-SS-SET Self Aligning Washers - 7.94x8.712x19.05 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Each View the product page first if you are unsure.
W0079-ALN-SS-SET --- Self Aligning Washers - 7.94x8.712x19.05 mm - Stainless Steel W0079-ALN-SS-SET --- Self Aligning Washers - 7.94x8.712x19.05 mm - Stainless Steel Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Out of stock! Backorder Now

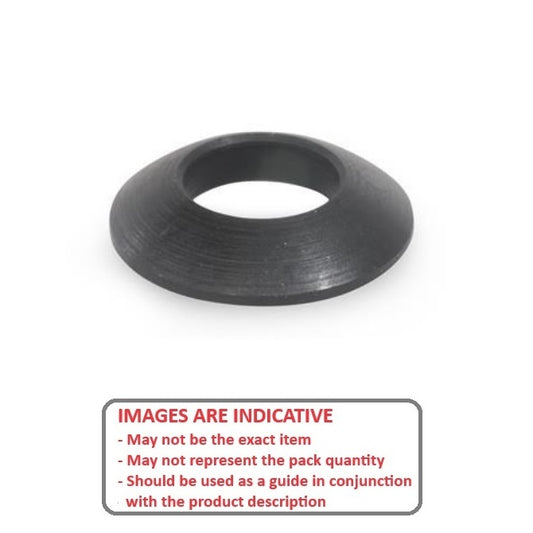

Suits Shaft or Bolt Size 8.00 mm _{(0.315 in.)}	Bore Size (d1 or d2) 8.4 mm _{(0.331 in.)}	OD (d3) 17.00 mm _{(0.669 in.)}	Thickness (h2 or h3) 3.2 mm	Overall Thickness (h4) 5.0 mm	Radius (r) 12.0 mm
Material: Carbon Steel - Hardened Static Load Rating: 17 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0080-ALN-CA Self Aligning Washers - 8x8.4x17 mm - Carbon Steel - Hardened 6 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
Suits Shaft or Bolt Size 8.00 mm _{(0.315 in.)}	Bore Size (d1 or d2) 8.4 mm _{(0.331 in.)}	OD (d3) 17.00 mm _{(0.669 in.)}	Thickness (h2 or h3) 3.2 mm
Material: Carbon Steel - Hardened Overall Thickness (h4): 5.0 mm Radius (r): 12.0 mm Static Load Rating: 17 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0080-ALN-CA Self Aligning Washers - 8x8.4x17 mm - Carbon Steel - Hardened 6 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
W0080-ALN-CA --- Self Aligning Washers - 8x8.4x17 mm - Carbon Steel - Hardened Sale W0080-ALN-CA --- Self Aligning Washers - 8x8.4x17 mm - Carbon Steel - Hardened Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per 6 Available Now Sale

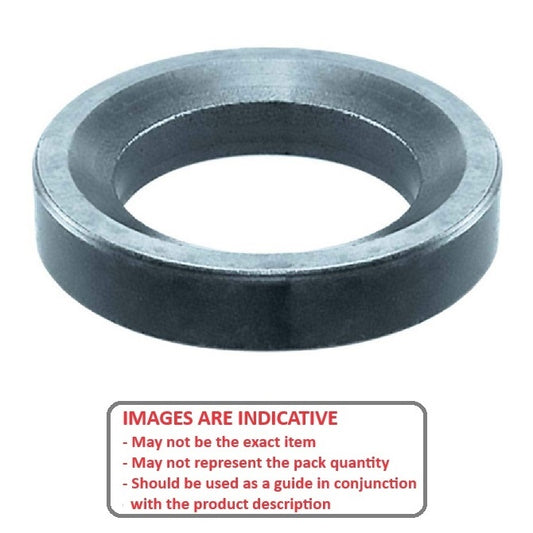

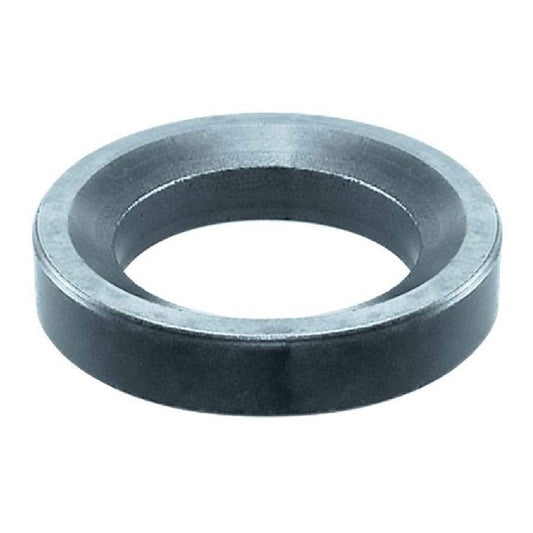

Suits Shaft or Bolt Size 8.00 mm _{(0.315 in.)}	Bore Size (d1 or d2) 9.6 mm _{(0.378 in.)}	OD (d3) 17.00 mm _{(0.669 in.)}	Thickness (h2 or h3) 3.5 mm	Overall Thickness (h4) 5.0 mm
Material: Carbon Steel - Hardened Static Load Rating: 17 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0080-ALN-CB Self Aligning Washers - 8x9.6x17 mm - Carbon Steel - Hardened 10 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
Suits Shaft or Bolt Size 8.00 mm _{(0.315 in.)}	Bore Size (d1 or d2) 9.6 mm _{(0.378 in.)}	OD (d3) 17.00 mm _{(0.669 in.)}	Thickness (h2 or h3) 3.5 mm
Material: Carbon Steel - Hardened Overall Thickness (h4): 5.0 mm Static Load Rating: 17 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0080-ALN-CB Self Aligning Washers - 8x9.6x17 mm - Carbon Steel - Hardened 10 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Each
W0080-ALN-CB --- Self Aligning Washers - 8x9.6x17 mm - Carbon Steel - Hardened Sale W0080-ALN-CB --- Self Aligning Washers - 8x9.6x17 mm - Carbon Steel - Hardened Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per 10 Available Now Sale
Suits Shaft or Bolt Size 9.53 mm _{(0.375 in.)}	Bore Size (d1 or d2) 10.319 mm +/- 0.38 _{(0.406 in.)}	OD (d3) 22.23 mm + /- 0.38 _{(0.875 in.)}	Thickness (h2 or h3) 6.350 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0095-ALN-SS-SET Self Aligning Washers - 9.53x10.319x22.23 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $18.77 AUD Regular price Sale price $18.77 AUD Unit price per Each
Suits Shaft or Bolt Size 9.53 mm _{(0.375 in.)}	Bore Size (d1 or d2) 10.319 mm +/- 0.38 _{(0.406 in.)}	OD (d3) 22.23 mm + /- 0.38 _{(0.875 in.)}	Thickness (h2 or h3) 6.350 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0095-ALN-SS-SET Self Aligning Washers - 9.53x10.319x22.23 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $18.77 AUD Regular price Sale price $18.77 AUD Unit price per Each View the product page first if you are unsure.
W0095-ALN-SS-SET --- Self Aligning Washers - 9.53x10.319x22.23 mm - Stainless Steel W0095-ALN-SS-SET --- Self Aligning Washers - 9.53x10.319x22.23 mm - Stainless Steel Regular price $18.77 AUD Regular price Sale price $18.77 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 9.53 mm _{(0.375 in.)}	Bore Size (d1 or d2) 10.319 mm +/- 0.38 _{(0.406 in.)}	OD (d3) 22.23 mm + /- 0.38 _{(0.875 in.)}	Thickness (h2 or h3) 6.350 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0095-ALN-C-SET Self Aligning Washers - 9.53x10.319x22.23 mm - Carbon Steel Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each
Suits Shaft or Bolt Size 9.53 mm _{(0.375 in.)}	Bore Size (d1 or d2) 10.319 mm +/- 0.38 _{(0.406 in.)}	OD (d3) 22.23 mm + /- 0.38 _{(0.875 in.)}	Thickness (h2 or h3) 6.350 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0095-ALN-C-SET Self Aligning Washers - 9.53x10.319x22.23 mm - Carbon Steel Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each View the product page first if you are unsure.
W0095-ALN-C-SET --- Self Aligning Washers - 9.53x10.319x22.23 mm - Carbon Steel Hardened W0095-ALN-C-SET --- Self Aligning Washers - 9.53x10.319x22.23 mm - Carbon Steel Hardened Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 10.00 mm _{(0.394 in.)}	Bore Size (d1 or d2) 12 mm _{(0.472 in.)}	OD (d3) 30.00 mm _{(1.181 in.)}	Thickness (h2 or h3) 5.0 mm	Overall Thickness (h4) 7.1 mm
Material: Carbon Steel - Hardened Static Load Rating: 26 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0100-ALN-CBH (5 Pcs) Self Aligning Washers - 10x12x30 mm - Carbon Steel - Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $36.41 AUD Regular price Sale price $36.41 AUD Unit price per Per 5
Suits Shaft or Bolt Size 10.00 mm _{(0.394 in.)}	Bore Size (d1 or d2) 12 mm _{(0.472 in.)}	OD (d3) 30.00 mm _{(1.181 in.)}	Thickness (h2 or h3) 5.0 mm
Material: Carbon Steel - Hardened Overall Thickness (h4): 7.1 mm Static Load Rating: 26 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0100-ALN-CBH (5 Pcs) Self Aligning Washers - 10x12x30 mm - Carbon Steel - Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $36.41 AUD Regular price Sale price $36.41 AUD Unit price per Per 5 View the product page first if you are unsure.
W0100-ALN-CBH (5 Pcs) --- Self Aligning Washers - 10x12x30 mm - Carbon Steel - Hardened W0100-ALN-CBH (5 Pcs) --- Self Aligning Washers - 10x12x30 mm - Carbon Steel - Hardened Regular price $36.41 AUD Regular price Sale price $36.41 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 12.70 mm _{(0.5 in.)}	Bore Size (d1 or d2) 13.494 mm +/- 0.38 _{(0.531 in.)}	OD (d3) 28.58 mm + /- 0.38 _{(1.125 in.)}	Thickness (h2 or h3) 7.925 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0127-ALN-C-SET Self Aligning Washers - 12.7x13.494x28.58 mm - Carbon Steel Hardened 3 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Each
Suits Shaft or Bolt Size 12.70 mm _{(0.5 in.)}	Bore Size (d1 or d2) 13.494 mm +/- 0.38 _{(0.531 in.)}	OD (d3) 28.58 mm + /- 0.38 _{(1.125 in.)}	Thickness (h2 or h3) 7.925 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0127-ALN-C-SET Self Aligning Washers - 12.7x13.494x28.58 mm - Carbon Steel Hardened 3 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per Each View the product page first if you are unsure.
W0127-ALN-C-SET --- Self Aligning Washers - 12.7x13.494x28.58 mm - Carbon Steel Hardened Sale W0127-ALN-C-SET --- Self Aligning Washers - 12.7x13.494x28.58 mm - Carbon Steel Hardened Regular price $21.23 AUD Regular price ~~$25.47 AUD~~ Sale price $21.23 AUD Unit price per 3 Available Now Sale
Suits Shaft or Bolt Size 12.70 mm _{(0.5 in.)}	Bore Size (d1 or d2) 13.494 mm +/- 0.38 _{(0.531 in.)}	OD (d3) 28.58 mm + /- 0.38 _{(1.125 in.)}	Thickness (h2 or h3) 7.925 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0127-ALN-SS-SET Self Aligning Washers - 12.7x13.494x28.58 mm - Stainless Steel 5 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each
Suits Shaft or Bolt Size 12.70 mm _{(0.5 in.)}	Bore Size (d1 or d2) 13.494 mm +/- 0.38 _{(0.531 in.)}	OD (d3) 28.58 mm + /- 0.38 _{(1.125 in.)}	Thickness (h2 or h3) 7.925 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0127-ALN-SS-SET Self Aligning Washers - 12.7x13.494x28.58 mm - Stainless Steel 5 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per Each View the product page first if you are unsure.
W0127-ALN-SS-SET --- Self Aligning Washers - 12.7x13.494x28.58 mm - Stainless Steel Sale W0127-ALN-SS-SET --- Self Aligning Washers - 12.7x13.494x28.58 mm - Stainless Steel Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per 5 Available Now Sale
Suits Shaft or Bolt Size 15.88 mm _{(0.625 in.)}	Bore Size (d1 or d2) 16.662 mm +/- 0.38 _{(0.656 in.)}	OD (d3) 34.93 mm + /- 0.38 _{(1.375 in.)}	Thickness (h2 or h3) 7.925 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0159-ALN-SS-SET Self Aligning Washers - 15.88x16.662x34.93 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $26.95 AUD Regular price Sale price $26.95 AUD Unit price per Each
Suits Shaft or Bolt Size 15.88 mm _{(0.625 in.)}	Bore Size (d1 or d2) 16.662 mm +/- 0.38 _{(0.656 in.)}	OD (d3) 34.93 mm + /- 0.38 _{(1.375 in.)}	Thickness (h2 or h3) 7.925 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0159-ALN-SS-SET Self Aligning Washers - 15.88x16.662x34.93 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $26.95 AUD Regular price Sale price $26.95 AUD Unit price per Each View the product page first if you are unsure.
W0159-ALN-SS-SET --- Self Aligning Washers - 15.88x16.662x34.93 mm - Stainless Steel W0159-ALN-SS-SET --- Self Aligning Washers - 15.88x16.662x34.93 mm - Stainless Steel Regular price $26.95 AUD Regular price Sale price $26.95 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 15.88 mm _{(0.625 in.)}	Bore Size (d1 or d2) 16.662 mm +/- 0.38 _{(0.656 in.)}	OD (d3) 34.93 mm + /- 0.38 _{(1.375 in.)}	Thickness (h2 or h3) 7.925 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0159-ALN-C-SET Self Aligning Washers - 15.88x16.662x34.93 mm - Carbon Steel Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $36.14 AUD Regular price Sale price $36.14 AUD Unit price per Each
Suits Shaft or Bolt Size 15.88 mm _{(0.625 in.)}	Bore Size (d1 or d2) 16.662 mm +/- 0.38 _{(0.656 in.)}	OD (d3) 34.93 mm + /- 0.38 _{(1.375 in.)}	Thickness (h2 or h3) 7.925 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0159-ALN-C-SET Self Aligning Washers - 15.88x16.662x34.93 mm - Carbon Steel Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $36.14 AUD Regular price Sale price $36.14 AUD Unit price per Each View the product page first if you are unsure.
W0159-ALN-C-SET --- Self Aligning Washers - 15.88x16.662x34.93 mm - Carbon Steel Hardened W0159-ALN-C-SET --- Self Aligning Washers - 15.88x16.662x34.93 mm - Carbon Steel Hardened Regular price $36.14 AUD Regular price Sale price $36.14 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 19.05 mm _{(0.75 in.)}	Bore Size (d1 or d2) 19.844 mm +/- 0.38 _{(0.781 in.)}	OD (d3) 41.28 mm + /- 0.38 _{(1.625 in.)}	Thickness (h2 or h3) 9.525 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0191-ALN-C-SET Self Aligning Washers - 19.05x19.844x41.28 mm - Carbon Steel Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $40.23 AUD Regular price Sale price $40.23 AUD Unit price per Each
Suits Shaft or Bolt Size 19.05 mm _{(0.75 in.)}	Bore Size (d1 or d2) 19.844 mm +/- 0.38 _{(0.781 in.)}	OD (d3) 41.28 mm + /- 0.38 _{(1.625 in.)}	Thickness (h2 or h3) 9.525 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0191-ALN-C-SET Self Aligning Washers - 19.05x19.844x41.28 mm - Carbon Steel Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $40.23 AUD Regular price Sale price $40.23 AUD Unit price per Each View the product page first if you are unsure.
W0191-ALN-C-SET --- Self Aligning Washers - 19.05x19.844x41.28 mm - Carbon Steel Hardened W0191-ALN-C-SET --- Self Aligning Washers - 19.05x19.844x41.28 mm - Carbon Steel Hardened Regular price $40.23 AUD Regular price Sale price $40.23 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 19.05 mm _{(0.75 in.)}	Bore Size (d1 or d2) 19.844 mm +/- 0.38 _{(0.781 in.)}	OD (d3) 41.28 mm + /- 0.38 _{(1.625 in.)}	Thickness (h2 or h3) 9.525 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0191-ALN-SS-SET Self Aligning Washers - 19.05x19.844x41.28 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $33.14 AUD Regular price Sale price $33.14 AUD Unit price per Each
Suits Shaft or Bolt Size 19.05 mm _{(0.75 in.)}	Bore Size (d1 or d2) 19.844 mm +/- 0.38 _{(0.781 in.)}	OD (d3) 41.28 mm + /- 0.38 _{(1.625 in.)}	Thickness (h2 or h3) 9.525 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0191-ALN-SS-SET Self Aligning Washers - 19.05x19.844x41.28 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $33.14 AUD Regular price Sale price $33.14 AUD Unit price per Each View the product page first if you are unsure.
W0191-ALN-SS-SET --- Self Aligning Washers - 19.05x19.844x41.28 mm - Stainless Steel W0191-ALN-SS-SET --- Self Aligning Washers - 19.05x19.844x41.28 mm - Stainless Steel Regular price $33.14 AUD Regular price Sale price $33.14 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 20.00 mm _{(0.787 in.)}	Bore Size (d1 or d2) 21 mm _{(0.827 in.)}	OD (d3) 36.00 mm _{(1.417 in.)}	Thickness (h2 or h3) 6.3 mm	Overall Thickness (h4) 11.5 mm	Radius (r) 27.0 mm
Material: Carbon Steel - Hardened Static Load Rating: 117 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0200-ALN-CA Self Aligning Washers - 20x21x36 mm - Carbon Steel - Hardened 5 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.88 AUD Regular price ~~$9.28 AUD~~ Sale price $4.88 AUD Unit price per Each
Suits Shaft or Bolt Size 20.00 mm _{(0.787 in.)}	Bore Size (d1 or d2) 21 mm _{(0.827 in.)}	OD (d3) 36.00 mm _{(1.417 in.)}	Thickness (h2 or h3) 6.3 mm
Material: Carbon Steel - Hardened Overall Thickness (h4): 11.5 mm Radius (r): 27.0 mm Static Load Rating: 117 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0200-ALN-CA Self Aligning Washers - 20x21x36 mm - Carbon Steel - Hardened 5 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.88 AUD Regular price ~~$9.28 AUD~~ Sale price $4.88 AUD Unit price per Each
W0200-ALN-CA --- Self Aligning Washers - 20x21x36 mm - Carbon Steel - Hardened Sale W0200-ALN-CA --- Self Aligning Washers - 20x21x36 mm - Carbon Steel - Hardened Regular price $4.88 AUD Regular price ~~$9.28 AUD~~ Sale price $4.88 AUD Unit price per 5 Available Now Sale
Suits Shaft or Bolt Size 20.00 mm _{(0.787 in.)}	Bore Size (d1 or d2) 23.2 mm _{(0.913 in.)}	OD (d3) 36.00 mm _{(1.417 in.)}	Thickness (h2 or h3) 7.5 mm	Overall Thickness (h4) 11.5 mm
Material: Carbon Steel - Hardened Static Load Rating: 117 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0200-ALN-CB Self Aligning Washers - 20x23.2x36 mm - Carbon Steel - Hardened 5 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.10 AUD Regular price ~~$9.69 AUD~~ Sale price $5.10 AUD Unit price per Each
Suits Shaft or Bolt Size 20.00 mm _{(0.787 in.)}	Bore Size (d1 or d2) 23.2 mm _{(0.913 in.)}	OD (d3) 36.00 mm _{(1.417 in.)}	Thickness (h2 or h3) 7.5 mm
Material: Carbon Steel - Hardened Overall Thickness (h4): 11.5 mm Static Load Rating: 117 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0200-ALN-CB Self Aligning Washers - 20x23.2x36 mm - Carbon Steel - Hardened 5 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.10 AUD Regular price ~~$9.69 AUD~~ Sale price $5.10 AUD Unit price per Each
W0200-ALN-CB --- Self Aligning Washers - 20x23.2x36 mm - Carbon Steel - Hardened Sale W0200-ALN-CB --- Self Aligning Washers - 20x23.2x36 mm - Carbon Steel - Hardened Regular price $5.10 AUD Regular price ~~$9.69 AUD~~ Sale price $5.10 AUD Unit price per 5 Available Now Sale
Suits Shaft or Bolt Size 22.23 mm _{(0.875 in.)}	Bore Size (d1 or d2) 23.813 mm +/- 0.38 _{(0.938 in.)}	OD (d3) 44.45 mm + /- 0.38 _{(1.75 in.)}	Thickness (h2 or h3) 9.525 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0222-ALN-SS-SET Self Aligning Washers - 22.23x23.813x44.45 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $40.05 AUD Regular price Sale price $40.05 AUD Unit price per Each
Suits Shaft or Bolt Size 22.23 mm _{(0.875 in.)}	Bore Size (d1 or d2) 23.813 mm +/- 0.38 _{(0.938 in.)}	OD (d3) 44.45 mm + /- 0.38 _{(1.75 in.)}	Thickness (h2 or h3) 9.525 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0222-ALN-SS-SET Self Aligning Washers - 22.23x23.813x44.45 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $40.05 AUD Regular price Sale price $40.05 AUD Unit price per Each View the product page first if you are unsure.
W0222-ALN-SS-SET --- Self Aligning Washers - 22.23x23.813x44.45 mm - Stainless Steel W0222-ALN-SS-SET --- Self Aligning Washers - 22.23x23.813x44.45 mm - Stainless Steel Regular price $40.05 AUD Regular price Sale price $40.05 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 22.23 mm _{(0.875 in.)}	Bore Size (d1 or d2) 23.813 mm +/- 0.38 _{(0.938 in.)}	OD (d3) 44.45 mm + /- 0.38 _{(1.75 in.)}	Thickness (h2 or h3) 9.525 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0222-ALN-C-SET Self Aligning Washers - 22.23x23.813x44.45 mm - Carbon Steel Hardened 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $45.68 AUD Regular price Sale price $45.68 AUD Unit price per Each
Suits Shaft or Bolt Size 22.23 mm _{(0.875 in.)}	Bore Size (d1 or d2) 23.813 mm +/- 0.38 _{(0.938 in.)}	OD (d3) 44.45 mm + /- 0.38 _{(1.75 in.)}	Thickness (h2 or h3) 9.525 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0222-ALN-C-SET Self Aligning Washers - 22.23x23.813x44.45 mm - Carbon Steel Hardened 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $45.68 AUD Regular price Sale price $45.68 AUD Unit price per Each View the product page first if you are unsure.
W0222-ALN-C-SET --- Self Aligning Washers - 22.23x23.813x44.45 mm - Carbon Steel Hardened W0222-ALN-C-SET --- Self Aligning Washers - 22.23x23.813x44.45 mm - Carbon Steel Hardened Regular price $45.68 AUD Regular price Sale price $45.68 AUD Unit price per 2 Available Now
Suits Shaft or Bolt Size 24.00 mm _{(0.945 in.)}	Bore Size (d1 or d2) 25 mm _{(0.984 in.)}	OD (d3) 44.00 mm _{(1.732 in.)}	Thickness (h2 or h3) 8.2 mm	Overall Thickness (h4) 15.0 mm	Radius (r) 32.0 mm
Material: Carbon Steel - Hardened Static Load Rating: 168 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0240-ALN-CA Self Aligning Washers - 24x25x44 mm - Carbon Steel - Hardened 3 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each
Suits Shaft or Bolt Size 24.00 mm _{(0.945 in.)}	Bore Size (d1 or d2) 25 mm _{(0.984 in.)}	OD (d3) 44.00 mm _{(1.732 in.)}	Thickness (h2 or h3) 8.2 mm
Material: Carbon Steel - Hardened Overall Thickness (h4): 15.0 mm Radius (r): 32.0 mm Static Load Rating: 168 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0240-ALN-CA Self Aligning Washers - 24x25x44 mm - Carbon Steel - Hardened 3 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each
W0240-ALN-CA --- Self Aligning Washers - 24x25x44 mm - Carbon Steel - Hardened Sale W0240-ALN-CA --- Self Aligning Washers - 24x25x44 mm - Carbon Steel - Hardened Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 3 Available Now Sale
Suits Shaft or Bolt Size 24.00 mm _{(0.945 in.)}	Bore Size (d1 or d2) 28 mm _{(1.102 in.)}	OD (d3) 44.00 mm _{(1.732 in.)}	Thickness (h2 or h3) 9.5 mm	Overall Thickness (h4) 15.0 mm
Material: Carbon Steel - Hardened Static Load Rating: 168 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0240-ALN-CB Self Aligning Washers - 24x28x44 mm - Carbon Steel - Hardened 3 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each
Suits Shaft or Bolt Size 24.00 mm _{(0.945 in.)}	Bore Size (d1 or d2) 28 mm _{(1.102 in.)}	OD (d3) 44.00 mm _{(1.732 in.)}	Thickness (h2 or h3) 9.5 mm
Material: Carbon Steel - Hardened Overall Thickness (h4): 15.0 mm Static Load Rating: 168 Max. kN Category: Washers - Self Aligning - Components
Part Number: W0240-ALN-CB Self Aligning Washers - 24x28x44 mm - Carbon Steel - Hardened 3 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Each
W0240-ALN-CB --- Self Aligning Washers - 24x28x44 mm - Carbon Steel - Hardened Sale W0240-ALN-CB --- Self Aligning Washers - 24x28x44 mm - Carbon Steel - Hardened Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 3 Available Now Sale
Suits Shaft or Bolt Size 25.40 mm _{(1 in.)}	Bore Size (d1 or d2) 26.975 mm +/- 0.38 _{(1.062 in.)}	OD (d3) 50.80 mm + /- 0.38 _{(2 in.)}	Thickness (h2 or h3) 12.70 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0254-ALN-C-SET Self Aligning Washers - 25.4x26.975x50.8 mm - Carbon Steel Hardened 1 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $63.41 AUD Regular price Sale price $63.41 AUD Unit price per Each
Suits Shaft or Bolt Size 25.40 mm _{(1 in.)}	Bore Size (d1 or d2) 26.975 mm +/- 0.38 _{(1.062 in.)}	OD (d3) 50.80 mm + /- 0.38 _{(2 in.)}	Thickness (h2 or h3) 12.70 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0254-ALN-C-SET Self Aligning Washers - 25.4x26.975x50.8 mm - Carbon Steel Hardened 1 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $63.41 AUD Regular price Sale price $63.41 AUD Unit price per Each View the product page first if you are unsure.
W0254-ALN-C-SET --- Self Aligning Washers - 25.4x26.975x50.8 mm - Carbon Steel Hardened W0254-ALN-C-SET --- Self Aligning Washers - 25.4x26.975x50.8 mm - Carbon Steel Hardened Regular price $63.41 AUD Regular price Sale price $63.41 AUD Unit price per 1 Available Now
Suits Shaft or Bolt Size 25.40 mm _{(1 in.)}	Bore Size (d1 or d2) 26.975 mm +/- 0.38 _{(1.062 in.)}	OD (d3) 50.80 mm + /- 0.38 _{(2 in.)}	Thickness (h2 or h3) 12.700 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0254-ALN-SS-SET Self Aligning Washers - 25.4x26.975x50.8 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $47.05 AUD Regular price Sale price $47.05 AUD Unit price per Each
Suits Shaft or Bolt Size 25.40 mm _{(1 in.)}	Bore Size (d1 or d2) 26.975 mm +/- 0.38 _{(1.062 in.)}	OD (d3) 50.80 mm + /- 0.38 _{(2 in.)}	Thickness (h2 or h3) 12.700 mm +/- 0.38
Material: Stainless Steel Category: Washers - Self Aligning - Sets
Part Number: W0254-ALN-SS-SET Self Aligning Washers - 25.4x26.975x50.8 mm - Stainless Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $47.05 AUD Regular price Sale price $47.05 AUD Unit price per Each View the product page first if you are unsure.
W0254-ALN-SS-SET --- Self Aligning Washers - 25.4x26.975x50.8 mm - Stainless Steel W0254-ALN-SS-SET --- Self Aligning Washers - 25.4x26.975x50.8 mm - Stainless Steel Regular price $47.05 AUD Regular price Sale price $47.05 AUD Unit price per Out of stock! Backorder Now
Suits Shaft or Bolt Size 28.58 mm _{(1.125 in.)}	Bore Size (d1 or d2) 30.15 mm +/- 0.38 _{(1.187 in.)}	OD (d3) 57.15 mm + /- 0.38 _{(2.25 in.)}	Thickness (h2 or h3) 12.70 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0286-ALN-C-SET Self Aligning Washers - 28.58x30.15x57.15 mm - Carbon Steel Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $92.50 AUD Regular price Sale price $92.50 AUD Unit price per Each
Suits Shaft or Bolt Size 28.58 mm _{(1.125 in.)}	Bore Size (d1 or d2) 30.15 mm +/- 0.38 _{(1.187 in.)}	OD (d3) 57.15 mm + /- 0.38 _{(2.25 in.)}	Thickness (h2 or h3) 12.70 mm +/- 0.38
Material: Carbon Steel Hardened Category: Washers - Self Aligning - Sets
Part Number: W0286-ALN-C-SET Self Aligning Washers - 28.58x30.15x57.15 mm - Carbon Steel Hardened Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $92.50 AUD Regular price Sale price $92.50 AUD Unit price per Each View the product page first if you are unsure.
W0286-ALN-C-SET --- Self Aligning Washers - 28.58x30.15x57.15 mm - Carbon Steel Hardened W0286-ALN-C-SET --- Self Aligning Washers - 28.58x30.15x57.15 mm - Carbon Steel Hardened Regular price $92.50 AUD Regular price Sale price $92.50 AUD Unit price per Out of stock! Backorder Now
