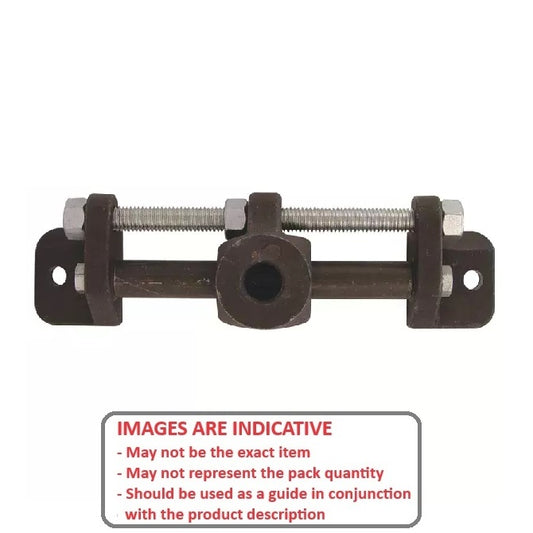

Tensioner - Adjustable Screw

1 Item Available
  • Use with idler shafts and idler pulleys. Uses a screw adjustment for positive precise tensioning.
  • Idler shaft and pulleys not included with tensioner
Additional resources:
A more concise listing may be found on the Smallparts store at Tensioner - Adjustable Screw. Smallparts promote the most popular MBA products.
Bore (C) Overall Height (D) Housing Height (E) Overall Length (F) Bolt Centres (G) Shaft Diameter (H) Indicative
Bore (C)
25.400
mm

(1 in.)
Overall Height (D)
63.500
mm

(2.5 in.)
Housing Height (E)
38.100
mm

(1.5 in.)
Overall Length (F)
238.125
mm
Bolt Centres (G)
212.725
mm
Shaft Diameter (H)
19.050
mm

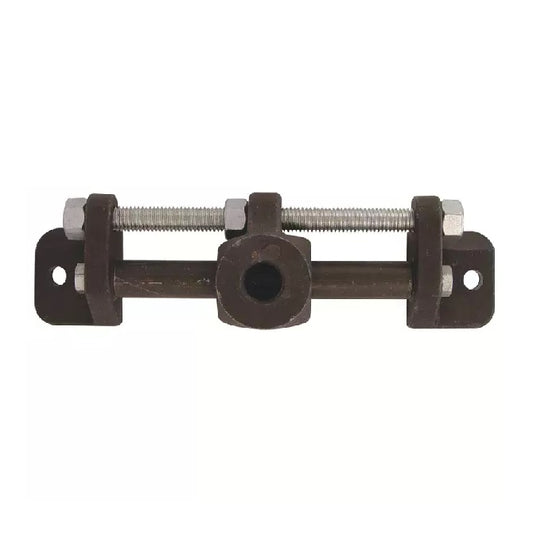

1134514 | IDC-82RS --- Adjustable Screw Tensioner - 25.4x63.5x38.1 mm
I: 12.700 mm    Housing Width (J): 60.325 mm    Housing Bolt Centre (K): 25.400 mm    Bolt Size (L): 3/4-16 x 9.53    M / N: 101.600 / 55.550 mm    Approx Weight: 1.95 Kg
Part Number: IDC-82RS Adjustable Screw Tensioner - 25.4x63.5x38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$475.41 AUD
$475.41 AUD
Each
Bore (C) Overall Height (D) Housing Height (E) Overall Length (F) Indicative
Bore (C)
25.400
mm

(1 in.)
Overall Height (D)
63.500
mm

(2.5 in.)
Housing Height (E)
38.100
mm

(1.5 in.)
Overall Length (F)
238.125
mm
1134514 | IDC-82RS --- Adjustable Screw Tensioner - 25.4x63.5x38.1 mm
Bolt Centres (G): 212.725 mm    Shaft Diameter (H): 19.050 mm    I: 12.700 mm    Housing Width (J): 60.325 mm    Housing Bolt Centre (K): 25.400 mm    Bolt Size (L): 3/4-16 x 9.53    M / N: 101.600 / 55.550 mm    Approx Weight: 1.95 Kg
Part Number: IDC-82RS Adjustable Screw Tensioner - 25.4x63.5x38.1 mm
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$475.41 AUD
$475.41 AUD
Each
