Collection: Spring Anchors - Stainless Steel

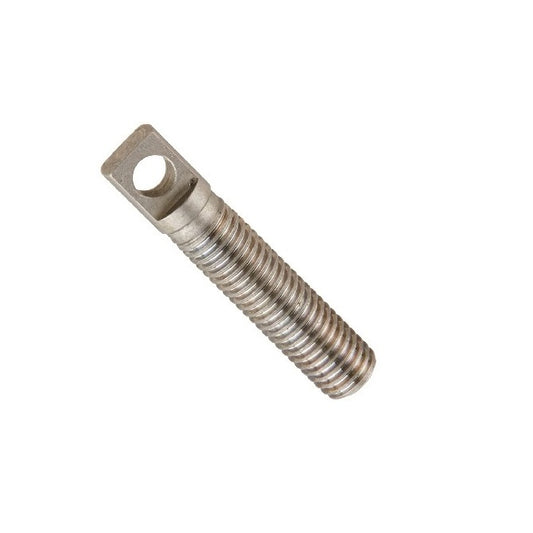

Spring Anchors (With Images)

Stainless Steel

5 Products in this selection

An economical way to secure the ends of extension springs, and provide easy adjustment.
300 Grade Stainless Steel

Additional resources:
Extension Springs

A more concise listing may be found on the Smallparts store at Spring Anchors - Stainless Steel. Smallparts promote the most popular MBA products.

Thread	Overall Length (A)	Thread Length (B)	Thread to Centre Eye (C)	Hole Size	Load
Thread 6-32 UNC (3.5mm)	Overall Length (A) 15.875 mm _{(0.625 in.)}	Thread Length (B) 10.160 mm _{(0.4 in.)}	Thread to Centre Eye (C) 1.778 mm	Hole Size 1.270 mm	Load 54 Kg

Part Number: SSA-50RS Stainless Steel Spring Anchors - 6-32 UNC - 3.5mm - 15.875x10.16 mm 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Each

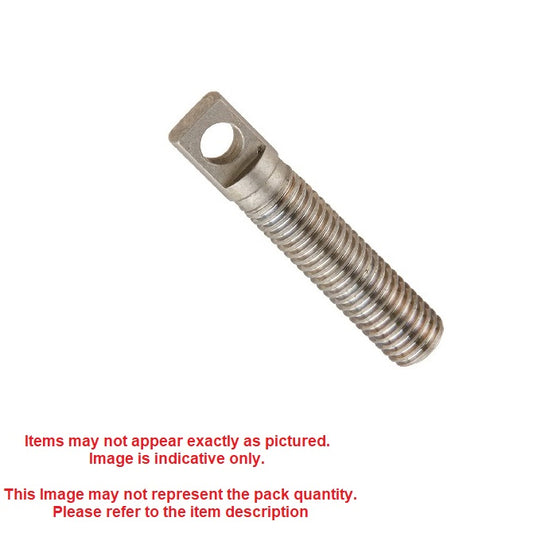

Thread	Overall Length (A)	Thread Length (B)	Thread to Centre Eye (C)	Indicative Image
Thread 6-32 UNC (3.5mm)	Overall Length (A) 15.875 mm _{(0.625 in.)}	Thread Length (B) 10.160 mm _{(0.4 in.)}	Thread to Centre Eye (C) 1.778 mm
Hole Size: 1.270 mm Load: 54 Kg
Part Number: SSA-50RS Stainless Steel Spring Anchors - 6-32 UNC - 3.5mm - 15.875x10.16 mm 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per Each View the product page first if you are unsure.
SSA-50RS --- Stainless Steel Spring Anchors - 6-32 UNC - 3.5mm - 15.875x10.16 mm SSA-50RS --- Stainless Steel Spring Anchors - 6-32 UNC - 3.5mm - 15.875x10.16 mm Regular price $27.68 AUD Regular price Sale price $27.68 AUD Unit price per 2 Available Now
Thread 8-32 UNC (4.17mm)	Overall Length (A) 22.225 mm _{(0.875 in.)}	Thread Length (B) 15.875 mm _{(0.625 in.)}	Thread to Centre Eye (C) 2.159 mm	Hole Size 1.778 mm	Load 77 Kg

Part Number: SSA-60RS Stainless Steel Spring Anchors - 8-32 UNC - 4.17mm - 22.225x15.875 mm 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Each
Thread 8-32 UNC (4.17mm)	Overall Length (A) 22.225 mm _{(0.875 in.)}	Thread Length (B) 15.875 mm _{(0.625 in.)}	Thread to Centre Eye (C) 2.159 mm
Hole Size: 1.778 mm Load: 77 Kg
Part Number: SSA-60RS Stainless Steel Spring Anchors - 8-32 UNC - 4.17mm - 22.225x15.875 mm 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Each View the product page first if you are unsure.
SSA-60RS --- Stainless Steel Spring Anchors - 8-32 UNC - 4.17mm - 22.225x15.875 mm SSA-60RS --- Stainless Steel Spring Anchors - 8-32 UNC - 4.17mm - 22.225x15.875 mm Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per 2 Available Now
Thread 1/4-20 UNC (6.35mm)	Overall Length (A) 31.750 mm _{(1.25 in.)}	Thread Length (B) 22.225 mm _{(0.875 in.)}	Thread to Centre Eye (C) 3.302 mm	Hole Size 2.540 mm	Load 226 Kg

Part Number: SSA-70RS Stainless Steel Spring Anchors - 1/4-20 UNC - 6.35mm - 31.75x22.225 mm 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $33.59 AUD Regular price Sale price $33.59 AUD Unit price per Each
Thread 1/4-20 UNC (6.35mm)	Overall Length (A) 31.750 mm _{(1.25 in.)}	Thread Length (B) 22.225 mm _{(0.875 in.)}	Thread to Centre Eye (C) 3.302 mm
Hole Size: 2.540 mm Load: 226 Kg
Part Number: SSA-70RS Stainless Steel Spring Anchors - 1/4-20 UNC - 6.35mm - 31.75x22.225 mm 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $33.59 AUD Regular price Sale price $33.59 AUD Unit price per Each View the product page first if you are unsure.
SSA-70RS --- Stainless Steel Spring Anchors - 1/4-20 UNC - 6.35mm - 31.75x22.225 mm SSA-70RS --- Stainless Steel Spring Anchors - 1/4-20 UNC - 6.35mm - 31.75x22.225 mm Regular price $33.59 AUD Regular price Sale price $33.59 AUD Unit price per 2 Available Now
Thread 1/4-28 UNF (6.35mm)	Overall Length (A) 31.750 mm _{(1.25 in.)}	Thread Length (B) 22.225 mm _{(0.875 in.)}	Thread to Centre Eye (C) 3.302 mm	Hole Size 2.540 mm	Load 226 Kg

Part Number: SSA-80RS Stainless Steel Spring Anchors - 1/4-28 UNF - 6.35mm - 31.75x22.225 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Each
Thread 1/4-28 UNF (6.35mm)	Overall Length (A) 31.750 mm _{(1.25 in.)}	Thread Length (B) 22.225 mm _{(0.875 in.)}	Thread to Centre Eye (C) 3.302 mm
Hole Size: 2.540 mm Load: 226 Kg
Part Number: SSA-80RS Stainless Steel Spring Anchors - 1/4-28 UNF - 6.35mm - 31.75x22.225 mm Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Each View the product page first if you are unsure.
SSA-80RS --- Stainless Steel Spring Anchors - 1/4-28 UNF - 6.35mm - 31.75x22.225 mm SSA-80RS --- Stainless Steel Spring Anchors - 1/4-28 UNF - 6.35mm - 31.75x22.225 mm Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Out of stock! Backorder Now
Thread 3/8-16 UNC (9.53mm)	Overall Length (A) 41.148 mm _{(1.62 in.)}	Thread Length (B) 28.575 mm _{(1.125 in.)}	Thread to Centre Eye (C) 4.572 mm	Hole Size 4.318 mm	Load 378 Kg

Part Number: SSA-90RS Stainless Steel Spring Anchors - 3/8-16 UNC - 9.53mm - 41.148x28.575 mm 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $51.95 AUD Regular price Sale price $51.95 AUD Unit price per Each
Thread 3/8-16 UNC (9.53mm)	Overall Length (A) 41.148 mm _{(1.62 in.)}	Thread Length (B) 28.575 mm _{(1.125 in.)}	Thread to Centre Eye (C) 4.572 mm
Hole Size: 4.318 mm Load: 378 Kg
Part Number: SSA-90RS Stainless Steel Spring Anchors - 3/8-16 UNC - 9.53mm - 41.148x28.575 mm 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $51.95 AUD Regular price Sale price $51.95 AUD Unit price per Each View the product page first if you are unsure.
SSA-90RS --- Stainless Steel Spring Anchors - 3/8-16 UNC - 9.53mm - 41.148x28.575 mm SSA-90RS --- Stainless Steel Spring Anchors - 3/8-16 UNC - 9.53mm - 41.148x28.575 mm Regular price $51.95 AUD Regular price Sale price $51.95 AUD Unit price per 2 Available Now

Collection: Spring Anchors - Stainless Steel

Filter:

SSA-50RS --- Stainless Steel Spring Anchors - 6-32 UNC - 3.5mm - 15.875x10.16 mm

SSA-50RS --- Stainless Steel Spring Anchors - 6-32 UNC - 3.5mm - 15.875x10.16 mm

SSA-60RS --- Stainless Steel Spring Anchors - 8-32 UNC - 4.17mm - 22.225x15.875 mm

SSA-60RS --- Stainless Steel Spring Anchors - 8-32 UNC - 4.17mm - 22.225x15.875 mm

SSA-70RS --- Stainless Steel Spring Anchors - 1/4-20 UNC - 6.35mm - 31.75x22.225 mm

SSA-70RS --- Stainless Steel Spring Anchors - 1/4-20 UNC - 6.35mm - 31.75x22.225 mm

SSA-80RS --- Stainless Steel Spring Anchors - 1/4-28 UNF - 6.35mm - 31.75x22.225 mm

SSA-80RS --- Stainless Steel Spring Anchors - 1/4-28 UNF - 6.35mm - 31.75x22.225 mm

SSA-90RS --- Stainless Steel Spring Anchors - 3/8-16 UNC - 9.53mm - 41.148x28.575 mm

SSA-90RS --- Stainless Steel Spring Anchors - 3/8-16 UNC - 9.53mm - 41.148x28.575 mm
