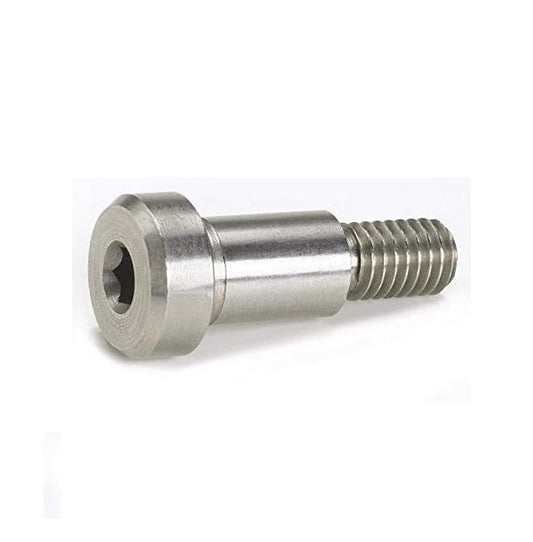

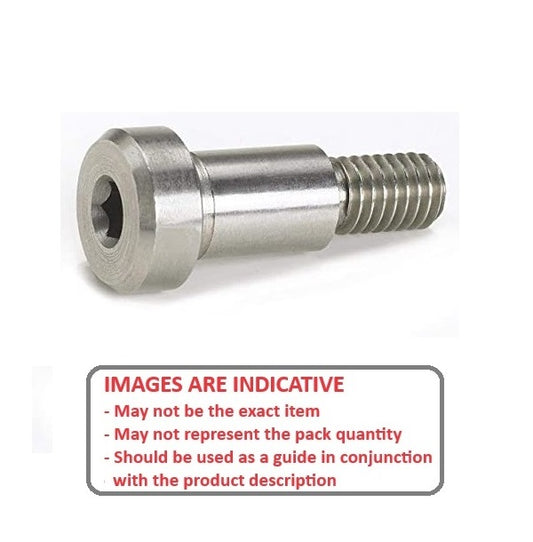

Screws - Shoulder - Socket Head - 316 Stainless

2 Products in this selection
  • Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
  • 316 Stainless Steel
Additional resources:
PDF Screws Catalogue
Washers
Nuts
A more concise listing may be found on the Smallparts store at Screws - Shoulder - Socket Head - 316 Stainless. Smallparts promote the most popular MBA products.
Shoulder Diameter (E) Shoulder Length (A) Thread (D) Max. Thread Length (C) Head Height (B) Head Diameter (F) Indicative
Shoulder Diameter (E)
12.000
mm

(0.472 in.)
Shoulder Length (A)
50.000
mm

(1.969 in.)
Thread (D)
M8x1.25
Max. Thread Length (C)
16.00
mm
Head Height (B)
9.00
mm
Head Diameter (F)
18.00
mm
Shoulder Screws - 12x50 mm - M8x1.25 - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Allen Key Size: 6.00 mm
Part Number: SHLD120-050-SKT-S6-M8 Shoulder Screws - 12x50 mm - M8x1.25 - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025
$186.23 AUD
$186.23 AUD
Each
Shoulder Diameter (E) Shoulder Length (A) Thread (D) Max. Thread Length (C) Indicative
Shoulder Diameter (E)
12.000
mm

(0.472 in.)
Shoulder Length (A)
50.000
mm

(1.969 in.)
Thread (D)
M8x1.25
Max. Thread Length (C)
16.00
mm
Shoulder Screws - 12x50 mm - M8x1.25 - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Head Height (B): 9.00 mm    Head Diameter (F): 18.00 mm    Allen Key Size: 6.00 mm
Part Number: SHLD120-050-SKT-S6-M8 Shoulder Screws - 12x50 mm - M8x1.25 - Stainless Steel 316 Similar to A4, 18-10
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025
$186.23 AUD
$186.23 AUD
Each
View the product page first if you are unsure.
Shoulder Diameter (E)
12.000
mm
- 0.072 / - 0.010
(0.472 in.)
Shoulder Length (A)
50.000
mm

(1.969 in.)
Thread (D)
M10x1.5
Max. Thread Length (C)
16.00
mm
Head Height (B)
9.00
mm
Head Diameter (F)
18.00
mm
Shoulder Screws - 12x50 mm - M10x1.5 - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Allen Key Size: 6.00 mm
Part Number: SHLD120-050-SKT-S6 Shoulder Screws - 12x50 mm - M10x1.5 - Stainless Steel 316 Similar to A4, 18-10
185 Available Immediately | Further orders can be expected around Wed, Jun 18, 2025
$176.32 AUD
$176.32 AUD
Each
Shoulder Diameter (E)
12.000
mm
- 0.072 / - 0.010
(0.472 in.)
Shoulder Length (A)
50.000
mm

(1.969 in.)
Thread (D)
M10x1.5
Max. Thread Length (C)
16.00
mm
Shoulder Screws - 12x50 mm - M10x1.5 - Stainless Steel 316 Similar to A4, 18-10
Material: Stainless Steel 316 (Similar to A4, 18-10)    Head Height (B): 9.00 mm    Head Diameter (F): 18.00 mm    Allen Key Size: 6.00 mm
Part Number: SHLD120-050-SKT-S6 Shoulder Screws - 12x50 mm - M10x1.5 - Stainless Steel 316 Similar to A4, 18-10
185 Available Immediately | Further orders can be expected around Wed, Jun 18, 2025
$176.32 AUD
$176.32 AUD
Each
View the product page first if you are unsure.
