Collection: Screws - Cap Tipped
- Screws (With Images)
- Cap Tipped
8 Products in this selection

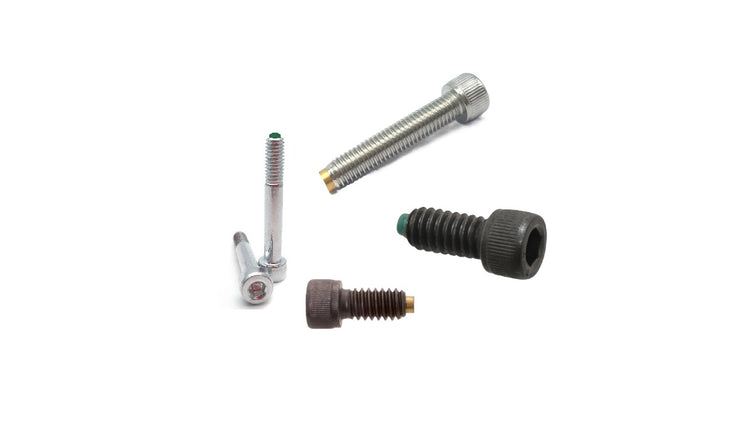

This is a combined category of Cap Tipped Screws.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
PDF Screws Catalogue
Washers
Nuts
PDF Screws Catalogue
Washers
Nuts
A more concise listing may be found on the Smallparts store at Screws - Cap Tipped. Smallparts promote the most popular MBA products.
| Thread Size (C) | Thread Length (L) | Tip Diameter | Tip Length | Head Length (B Max.) | Head Diameter (A Max.) |

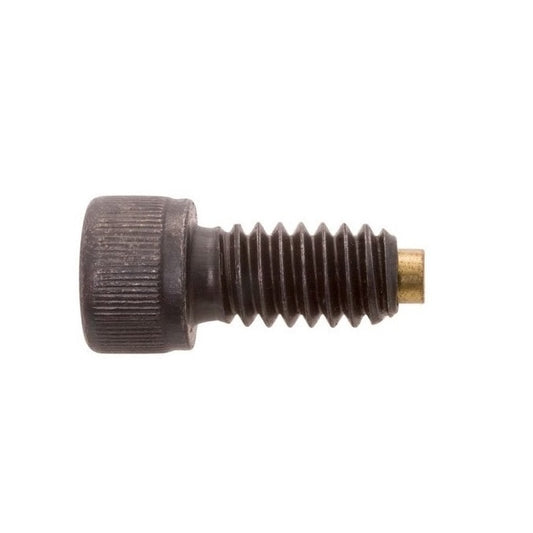

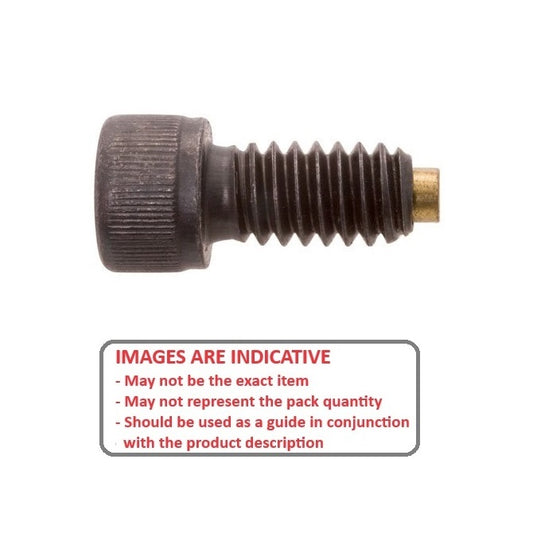

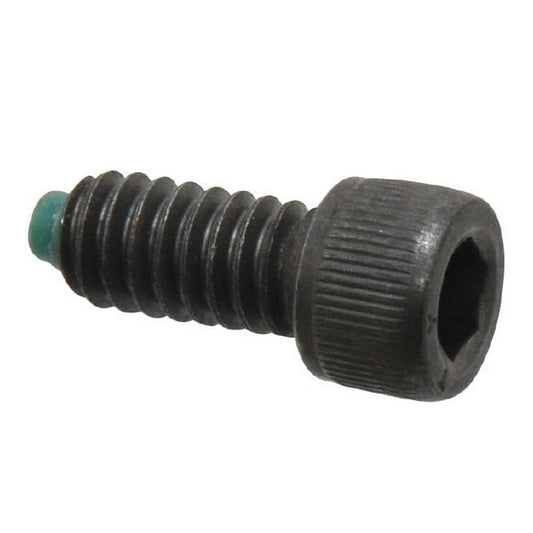

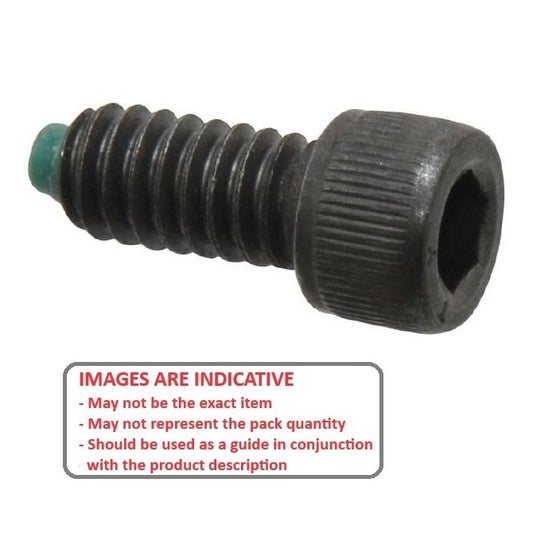

Indicative Image |
|---|---|---|---|---|---|---|
|
Thread Size (C)
4-40 UNC (2.85mm)
|
Thread Length (L)
6.4
mm (0.252 in.) |
Tip Diameter
1.60
mm (0.063 in.) |
Tip Length
0.86
mm |
Head Length (B Max.)
2.9
mm |
Head Diameter (A Max.)
4.7
mm |
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC028C-006-C-SK-S188-NT (2500 Pcs) Cap Tipped Screws - 4-40 UNC -2.85mm- 6.4x1.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025 Regular price
$9,328.23 AUD
Regular price
Unit price
per
Per 2500
|
||||||
| Thread Size (C) | Thread Length (L) | Tip Diameter | Tip Length |
Indicative Image |
||
|
Thread Size (C)
4-40 UNC (2.85mm)
|
Thread Length (L)
6.4
mm (0.252 in.) |
Tip Diameter
1.60
mm (0.063 in.) |
Tip Length
0.86
mm |
|
||
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Head Length (B Max.): 2.9 mm
Head Diameter (A Max.): 4.7 mm
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC028C-006-C-SK-S188-NT (2500 Pcs) Cap Tipped Screws - 4-40 UNC -2.85mm- 6.4x1.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 27, 2025 Regular price
$9,328.23 AUD
Regular price
Unit price
per
Per 2500
|
||||||
|
||||||
|
Thread Size (C)
10-24 UNC (4.76mm)
|
Thread Length (L)
25.4
mm (1 in.) |
Tip Diameter
2.40
mm (0.094 in.) |
Tip Length
1.16
mm |
Head Length (B Max.)
4.83
mm |
Head Diameter (A Max.)
7.93
mm |
|
|
Material: Steel Alloy
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC048C-025-C-SK-C-NT Cap Tipped Screws - 10-24 UNC -4.76mm- 25.4x2.4 mm - Steel Alloy
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$2.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (C)
10-24 UNC (4.76mm)
|
Thread Length (L)
25.4
mm (1 in.) |
Tip Diameter
2.40
mm (0.094 in.) |
Tip Length
1.16
mm |
|
||
|
Material: Steel Alloy
Head Length (B Max.): 4.83 mm
Head Diameter (A Max.): 7.93 mm
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC048C-025-C-SK-C-NT Cap Tipped Screws - 10-24 UNC -4.76mm- 25.4x2.4 mm - Steel Alloy
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$2.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (C)
1/4-20 UNC (6.35mm)
|
Thread Length (L)
12.7
mm (0.5 in.) |
Tip Diameter
3.20
mm (0.126 in.) |
Tip Length
1.57
mm |
Head Length (B Max.)
6.35
mm |
Head Diameter (A Max.)
9.53
mm |
|
|
Material: Steel Alloy
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC064C-013-C-SK-C-NT Cap Tipped Screws - 1/4-20 UNC -6.35mm- 12.7x3.2 mm - Steel Alloy
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$4.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (C)
1/4-20 UNC (6.35mm)
|
Thread Length (L)
12.7
mm (0.5 in.) |
Tip Diameter
3.20
mm (0.126 in.) |
Tip Length
1.57
mm |
|
||
|
Material: Steel Alloy
Head Length (B Max.): 6.35 mm
Head Diameter (A Max.): 9.53 mm
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC064C-013-C-SK-C-NT Cap Tipped Screws - 1/4-20 UNC -6.35mm- 12.7x3.2 mm - Steel Alloy
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$4.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (C)
1/4-20 UNC (6.35mm)
|
Thread Length (L)
25.4
mm (1 in.) |
Tip Diameter
3.20
mm (0.126 in.) |
Tip Length
1.57
mm |
Head Length (B Max.)
6.35
mm |
Head Diameter (A Max.)
9.53
mm |
|
|
Material: Steel Alloy
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC064C-025-C-SK-C-BT Cap Tipped Screws - 1/4-20 UNC -6.35mm- 25.4x3.2 mm - Steel Alloy
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (C)
1/4-20 UNC (6.35mm)
|
Thread Length (L)
25.4
mm (1 in.) |
Tip Diameter
3.20
mm (0.126 in.) |
Tip Length
1.57
mm |
|
||
|
Material: Steel Alloy
Head Length (B Max.): 6.35 mm
Head Diameter (A Max.): 9.53 mm
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC064C-025-C-SK-C-BT Cap Tipped Screws - 1/4-20 UNC -6.35mm- 25.4x3.2 mm - Steel Alloy
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (C)
1/4-20 UNC (6.35mm)
|
Thread Length (L)
38.1
mm (1.5 in.) |
Tip Diameter
3.20
mm (0.126 in.) |
Tip Length
1.57
mm |
Head Length (B Max.)
6.35
mm |
Head Diameter (A Max.)
9.53
mm |
|
|
Material: Steel Alloy
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC064C-038-C-SK-C-BT Cap Tipped Screws - 1/4-20 UNC -6.35mm- 38.1x3.2 mm - Steel Alloy
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (C)
1/4-20 UNC (6.35mm)
|
Thread Length (L)
38.1
mm (1.5 in.) |
Tip Diameter
3.20
mm (0.126 in.) |
Tip Length
1.57
mm |
|
||
|
Material: Steel Alloy
Head Length (B Max.): 6.35 mm
Head Diameter (A Max.): 9.53 mm
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC064C-038-C-SK-C-BT Cap Tipped Screws - 1/4-20 UNC -6.35mm- 38.1x3.2 mm - Steel Alloy
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (C)
5/16-18 UNC (7.94mm)
|
Thread Length (L)
38.1
mm (1.5 in.) |
Tip Diameter
4.80
mm (0.189 in.) |
Tip Length
1.57
mm |
Head Length (B Max.)
7.94
mm |
Head Diameter (A Max.)
11.89
mm |
|
|
Material: Steel Alloy
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC079C-038-C-SK-C-NT Cap Tipped Screws - 5/16-18 UNC -7.94mm- 38.1x4.8 mm - Steel Alloy
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$4.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (C)
5/16-18 UNC (7.94mm)
|
Thread Length (L)
38.1
mm (1.5 in.) |
Tip Diameter
4.80
mm (0.189 in.) |
Tip Length
1.57
mm |
|
||
|
Material: Steel Alloy
Head Length (B Max.): 7.94 mm
Head Diameter (A Max.): 11.89 mm
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC079C-038-C-SK-C-NT Cap Tipped Screws - 5/16-18 UNC -7.94mm- 38.1x4.8 mm - Steel Alloy
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$4.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (C)
3/8-16 UNC (9.53mm)
|
Thread Length (L)
25.4
mm (1 in.) |
Tip Diameter
4.80
mm (0.189 in.) |
Tip Length
2.30
mm |
Head Length (B Max.)
9.53
mm |
Head Diameter (A Max.)
14.27
mm |
|
|
Material: Steel Alloy
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC095C-025-C-SK-C-NT Cap Tipped Screws - 3/8-16 UNC -9.53mm- 25.4x4.8 mm - Steel Alloy
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$4.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (C)
3/8-16 UNC (9.53mm)
|
Thread Length (L)
25.4
mm (1 in.) |
Tip Diameter
4.80
mm (0.189 in.) |
Tip Length
2.30
mm |
|
||
|
Material: Steel Alloy
Head Length (B Max.): 9.53 mm
Head Diameter (A Max.): 14.27 mm
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC095C-025-C-SK-C-NT Cap Tipped Screws - 3/8-16 UNC -9.53mm- 25.4x4.8 mm - Steel Alloy
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$4.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Thread Size (C)
3/8-16 UNC (9.53mm)
|
Thread Length (L)
38.1
mm (1.5 in.) |
Tip Diameter
4.80
mm (0.189 in.) |
Tip Length
2.36
mm |
Head Length (B Max.)
9.53
mm |
Head Diameter (A Max.)
14.27
mm |
|
|
Material: Steel Alloy
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC095C-038-C-SK-C-NT Cap Tipped Screws - 3/8-16 UNC -9.53mm- 38.1x4.8 mm - Steel Alloy
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$4.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Thread Size (C)
3/8-16 UNC (9.53mm)
|
Thread Length (L)
38.1
mm (1.5 in.) |
Tip Diameter
4.80
mm (0.189 in.) |
Tip Length
2.36
mm |
|
||
|
Material: Steel Alloy
Head Length (B Max.): 9.53 mm
Head Diameter (A Max.): 14.27 mm
Category: Screws - Cap Tipped - Socket |
||||||
|
Part Number: SC095C-038-C-SK-C-NT Cap Tipped Screws - 3/8-16 UNC -9.53mm- 38.1x4.8 mm - Steel Alloy
2 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$4.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
