Collection: Retaining Rings - Internal - Circlips

Retaining Rings (With Images)

Internal

Circlips

718 Products in this selection

This is a combined category of Circlips Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm +/- 0.052 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm	Radial Wall (S) 1.65 - 3.43 mm	Groove Width (W) 1.42 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03493-C-V (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $96.14 AUD Regular price Sale price $96.14 AUD Unit price per Per 50
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm +/- 0.052 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm
Material: Carbon Steel Radial Wall (S): 1.65 - 3.43 mm Groove Width (W): 1.42 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03493-C-V (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $96.14 AUD Regular price Sale price $96.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03493-C-V (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel CCI-03493-C-V (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Regular price $96.14 AUD Regular price Sale price $96.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 23.60 mm Clearance in Groove (C1): 26.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03500-C (5 Pcs) Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel 119 units (595 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 5
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.60 mm Clearance in Groove (C1): 26.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03500-C (5 Pcs) Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel 119 units (595 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03500-C (5 Pcs) --- Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel CCI-03500-C (5 Pcs) --- Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 119 Available Now
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 23.60 mm Clearance in Groove (C1): 26.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03500-S15 Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Each
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.60 mm Clearance in Groove (C1): 26.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03500-S15 Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per Each View the product page first if you are unsure.
CCI-03500-S15 --- Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo CCI-03500-S15 --- Internal Retaining Rings - 35x1.5x37 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.95 AUD Regular price Sale price $6.95 AUD Unit price per 2 Available Now
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25	Radial Wall (S) 3.3 - 3.4 mm	Groove Width (W) 1.60 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03500-C-V (6 Pcs) Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Per 6
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25
Material: Carbon Steel Radial Wall (S): 3.3 - 3.4 mm Groove Width (W): 1.60 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03500-C-V (6 Pcs) Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Per 6 View the product page first if you are unsure.
CCI-03500-C-V (6 Pcs) --- Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel CCI-03500-C-V (6 Pcs) --- Internal Retaining Rings - 35x1.5x37 mm - Carbon Steel Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 37.25 mm + 0.00 / - 0.06 _{(1.467 in.)}	Approx. Loose Circlip OD (Dr) 37.55 mm	Radial Wall (S) 3.60 mm	Groove Width (W) 1.60 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-035 (5 Pcs) Internal Retaining Rings - 35x1.5x37.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Per 5
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 37.25 mm + 0.00 / - 0.06 _{(1.467 in.)}	Approx. Loose Circlip OD (Dr) 37.55 mm
Material: Carbon Steel Radial Wall (S): 3.60 mm Groove Width (W): 1.60 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-035 (5 Pcs) Internal Retaining Rings - 35x1.5x37.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Per 5 View the product page first if you are unsure.
DJK-035 (5 Pcs) --- Internal Retaining Rings - 35x1.5x37.25 mm - Carbon Steel DJK-035 (5 Pcs) --- Internal Retaining Rings - 35x1.5x37.25 mm - Carbon Steel Regular price $17.77 AUD Regular price Sale price $17.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03500H-C (250 Pcs) Internal Retaining Rings - 35x1.75x37 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $548.23 AUD Regular price Sale price $548.23 AUD Unit price per Per 250
Housing Bore (B) 35.00 mm _{(1.378 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 37.00 mm + 0.00 / - 0.06 _{(1.457 in.)}	Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.85 mm + 0.10 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03500H-C (250 Pcs) Internal Retaining Rings - 35x1.75x37 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $548.23 AUD Regular price Sale price $548.23 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03500H-C (250 Pcs) --- Internal Retaining Rings - 35x1.75x37 mm - Carbon Steel CCI-03500H-C (250 Pcs) --- Internal Retaining Rings - 35x1.75x37 mm - Carbon Steel Regular price $548.23 AUD Regular price Sale price $548.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 38.00 mm + 0.00 / - 0.06 _{(1.496 in.)}	Approx. Loose Circlip OD (Dr) 38.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 24.60 mm Clearance in Groove (C1): 27.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03600-C (5 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Carbon Steel 16 units (80 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 5
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 38.00 mm + 0.00 / - 0.06 _{(1.496 in.)}	Approx. Loose Circlip OD (Dr) 38.80 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 24.60 mm Clearance in Groove (C1): 27.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03600-C (5 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Carbon Steel 16 units (80 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03600-C (5 Pcs) --- Internal Retaining Rings - 36x1.5x38 mm - Carbon Steel CCI-03600-C (5 Pcs) --- Internal Retaining Rings - 36x1.5x38 mm - Carbon Steel Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per 16 Available Now
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 38.00 mm + 0.00 / - 0.06 _{(1.496 in.)}	Approx. Loose Circlip OD (Dr) 38.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 24.60 mm Clearance in Groove (C1): 27.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03600-S15 (2 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Per 2
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 38.00 mm + 0.00 / - 0.06 _{(1.496 in.)}	Approx. Loose Circlip OD (Dr) 38.80 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 24.60 mm Clearance in Groove (C1): 27.20 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03600-S15 (2 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03600-S15 (2 Pcs) --- Internal Retaining Rings - 36x1.5x38 mm - Stainless Steel Grade PH15-7 Mo CCI-03600-S15 (2 Pcs) --- Internal Retaining Rings - 36x1.5x38 mm - Stainless Steel Grade PH15-7 Mo Regular price $25.14 AUD Regular price Sale price $25.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 38.00 mm + 0.00 / - 0.06 _{(1.496 in.)}	Approx. Loose Circlip OD (Dr) 38.80 mm + 0.50 / - 0.25	Radial Wall (S) 3.5 - 3.6 mm	Groove Width (W) 1.60 mm
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03600-C-V (250 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $643.14 AUD Regular price Sale price $643.14 AUD Unit price per Per 250
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 38.00 mm + 0.00 / - 0.06 _{(1.496 in.)}	Approx. Loose Circlip OD (Dr) 38.80 mm + 0.50 / - 0.25
Material: Spring Steel Radial Wall (S): 3.5 - 3.6 mm Groove Width (W): 1.60 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03600-C-V (250 Pcs) Internal Retaining Rings - 36x1.5x38 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $643.14 AUD Regular price Sale price $643.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03600-C-V (250 Pcs) --- Internal Retaining Rings - 36x1.5x38 mm - Spring Steel CCI-03600-C-V (250 Pcs) --- Internal Retaining Rings - 36x1.5x38 mm - Spring Steel Regular price $643.14 AUD Regular price Sale price $643.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 38.25 mm + 0.00 / - 0.06 _{(1.506 in.)}	Approx. Loose Circlip OD (Dr) 38.55 - 39.30 mm	Radial Wall (S) 3.60 mm	Groove Width (W) 1.60 mm
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-036 Internal Retaining Rings - 36x1.5x38.25 mm - Spring Steel 30 Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each
Housing Bore (B) 36.00 mm _{(1.417 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 38.25 mm + 0.00 / - 0.06 _{(1.506 in.)}	Approx. Loose Circlip OD (Dr) 38.55 - 39.30 mm
Material: Spring Steel Radial Wall (S): 3.60 mm Groove Width (W): 1.60 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-036 Internal Retaining Rings - 36x1.5x38.25 mm - Spring Steel 30 Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each View the product page first if you are unsure.
DJK-036 --- Internal Retaining Rings - 36x1.5x38.25 mm - Spring Steel DJK-036 --- Internal Retaining Rings - 36x1.5x38.25 mm - Spring Steel Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per 30 Available Now
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 39.17 mm +/- 0.05 _{(1.542 in.)}	Approx. Loose Circlip OD (Dr) 40.03 mm + 1.14 / - 0.00	Radial Wall (S) 1.65 - 3.38 mm	Groove Width (W) 1.02 mm + 0.03 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-03653-C (38 Pcs) Internal Retaining Rings - 36.53x1.22x39.17 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 39.17 mm +/- 0.05 _{(1.542 in.)}	Approx. Loose Circlip OD (Dr) 40.03 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S): 1.65 - 3.38 mm Groove Width (W): 1.02 mm + 0.03 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-03653-C (38 Pcs) Internal Retaining Rings - 36.53x1.22x39.17 mm - Carbon Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03653-S15 (2 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Per 2
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03653-S15 (2 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03653-S15 (2 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Stainless Steel Grade PH15-7 Mo CCI-03653-S15 (2 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Stainless Steel Grade PH15-7 Mo Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03653-CZY (6 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Per 6
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03653-CZY (6 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Per 6 View the product page first if you are unsure.
CCI-03653-CZY (6 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated CCI-03653-CZY (6 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated Regular price $22.14 AUD Regular price Sale price $22.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Category: Retaining Rings - Internal - Circlips - Standard

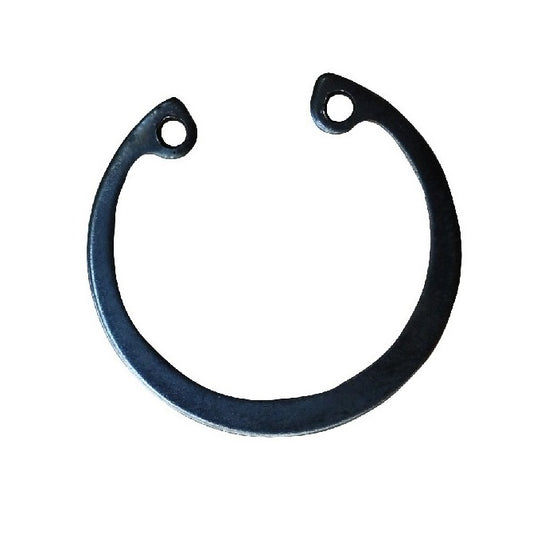

Part Number: CCI-03653-C (50 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $82.59 AUD Regular price Sale price $82.59 AUD Unit price per Per 50
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm + 0.00 / - 0.06 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 0.64 / - 0.38
Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 26.92 mm Clearance in Groove (C1): 29.21 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03653-C (50 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 10, 2025 Regular price $82.59 AUD Regular price Sale price $82.59 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03653-C (50 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel CCI-03653-C (50 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Regular price $82.59 AUD Regular price Sale price $82.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm +/- 0.052 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm	Radial Wall (S) 1.75 - 3.66 mm	Groove Width (W) 1.42 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03653-C-V (2 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel 9 units (18 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 2
Housing Bore (B) 36.53 mm _{(1.438 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 38.81 mm +/- 0.052 _{(1.528 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm
Material: Carbon Steel Radial Wall (S): 1.75 - 3.66 mm Groove Width (W): 1.42 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03653-C-V (2 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel 9 units (18 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03653-C-V (2 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel CCI-03653-C-V (2 Pcs) --- Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 9 Available Now
Housing Bore (B) 36.98 mm _{(1.456 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 39.67 mm +/- 0.05 _{(1.562 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 1.14 / - 0.00	Radial Wall (S) 1.65 - 3.38 mm	Groove Width (W) 1.02 mm + 0.03 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-03698-C (125 Pcs) Internal Retaining Rings - 36.98x1.22x39.67 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $455.68 AUD Regular price Sale price $455.68 AUD Unit price per Per 125
Housing Bore (B) 36.98 mm _{(1.456 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 39.67 mm +/- 0.05 _{(1.562 in.)}	Approx. Loose Circlip OD (Dr) 40.54 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S): 1.65 - 3.38 mm Groove Width (W): 1.02 mm + 0.03 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-03698-C (125 Pcs) Internal Retaining Rings - 36.98x1.22x39.67 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $455.68 AUD Regular price Sale price $455.68 AUD Unit price per Per 125 View the product page first if you are unsure.
CIB-03698-C (125 Pcs) --- Internal Retaining Rings - 36.98x1.22x39.67 mm - Carbon Steel CIB-03698-C (125 Pcs) --- Internal Retaining Rings - 36.98x1.22x39.67 mm - Carbon Steel Regular price $455.68 AUD Regular price Sale price $455.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 36.98 mm _{(1.456 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 39.32 mm + 0.00 / - 0.06 _{(1.548 in.)}	Approx. Loose Circlip OD (Dr) 41.05 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 27.43 mm Clearance in Groove (C1): 29.72 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03698-C (50 Pcs) Internal Retaining Rings - 36.98x1.27x39.32 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $384.05 AUD Regular price Sale price $384.05 AUD Unit price per Per 50
Housing Bore (B) 36.98 mm _{(1.456 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 39.32 mm + 0.00 / - 0.06 _{(1.548 in.)}	Approx. Loose Circlip OD (Dr) 41.05 mm + 0.64 / - 0.38
Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 27.43 mm Clearance in Groove (C1): 29.72 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03698-C (50 Pcs) Internal Retaining Rings - 36.98x1.27x39.32 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $384.05 AUD Regular price Sale price $384.05 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03698-C (50 Pcs) --- Internal Retaining Rings - 36.98x1.27x39.32 mm - Carbon Steel CCI-03698-C (50 Pcs) --- Internal Retaining Rings - 36.98x1.27x39.32 mm - Carbon Steel Regular price $384.05 AUD Regular price Sale price $384.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 28.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03700-C (5 Pcs) Internal Retaining Rings - 37x1.5x39 mm - Carbon Steel 41 units (205 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Per 5
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 28.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03700-C (5 Pcs) Internal Retaining Rings - 37x1.5x39 mm - Carbon Steel 41 units (205 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03700-C (5 Pcs) --- Internal Retaining Rings - 37x1.5x39 mm - Carbon Steel CCI-03700-C (5 Pcs) --- Internal Retaining Rings - 37x1.5x39 mm - Carbon Steel Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 41 Available Now
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 28.00 mm Category: Retaining Rings - Internal - Circlips - Standard

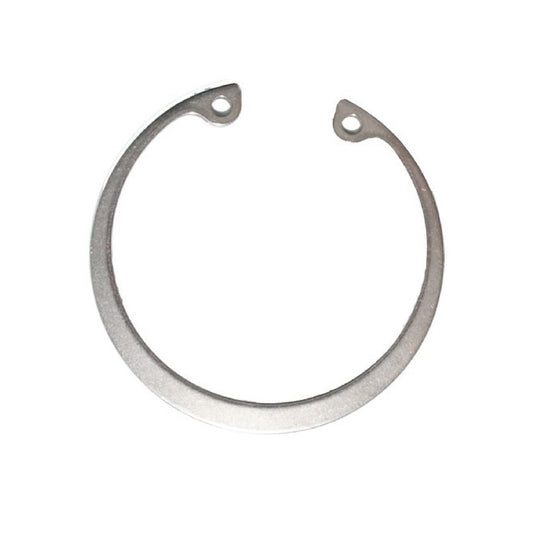

Part Number: CCI-03700-S15 Internal Retaining Rings - 37x1.5x39 mm - Stainless Steel Grade PH15-7 Mo 10 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 28.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03700-S15 Internal Retaining Rings - 37x1.5x39 mm - Stainless Steel Grade PH15-7 Mo 10 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each View the product page first if you are unsure.
CCI-03700-S15 --- Internal Retaining Rings - 37x1.5x39 mm - Stainless Steel Grade PH15-7 Mo CCI-03700-S15 --- Internal Retaining Rings - 37x1.5x39 mm - Stainless Steel Grade PH15-7 Mo Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per 10 Available Now
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03700H-C Internal Retaining Rings - 37x1.75x39 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 37.00 mm _{(1.457 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 39.00 mm + 0.00 / - 0.06 _{(1.535 in.)}	Approx. Loose Circlip OD (Dr) 39.80 mm + 0.50 / - 0.25
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.85 mm + 0.10 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03700H-C Internal Retaining Rings - 37x1.75x39 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 26.40 mm Clearance in Groove (C1): 29.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03800-C (2 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel 268 units (536 pcs) Available Immediately \| Further orders can be expected around Wed, Jul 02, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Per 2
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 26.40 mm Clearance in Groove (C1): 29.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03800-C (2 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel 268 units (536 pcs) Available Immediately \| Further orders can be expected around Wed, Jul 02, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03800-C (2 Pcs) --- Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel CCI-03800-C (2 Pcs) --- Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per 268 Available Now
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 26.40 mm Clearance in Groove (C1): 29.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03800-S15 (2 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.32 AUD Regular price Sale price $29.32 AUD Unit price per Per 2
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 26.40 mm Clearance in Groove (C1): 29.00 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03800-S15 (2 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.32 AUD Regular price Sale price $29.32 AUD Unit price per Per 2 View the product page first if you are unsure.

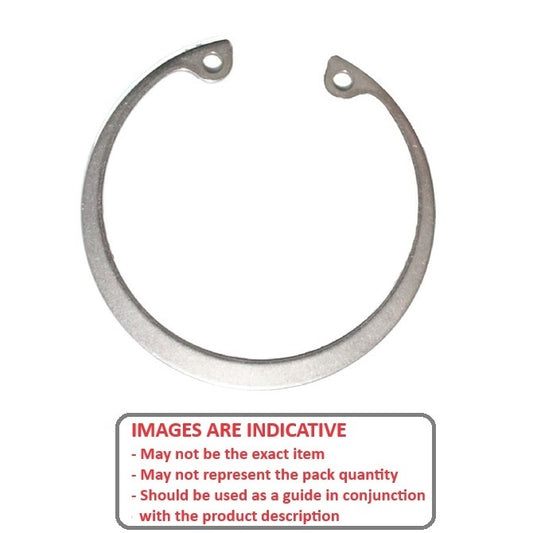

CCI-03800-S15 (2 Pcs) --- Internal Retaining Rings - 38x1.5x40 mm - Stainless Steel Grade PH15-7 Mo CCI-03800-S15 (2 Pcs) --- Internal Retaining Rings - 38x1.5x40 mm - Stainless Steel Grade PH15-7 Mo Regular price $29.32 AUD Regular price Sale price $29.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25	Radial Wall (S) 3.7 - 3.8 mm	Groove Width (W) 1.60 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03800-C-V (125 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $400.68 AUD Regular price Sale price $400.68 AUD Unit price per Per 125
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 40.00 mm + 0.00 / - 0.06 _{(1.575 in.)}	Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25
Material: Carbon Steel Radial Wall (S): 3.7 - 3.8 mm Groove Width (W): 1.60 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03800-C-V (125 Pcs) Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $400.68 AUD Regular price Sale price $400.68 AUD Unit price per Per 125 View the product page first if you are unsure.
CCI-03800-C-V (125 Pcs) --- Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel CCI-03800-C-V (125 Pcs) --- Internal Retaining Rings - 38x1.5x40 mm - Carbon Steel Regular price $400.68 AUD Regular price Sale price $400.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 40.25 mm + 0.00 / - 0.06 _{(1.585 in.)}	Approx. Loose Circlip OD (Dr) 40.55 mm	Radial Wall (S) 3.80 mm	Groove Width (W) 1.60 mm
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-038 Internal Retaining Rings - 38x1.5x40.25 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 38.00 mm _{(1.496 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 40.25 mm + 0.00 / - 0.06 _{(1.585 in.)}	Approx. Loose Circlip OD (Dr) 40.55 mm
Material: Spring Steel Radial Wall (S): 3.80 mm Groove Width (W): 1.60 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-038 Internal Retaining Rings - 38x1.5x40.25 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
