Collection: Retaining Rings - Internal - Circlips

Retaining Rings (With Images)

Internal

Circlips

718 Products in this selection

This is a combined category of Circlips Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.72 mm + 0.00 / - 0.06 _{(1.328 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03175-S15 Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo 13 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.72 mm + 0.00 / - 0.06 _{(1.328 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03175-S15 Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo 13 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each View the product page first if you are unsure.
CCI-03175-S15 --- Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo CCI-03175-S15 --- Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per 13 Available Now
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.78 mm +/- 0.052 _{(1.33 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm	Radial Wall (S) 1.55 - 3.28 mm	Groove Width (W) 1.42 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03175-C-V (50 Pcs) Internal Retaining Rings - 31.75x1.27x33.78 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $112.95 AUD Regular price Sale price $112.95 AUD Unit price per Per 50
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.78 mm +/- 0.052 _{(1.33 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm
Material: Carbon Steel Radial Wall (S): 1.55 - 3.28 mm Groove Width (W): 1.42 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03175-C-V (50 Pcs) Internal Retaining Rings - 31.75x1.27x33.78 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $112.95 AUD Regular price Sale price $112.95 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03175-C-V (50 Pcs) --- Internal Retaining Rings - 31.75x1.27x33.78 mm - Carbon Steel CCI-03175-C-V (50 Pcs) --- Internal Retaining Rings - 31.75x1.27x33.78 mm - Carbon Steel Regular price $112.95 AUD Regular price Sale price $112.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03200-S15 (5 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Per 5
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03200-S15 (5 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03200-S15 (5 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo CCI-03200-S15 (5 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03200-C (10 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel 31 units (310 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 10
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03200-C (10 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel 31 units (310 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per Per 10 View the product page first if you are unsure.
CCI-03200-C (10 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel CCI-03200-C (10 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel Regular price $7.68 AUD Regular price Sale price $7.68 AUD Unit price per 31 Available Now
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25	Radial Wall (S) 3.2 - 3.3 mm	Groove Width (W) 1.30 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03200-C-V (10 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel 19 units (190 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Per 10
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25
Material: Carbon Steel Radial Wall (S): 3.2 - 3.3 mm Groove Width (W): 1.30 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03200-C-V (10 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel 19 units (190 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per Per 10 View the product page first if you are unsure.
CCI-03200-C-V (10 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel CCI-03200-C-V (10 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Carbon Steel Regular price $17.68 AUD Regular price Sale price $17.68 AUD Unit price per 19 Available Now
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.25 _{(0.047 in.)}	Groove Dia. (Dg) 33.95 mm + 0.00 / - 0.06 _{(1.337 in.)}	Approx. Loose Circlip OD (Dr) 34.15 mm	Radial Wall (S) 3.30 mm	Groove Width (W) 1.30 mm
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-032 Internal Retaining Rings - 32x1.2x33.95 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.25 _{(0.047 in.)}	Groove Dia. (Dg) 33.95 mm + 0.00 / - 0.06 _{(1.337 in.)}	Approx. Loose Circlip OD (Dr) 34.15 mm
Material: Spring Steel Radial Wall (S): 3.30 mm Groove Width (W): 1.30 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-032 Internal Retaining Rings - 32x1.2x33.95 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03200H-C (250 Pcs) Internal Retaining Rings - 32x1.5x33.71 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $240.77 AUD Regular price Sale price $240.77 AUD Unit price per Per 250
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03200H-C (250 Pcs) Internal Retaining Rings - 32x1.5x33.71 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $240.77 AUD Regular price Sale price $240.77 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03200H-C (250 Pcs) --- Internal Retaining Rings - 32x1.5x33.71 mm - Carbon Steel CCI-03200H-C (250 Pcs) --- Internal Retaining Rings - 32x1.5x33.71 mm - Carbon Steel Regular price $240.77 AUD Regular price Sale price $240.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03300-C (5 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Carbon Steel 38 units (190 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 5
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03300-C (5 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Carbon Steel 38 units (190 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03300-C (5 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Carbon Steel CCI-03300-C (5 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Carbon Steel Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per 38 Available Now
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Category: Retaining Rings - Internal - Circlips - Standard

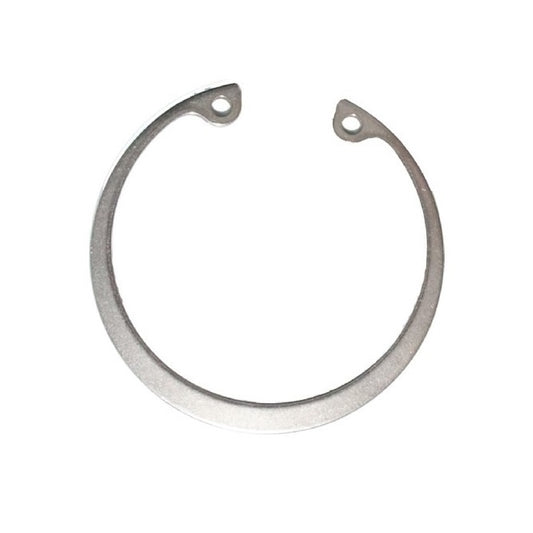

Part Number: CCI-03300-S15 (250 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,157.41 AUD Regular price Sale price $2,157.41 AUD Unit price per Per 250
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03300-S15 (250 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,157.41 AUD Regular price Sale price $2,157.41 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03300-S15 (250 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo CCI-03300-S15 (250 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo Regular price $2,157.41 AUD Regular price Sale price $2,157.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25	Radial Wall (S) 3.2 - 3.3 mm	Groove Width (W) 1.30 mm
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03300-C-V (250 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $383.14 AUD Regular price Sale price $383.14 AUD Unit price per Per 250
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25
Material: Spring Steel Radial Wall (S): 3.2 - 3.3 mm Groove Width (W): 1.30 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03300-C-V (250 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $383.14 AUD Regular price Sale price $383.14 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03300-C-V (250 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Spring Steel CCI-03300-C-V (250 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Spring Steel Regular price $383.14 AUD Regular price Sale price $383.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.25 _{(0.047 in.)}	Groove Dia. (Dg) 34.95 mm + 0.00 / - 0.06 _{(1.376 in.)}	Approx. Loose Circlip OD (Dr) 35.25 - 36.00 mm	Radial Wall (S) 3.30 mm	Groove Width (W) 1.30 mm
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-033 Internal Retaining Rings - 33x1.2x34.95 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.00 / - 0.25 _{(0.047 in.)}	Groove Dia. (Dg) 34.95 mm + 0.00 / - 0.06 _{(1.376 in.)}	Approx. Loose Circlip OD (Dr) 35.25 - 36.00 mm
Material: Spring Steel Radial Wall (S): 3.30 mm Groove Width (W): 1.30 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-033 Internal Retaining Rings - 33x1.2x34.95 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 35.76 mm +/- 0.05 _{(1.408 in.)}	Approx. Loose Circlip OD (Dr) 36.47 mm + 1.14 / - 0.00	Radial Wall (S) 1.57 - 3.30 mm	Groove Width (W) 1.07 mm + 0.03 / - 0.00
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-03338-C (50 Pcs) Internal Retaining Rings - 33.38x1.22x35.76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $3,005.59 AUD Regular price Sale price $3,005.59 AUD Unit price per Per 50
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 35.76 mm +/- 0.05 _{(1.408 in.)}	Approx. Loose Circlip OD (Dr) 36.47 mm + 1.14 / - 0.00
Material: Spring Steel Radial Wall (S): 1.57 - 3.30 mm Groove Width (W): 1.07 mm + 0.03 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-03338-C (50 Pcs) Internal Retaining Rings - 33.38x1.22x35.76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $3,005.59 AUD Regular price Sale price $3,005.59 AUD Unit price per Per 50 View the product page first if you are unsure.
CIB-03338-C (50 Pcs) --- Internal Retaining Rings - 33.38x1.22x35.76 mm - Spring Steel CIB-03338-C (50 Pcs) --- Internal Retaining Rings - 33.38x1.22x35.76 mm - Spring Steel Regular price $3,005.59 AUD Regular price Sale price $3,005.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm +/- 0.052 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.10 mm	Radial Wall (S) 1.60 - 3.35 mm	Groove Width (W) 1.42 mm
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03332-C-V (50 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $88.14 AUD Regular price Sale price $88.14 AUD Unit price per Per 50
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm +/- 0.052 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.10 mm
Material: Carbon Steel Radial Wall (S): 1.60 - 3.35 mm Groove Width (W): 1.42 mm Category: Retaining Rings - Internal - Circlips - Inverted
Part Number: CCI-03332-C-V (50 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $88.14 AUD Regular price Sale price $88.14 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03332-C-V (50 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel CCI-03332-C-V (50 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Regular price $88.14 AUD Regular price Sale price $88.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03338-S15 (2 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Per 2
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03338-S15 (2 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03338-S15 (2 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Stainless Steel Grade PH15-7 Mo CCI-03338-S15 (2 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03338-CZY (5 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Per 5
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03338-CZY (5 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03338-CZY (5 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Zinc Plated CCI-03338-CZY (5 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Zinc Plated Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03338-C (50 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Per 50
Housing Bore (B) 33.38 mm _{(1.314 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 35.46 mm + 0.00 / - 0.06 _{(1.396 in.)}	Approx. Loose Circlip OD (Dr) 36.98 mm + 0.64 / - 0.38
Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 23.88 mm Clearance in Groove (C1): 25.91 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03338-C (50 Pcs) Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03338-C (50 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel CCI-03338-C (50 Pcs) --- Internal Retaining Rings - 33.38x1.27x35.46 mm - Carbon Steel Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.50 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 22.60 mm Clearance in Groove (C1): 24.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03400-C (5 Pcs) Internal Retaining Rings - 34x1.5x35.7 mm - Carbon Steel 99 units (495 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Per 5
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.50 mm + 0.50 / - 0.25
Material: Carbon Steel Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 22.60 mm Clearance in Groove (C1): 24.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03400-C (5 Pcs) Internal Retaining Rings - 34x1.5x35.7 mm - Carbon Steel 99 units (495 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03400-C (5 Pcs) --- Internal Retaining Rings - 34x1.5x35.7 mm - Carbon Steel CCI-03400-C (5 Pcs) --- Internal Retaining Rings - 34x1.5x35.7 mm - Carbon Steel Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 99 Available Now
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.50 mm + 0.50 / - 0.25		Groove Width (W) 1.60 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 22.60 mm Clearance in Groove (C1): 24.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03400-S15 (2 Pcs) Internal Retaining Rings - 34x1.5x35.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Per 2
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.25 / - 0.00 _{(0.059 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.50 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm + 0.10 / - 0.00 Clearance in Bore (C): 22.60 mm Clearance in Groove (C1): 24.90 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03400-S15 (2 Pcs) Internal Retaining Rings - 34x1.5x35.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03400-S15 (2 Pcs) --- Internal Retaining Rings - 34x1.5x35.7 mm - Stainless Steel Grade PH15-7 Mo CCI-03400-S15 (2 Pcs) --- Internal Retaining Rings - 34x1.5x35.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $24.05 AUD Regular price Sale price $24.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 37.95 mm + 0.00 / - 0.06 _{(1.494 in.)}	Approx. Loose Circlip OD (Dr) 36.25 - 37.00 mm	Radial Wall (S) 3.40 mm	Groove Width (W) 1.60 mm
Material: Spring Steel Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-034 Internal Retaining Rings - 34x1.5x37.95 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.50 mm + 0.00 / - 0.25 _{(0.059 in.)}	Groove Dia. (Dg) 37.95 mm + 0.00 / - 0.06 _{(1.494 in.)}	Approx. Loose Circlip OD (Dr) 36.25 - 37.00 mm
Material: Spring Steel Radial Wall (S): 3.40 mm Groove Width (W): 1.60 mm Category: Retaining Rings - Internal - Circlips - Tabbed
Part Number: DJK-034 Internal Retaining Rings - 34x1.5x37.95 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.60 mm + 0.50 / - 0.25		Groove Width (W) 1.85 mm + 0.10 / - 0.00
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - Internal - Circlips - Standard

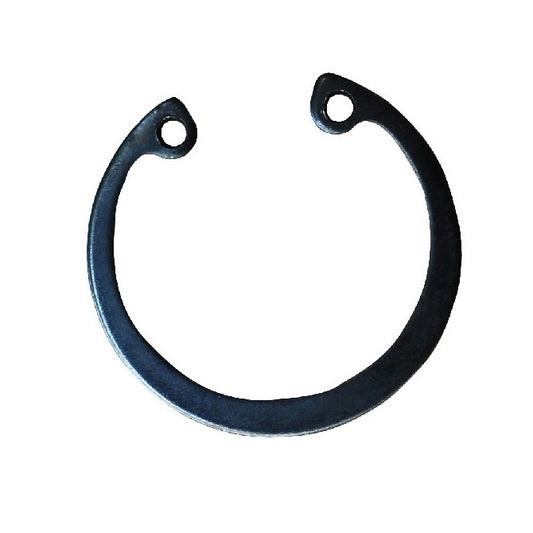

Part Number: CCI-03400H-C Internal Retaining Rings - 34x1.75x35.7 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 34.00 mm _{(1.339 in.)}	Clip Thickness (T) 1.75 mm + 0.25 / - 0.00 _{(0.069 in.)}	Groove Dia. (Dg) 35.70 mm + 0.00 / - 0.06 _{(1.406 in.)}	Approx. Loose Circlip OD (Dr) 36.60 mm + 0.50 / - 0.25
Material: Carbon Spring Steel Self Finish Groove Width (W): 1.85 mm + 0.10 / - 0.00 Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03400H-C Internal Retaining Rings - 34x1.75x35.7 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 37.54 mm +/- 0.05 _{(1.478 in.)}	Approx. Loose Circlip OD (Dr) 38.25 mm + 1.14 / - 0.00	Radial Wall (S) 1.60 - 3.30 mm	Groove Width (W) 1.04 mm + 0.03 / - 0.00
Material: Carbon Steel Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-03493-C (4 Pcs) Internal Retaining Rings - 34.93x1.22x37.54 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Per 4
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.22 mm + 0.10 / - 0.00 _{(0.048 in.)}	Groove Dia. (Dg) 37.54 mm +/- 0.05 _{(1.478 in.)}	Approx. Loose Circlip OD (Dr) 38.25 mm + 1.14 / - 0.00
Material: Carbon Steel Radial Wall (S): 1.60 - 3.30 mm Groove Width (W): 1.04 mm + 0.03 / - 0.00 Category: Retaining Rings - Internal - Circlips - Bevelled
Part Number: CIB-03493-C (4 Pcs) Internal Retaining Rings - 34.93x1.22x37.54 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Per 4 View the product page first if you are unsure.
CIB-03493-C (4 Pcs) --- Internal Retaining Rings - 34.93x1.22x37.54 mm - Carbon Steel CIB-03493-C (4 Pcs) --- Internal Retaining Rings - 34.93x1.22x37.54 mm - Carbon Steel Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Zinc Plated Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03493-CZY (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $111.50 AUD Regular price Sale price $111.50 AUD Unit price per Per 50
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38
Material: Carbon Steel Zinc Plated Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03493-CZY (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Zinc Plated Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $111.50 AUD Regular price Sale price $111.50 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03493-CZY (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Zinc Plated CCI-03493-CZY (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Zinc Plated Regular price $111.50 AUD Regular price Sale price $111.50 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Category: Retaining Rings - Internal - Circlips - Standard

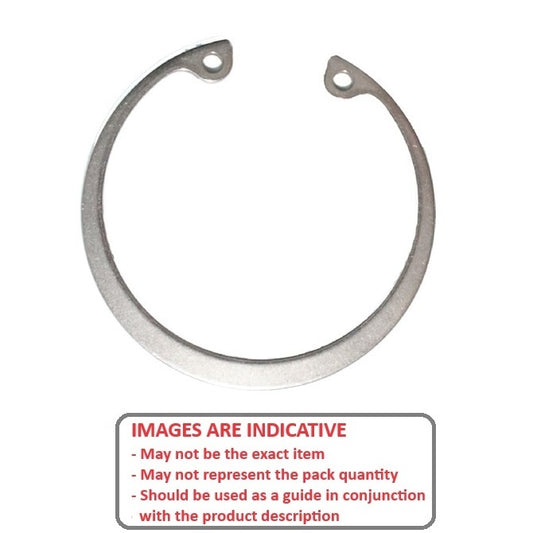

Part Number: CCI-03493-S15 (2 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Per 2
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03493-S15 (2 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Per 2 View the product page first if you are unsure.
CCI-03493-S15 (2 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Stainless Steel Grade PH15-7 Mo CCI-03493-S15 (2 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Stainless Steel Grade PH15-7 Mo Regular price $18.32 AUD Regular price Sale price $18.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03493-C (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Per 50
Housing Bore (B) 34.93 mm _{(1.375 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 37.11 mm + 0.00 / - 0.06 _{(1.461 in.)}	Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38
Material: Carbon Steel Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 25.40 mm Clearance in Groove (C1): 27.43 mm Category: Retaining Rings - Internal - Circlips - Standard
Part Number: CCI-03493-C (50 Pcs) Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03493-C (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel CCI-03493-C (50 Pcs) --- Internal Retaining Rings - 34.93x1.27x37.11 mm - Carbon Steel Regular price $51.68 AUD Regular price Sale price $51.68 AUD Unit price per Out of stock! Backorder Now
