Collection: Retaining Rings - External
1599 Products in this selection
This is a combined category of External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - External. Smallparts promote the most popular MBA products.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (0.061 in.) |
Groove Dia. (Dg)
92.41
mm (3.638 in.) |
Approx. Loose Circlip ID (A)
89.54
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
5.03
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.16 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 99.6 mm +/- 0.06

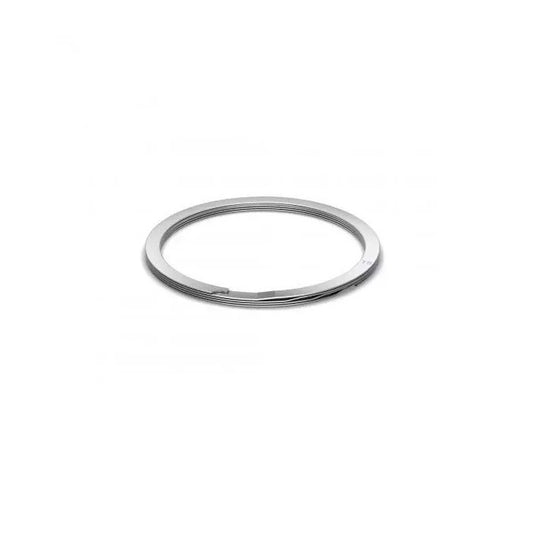

Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-375 External Retaining Rings - 95.25x1.55x92.41 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Each
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (0.061 in.) |
Groove Dia. (Dg)
92.41
mm (3.638 in.) |
Approx. Loose Circlip ID (A)
89.54
mm + 0.00 / - 1.02 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.03 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.16
Clearance in Groove (C1): 99.6 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-375 External Retaining Rings - 95.25x1.55x92.41 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
91.69
mm +/- 0.15 (3.61 in.) |
Approx. Loose Circlip ID (A)
90.68
mm - 0.00 / + 2.40 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 101.76 mm

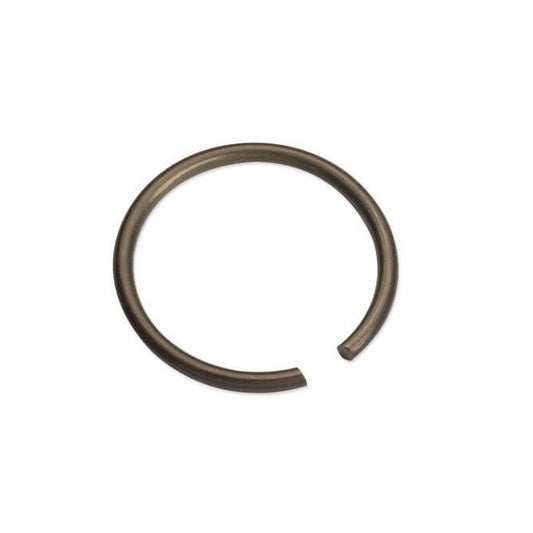

Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0953-LS-L External Retaining Rings - 95.25x1.98x91.69 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (0.078 in.) |
Groove Dia. (Dg)
91.69
mm +/- 0.15 (3.61 in.) |
Approx. Loose Circlip ID (A)
90.68
mm - 0.00 / + 2.40 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 101.76 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0953-LS-L External Retaining Rings - 95.25x1.98x91.69 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
88.60
mm +/- 0.08 (3.488 in.) |
Approx. Loose Circlip ID (A)
87.33
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.06 - 7.87
mm |
Groove Width (W)
2.26
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Steel

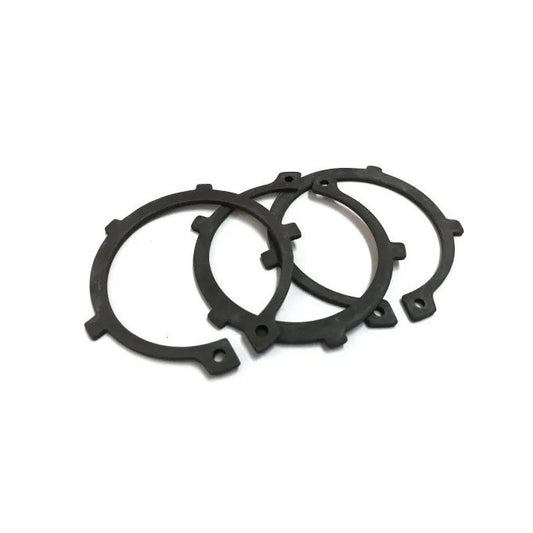

Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-09525-C External Retaining Rings - 95.25x2.77x88.6 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$136.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
88.60
mm +/- 0.08 (3.488 in.) |
Approx. Loose Circlip ID (A)
87.33
mm + 1.27 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S) min/max: 4.06 - 7.87 mm
Groove Width (W): 2.26 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-09525-C External Retaining Rings - 95.25x2.77x88.6 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$136.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
90.22
mm +/- 0.15 (3.552 in.) |
Approx. Loose Circlip ID (A)
89.46
mm + 0.00 / - 2.36 |
Radial Wall (S) min/max
7.14
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 103.74 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0953-LS-N External Retaining Rings - 95.25x2.77x90.22 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
90.22
mm +/- 0.15 (3.552 in.) |
Approx. Loose Circlip ID (A)
89.46
mm + 0.00 / - 2.36 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 7.14 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 103.74 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0953-LS-N External Retaining Rings - 95.25x2.77x90.22 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
90.25
mm +/- 0.076 (3.553 in.) |
Approx. Loose Circlip ID (A)
88.09
mm |
Groove Width (W)
3.05
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 112.78 mm
Clearance in Groove (C1): 107.44 mm

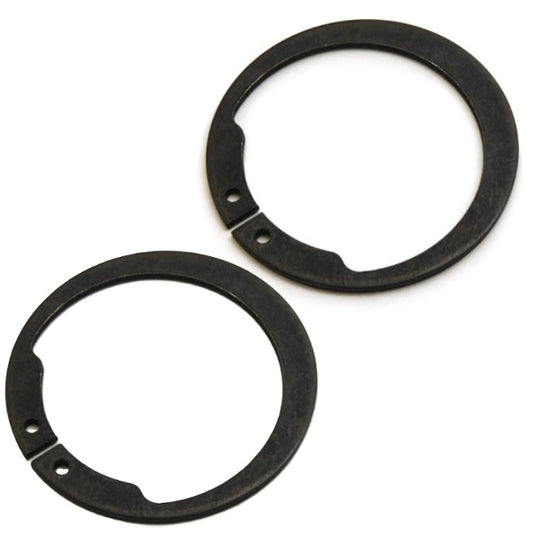

Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09525-C External Retaining Rings - 95.25x2.77x90.25 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$15.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
90.25
mm +/- 0.076 (3.553 in.) |
Approx. Loose Circlip ID (A)
88.09
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm
Clearance on Shaft (C1): 112.78 mm
Clearance in Groove (C1): 107.44 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09525-C External Retaining Rings - 95.25x2.77x90.25 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$15.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
90.25
mm +/- 0.076 (3.553 in.) |
Approx. Loose Circlip ID (A)
88.10
mm |
Groove Width (W)
3.10
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09525-CZY External Retaining Rings - 95.25x2.77x90.25 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
90.25
mm +/- 0.076 (3.553 in.) |
Approx. Loose Circlip ID (A)
88.10
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09525-CZY External Retaining Rings - 95.25x2.77x90.25 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$20.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
90.25
mm +/- 0.076 (3.553 in.) |
Approx. Loose Circlip ID (A)
88.10
mm |
Radial Wall (S) min/max
B (Square Ends)
mm |
Groove Width (W)
3.10
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09525-S15 (2 Pcs) External Retaining Rings - 95.25x2.77x90.25 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 02, 2025 Regular price
$575.50 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
90.25
mm +/- 0.076 (3.553 in.) |
Approx. Loose Circlip ID (A)
88.10
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Radial Wall (S) min/max: B (Square Ends) mm
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09525-S15 (2 Pcs) External Retaining Rings - 95.25x2.77x90.25 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 02, 2025 Regular price
$575.50 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
90.83
mm +/- 0.15 (3.576 in.) |
Approx. Loose Circlip ID (A)
89.94
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 102.64 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0953-LS External Retaining Rings - 95.25x2.77x90.83 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
90.83
mm +/- 0.15 (3.576 in.) |
Approx. Loose Circlip ID (A)
89.94
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 102.64 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0953-LS External Retaining Rings - 95.25x2.77x90.83 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (0.111 in.) |
Groove Dia. (Dg)
90.22
mm (3.552 in.) |
Approx. Loose Circlip ID (A)
88.58
mm + 0.00 / - 0.89 |
Radial Wall (S) min/max
6.86
mm +/- 0.13 |
Groove Width (W)
3.12
mm +/- 0.15 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 102.3 mm +/- 0.07

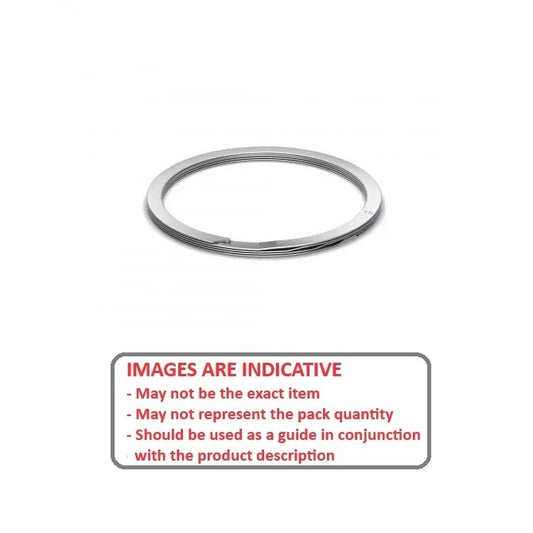

Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-375-S02 External Retaining Rings - 95.25x2.82x90.22 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$173.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (0.111 in.) |
Groove Dia. (Dg)
90.22
mm (3.552 in.) |
Approx. Loose Circlip ID (A)
88.58
mm + 0.00 / - 0.89 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) min/max: 6.86 mm +/- 0.13
Groove Width (W): 3.12 mm +/- 0.15
Clearance in Groove (C1): 102.3 mm +/- 0.07
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-375-S02 External Retaining Rings - 95.25x2.82x90.22 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$173.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (0.111 in.) |
Groove Dia. (Dg)
90.22
mm (3.552 in.) |
Approx. Loose Circlip ID (A)
88.58
mm + 0.00 / - 0.89 |
Radial Wall (S) min/max
6.86
mm +/- 0.13 |
Groove Width (W)
3.12
mm +/- 0.15 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 102.3 mm +/- 0.07
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-375 External Retaining Rings - 95.25x2.82x90.22 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$74.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (3.75 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (0.111 in.) |
Groove Dia. (Dg)
90.22
mm (3.552 in.) |
Approx. Loose Circlip ID (A)
88.58
mm + 0.00 / - 0.89 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.86 mm +/- 0.13
Groove Width (W): 3.12 mm +/- 0.15
Clearance in Groove (C1): 102.3 mm +/- 0.07
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-375 External Retaining Rings - 95.25x2.82x90.22 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$74.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
97.00
mm (3.819 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
93.15
mm + 0.00 / - 0.08 (3.667 in.) |
Approx. Loose Circlip ID (A)
90.20
mm |
Groove Width (W)
3.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09700-C (4 Pcs) External Retaining Rings - 97x3x93.15 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
97.00
mm (3.819 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
93.15
mm + 0.00 / - 0.08 (3.667 in.) |
Approx. Loose Circlip ID (A)
90.20
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 3.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09700-C (4 Pcs) External Retaining Rings - 97x3x93.15 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.00
mm (3.858 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
94.15
mm + 0.00 / - 0.08 (3.707 in.) |
Approx. Loose Circlip ID (A)
91.20
mm |
Groove Width (W)
3.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Clearance on Shaft (C1): 114.00 mm
Clearance in Groove (C1): 118.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09800-C External Retaining Rings - 98x3x94.15 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.00
mm (3.858 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
94.15
mm + 0.00 / - 0.08 (3.707 in.) |
Approx. Loose Circlip ID (A)
91.20
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 3.15 mm
Clearance on Shaft (C1): 114.00 mm
Clearance in Groove (C1): 118.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09800-C External Retaining Rings - 98x3x94.15 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
91.54
mm +/- 0.08 (3.604 in.) |
Approx. Loose Circlip ID (A)
89.15
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.14 - 8.08
mm |
Groove Width (W)
2.26
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-09843-C External Retaining Rings - 98.43x2.77x91.54 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
91.54
mm +/- 0.08 (3.604 in.) |
Approx. Loose Circlip ID (A)
89.15
mm + 1.27 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Radial Wall (S) min/max: 4.14 - 8.08 mm
Groove Width (W): 2.26 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-09843-C External Retaining Rings - 98.43x2.77x91.54 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
93.19
mm +/- 0.076 (3.669 in.) |
Approx. Loose Circlip ID (A)
91.03
mm |
Groove Width (W)
3.05
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 115.82 mm
Clearance in Groove (C1): 110.49 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09843-C (250 Pcs) External Retaining Rings - 98.43x2.77x93.19 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$6,665.68 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
93.19
mm +/- 0.076 (3.669 in.) |
Approx. Loose Circlip ID (A)
91.03
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm
Clearance on Shaft (C1): 115.82 mm
Clearance in Groove (C1): 110.49 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09843-C (250 Pcs) External Retaining Rings - 98.43x2.77x93.19 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$6,665.68 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
93.29
mm +/- 0.15 (3.673 in.) |
Approx. Loose Circlip ID (A)
92.53
mm + 0.00 / - 2.36 |
Radial Wall (S) min/max
7.14
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 106.81 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0984-LS-N External Retaining Rings - 98.43x2.77x93.29 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
93.29
mm +/- 0.15 (3.673 in.) |
Approx. Loose Circlip ID (A)
92.53
mm + 0.00 / - 2.36 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 7.14 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 106.81 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0984-LS-N External Retaining Rings - 98.43x2.77x93.29 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
93.30
mm +/- 0.076 (3.673 in.) |
Approx. Loose Circlip ID (A)
91.00
mm |
Groove Width (W)
3.10
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09843-CZY External Retaining Rings - 98.43x2.77x93.3 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$37.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
93.30
mm +/- 0.076 (3.673 in.) |
Approx. Loose Circlip ID (A)
91.00
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09843-CZY External Retaining Rings - 98.43x2.77x93.3 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$37.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
93.30
mm +/- 0.076 (3.673 in.) |
Approx. Loose Circlip ID (A)
91.00
mm |
Radial Wall (S) min/max
B (Square Ends)
mm |
Groove Width (W)
3.10
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09843-S15 (3 Pcs) External Retaining Rings - 98.43x2.77x93.3 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$838.41 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
93.30
mm +/- 0.076 (3.673 in.) |
Approx. Loose Circlip ID (A)
91.00
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Radial Wall (S) min/max: B (Square Ends) mm
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-09843-S15 (3 Pcs) External Retaining Rings - 98.43x2.77x93.3 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$838.41 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
93.90
mm +/- 0.15 (3.697 in.) |
Approx. Loose Circlip ID (A)
92.89
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
7.14
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 107.17 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0984-LS External Retaining Rings - 98.43x2.77x93.9 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
98.43
mm (3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
93.90
mm +/- 0.15 (3.697 in.) |
Approx. Loose Circlip ID (A)
92.89
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 7.14 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 107.17 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0984-LS External Retaining Rings - 98.43x2.77x93.9 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
99.89
mm (3.933 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (0.061 in.) |
Groove Dia. (Dg)
97.03
mm (3.82 in.) |
Approx. Loose Circlip ID (A)
93.90
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
5.29
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 104.48 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-393 (2 Pcs) External Retaining Rings - 99.89x1.55x97.03 mm - Spring Steel
4 units (8 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$3.24 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
99.89
mm (3.933 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (0.061 in.) |
Groove Dia. (Dg)
97.03
mm (3.82 in.) |
Approx. Loose Circlip ID (A)
93.90
mm + 0.00 / - 1.02 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.29 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Clearance in Groove (C1): 104.48 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-393 (2 Pcs) External Retaining Rings - 99.89x1.55x97.03 mm - Spring Steel
4 units (8 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$3.24 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
100.00
mm (3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (3.799 in.) |
Approx. Loose Circlip ID (A)
93.20 - 95.04
mm |
Groove Width (W)
3.15
mm |
|
|
|
Material: Spring Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-100 External Retaining Rings - 100x3x96.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
100.00
mm (3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (3.799 in.) |
Approx. Loose Circlip ID (A)
93.20 - 95.04
mm |
|
||
|
Material: Spring Steel
Groove Width (W): 3.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-100 External Retaining Rings - 100x3x96.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
100.00
mm (3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (3.799 in.) |
Approx. Loose Circlip ID (A)
94.50
mm |
Groove Width (W)
3.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 116.00 mm
Clearance in Groove (C1): 120.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-10000-C External Retaining Rings - 100x3x96.5 mm - Carbon Steel
80 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
100.00
mm (3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (3.799 in.) |
Approx. Loose Circlip ID (A)
94.50
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm
Clearance on Shaft (C1): 116.00 mm
Clearance in Groove (C1): 120.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-10000-C External Retaining Rings - 100x3x96.5 mm - Carbon Steel
80 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025 Regular price
$9.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
100.00
mm (3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (3.799 in.) |
Approx. Loose Circlip ID (A)
94.50
mm |
Radial Wall (S) min/max
8.00
mm |
Groove Width (W)
3.15
mm |
|
|
Material: Spring Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-10000-C-V External Retaining Rings - 100x3x96.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
100.00
mm (3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
96.50
mm + 0.00 / - 0.08 (3.799 in.) |
Approx. Loose Circlip ID (A)
94.50
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 8.00 mm
Groove Width (W): 3.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-10000-C-V External Retaining Rings - 100x3x96.5 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
100.00
mm (3.937 in.) |
Clip Thickness (T)
3.20
mm (0.126 in.) |
Groove Dia. (Dg)
96.65
mm + 0 / - 1.20 (3.805 in.) |
Approx. Loose Circlip ID (A)
95.8
mm |
Radial Wall (S) min/max
96.65
mm +/- 0.15 |
Groove Width (W)
3.6
mm Min. |
|
|
Material: Spring Steel
Clearance on Shaft (C1): 102.2 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-1000-RD External Retaining Rings - 100x3.2x96.65 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
100.00
mm (3.937 in.) |
Clip Thickness (T)
3.20
mm (0.126 in.) |
Groove Dia. (Dg)
96.65
mm + 0 / - 1.20 (3.805 in.) |
Approx. Loose Circlip ID (A)
95.8
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 96.65 mm +/- 0.15
Groove Width (W): 3.6 mm Min.
Clearance on Shaft (C1): 102.2 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-1000-RD External Retaining Rings - 100x3.2x96.65 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
100.01
mm (3.937 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
93.00
mm +/- 0.08 (3.661 in.) |
Approx. Loose Circlip ID (A)
91.74
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.14 - 8.08
mm |
Groove Width (W)
2.24
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-10001-C External Retaining Rings - 100.01x2.77x93 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$138.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
100.01
mm (3.937 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
93.00
mm +/- 0.08 (3.661 in.) |
Approx. Loose Circlip ID (A)
91.74
mm + 1.27 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S) min/max: 4.14 - 8.08 mm
Groove Width (W): 2.24 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-10001-C External Retaining Rings - 100.01x2.77x93 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$138.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
