Collection: Retaining Rings - External
1599 Products in this selection
This is a combined category of External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - External. Smallparts promote the most popular MBA products.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
87.31
mm (3.437 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.076 (3.257 in.) |
Approx. Loose Circlip ID (A)
80.80
mm |
Groove Width (W)
2.60
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08731-S15 External Retaining Rings - 87.31x2.36x82.73 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$196.95 AUD
Regular price
Unit price
per
Each
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
87.31
mm (3.437 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.076 (3.257 in.) |
Approx. Loose Circlip ID (A)
80.80
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 2.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08731-S15 External Retaining Rings - 87.31x2.36x82.73 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$196.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
87.31
mm (3.437 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.076 (3.257 in.) |
Approx. Loose Circlip ID (A)
80.80
mm |
Groove Width (W)
2.60
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08731-CZY (13 Pcs) External Retaining Rings - 87.31x2.36x82.73 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$354.68 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
Shaft Diameter (Ds)
87.31
mm (3.437 in.) |
Clip Thickness (T)
2.36
mm +/- 0.152 (0.093 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.076 (3.257 in.) |
Approx. Loose Circlip ID (A)
80.80
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 2.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08731-CZY (13 Pcs) External Retaining Rings - 87.31x2.36x82.73 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$354.68 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
||||||
|
Shaft Diameter (Ds)
87.31
mm (3.437 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
81.25
mm +/- 0.08 (3.199 in.) |
Approx. Loose Circlip ID (A)
79.98
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.76 - 7.42
mm |
Groove Width (W)
1.91
mm + 0.06 / - 0.00 |
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-08731-C External Retaining Rings - 87.31x2.77x81.25 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
87.31
mm (3.437 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
81.25
mm +/- 0.08 (3.199 in.) |
Approx. Loose Circlip ID (A)
79.98
mm + 1.27 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Radial Wall (S) min/max: 3.76 - 7.42 mm
Groove Width (W): 1.91 mm + 0.06 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-08731-C External Retaining Rings - 87.31x2.77x81.25 mm - Carbon Spring Steel Self Finish
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
87.33
mm (3.438 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.15 (3.257 in.) |
Approx. Loose Circlip ID (A)
82.09
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 94.79 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0873-LS-N External Retaining Rings - 87.33x2.36x82.73 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
87.33
mm (3.438 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.15 (3.257 in.) |
Approx. Loose Circlip ID (A)
82.09
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Clearance in Groove (C1): 94.79 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0873-LS-N External Retaining Rings - 87.33x2.36x82.73 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
88.00
mm (3.465 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
84.45
mm + 0.00 / - 0.08 (3.325 in.) |
Approx. Loose Circlip ID (A)
82.50
mm |
Groove Width (W)
3.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 102.00 mm
Clearance in Groove (C1): 106.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08800-C External Retaining Rings - 88x3x84.45 mm - Carbon Steel
20 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$2.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
88.00
mm (3.465 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.35 (0.118 in.) |
Groove Dia. (Dg)
84.45
mm + 0.00 / - 0.08 (3.325 in.) |
Approx. Loose Circlip ID (A)
82.50
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm
Clearance on Shaft (C1): 102.00 mm
Clearance in Groove (C1): 106.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08800-C External Retaining Rings - 88x3x84.45 mm - Carbon Steel
20 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$2.00 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
0.99
mm +/- 0.05 (0.039 in.) |
Groove Dia. (Dg)
85.65
mm (3.372 in.) |
Approx. Loose Circlip ID (A)
84.46
mm + 0.00 / - 0.76 |
Radial Wall (S) min/max
4.78
mm +/- 0.13 |
Groove Width (W)
1.16
mm +/- 0.15 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 94.02 mm +/- - 0.03

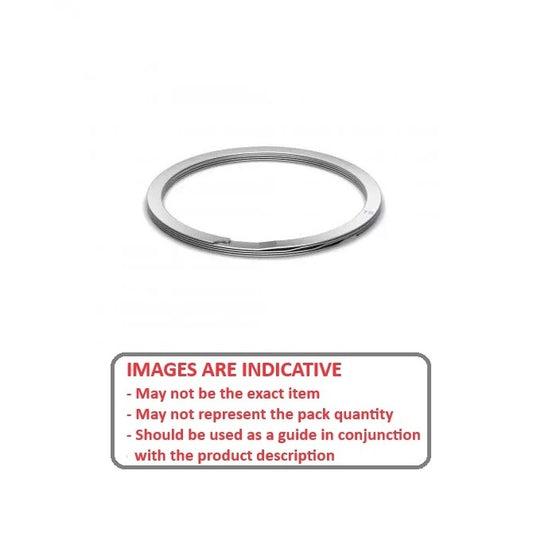

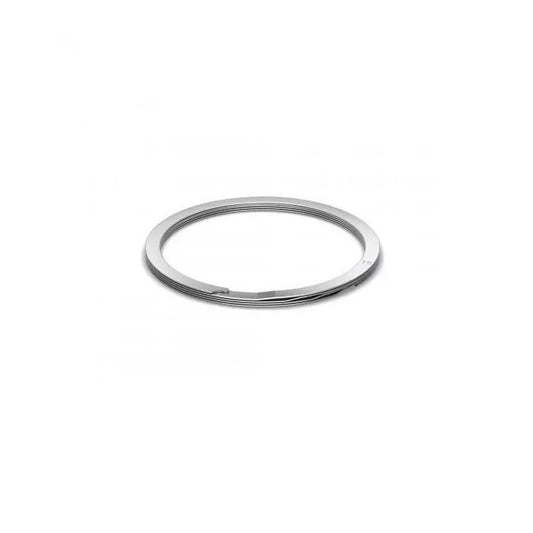

Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: US-350 (26 Pcs) External Retaining Rings - 88.9x0.99x85.65 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 20, 2025 Regular price
$285.86 AUD
Regular price
Unit price
per
Per 26
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
0.99
mm +/- 0.05 (0.039 in.) |
Groove Dia. (Dg)
85.65
mm (3.372 in.) |
Approx. Loose Circlip ID (A)
84.46
mm + 0.00 / - 0.76 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.78 mm +/- 0.13
Groove Width (W): 1.16 mm +/- 0.15
Clearance in Groove (C1): 94.02 mm +/- - 0.03
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: US-350 (26 Pcs) External Retaining Rings - 88.9x0.99x85.65 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Jun 20, 2025 Regular price
$285.86 AUD
Regular price
Unit price
per
Per 26
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (0.061 in.) |
Groove Dia. (Dg)
86.21
mm (3.394 in.) |
Approx. Loose Circlip ID (A)
83.57
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
4.78
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 93.13 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-350 External Retaining Rings - 88.9x1.55x86.21 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (0.061 in.) |
Groove Dia. (Dg)
86.21
mm (3.394 in.) |
Approx. Loose Circlip ID (A)
83.57
mm + 0.00 / - 1.02 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.78 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Clearance in Groove (C1): 93.13 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-350 External Retaining Rings - 88.9x1.55x86.21 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
85.73
mm +/- 0.15 (3.375 in.) |
Approx. Loose Circlip ID (A)
84.84
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 94.34 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0889-LS-L External Retaining Rings - 88.9x1.58x85.73 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
85.73
mm +/- 0.15 (3.375 in.) |
Approx. Loose Circlip ID (A)
84.84
mm - 0.00 / + 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.75 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 94.34 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0889-LS-L External Retaining Rings - 88.9x1.58x85.73 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.08 (3.257 in.) |
Approx. Loose Circlip ID (A)
81.46
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.76 - 7.24
mm |
Groove Width (W)
2.31
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-08890-C (13 Pcs) External Retaining Rings - 88.9x2.77x82.73 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$1,634.32 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
82.73
mm +/- 0.08 (3.257 in.) |
Approx. Loose Circlip ID (A)
81.46
mm + 1.27 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Radial Wall (S) min/max: 3.76 - 7.24 mm
Groove Width (W): 2.31 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-08890-C (13 Pcs) External Retaining Rings - 88.9x2.77x82.73 mm - Carbon Spring Steel Self Finish
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$1,634.32 AUD
Regular price
Unit price
per
Per 13
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.076 (3.316 in.) |
Approx. Loose Circlip ID (A)
82.20
mm |
Groove Width (W)
3.10
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08890-S15 External Retaining Rings - 88.9x2.77x84.23 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$232.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.076 (3.316 in.) |
Approx. Loose Circlip ID (A)
82.20
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08890-S15 External Retaining Rings - 88.9x2.77x84.23 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$232.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.076 (3.316 in.) |
Approx. Loose Circlip ID (A)
82.20
mm |
Groove Width (W)
3.10
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08890-CZY (2 Pcs) External Retaining Rings - 88.9x2.77x84.23 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$33.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.076 (3.316 in.) |
Approx. Loose Circlip ID (A)
82.20
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08890-CZY (2 Pcs) External Retaining Rings - 88.9x2.77x84.23 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$33.59 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.076 (3.316 in.) |
Approx. Loose Circlip ID (A)
82.22
mm |
Groove Width (W)
3.05
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 105.41 mm
Clearance in Groove (C1): 100.58 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08890-C (2 Pcs) External Retaining Rings - 88.9x2.77x84.23 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$21.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.076 (3.316 in.) |
Approx. Loose Circlip ID (A)
82.22
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm
Clearance on Shaft (C1): 105.41 mm
Clearance in Groove (C1): 100.58 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08890-C (2 Pcs) External Retaining Rings - 88.9x2.77x84.23 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$21.41 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.076 (3.316 in.) |
Approx. Loose Circlip ID (A)
82.22
mm |
Radial Wall (S) min/max
4.39
mm |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08890-C-V (50 Pcs) External Retaining Rings - 88.9x2.77x84.23 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$1,615.41 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.076 (3.316 in.) |
Approx. Loose Circlip ID (A)
82.22
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S) min/max: 4.39 mm
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08890-C-V (50 Pcs) External Retaining Rings - 88.9x2.77x84.23 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025 Regular price
$1,615.41 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.15 (3.316 in.) |
Approx. Loose Circlip ID (A)
83.46
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 96.16 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0889-LS-N External Retaining Rings - 88.9x2.77x84.23 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
84.23
mm +/- 0.15 (3.316 in.) |
Approx. Loose Circlip ID (A)
83.46
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 96.16 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0889-LS-N External Retaining Rings - 88.9x2.77x84.23 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
84.84
mm +/- 0.15 (3.34 in.) |
Approx. Loose Circlip ID (A)
83.95
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 96.65 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0889-LS External Retaining Rings - 88.9x2.77x84.84 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
84.84
mm +/- 0.15 (3.34 in.) |
Approx. Loose Circlip ID (A)
83.95
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 96.65 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0889-LS External Retaining Rings - 88.9x2.77x84.84 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (0.111 in.) |
Groove Dia. (Dg)
84.23
mm (3.316 in.) |
Approx. Loose Circlip ID (A)
82.68
mm + 0.00 / - 0.89 |
Radial Wall (S) min/max
6.86
mm +/- 0.13 |
Groove Width (W)
3.12
mm +/- 0.16 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 96.4 mm +/- 0.07
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-350 External Retaining Rings - 88.9x2.82x84.23 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$67.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (0.111 in.) |
Groove Dia. (Dg)
84.23
mm (3.316 in.) |
Approx. Loose Circlip ID (A)
82.68
mm + 0.00 / - 0.89 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.86 mm +/- 0.13
Groove Width (W): 3.12 mm +/- 0.16
Clearance in Groove (C1): 96.4 mm +/- 0.07
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-350 External Retaining Rings - 88.9x2.82x84.23 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$67.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (0.111 in.) |
Groove Dia. (Dg)
84.23
mm (3.316 in.) |
Approx. Loose Circlip ID (A)
82.68
mm + 0.00 / - 0.89 |
Radial Wall (S) min/max
6.86
mm +/- 0.13 |
Groove Width (W)
3.12
mm +/- 0.16 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 96.4 mm +/- 0.07
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-350-S02 External Retaining Rings - 88.9x2.82x84.23 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$157.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (3.5 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (0.111 in.) |
Groove Dia. (Dg)
84.23
mm (3.316 in.) |
Approx. Loose Circlip ID (A)
82.68
mm + 0.00 / - 0.89 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) min/max: 6.86 mm +/- 0.13
Groove Width (W): 3.12 mm +/- 0.16
Clearance in Groove (C1): 96.4 mm +/- 0.07
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-350-S02 External Retaining Rings - 88.9x2.82x84.23 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025 Regular price
$157.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
89.92
mm (3.54 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (0.061 in.) |
Groove Dia. (Dg)
87.20
mm (3.433 in.) |
Approx. Loose Circlip ID (A)
84.52
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
5.03
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Spring Steel
Clearance in Groove (C1): 94.58 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-354 (50 Pcs) External Retaining Rings - 89.92x1.55x87.2 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$67.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
89.92
mm (3.54 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (0.061 in.) |
Groove Dia. (Dg)
87.20
mm (3.433 in.) |
Approx. Loose Circlip ID (A)
84.52
mm + 0.00 / - 1.02 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.03 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Clearance in Groove (C1): 94.58 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-354 (50 Pcs) External Retaining Rings - 89.92x1.55x87.2 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$67.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
83.71
mm +/- 0.08 (3.296 in.) |
Approx. Loose Circlip ID (A)
82.47
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
3.78 - 7.32
mm |
Groove Width (W)
2.31
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-08999-C (3 Pcs) External Retaining Rings - 89.99x2.77x83.71 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$376.05 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (0.109 in.) |
Groove Dia. (Dg)
83.71
mm +/- 0.08 (3.296 in.) |
Approx. Loose Circlip ID (A)
82.47
mm + 1.27 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S) min/max: 3.78 - 7.32 mm
Groove Width (W): 2.31 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-08999-C (3 Pcs) External Retaining Rings - 89.99x2.77x83.71 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$376.05 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
85.27
mm +/- 0.076 (3.357 in.) |
Approx. Loose Circlip ID (A)
83.20
mm |
Groove Width (W)
3.10
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08999-S15 (3 Pcs) External Retaining Rings - 89.99x2.77x85.27 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$657.86 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
85.27
mm +/- 0.076 (3.357 in.) |
Approx. Loose Circlip ID (A)
83.20
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08999-S15 (3 Pcs) External Retaining Rings - 89.99x2.77x85.27 mm - Stainless Steel Grade PH15-7 Mo
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$657.86 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
85.27
mm +/- 0.076 (3.357 in.) |
Approx. Loose Circlip ID (A)
83.20
mm |
Groove Width (W)
3.10
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08999-CZY External Retaining Rings - 89.99x2.77x85.27 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$27.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
85.27
mm +/- 0.076 (3.357 in.) |
Approx. Loose Circlip ID (A)
83.20
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08999-CZY External Retaining Rings - 89.99x2.77x85.27 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$27.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
85.27
mm +/- 0.076 (3.357 in.) |
Approx. Loose Circlip ID (A)
83.24
mm |
Groove Width (W)
3.05
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 106.68 mm
Clearance in Groove (C1): 101.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08999-C External Retaining Rings - 89.99x2.77x85.27 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$24.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (0.109 in.) |
Groove Dia. (Dg)
85.27
mm +/- 0.076 (3.357 in.) |
Approx. Loose Circlip ID (A)
83.24
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm
Clearance on Shaft (C1): 106.68 mm
Clearance in Groove (C1): 101.60 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-08999-C External Retaining Rings - 89.99x2.77x85.27 mm - Carbon Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025 Regular price
$24.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
85.27
mm +/- 0.15 (3.357 in.) |
Approx. Loose Circlip ID (A)
84.51
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 97.21 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0900-LS-H-N External Retaining Rings - 89.99x2.77x85.27 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
85.27
mm +/- 0.15 (3.357 in.) |
Approx. Loose Circlip ID (A)
84.51
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 97.21 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0900-LS-H-N External Retaining Rings - 89.99x2.77x85.27 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
85.88
mm +/- 0.15 (3.381 in.) |
Approx. Loose Circlip ID (A)
84.99
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Spring Steel
Clearance in Groove (C1): 97.69 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0900-LS-H External Retaining Rings - 89.99x2.77x85.88 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
89.99
mm (3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (0.109 in.) |
Groove Dia. (Dg)
85.88
mm +/- 0.15 (3.381 in.) |
Approx. Loose Circlip ID (A)
84.99
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 97.69 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0900-LS-H External Retaining Rings - 89.99x2.77x85.88 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
