| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

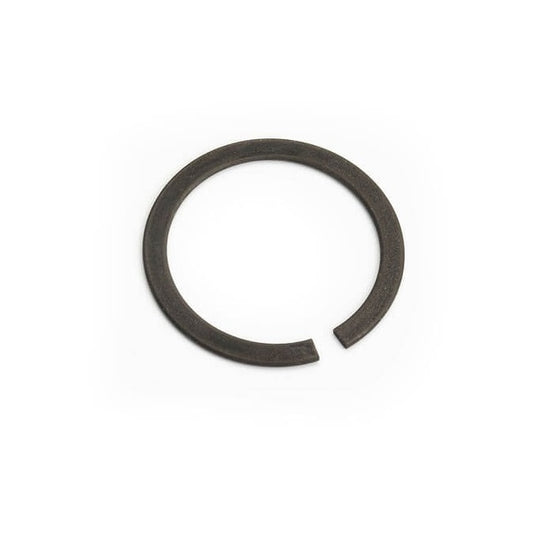

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft or Bearing OD (d1)
203.20
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 |
Groove Dia. (Dg)
198.63
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
196.60
mm - 0.00 / + 4.00 |
Radial Wall (S) min/max
7.14
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 210.88
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2032-LS-L External Retaining Rings - 203.2x2.77x198.63 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft or Bearing OD (d1)
203.20
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 |
Groove Dia. (Dg)
198.63
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
196.60
mm - 0.00 / + 4.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 7.14 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip OD: 210.88
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2032-LS-L External Retaining Rings - 203.2x2.77x198.63 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
203.20
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
194.56
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
192.02
mm + 0.00 / - 4.00 |
Radial Wall (S) min/max
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 217.42
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2032-LS External Retaining Rings - 203.2x4.75x194.56 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
203.20
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
194.56
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
192.02
mm + 0.00 / - 4.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip OD: 217.42
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2032-LS External Retaining Rings - 203.2x4.75x194.56 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
210.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
207.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
204.90
mm |
Radial Wall (S) min/max
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 214.9
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2100-LS External Retaining Rings - 210x3x207 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
210.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
207.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
204.90
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.00 mm + 0 / - 0.10
Groove Width (W): 3.20 mm
Approx. Loose Clip OD: 214.9
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2100-LS External Retaining Rings - 210x3x207 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
215.90
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
207.26
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
204.47
mm + 0.00 / - 4.00 |
Radial Wall (S) min/max
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 229.87
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2159-LS External Retaining Rings - 215.9x4.75x207.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
215.90
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
207.26
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
204.47
mm + 0.00 / - 4.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip OD: 229.87
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2159-LS External Retaining Rings - 215.9x4.75x207.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
225.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
222.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
219.80
mm |
Radial Wall (S) min/max
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 229.8
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2250-LS External Retaining Rings - 225x3x222 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
225.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
222.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
219.80
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.00 mm + 0 / - 0.10
Groove Width (W): 3.20 mm
Approx. Loose Clip OD: 229.8
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2250-LS External Retaining Rings - 225x3x222 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
225.00
mm |
Clip Thickness (T)
3.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
217.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
216.10
mm |
Radial Wall (S) min/max
10.00
mm + 0 / - 0.10 |
Groove Width (W)
4.90
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 236.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2250-LR External Retaining Rings - 225x3.5x217 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
225.00
mm |
Clip Thickness (T)
3.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
217.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
216.10
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 10.00 mm + 0 / - 0.10
Groove Width (W): 4.90 mm
Approx. Loose Clip OD: 236.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2250-LR External Retaining Rings - 225x3.5x217 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
228.60
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
219.96
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
217.04
mm + 0.00 / - 4.00 |
Radial Wall (S) min/max
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 242.44
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2286-LS External Retaining Rings - 228.6x4.75x219.96 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
228.60
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
219.96
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
217.04
mm + 0.00 / - 4.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip OD: 242.44
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2286-LS External Retaining Rings - 228.6x4.75x219.96 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
234.95
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
226.31
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
223.52
mm + 0.00 / - 4.00 |
Radial Wall (S) min/max
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 248.92
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2350-LS External Retaining Rings - 234.95x4.75x226.31 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
234.95
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
226.31
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
223.52
mm + 0.00 / - 4.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip OD: 248.92
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2350-LS External Retaining Rings - 234.95x4.75x226.31 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
240.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
237.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
234.60
mm |
Radial Wall (S) min/max
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 244.6
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2400-LS External Retaining Rings - 240x3x237 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
240.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
237.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
234.60
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.00 mm + 0 / - 0.10
Groove Width (W): 3.20 mm
Approx. Loose Clip OD: 244.6
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2400-LS External Retaining Rings - 240x3x237 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
240.00
mm |
Clip Thickness (T)
3.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
232.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
231.00
mm |
Radial Wall (S) min/max
10.00
mm + 0 / - 0.10 |
Groove Width (W)
4.90
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 251
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2400-LR External Retaining Rings - 240x3.5x232 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
240.00
mm |
Clip Thickness (T)
3.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
232.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
231.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 10.00 mm + 0 / - 0.10
Groove Width (W): 4.90 mm
Approx. Loose Clip OD: 251
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2400-LR External Retaining Rings - 240x3.5x232 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
241.30
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
232.66
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
229.62
mm + 0.00 / - 4.00 |
Radial Wall (S) min/max
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 255.02
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2413-LS External Retaining Rings - 241.3x4.75x232.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
241.30
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
232.66
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
229.62
mm + 0.00 / - 4.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip OD: 255.02
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2413-LS External Retaining Rings - 241.3x4.75x232.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
250.00
mm |
Clip Thickness (T)
3.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
242.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
241.00
mm |
Radial Wall (S) min/max
10.00
mm + 0 / - 0.10 |
Groove Width (W)
4.90
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 261
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2500-LR External Retaining Rings - 250x3.5x242 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
250.00
mm |
Clip Thickness (T)
3.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
242.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
241.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 10.00 mm + 0 / - 0.10
Groove Width (W): 4.90 mm
Approx. Loose Clip OD: 261
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2500-LR External Retaining Rings - 250x3.5x242 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
230.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
227.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
224.70
mm |
Radial Wall (S) min/max
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 234.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2300-LS External Retaining Rings - 230x3x227 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
230.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
227.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
224.70
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.00 mm + 0 / - 0.10
Groove Width (W): 3.20 mm
Approx. Loose Clip OD: 234.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2300-LS External Retaining Rings - 230x3x227 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
260.00
mm |
Clip Thickness (T)
3.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
252.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
250.00
mm |
Radial Wall (S) min/max
10.00
mm + 0 / - 0.10 |
Groove Width (W)
4.90
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 270
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2600-LR External Retaining Rings - 260x3.5x252 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
260.00
mm |
Clip Thickness (T)
3.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
252.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
250.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 10.00 mm + 0 / - 0.10
Groove Width (W): 4.90 mm
Approx. Loose Clip OD: 270
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2600-LR External Retaining Rings - 260x3.5x252 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
280.00
mm |
Clip Thickness (T)
3.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
272.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
270.00
mm |
Radial Wall (S) min/max
10.00
mm + 0 / - 0.10 |
Groove Width (W)
4.90
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 290
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2800-LR External Retaining Rings - 280x3.5x272 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
280.00
mm |
Clip Thickness (T)
3.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
272.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
270.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 10.00 mm + 0 / - 0.10
Groove Width (W): 4.90 mm
Approx. Loose Clip OD: 290
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2800-LR External Retaining Rings - 280x3.5x272 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
250.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
247.00
mm + 0 / - 0.32 |
Approx. Loose Circlip ID (A)
244.50
mm |
Radial Wall (S) min/max
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 254.5
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2500-LS External Retaining Rings - 250x3x247 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
250.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
247.00
mm + 0 / - 0.32 |
Approx. Loose Circlip ID (A)
244.50
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.00 mm + 0 / - 0.10
Groove Width (W): 3.20 mm
Approx. Loose Clip OD: 254.5
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2500-LS External Retaining Rings - 250x3x247 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
254.00
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
245.36
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
242.19
mm + 0.00 / - 4.00 |
Radial Wall (S) min/max
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 267.59
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2540-LS External Retaining Rings - 254x4.75x245.36 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
254.00
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
245.36
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
242.19
mm + 0.00 / - 4.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip OD: 267.59
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2540-LS External Retaining Rings - 254x4.75x245.36 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
265.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
260.00
mm + 0 / - 0.32 |
Approx. Loose Circlip ID (A)
257.40
mm |
Radial Wall (S) min/max
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 272.4
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2650-LS External Retaining Rings - 265x4x260 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
265.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
260.00
mm + 0 / - 0.32 |
Approx. Loose Circlip ID (A)
257.40
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip OD: 272.4
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2650-LS External Retaining Rings - 265x4x260 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
320.00
mm |
Clip Thickness (T)
4.50
mm + 0 / - 0.20 |
Groove Dia. (Dg)
310.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
307.00
mm |
Radial Wall (S) min/max
12.00
mm + 0 / - 0.10 |
Groove Width (W)
6.00
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 331
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-3200-LR External Retaining Rings - 320x4.5x310 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
320.00
mm |
Clip Thickness (T)
4.50
mm + 0 / - 0.20 |
Groove Dia. (Dg)
310.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
307.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.00 mm + 0 / - 0.10
Groove Width (W): 6.00 mm
Approx. Loose Clip OD: 331
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-3200-LR External Retaining Rings - 320x4.5x310 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
285.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
280.00
mm + 0 / - 0.32 |
Approx. Loose Circlip ID (A)
277.20
mm |
Radial Wall (S) min/max
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 292.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2850-LS External Retaining Rings - 285x4x280 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
285.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
280.00
mm + 0 / - 0.32 |
Approx. Loose Circlip ID (A)
277.20
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip OD: 292.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2850-LS External Retaining Rings - 285x4x280 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
340.00
mm |
Clip Thickness (T)
4.50
mm + 0 / - 0.20 |
Groove Dia. (Dg)
330.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
327.00
mm |
Radial Wall (S) min/max
12.00
mm + 0 / - 0.10 |
Groove Width (W)
6.00
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 351
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-3400-LR External Retaining Rings - 340x4.5x330 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
340.00
mm |
Clip Thickness (T)
4.50
mm + 0 / - 0.20 |
Groove Dia. (Dg)
330.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
327.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.00 mm + 0 / - 0.10
Groove Width (W): 6.00 mm
Approx. Loose Clip OD: 351
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-3400-LR External Retaining Rings - 340x4.5x330 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
300.00
mm |
Clip Thickness (T)
4.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
290.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
287.00
mm |
Radial Wall (S) min/max
12.00
mm + 0 / - 0.10 |
Groove Width (W)
6.00
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 311
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-3000-LR External Retaining Rings - 300x4.5x290 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
300.00
mm |
Clip Thickness (T)
4.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
290.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
287.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.00 mm + 0 / - 0.10
Groove Width (W): 6.00 mm
Approx. Loose Clip OD: 311
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-3000-LR External Retaining Rings - 300x4.5x290 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
305.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
300.00
mm + 0 / - 0.32 |
Approx. Loose Circlip ID (A)
297.10
mm |
Radial Wall (S) min/max
7.50
mm + 0 / - 0.10 |
Groove Width (W)
4.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 312.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-3050-LS External Retaining Rings - 305x4x300 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
305.00
mm |
Clip Thickness (T)
4.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
300.00
mm + 0 / - 0.32 |
Approx. Loose Circlip ID (A)
297.10
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 7.50 mm + 0 / - 0.10
Groove Width (W): 4.20 mm
Approx. Loose Clip OD: 312.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-3050-LS External Retaining Rings - 305x4x300 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
370.00
mm |
Clip Thickness (T)
4.50
mm + 0 / - 0.20 |
Groove Dia. (Dg)
360.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
356.00
mm |
Radial Wall (S) min/max
12.00
mm + 0 / - 0.10 |
Groove Width (W)
6.00
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 380
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-3700-LR External Retaining Rings - 370x4.5x360 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
370.00
mm |
Clip Thickness (T)
4.50
mm + 0 / - 0.20 |
Groove Dia. (Dg)
360.00
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
356.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.00 mm + 0 / - 0.10
Groove Width (W): 6.00 mm
Approx. Loose Clip OD: 380
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-3700-LR External Retaining Rings - 370x4.5x360 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
