| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

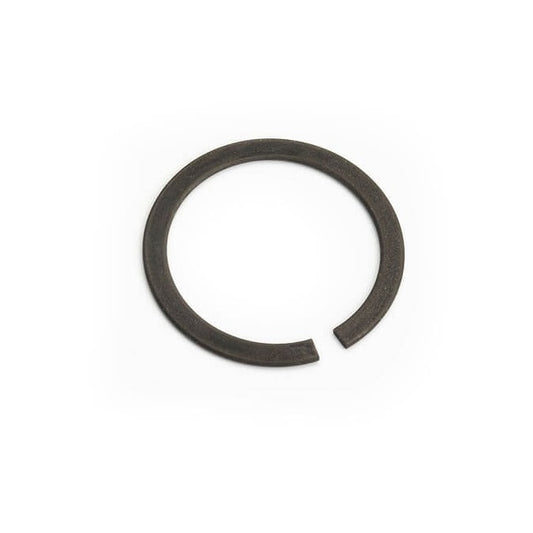

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft or Bearing OD (d1)
146.05
mm |
Clip Thickness (T)
3.18
mm +/- 0.05 |
Groove Dia. (Dg)
139.85
mm +/- 0.15 |
Approx. Loose Circlip ID (A)
138.33
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
9.53
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 157.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1461-LS External Retaining Rings - 146.05x3.18x139.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft or Bearing OD (d1)
146.05
mm |
Clip Thickness (T)
3.18
mm +/- 0.05 |
Groove Dia. (Dg)
139.85
mm +/- 0.15 |
Approx. Loose Circlip ID (A)
138.33
mm + 0.00 / - 3.18 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 9.53 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip OD: 157.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1461-LS External Retaining Rings - 146.05x3.18x139.85 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
139.70
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 |
Groove Dia. (Dg)
135.64
mm +/- 0.15 |
Approx. Loose Circlip ID (A)
134.11
mm - 0.00 / + 3.20 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 146.81
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1397-LS-L External Retaining Rings - 139.7x2.36x135.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
139.70
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 |
Groove Dia. (Dg)
135.64
mm +/- 0.15 |
Approx. Loose Circlip ID (A)
134.11
mm - 0.00 / + 3.20 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 146.81
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1397-LS-L External Retaining Rings - 139.7x2.36x135.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
149.86
mm |
Clip Thickness (T)
3.18
mm +/- 0.05 |
Groove Dia. (Dg)
143.66
mm +/- 0.15 |
Approx. Loose Circlip ID (A)
142.24
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
9.53
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 161.3
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1499-LS External Retaining Rings - 149.86x3.18x143.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
149.86
mm |
Clip Thickness (T)
3.18
mm +/- 0.05 |
Groove Dia. (Dg)
143.66
mm +/- 0.15 |
Approx. Loose Circlip ID (A)
142.24
mm + 0.00 / - 3.18 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 9.53 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip OD: 161.3
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1499-LS External Retaining Rings - 149.86x3.18x143.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
150.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
147.40
mm + 0 / - 0.25 |
Approx. Loose Circlip ID (A)
145.90
mm |
Radial Wall (S) min/max
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 153.9
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1500-LS External Retaining Rings - 150x2.5x147.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
150.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
147.40
mm + 0 / - 0.25 |
Approx. Loose Circlip ID (A)
145.90
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip OD: 153.9
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1500-LS External Retaining Rings - 150x2.5x147.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
152.40
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 |
Groove Dia. (Dg)
148.34
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
146.69
mm - 0.00 / + 3.20 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 159.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1524-LS-L External Retaining Rings - 152.4x2.36x148.34 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
152.40
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 |
Groove Dia. (Dg)
148.34
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
146.69
mm - 0.00 / + 3.20 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 159.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1524-LS-L External Retaining Rings - 152.4x2.36x148.34 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
152.40
mm |
Clip Thickness (T)
3.18
mm +/- 0.05 |
Groove Dia. (Dg)
145.95
mm +/- 0.15 |
Approx. Loose Circlip ID (A)
144.45
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
9.53
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 163.51
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1524-LS External Retaining Rings - 152.4x3.18x145.95 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
152.40
mm |
Clip Thickness (T)
3.18
mm +/- 0.05 |
Groove Dia. (Dg)
145.95
mm +/- 0.15 |
Approx. Loose Circlip ID (A)
144.45
mm + 0.00 / - 3.18 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 9.53 mm +/- 0.13
Groove Width (W): 3.53 mm
Approx. Loose Clip OD: 163.51
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1524-LS External Retaining Rings - 152.4x3.18x145.95 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
145.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
142.40
mm + 0 / - 0.25 |
Approx. Loose Circlip ID (A)
141.00
mm |
Radial Wall (S) min/max
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 149
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1450-LS External Retaining Rings - 145x2.5x142.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
145.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
142.40
mm + 0 / - 0.25 |
Approx. Loose Circlip ID (A)
141.00
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip OD: 149
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1450-LS External Retaining Rings - 145x2.5x142.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
158.75
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 |
Groove Dia. (Dg)
152.04
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
150.27
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
11.10
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 172.47
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1588-LS External Retaining Rings - 158.75x3.96x152.04 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
158.75
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 |
Groove Dia. (Dg)
152.04
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
150.27
mm + 0.00 / - 3.18 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 11.10 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip OD: 172.47
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1588-LS External Retaining Rings - 158.75x3.96x152.04 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
165.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
162.40
mm + 0 / - 0.25 |
Approx. Loose Circlip ID (A)
160.80
mm |
Radial Wall (S) min/max
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 168.8
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1650-LS External Retaining Rings - 165x2.5x162.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
165.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
162.40
mm + 0 / - 0.25 |
Approx. Loose Circlip ID (A)
160.80
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip OD: 168.8
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1650-LS External Retaining Rings - 165x2.5x162.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
165.10
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 |
Groove Dia. (Dg)
161.04
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
159.26
mm - 0.00 / + 3.20 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 171.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1651-LS-L External Retaining Rings - 165.1x2.36x161.04 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
165.10
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 |
Groove Dia. (Dg)
161.04
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
159.26
mm - 0.00 / + 3.20 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 171.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1651-LS-L External Retaining Rings - 165.1x2.36x161.04 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
165.10
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 |
Groove Dia. (Dg)
158.14
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
156.24
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
11.10
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 178.44
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1651-LS External Retaining Rings - 165.1x3.96x158.14 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
165.10
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 |
Groove Dia. (Dg)
158.14
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
156.24
mm + 0.00 / - 3.18 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 11.10 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip OD: 178.44
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1651-LS External Retaining Rings - 165.1x3.96x158.14 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
170.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
167.40
mm + 0 / - 0.25 |
Approx. Loose Circlip ID (A)
165.70
mm |
Radial Wall (S) min/max
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 173.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1700-LS External Retaining Rings - 170x2.5x167.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
170.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
167.40
mm + 0 / - 0.25 |
Approx. Loose Circlip ID (A)
165.70
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip OD: 173.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1700-LS External Retaining Rings - 170x2.5x167.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
171.45
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 |
Groove Dia. (Dg)
164.24
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
162.20
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
11.10
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 184.4
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1715-LS External Retaining Rings - 171.45x3.96x164.24 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
171.45
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 |
Groove Dia. (Dg)
164.24
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
162.20
mm + 0.00 / - 3.18 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 11.10 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip OD: 184.4
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1715-LS External Retaining Rings - 171.45x3.96x164.24 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
177.80
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 |
Groove Dia. (Dg)
173.74
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
171.83
mm - 0.00 / + 3.20 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 184.53
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1778-LS-L External Retaining Rings - 177.8x2.36x173.74 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
177.80
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 |
Groove Dia. (Dg)
173.74
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
171.83
mm - 0.00 / + 3.20 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 184.53
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1778-LS-L External Retaining Rings - 177.8x2.36x173.74 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
177.80
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 |
Groove Dia. (Dg)
170.33
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
168.17
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
11.10
mm +/- 0.13 |
Groove Width (W)
4.42
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 190.37
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1778-LS External Retaining Rings - 177.8x3.96x170.33 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
177.80
mm |
Clip Thickness (T)
3.96
mm +/- 0.05 |
Groove Dia. (Dg)
170.33
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
168.17
mm + 0.00 / - 3.18 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 11.10 mm +/- 0.13
Groove Width (W): 4.42 mm
Approx. Loose Clip OD: 190.37
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1778-LS External Retaining Rings - 177.8x3.96x170.33 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
180.00
mm |
Clip Thickness (T)
3.10
mm + 0 / - 0.10 |
Groove Dia. (Dg)
173.66
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
172.80
mm |
Radial Wall (S) min/max
9.60
mm + 0 / - 0.10 |
Groove Width (W)
3.80
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 192
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1800-LR External Retaining Rings - 180x3.1x173.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
180.00
mm |
Clip Thickness (T)
3.10
mm + 0 / - 0.10 |
Groove Dia. (Dg)
173.66
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
172.80
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 9.60 mm + 0 / - 0.10
Groove Width (W): 3.80 mm
Approx. Loose Clip OD: 192
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1800-LR External Retaining Rings - 180x3.1x173.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
184.15
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
176.02
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
173.74
mm + 0.00 / - 4.00 |
Radial Wall (S) min/max
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 199.14
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1842-LS External Retaining Rings - 184.15x4.75x176.02 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
184.15
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
176.02
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
173.74
mm + 0.00 / - 4.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip OD: 199.14
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1842-LS External Retaining Rings - 184.15x4.75x176.02 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
190.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
187.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
185.10
mm |
Radial Wall (S) min/max
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 195.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1900-LS External Retaining Rings - 190x3x187 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
190.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
187.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
185.10
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.00 mm + 0 / - 0.10
Groove Width (W): 3.20 mm
Approx. Loose Clip OD: 195.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1900-LS External Retaining Rings - 190x3x187 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
175.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
172.40
mm + 0 / - 0.25 |
Approx. Loose Circlip ID (A)
170.70
mm |
Radial Wall (S) min/max
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 178.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1750-LS External Retaining Rings - 175x2.5x172.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
175.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 |
Groove Dia. (Dg)
172.40
mm + 0 / - 0.25 |
Approx. Loose Circlip ID (A)
170.70
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip OD: 178.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1750-LS External Retaining Rings - 175x2.5x172.4 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
190.50
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 |
Groove Dia. (Dg)
185.93
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
184.02
mm - 0.00 / + 4.00 |
Radial Wall (S) min/max
7.14
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 198.3
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1905-LS-L External Retaining Rings - 190.5x2.77x185.93 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
190.50
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 |
Groove Dia. (Dg)
185.93
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
184.02
mm - 0.00 / + 4.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 7.14 mm +/- 0.13
Groove Width (W): 3.05 mm
Approx. Loose Clip OD: 198.3
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1905-LS-L External Retaining Rings - 190.5x2.77x185.93 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
190.50
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
182.37
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
180.09
mm + 0.00 / - 4.00 |
Radial Wall (S) min/max
12.70
mm +/- 0.13 |
Groove Width (W)
5.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 205.49
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1905-LS External Retaining Rings - 190.5x4.75x182.37 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
190.50
mm |
Clip Thickness (T)
4.75
mm +/- 0.05 |
Groove Dia. (Dg)
182.37
mm +/- 0.20 |
Approx. Loose Circlip ID (A)
180.09
mm + 0.00 / - 4.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 12.70 mm +/- 0.13
Groove Width (W): 5.31 mm
Approx. Loose Clip OD: 205.49
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1905-LS External Retaining Rings - 190.5x4.75x182.37 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
195.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
192.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
190.10
mm |
Radial Wall (S) min/max
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 200.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1950-LS External Retaining Rings - 195x3x192 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
195.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
192.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
190.10
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.00 mm + 0 / - 0.10
Groove Width (W): 3.20 mm
Approx. Loose Clip OD: 200.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1950-LS External Retaining Rings - 195x3x192 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
200.00
mm |
Clip Thickness (T)
3.10
mm + 0 / - 0.10 |
Groove Dia. (Dg)
193.65
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
192.80
mm |
Radial Wall (S) min/max
9.60
mm + 0 / - 0.10 |
Groove Width (W)
3.80
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 212
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2000-LR External Retaining Rings - 200x3.1x193.65 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
200.00
mm |
Clip Thickness (T)
3.10
mm + 0 / - 0.10 |
Groove Dia. (Dg)
193.65
mm + 0 / - 0.50 |
Approx. Loose Circlip ID (A)
192.80
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 9.60 mm + 0 / - 0.10
Groove Width (W): 3.80 mm
Approx. Loose Clip OD: 212
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-2000-LR External Retaining Rings - 200x3.1x193.65 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
185.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
182.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
180.20
mm |
Radial Wall (S) min/max
5.00
mm + 0 / - 0.10 |
Groove Width (W)
3.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 190.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1850-LS External Retaining Rings - 185x3x182 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
185.00
mm |
Clip Thickness (T)
3.00
mm + 0 / - 0.10 |
Groove Dia. (Dg)
182.00
mm + 0 / - 0.29 |
Approx. Loose Circlip ID (A)
180.20
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.00 mm + 0 / - 0.10
Groove Width (W): 3.20 mm
Approx. Loose Clip OD: 190.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-1850-LS External Retaining Rings - 185x3x182 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
