Collection: Retaining Rings - External - Circlips

Retaining Rings (With Images)

External

Circlips

884 Products in this selection

This is a combined category of Circlips External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Circlips. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 2.39 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 2.26 mm

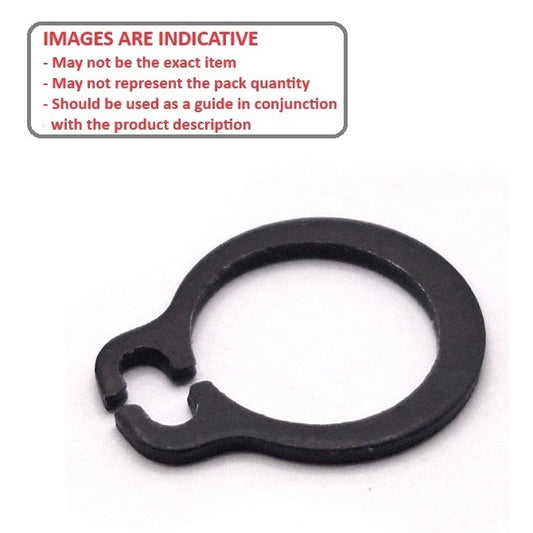

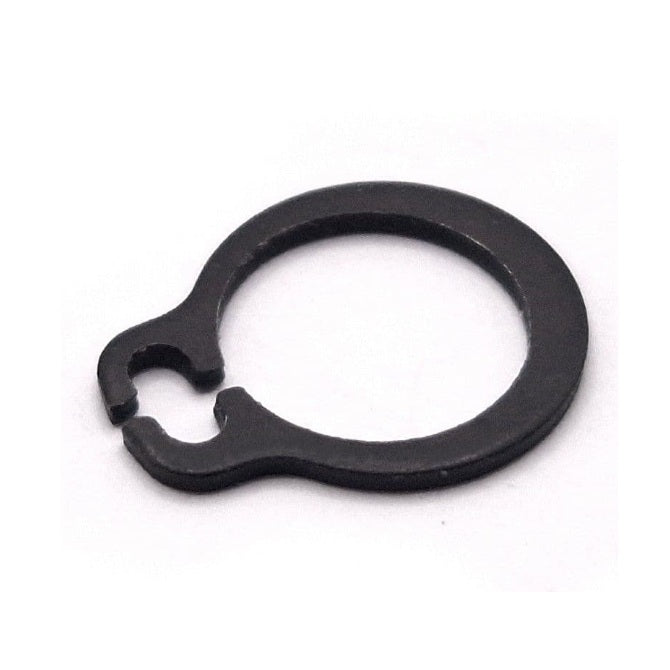

Material: Carbon Steel Clearance on Shaft (C1): 6.60 mm Clearance in Groove (C1): 41 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00239-C (5 Pcs) External Retaining Rings - 2.39x0.64 - - - Carbon Steel 179 units (895 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $2.05 AUD Regular price Sale price $2.05 AUD Unit price per Per 5
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 2.39 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 2.26 mm
Material: Carbon Steel Clearance on Shaft (C1): 6.60 mm Clearance in Groove (C1): 41 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00239-C (5 Pcs) External Retaining Rings - 2.39x0.64 - - - Carbon Steel 179 units (895 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $2.05 AUD Regular price Sale price $2.05 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00239-C (5 Pcs) --- External Retaining Rings - 2.39x0.64 - - - Carbon Steel CNG-00239-C (5 Pcs) --- External Retaining Rings - 2.39x0.64 - - - Carbon Steel Regular price $2.05 AUD Regular price Sale price $2.05 AUD Unit price per 179 Available Now
Shaft Diameter (Ds) 2.39 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 2.26 mm

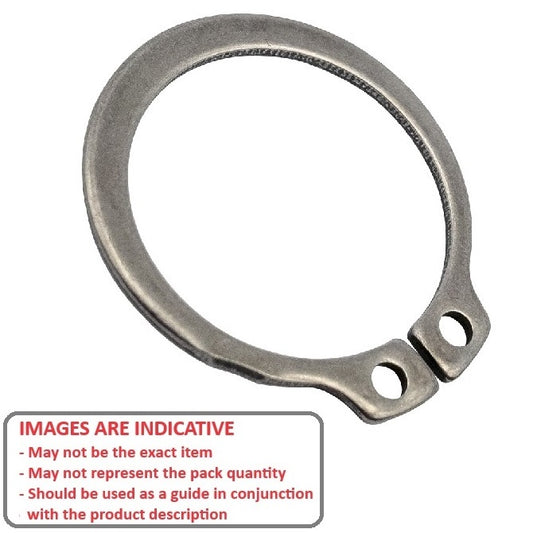

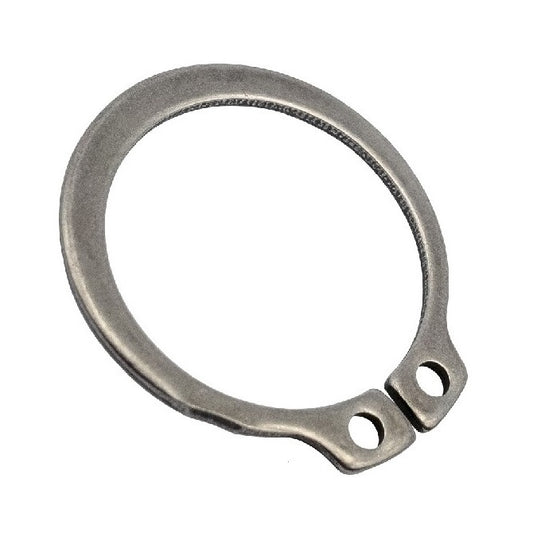

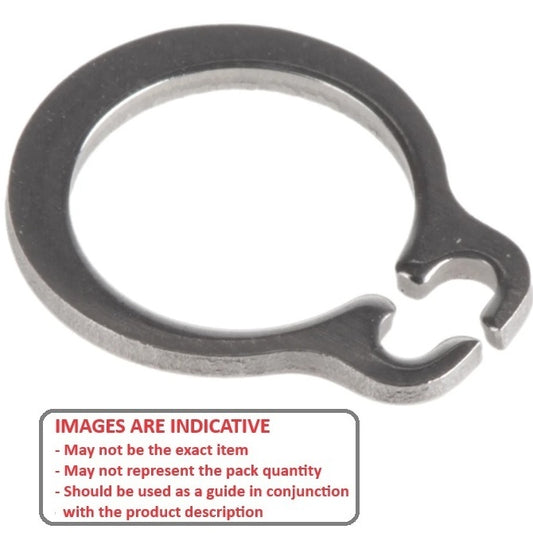

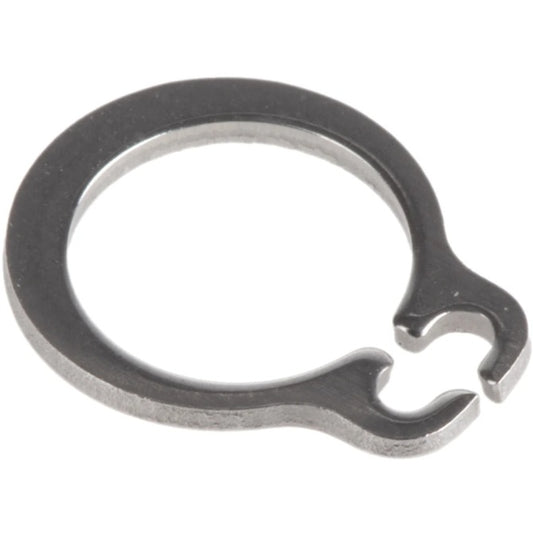

Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 6.60 mm Clearance in Groove (C1): 33 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00239-06-420-2 External Retaining Rings - 2.39x0.64 - - - Stainless Steel AISI 420C 90 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each
Shaft Diameter (Ds) 2.39 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 2.26 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 6.60 mm Clearance in Groove (C1): 33 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00239-06-420-2 External Retaining Rings - 2.39x0.64 - - - Stainless Steel AISI 420C 90 Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Each View the product page first if you are unsure.
CNG-00239-06-420-2 --- External Retaining Rings - 2.39x0.64 - - - Stainless Steel AISI 420C CNG-00239-06-420-2 --- External Retaining Rings - 2.39x0.64 - - - Stainless Steel AISI 420C Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per 90 Available Now
Shaft Diameter (Ds) 2.50 mm + 0 / - 0.025	Clip Thickness (T) 0.60 mm		Approx. Loose Circlip ID (A) 2.35 mm
Material: Carbon Steel Clearance on Shaft (C1): 6.50 mm Clearance in Groove (C1): 60 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00250-C (100 Pcs) External Retaining Rings - 2.5x0.6 - - - Carbon Steel 3 units (300 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
Shaft Diameter (Ds) 2.50 mm + 0 / - 0.025	Clip Thickness (T) 0.60 mm		Approx. Loose Circlip ID (A) 2.35 mm
Material: Carbon Steel Clearance on Shaft (C1): 6.50 mm Clearance in Groove (C1): 60 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00250-C (100 Pcs) External Retaining Rings - 2.5x0.6 - - - Carbon Steel 3 units (300 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
CNG-00250-C (100 Pcs) --- External Retaining Rings - 2.5x0.6 - - - Carbon Steel Sale CNG-00250-C (100 Pcs) --- External Retaining Rings - 2.5x0.6 - - - Carbon Steel Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 3 Available Now Sale
Shaft Diameter (Ds) 3.00 mm	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04	Groove Dia. (Dg) 2.80 mm + 0.00 / - 0.05	Approx. Loose Circlip ID (A) 2.70 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel 33 units (3300 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 31, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 3.00 mm	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04	Groove Dia. (Dg) 2.80 mm + 0.00 / - 0.05	Approx. Loose Circlip ID (A) 2.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel 33 units (3300 pcs) Available Immediately \| Further orders can be expected around Thu, Jul 31, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00300-C (100 Pcs) --- External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel CCE-00300-C (100 Pcs) --- External Retaining Rings - 3x0.4x2.8 mm - Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 3.00 mm +/- 0.06	Clip Thickness (T) 0.60 mm		Approx. Loose Circlip ID (A) 2.84 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.40 mm Clearance in Groove (C1): 73 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00300-C (100 Pcs) External Retaining Rings - 3x0.6 - - - Carbon Steel 1 pack (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
Shaft Diameter (Ds) 3.00 mm +/- 0.06	Clip Thickness (T) 0.60 mm		Approx. Loose Circlip ID (A) 2.84 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.40 mm Clearance in Groove (C1): 73 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00300-C (100 Pcs) External Retaining Rings - 3x0.6 - - - Carbon Steel 1 pack (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 100
CNG-00300-C (100 Pcs) --- External Retaining Rings - 3x0.6 - - - Carbon Steel Sale CNG-00300-C (100 Pcs) --- External Retaining Rings - 3x0.6 - - - Carbon Steel Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 3.18 mm	Clip Thickness (T) 0.25 mm +/- 0.038	Groove Dia. (Dg) 2.97 mm +/- 0.025	Approx. Loose Circlip ID (A) 2.80 mm		Groove Width (W) 0.30 mm
Material: Zinc Plated Beryllium Copper Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00318-BZ External Retaining Rings - 3.18x0.25x2.97 mm - Zinc Plated Beryllium Copper Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.18 mm	Clip Thickness (T) 0.25 mm +/- 0.038	Groove Dia. (Dg) 2.97 mm +/- 0.025	Approx. Loose Circlip ID (A) 2.80 mm
Material: Zinc Plated Beryllium Copper Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00318-BZ External Retaining Rings - 3.18x0.25x2.97 mm - Zinc Plated Beryllium Copper Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.18 mm	Clip Thickness (T) 0.25 mm +/- 0.038	Groove Dia. (Dg) 2.97 mm +/- 0.025	Approx. Loose Circlip ID (A) 2.84 mm		Groove Width (W) 0.30 mm

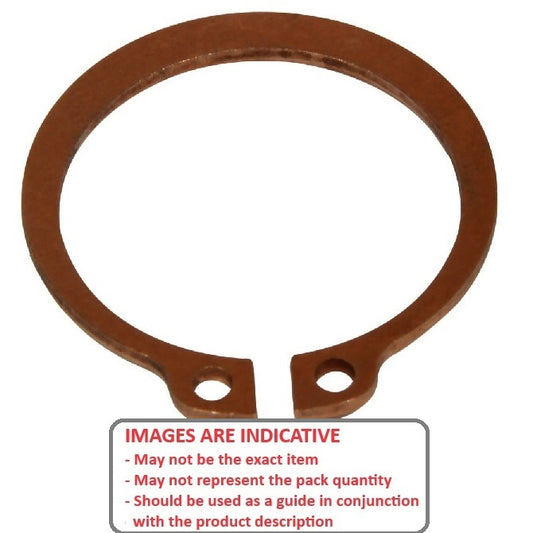

Material: Beryllium Copper Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00318-B (20 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper 12 units (240 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Per 20
Shaft Diameter (Ds) 3.18 mm	Clip Thickness (T) 0.25 mm +/- 0.038	Groove Dia. (Dg) 2.97 mm +/- 0.025	Approx. Loose Circlip ID (A) 2.84 mm
Material: Beryllium Copper Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00318-B (20 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper 12 units (240 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00318-B (20 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper CCE-00318-B (20 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm - Beryllium Copper Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per 12 Available Now
Shaft Diameter (Ds) 3.18 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 3.05 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 8.38 mm Clearance in Groove (C1): 41 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00318-06-420-2 External Retaining Rings - 3.18x0.64 - - - Stainless Steel AISI 420C 1 Available Immediately \| Further orders can be expected around Thu, Jul 31, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each
Shaft Diameter (Ds) 3.18 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 3.05 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 8.38 mm Clearance in Groove (C1): 41 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00318-06-420-2 External Retaining Rings - 3.18x0.64 - - - Stainless Steel AISI 420C 1 Available Immediately \| Further orders can be expected around Thu, Jul 31, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each View the product page first if you are unsure.
CNG-00318-06-420-2 --- External Retaining Rings - 3.18x0.64 - - - Stainless Steel AISI 420C CNG-00318-06-420-2 --- External Retaining Rings - 3.18x0.64 - - - Stainless Steel AISI 420C Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 1 Available Now
Shaft Diameter (Ds) 3.18 mm	Clip Thickness (T) 0.25 mm +/- 0.038	Groove Dia. (Dg) 2.97 mm +/- 0.025	Approx. Loose Circlip ID (A) 2.80 mm		Groove Width (W) 0.30 mm
Material: Carbon Steel Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel 1 pack (140 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140
Shaft Diameter (Ds) 3.18 mm	Clip Thickness (T) 0.25 mm +/- 0.038	Groove Dia. (Dg) 2.97 mm +/- 0.025	Approx. Loose Circlip ID (A) 2.80 mm
Material: Carbon Steel Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel 1 pack (140 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140
CCE-00318-C (140 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel Sale CCE-00318-C (140 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 3.18 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 3.05 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.38 mm Clearance in Groove (C1): 81 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00318-C (5 Pcs) External Retaining Rings - 3.18x0.64 - - - Carbon Steel 119 units (595 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Per 5
Shaft Diameter (Ds) 3.18 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 3.05 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.38 mm Clearance in Groove (C1): 81 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00318-C (5 Pcs) External Retaining Rings - 3.18x0.64 - - - Carbon Steel 119 units (595 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00318-C (5 Pcs) --- External Retaining Rings - 3.18x0.64 - - - Carbon Steel CNG-00318-C (5 Pcs) --- External Retaining Rings - 3.18x0.64 - - - Carbon Steel Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per 119 Available Now
Shaft Diameter (Ds) 3.97 mm	Clip Thickness (T) 0.30 mm +/- 0.038	Groove Dia. (Dg) 3.71 mm +/- 0.025	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm

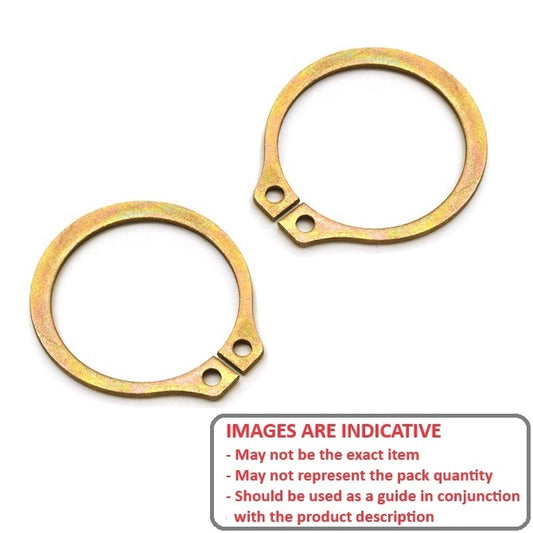

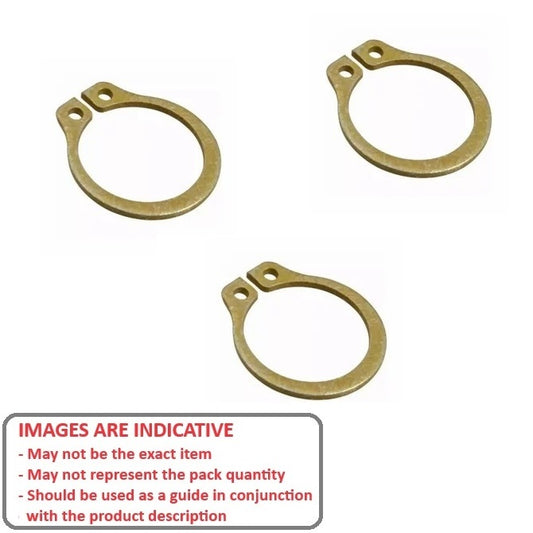

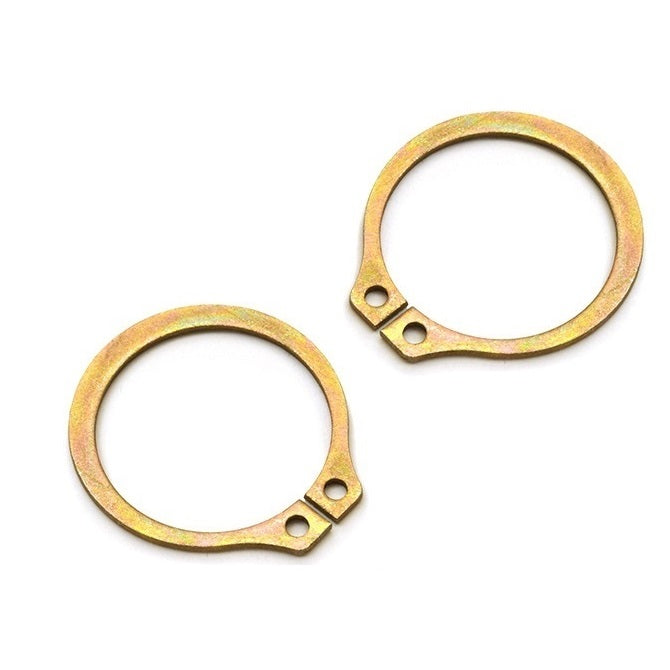

Material: Carbon Steel Zinc Plated Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00397-CZY (70 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Steel Zinc Plated 1 pack (70 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per Per 70
Shaft Diameter (Ds) 3.97 mm	Clip Thickness (T) 0.30 mm +/- 0.038	Groove Dia. (Dg) 3.71 mm +/- 0.025	Approx. Loose Circlip ID (A) 3.60 mm
Material: Carbon Steel Zinc Plated Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00397-CZY (70 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Steel Zinc Plated 1 pack (70 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per Per 70
CCE-00397-CZY (70 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Steel Zinc Plated Sale CCE-00397-CZY (70 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Steel Zinc Plated Regular price $30.00 AUD Regular price ~~$57.00 AUD~~ Sale price $30.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 3.97 mm	Clip Thickness (T) 0.30 mm +/- 0.038	Groove Dia. (Dg) 3.71 mm +/- 0.025	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Carbon Spring Steel Self Finish Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00397-C External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.97 mm	Clip Thickness (T) 0.30 mm +/- 0.038	Groove Dia. (Dg) 3.71 mm +/- 0.025	Approx. Loose Circlip ID (A) 3.60 mm
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00397-C External Retaining Rings - 3.97x0.3x3.71 mm - Carbon Spring Steel Self Finish Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.97 mm	Clip Thickness (T) 0.30 mm +/- 0.038	Groove Dia. (Dg) 3.71 mm +/- 0.025	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Beryllium Copper Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00397-B (10 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper 81 units (810 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 10
Shaft Diameter (Ds) 3.97 mm	Clip Thickness (T) 0.30 mm +/- 0.038	Groove Dia. (Dg) 3.71 mm +/- 0.025	Approx. Loose Circlip ID (A) 3.60 mm
Material: Beryllium Copper Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00397-B (10 Pcs) External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper 81 units (810 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00397-B (10 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper CCE-00397-B (10 Pcs) --- External Retaining Rings - 3.97x0.3x3.71 mm - Beryllium Copper Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 81 Available Now
Shaft Diameter (Ds) 3.97 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 3.79 mm
Material: Carbon Steel Clearance on Shaft (C1): 9.14 mm Clearance in Groove (C1): 89 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00397-06-C-2 (100 Pcs) External Retaining Rings - 3.97x0.64 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $40.14 AUD Regular price Sale price $40.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 3.97 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 3.79 mm
Material: Carbon Steel Clearance on Shaft (C1): 9.14 mm Clearance in Groove (C1): 89 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00397-06-C-2 (100 Pcs) External Retaining Rings - 3.97x0.64 - - - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $40.14 AUD Regular price Sale price $40.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CNG-00397-06-C-2 (100 Pcs) --- External Retaining Rings - 3.97x0.64 - - - Carbon Steel CNG-00397-06-C-2 (100 Pcs) --- External Retaining Rings - 3.97x0.64 - - - Carbon Steel Regular price $40.14 AUD Regular price Sale price $40.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 4.00 mm	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04	Groove Dia. (Dg) 3.80 mm + 0.00 / - 0.05	Approx. Loose Circlip ID (A) 3.70 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00400-C (100 Pcs) External Retaining Rings - 4x0.4x3.8 mm - Carbon Steel 42 units (4200 pcs) Available Immediately \| Further orders can be expected around Tue, Sep 02, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 4.00 mm	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04	Groove Dia. (Dg) 3.80 mm + 0.00 / - 0.05	Approx. Loose Circlip ID (A) 3.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00400-C (100 Pcs) External Retaining Rings - 4x0.4x3.8 mm - Carbon Steel 42 units (4200 pcs) Available Immediately \| Further orders can be expected around Tue, Sep 02, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00400-C (100 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm - Carbon Steel CCE-00400-C (100 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm - Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 42 Available Now
Shaft Diameter (Ds) 4.00 mm	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04	Groove Dia. (Dg) 3.80 mm + 0.00 / - 0.05	Approx. Loose Circlip ID (A) 3.70 mm		Groove Width (W) 0.50 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00400-S15 (5 Pcs) External Retaining Rings - 4x0.4x3.8 mm - Stainless Steel Grade PH15-7 Mo 30 units (150 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5
Shaft Diameter (Ds) 4.00 mm	Clip Thickness (T) 0.40 mm + 0.00 / - 0.04	Groove Dia. (Dg) 3.80 mm + 0.00 / - 0.05	Approx. Loose Circlip ID (A) 3.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00400-S15 (5 Pcs) External Retaining Rings - 4x0.4x3.8 mm - Stainless Steel Grade PH15-7 Mo 30 units (150 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5 View the product page first if you are unsure.
CCE-00400-S15 (5 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm - Stainless Steel Grade PH15-7 Mo CCE-00400-S15 (5 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 30 Available Now
Shaft Diameter (Ds) 3.97 mm	Clip Thickness (T) 0.30 mm +/- 0.038	Groove Dia. (Dg) 3.71 mm +/- 0.025	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Zinc Plated Beryllium Copper Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00397-BZ External Retaining Rings - 3.97x0.3x3.71 mm - Zinc Plated Beryllium Copper Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.97 mm	Clip Thickness (T) 0.30 mm +/- 0.038	Groove Dia. (Dg) 3.71 mm +/- 0.025	Approx. Loose Circlip ID (A) 3.60 mm
Material: Zinc Plated Beryllium Copper Groove Width (W): 0.30 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00397-BZ External Retaining Rings - 3.97x0.3x3.71 mm - Zinc Plated Beryllium Copper Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 3.97 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 3.79 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 9.14 mm Clearance in Groove (C1): 49 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00397-4 (125 Pcs) External Retaining Rings - 3.97x0.64 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 31, 2025 Regular price $814.86 AUD Regular price Sale price $814.86 AUD Unit price per Per 125
Shaft Diameter (Ds) 3.97 mm +/- 0.05	Clip Thickness (T) 0.64 mm		Approx. Loose Circlip ID (A) 3.79 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 9.14 mm Clearance in Groove (C1): 49 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00397-4 (125 Pcs) External Retaining Rings - 3.97x0.64 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 31, 2025 Regular price $814.86 AUD Regular price Sale price $814.86 AUD Unit price per Per 125 View the product page first if you are unsure.
CNG-00397-4 (125 Pcs) --- External Retaining Rings - 3.97x0.64 - - - Stainless Steel AISI 420C CNG-00397-4 (125 Pcs) --- External Retaining Rings - 3.97x0.64 - - - Stainless Steel AISI 420C Regular price $814.86 AUD Regular price Sale price $814.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 4.78 mm	Clip Thickness (T) 0.38 mm +/- 0.038	Groove Dia. (Dg) 4.45 mm +/- 0.051	Approx. Loose Circlip ID (A) 4.27 mm		Groove Width (W) 0.46 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00478-C (100 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $63.05 AUD Regular price Sale price $63.05 AUD Unit price per Per 100
Shaft Diameter (Ds) 4.78 mm	Clip Thickness (T) 0.38 mm +/- 0.038	Groove Dia. (Dg) 4.45 mm +/- 0.051	Approx. Loose Circlip ID (A) 4.27 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00478-C (100 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $63.05 AUD Regular price Sale price $63.05 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00478-C (100 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm - Carbon Steel CCE-00478-C (100 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm - Carbon Steel Regular price $63.05 AUD Regular price Sale price $63.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 4.78 mm	Clip Thickness (T) 0.38 mm +/- 0.038	Groove Dia. (Dg) 4.45 mm +/- 0.051	Approx. Loose Circlip ID (A) 4.27 mm		Groove Width (W) 0.46 mm
Material: Beryllium Copper Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00478-B (20 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper 20 units (400 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 20
Shaft Diameter (Ds) 4.78 mm	Clip Thickness (T) 0.38 mm +/- 0.038	Groove Dia. (Dg) 4.45 mm +/- 0.051	Approx. Loose Circlip ID (A) 4.27 mm
Material: Beryllium Copper Groove Width (W): 0.46 mm Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00478-B (20 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper 20 units (400 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 20 View the product page first if you are unsure.
CCE-00478-B (20 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper CCE-00478-B (20 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm - Beryllium Copper Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per 20 Available Now
Shaft Diameter (Ds) 4.78 mm	Clip Thickness (T) 0.38 mm +/- 0.038	Groove Dia. (Dg) 4.45 mm +/- 0.051	Approx. Loose Circlip ID (A) 4.30 mm		Groove Width (W) 0.50 mm

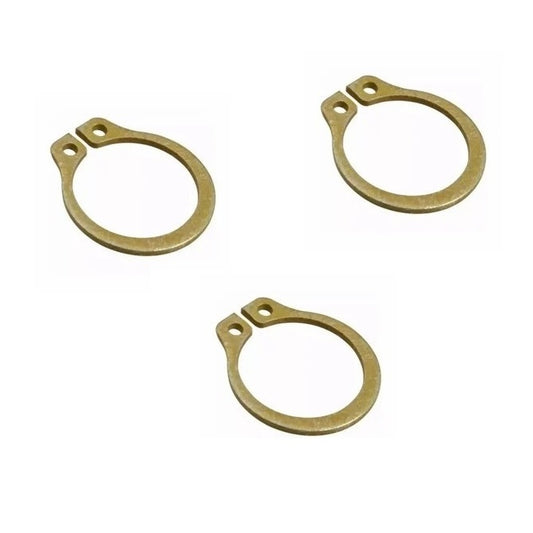

Material: Zinc Plated Yellow Clearance in Groove (C1): 7.26 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00478-CZY External Retaining Rings - 4.78x0.38x4.45 mm - Zinc Plated Yellow Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 4.78 mm	Clip Thickness (T) 0.38 mm +/- 0.038	Groove Dia. (Dg) 4.45 mm +/- 0.051	Approx. Loose Circlip ID (A) 4.30 mm
Material: Zinc Plated Yellow Groove Width (W): 0.50 mm Clearance in Groove (C1): 7.26 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00478-CZY External Retaining Rings - 4.78x0.38x4.45 mm - Zinc Plated Yellow Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Shaft Diameter (Ds) 4.78 mm +/- 0.05	Clip Thickness (T) 0.89 mm		Approx. Loose Circlip ID (A) 4.57 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 11.18 mm Clearance in Groove (C1): 81 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00478-4 (5 Pcs) External Retaining Rings - 4.78x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $31.59 AUD Regular price Sale price $31.59 AUD Unit price per Per 5
Shaft Diameter (Ds) 4.78 mm +/- 0.05	Clip Thickness (T) 0.89 mm		Approx. Loose Circlip ID (A) 4.57 mm
Material: Stainless Steel AISI 420C Clearance on Shaft (C1): 11.18 mm Clearance in Groove (C1): 81 mm Category: Retaining Rings - External - Circlips - Grooveless
Part Number: CNG-00478-4 (5 Pcs) External Retaining Rings - 4.78x0.89 - - - Stainless Steel AISI 420C Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $31.59 AUD Regular price Sale price $31.59 AUD Unit price per Per 5 View the product page first if you are unsure.
CNG-00478-4 (5 Pcs) --- External Retaining Rings - 4.78x0.89 - - - Stainless Steel AISI 420C CNG-00478-4 (5 Pcs) --- External Retaining Rings - 4.78x0.89 - - - Stainless Steel AISI 420C Regular price $31.59 AUD Regular price Sale price $31.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 5.00 mm	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm
Material: Carbon Steel Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel 33 units (3300 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100
Shaft Diameter (Ds) 5.00 mm	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05	Approx. Loose Circlip ID (A) 4.70 mm
Material: Carbon Steel Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel 33 units (3300 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Per 100 View the product page first if you are unsure.
CCE-00500-C (100 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel CCE-00500-C (100 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Carbon Steel Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 5.00 mm	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00500-S15 (10 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo 43 units (430 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 10
Shaft Diameter (Ds) 5.00 mm	Clip Thickness (T) 0.60 mm + 0.00 / - 0.04	Groove Dia. (Dg) 4.78 mm + 0.00 / - 0.05	Approx. Loose Circlip ID (A) 4.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Category: Retaining Rings - External - Circlips - Standard
Part Number: CCE-00500-S15 (10 Pcs) External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo 43 units (430 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Per 10 View the product page first if you are unsure.
CCE-00500-S15 (10 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo CCE-00500-S15 (10 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm - Stainless Steel Grade PH15-7 Mo Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per 43 Available Now
