| Minimum Rec. Shaft Dia (S) | Groove Dia. (Dg) | Clip Thickness (T) | Clip OD Loose (D1) | Groove Width (W) |

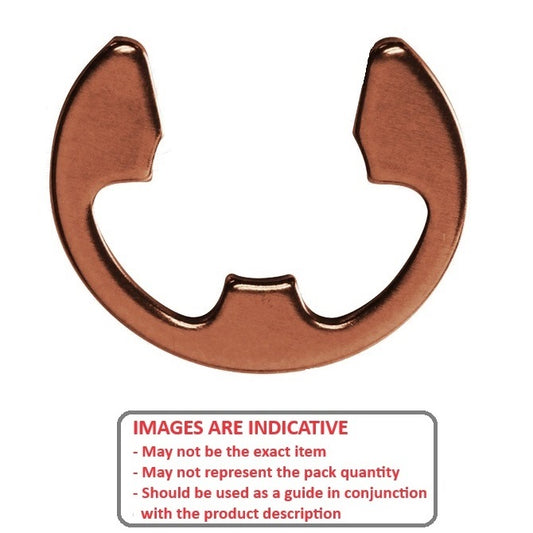

Indicative Image |
|---|---|---|---|---|---|
|
Minimum Rec. Shaft Dia (S)
1.00
mm + 0.25 / - 0.00
|
Groove Dia. (Dg)
0.66
mm + 0.051 / - 0.000 |
Clip Thickness (T)
0.25
mm +/ - 0.025 |
Clip OD Loose (D1)
1.75
mm |
Groove Width (W)
0.31
mm |
|
| Material: Beryllium Copper Maximum Rec. Shaft Dia (S): 1.25 Clip OD in groove (C1): 2.01 mm Loose Clip ID (A): 0.64 mm Standard: MIL-16633 | |||||
|
Part Number: ECL-0007-0010-B (5 Pcs) E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper
4 units (20 pcs) Available Immediately | Further orders can be expected around Sat, May 31, 2025 Regular price
$2.95 AUD
Regular price
Unit price
per
Per 5
|
|||||
| Minimum Rec. Shaft Dia (S) | Groove Dia. (Dg) | Clip Thickness (T) | Clip OD Loose (D1) |

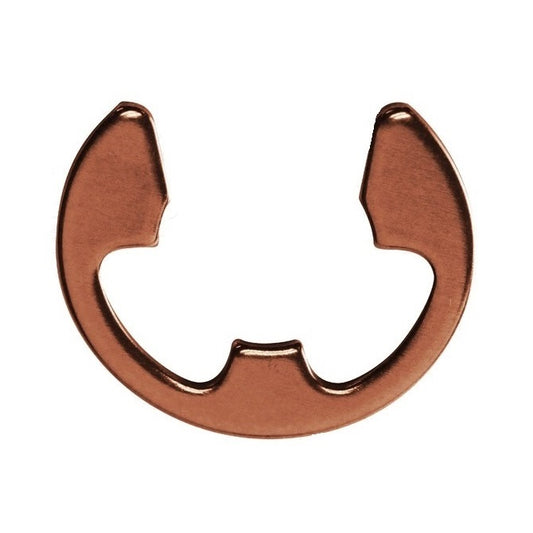

Indicative Image |
|
|
Minimum Rec. Shaft Dia (S)
1.00
mm + 0.25 / - 0.00 |
Groove Dia. (Dg)
0.66
mm + 0.051 / - 0.000 |
Clip Thickness (T)
0.25
mm +/ - 0.025 |
Clip OD Loose (D1)
1.75
mm |
|
|
| Material: Beryllium Copper Groove Width (W): 0.31 mm Maximum Rec. Shaft Dia (S): 1.25 Clip OD in groove (C1): 2.01 mm Loose Clip ID (A): 0.64 mm Standard: MIL-16633 | |||||
|
Part Number: ECL-0007-0010-B (5 Pcs) E-Clips Retaining Rings - 1x0.66x0.25 mm - Beryllium Copper
4 units (20 pcs) Available Immediately | Further orders can be expected around Sat, May 31, 2025 Regular price
$2.95 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00
|
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 |
Clip Thickness (T)
0.25
mm +/ - 0.025 |
Clip OD Loose (D1)
3.96
mm |
Groove Width (W)
0.30
mm |
|
| Material: Beryllium Copper Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Standard: MIL-16633 | |||||
|
Part Number: ECL-0013-0016A-B (5 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Beryllium Copper
14 units (70 pcs) Available Immediately | Further orders can be expected around Sat, May 31, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
Minimum Rec. Shaft Dia (S)
1.59
mm + 0.76 / - 0.00 |
Groove Dia. (Dg)
1.32
mm + 0.051 / - 0.000 |
Clip Thickness (T)
0.25
mm +/ - 0.025 |
Clip OD Loose (D1)
3.96
mm |
|
|
| Material: Beryllium Copper Groove Width (W): 0.30 mm Maximum Rec. Shaft Dia (S): 2.35 Clip OD in groove (C1): 4.19 mm Standard: MIL-16633 | |||||
|
Part Number: ECL-0013-0016A-B (5 Pcs) E-Clips Retaining Rings - 1.59x1.32x0.25 mm - Beryllium Copper
14 units (70 pcs) Available Immediately | Further orders can be expected around Sat, May 31, 2025 Regular price
$9.95 AUD
Regular price
Unit price
per
Per 5
|
|||||
|
|||||
|
Minimum Rec. Shaft Dia (S)
6.35
mm + 2.54 / - 0.00
|
Groove Dia. (Dg)
5.33
mm +/- 0.051 |
Clip Thickness (T)
0.64
mm +/ - 0.052 |
Clip OD Loose (D1)
13.11
mm |
Groove Width (W)
0.74
mm |
|
| Material: Beryllium Copper Maximum Rec. Shaft Dia (S): 8.89 Clip OD in groove (C1): 13.46 mm | |||||
|
Part Number: ECL-0053-0064-B (62 Pcs) E-Clips Retaining Rings - 6.35x5.33x0.64 mm - Beryllium Copper
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 31, 2025 Regular price
$302.59 AUD
Regular price
Unit price
per
Per 62
|
|||||
|
Minimum Rec. Shaft Dia (S)
6.35
mm + 2.54 / - 0.00 |
Groove Dia. (Dg)
5.33
mm +/- 0.051 |
Clip Thickness (T)
0.64
mm +/ - 0.052 |
Clip OD Loose (D1)
13.11
mm |
|
|
| Material: Beryllium Copper Groove Width (W): 0.74 mm Maximum Rec. Shaft Dia (S): 8.89 Clip OD in groove (C1): 13.46 mm | |||||
|
Part Number: ECL-0053-0064-B (62 Pcs) E-Clips Retaining Rings - 6.35x5.33x0.64 mm - Beryllium Copper
Out of Stock | Backorder Now | Orders can be expected around Thu, Jul 31, 2025 Regular price
$302.59 AUD
Regular price
Unit price
per
Per 62
|
|||||
|
|||||
