Collection: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore

Pulleys (With Images)

Metric Timing

3.000mm Pitch

HTD

6mm Wide

EZ-Lock
Through Bore

123 Products in this selection

Timing Pulleys to suit HTD 3.000mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide.
Aluminium alloy
Finished through bore ready to assemble
Set screw locking

Additional resources:
Timing Pulleys Catalogue PDF
3mm HTD Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore. Smallparts promote the most popular MBA products.

Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type	Indicative Image

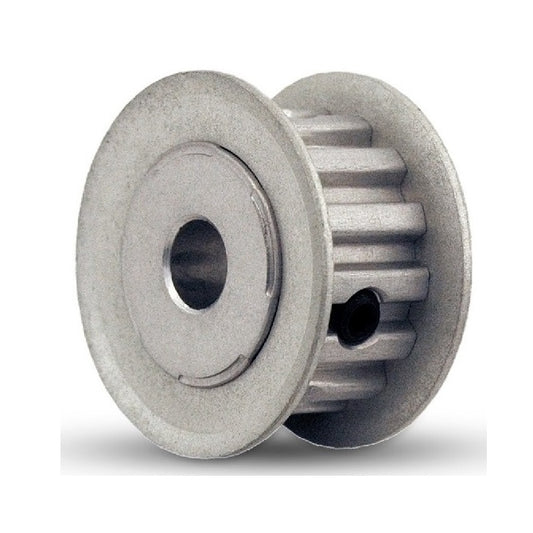

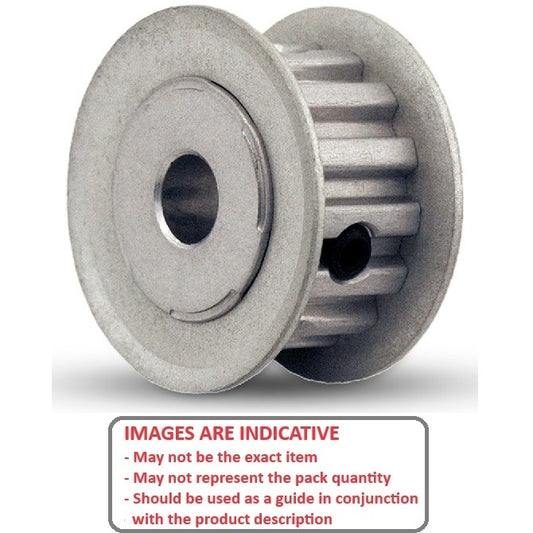

Teeth 18	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 17.19 mm Flange Diameter (FD): 20.0 mm
Part Number: P-030H-018-060FF-ALN-G-050 Metric Timing Pulleys - 18 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $19.68 AUD Regular price Sale price $19.68 AUD Unit price per Each
Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 17.19 mm Flange Diameter (FD): 20.0 mm
Part Number: P-030H-018-060FF-ALN-G-050 Metric Timing Pulleys - 18 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $19.68 AUD Regular price Sale price $19.68 AUD Unit price per Each View the product page first if you are unsure.
P-030H-018-060FF-ALN-G-050 --- Metric Timing Pulleys - 18 tooth - 6x5 mm - Aluminium P-030H-018-060FF-ALN-G-050 --- Metric Timing Pulleys - 18 tooth - 6x5 mm - Aluminium Regular price $19.68 AUD Regular price Sale price $19.68 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.18 mm Flange Diameter (FD): 20.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.2 mm
Part Number: P-030H-018-060FF-AL-G-060 Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Each
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 17.18 mm Flange Diameter (FD): 20.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.2 mm
Part Number: P-030H-018-060FF-AL-G-060 Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Each View the product page first if you are unsure.
P-030H-018-060FF-AL-G-060 --- Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium P-030H-018-060FF-AL-G-060 --- Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: 1 Pitch Dia. (PD): 17.19 mm Flange Diameter (FD): 20.0 mm Overall Length: 19.00 mm Hub Diameter (HD): 20.0 mm
Part Number: P-030H-018-060FH-AL-G-060 Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Each
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: 1 Pitch Dia. (PD): 17.19 mm Flange Diameter (FD): 20.0 mm Overall Length: 19.00 mm Hub Diameter (HD): 20.0 mm
Part Number: P-030H-018-060FH-AL-G-060 Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Each View the product page first if you are unsure.
P-030H-018-060FH-AL-G-060 --- Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium P-030H-018-060FH-AL-G-060 --- Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 17.18 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.2 mm
Part Number: P-030H-018-060P-AL-G-064 Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 17.18 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.2 mm
Part Number: P-030H-018-060P-AL-G-064 Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-018-060P-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium P-030H-018-060P-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium Regular price $35.50 AUD Regular price Sale price $35.50 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 18.14 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.9 mm
Part Number: P-030H-019-060P-AL-G-060 Metric Timing Pulleys - 19 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $32.59 AUD Regular price Sale price $32.59 AUD Unit price per Each
Teeth 19	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 18.14 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.9 mm
Part Number: P-030H-019-060P-AL-G-060 Metric Timing Pulleys - 19 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $32.59 AUD Regular price Sale price $32.59 AUD Unit price per Each View the product page first if you are unsure.
P-030H-019-060P-AL-G-060 --- Metric Timing Pulleys - 19 tooth - 6x6 mm - Aluminium P-030H-019-060P-AL-G-060 --- Metric Timing Pulleys - 19 tooth - 6x6 mm - Aluminium Regular price $32.59 AUD Regular price Sale price $32.59 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 18.14 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.9 mm
Part Number: P-030H-019-060FF-AL-G-060 Metric Timing Pulleys - 19 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $34.68 AUD Regular price Sale price $34.68 AUD Unit price per Each
Teeth 19	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 18.14 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.9 mm
Part Number: P-030H-019-060FF-AL-G-060 Metric Timing Pulleys - 19 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $34.68 AUD Regular price Sale price $34.68 AUD Unit price per Each View the product page first if you are unsure.
P-030H-019-060FF-AL-G-060 --- Metric Timing Pulleys - 19 tooth - 6x6 mm - Aluminium P-030H-019-060FF-AL-G-060 --- Metric Timing Pulleys - 19 tooth - 6x6 mm - Aluminium Regular price $34.68 AUD Regular price Sale price $34.68 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 18.14 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.9 mm
Part Number: P-030H-019-060P-AL-G-064 Metric Timing Pulleys - 19 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Each
Teeth 19	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 18.14 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.9 mm
Part Number: P-030H-019-060P-AL-G-064 Metric Timing Pulleys - 19 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Each View the product page first if you are unsure.
P-030H-019-060P-AL-G-064 --- Metric Timing Pulleys - 19 tooth - 6x6.35 mm - Aluminium P-030H-019-060P-AL-G-064 --- Metric Timing Pulleys - 19 tooth - 6x6.35 mm - Aluminium Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 17.18 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.2 mm
Part Number: P-030H-018-060P-AL-G-060 Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $32.23 AUD Regular price Sale price $32.23 AUD Unit price per Each
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 17.18 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.2 mm
Part Number: P-030H-018-060P-AL-G-060 Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $32.23 AUD Regular price Sale price $32.23 AUD Unit price per Each View the product page first if you are unsure.
P-030H-018-060P-AL-G-060 --- Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium P-030H-018-060P-AL-G-060 --- Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Regular price $32.23 AUD Regular price Sale price $32.23 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.18 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.2 mm
Part Number: P-030H-018-060FF-AL-G-064 Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $34.86 AUD Regular price Sale price $34.86 AUD Unit price per Each
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 17.18 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.2 mm
Part Number: P-030H-018-060FF-AL-G-064 Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $34.86 AUD Regular price Sale price $34.86 AUD Unit price per Each View the product page first if you are unsure.
P-030H-018-060FF-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium P-030H-018-060FF-AL-G-064 --- Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium Regular price $34.86 AUD Regular price Sale price $34.86 AUD Unit price per Out of stock! Backorder Now
Teeth 19	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 18.14 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.9 mm
Part Number: P-030H-019-060FF-AL-G-064 Metric Timing Pulleys - 19 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Each
Teeth 19	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 18.14 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.9 mm
Part Number: P-030H-019-060FF-AL-G-064 Metric Timing Pulleys - 19 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Each View the product page first if you are unsure.
P-030H-019-060FF-AL-G-064 --- Metric Timing Pulleys - 19 tooth - 6x6.35 mm - Aluminium P-030H-019-060FF-AL-G-064 --- Metric Timing Pulleys - 19 tooth - 6x6.35 mm - Aluminium Regular price $35.41 AUD Regular price Sale price $35.41 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 19.10 mm Flange Diameter (FD): 22.0 mm
Part Number: P-030H-020-060FF-ALN-G-050 Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 19.10 mm Flange Diameter (FD): 22.0 mm
Part Number: P-030H-020-060FF-ALN-G-050 Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Each View the product page first if you are unsure.
P-030H-020-060FF-ALN-G-050 --- Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium P-030H-020-060FF-ALN-G-050 --- Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: 1 Pitch Dia. (PD): 19.10 mm Flange Diameter (FD): 22.0 mm Overall Length: 19.00 mm Hub Diameter (HD): 22.0 mm
Part Number: P-030H-020-060FH-AL-G-050 Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: 1 Pitch Dia. (PD): 19.10 mm Flange Diameter (FD): 22.0 mm Overall Length: 19.00 mm Hub Diameter (HD): 22.0 mm
Part Number: P-030H-020-060FH-AL-G-050 Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each View the product page first if you are unsure.
P-030H-020-060FH-AL-G-050 --- Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium P-030H-020-060FH-AL-G-050 --- Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 19.09 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 mm
Part Number: P-030H-020-060P-AL-G-060 Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $32.41 AUD Regular price Sale price $32.41 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 19.09 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 mm
Part Number: P-030H-020-060P-AL-G-060 Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $32.41 AUD Regular price Sale price $32.41 AUD Unit price per Each View the product page first if you are unsure.
P-030H-020-060P-AL-G-060 --- Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium P-030H-020-060P-AL-G-060 --- Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Regular price $32.41 AUD Regular price Sale price $32.41 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 mm
Part Number: P-030H-020-060FF-AL-G-060 Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $34.59 AUD Regular price Sale price $34.59 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 mm
Part Number: P-030H-020-060FF-AL-G-060 Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $34.59 AUD Regular price Sale price $34.59 AUD Unit price per Each View the product page first if you are unsure.
P-030H-020-060FF-AL-G-060 --- Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium P-030H-020-060FF-AL-G-060 --- Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Regular price $34.59 AUD Regular price Sale price $34.59 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: 1 Pitch Dia. (PD): 19.10 mm Flange Diameter (FD): 22.0 mm Overall Length: 19.00 mm Hub Diameter (HD): 22.0 mm
Part Number: P-030H-020-060FH-AL-G-060 Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: 1 Pitch Dia. (PD): 19.10 mm Flange Diameter (FD): 22.0 mm Overall Length: 19.00 mm Hub Diameter (HD): 22.0 mm
Part Number: P-030H-020-060FH-AL-G-060 Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each View the product page first if you are unsure.
P-030H-020-060FH-AL-G-060 --- Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium P-030H-020-060FH-AL-G-060 --- Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 mm
Part Number: P-030H-020-060FF-AL-G-064 Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.77 AUD Regular price Sale price $35.77 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 mm
Part Number: P-030H-020-060FF-AL-G-064 Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.77 AUD Regular price Sale price $35.77 AUD Unit price per Each View the product page first if you are unsure.
P-030H-020-060FF-AL-G-064 --- Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium P-030H-020-060FF-AL-G-064 --- Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium Regular price $35.77 AUD Regular price Sale price $35.77 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 19.09 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 mm
Part Number: P-030H-020-060P-AL-G-064 Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.68 AUD Regular price Sale price $35.68 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 19.09 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 mm
Part Number: P-030H-020-060P-AL-G-064 Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.68 AUD Regular price Sale price $35.68 AUD Unit price per Each View the product page first if you are unsure.
P-030H-020-060P-AL-G-064 --- Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium P-030H-020-060P-AL-G-064 --- Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium Regular price $35.68 AUD Regular price Sale price $35.68 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 19.10 mm Flange Diameter (FD): 22.0 mm
Part Number: P-030H-020-060FF-ALN-G-060 Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 19.10 mm Flange Diameter (FD): 22.0 mm
Part Number: P-030H-020-060FF-ALN-G-060 Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Each View the product page first if you are unsure.
P-030H-020-060FF-ALN-G-060 --- Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium P-030H-020-060FF-ALN-G-060 --- Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 3 Pitch Dia. (PD): 21.00 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 mm
Part Number: P-030H-022-060P-AL-G-060 Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $32.86 AUD Regular price Sale price $32.86 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 3 Pitch Dia. (PD): 21.00 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 mm
Part Number: P-030H-022-060P-AL-G-060 Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $32.86 AUD Regular price Sale price $32.86 AUD Unit price per Each View the product page first if you are unsure.
P-030H-022-060P-AL-G-060 --- Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium P-030H-022-060P-AL-G-060 --- Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Regular price $32.86 AUD Regular price Sale price $32.86 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 21.00 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 mm
Part Number: P-030H-022-060FF-AL-G-060 Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.68 AUD Regular price Sale price $35.68 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 21.00 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 mm
Part Number: P-030H-022-060FF-AL-G-060 Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $35.68 AUD Regular price Sale price $35.68 AUD Unit price per Each View the product page first if you are unsure.
P-030H-022-060FF-AL-G-060 --- Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium P-030H-022-060FF-AL-G-060 --- Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Regular price $35.68 AUD Regular price Sale price $35.68 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: 1 Pitch Dia. (PD): 21.01 mm Flange Diameter (FD): 25.0 mm Overall Length: 19.00 mm Hub Diameter (HD): 25.0 mm
Part Number: P-030H-022-060FH-AL-G-060 Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: 1 Pitch Dia. (PD): 21.01 mm Flange Diameter (FD): 25.0 mm Overall Length: 19.00 mm Hub Diameter (HD): 25.0 mm
Part Number: P-030H-022-060FH-AL-G-060 Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each View the product page first if you are unsure.
P-030H-022-060FH-AL-G-060 --- Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium P-030H-022-060FH-AL-G-060 --- Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type Set Screw
Material: Aluminium Type: 2 Pitch Dia. (PD): 21.00 mm Flange Diameter (FD): 24.3 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 mm
Part Number: P-030H-022-060FF-AL-G-064 Metric Timing Pulleys - 22 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $36.32 AUD Regular price Sale price $36.32 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screw Type: 2 Pitch Dia. (PD): 21.00 mm Flange Diameter (FD): 24.3 mm Overall Length: 17.5 mm Hub Diameter (HD): 14.3 mm
Part Number: P-030H-022-060FF-AL-G-064 Metric Timing Pulleys - 22 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $36.32 AUD Regular price Sale price $36.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-022-060FF-AL-G-064 --- Metric Timing Pulleys - 22 tooth - 6x6.35 mm - Aluminium P-030H-022-060FF-AL-G-064 --- Metric Timing Pulleys - 22 tooth - 6x6.35 mm - Aluminium Regular price $36.32 AUD Regular price Sale price $36.32 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 8.000 mm	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: 1 Pitch Dia. (PD): 21.01 mm Flange Diameter (FD): 25.0 mm Overall Length: 19.00 mm Hub Diameter (HD): 25.0 mm
Part Number: P-030H-022-060FH-AL-G-080 Metric Timing Pulleys - 22 tooth - 6x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 8.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: 1 Pitch Dia. (PD): 21.01 mm Flange Diameter (FD): 25.0 mm Overall Length: 19.00 mm Hub Diameter (HD): 25.0 mm
Part Number: P-030H-022-060FH-AL-G-080 Metric Timing Pulleys - 22 tooth - 6x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Each View the product page first if you are unsure.
P-030H-022-060FH-AL-G-080 --- Metric Timing Pulleys - 22 tooth - 6x8 mm - Aluminium P-030H-022-060FH-AL-G-080 --- Metric Timing Pulleys - 22 tooth - 6x8 mm - Aluminium Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type Set Screws
Material: Aluminium Type: Double Flanged - Hubless Pitch Dia. (PD): 21.01 mm Flange Diameter (FD): 25.0 mm
Part Number: P-030H-022-060FF-ALN-G-060 Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: Set Screws Type: Double Flanged - Hubless Pitch Dia. (PD): 21.01 mm Flange Diameter (FD): 25.0 mm
Part Number: P-030H-022-060FF-ALN-G-060 Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 10, 2025 Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Each View the product page first if you are unsure.
P-030H-022-060FF-ALN-G-060 --- Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium P-030H-022-060FF-ALN-G-060 --- Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Regular price $20.59 AUD Regular price Sale price $20.59 AUD Unit price per Out of stock! Backorder Now
