Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore

123 Products in this selection

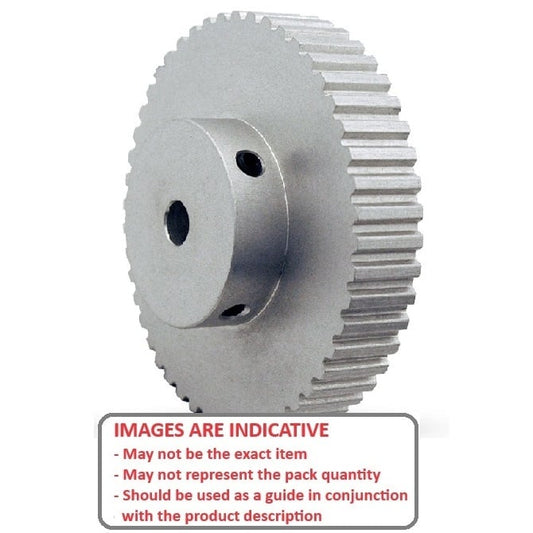

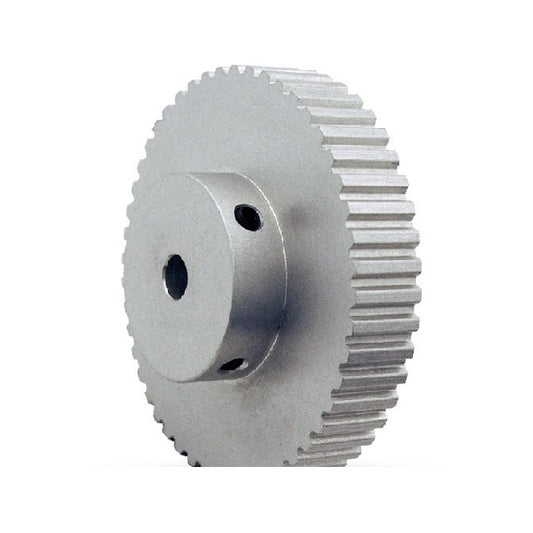

  • Timing Pulleys to suit HTD 3.000mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide.
  • Aluminium alloy
  • Finished through bore ready to assemble
  • Set screw locking
Additional resources:
Timing Pulleys Catalogue PDF
3mm HTD Timing Belts
A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore. Smallparts promote the most popular MBA products.
Teeth Max Belt Width Bore (d) Bore Type Locking Type Indicative
Teeth
68
Max Belt Width
6.00
mm
Bore (d)
7.938
mm
Bore Type
Finished
Locking Type
Set Screw
1173374 | P-030H-068-060P-AL-G-079 --- Metric Timing Pulleys - 68 tooth - 6x7.938 mm - Aluminium
Material: Aluminium    Type: 3    Pitch Dia. (PD): 64.91 mm    Overall Length: 18.1 mm    Hub Diameter (HD): 31.8 mm
Part Number: P-030H-068-060P-AL-G-079 Metric Timing Pulleys - 68 tooth - 6x7.938 mm - Aluminium
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 24, 2025
$100.05 AUD
$100.05 AUD
Each
Teeth Max Belt Width Bore (d) Bore Type Indicative
Teeth
68
Max Belt Width
6.00
mm
Bore (d)
7.938
mm
Bore Type
Finished
1173374 | P-030H-068-060P-AL-G-079 --- Metric Timing Pulleys - 68 tooth - 6x7.938 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 3    Pitch Dia. (PD): 64.91 mm    Overall Length: 18.1 mm    Hub Diameter (HD): 31.8 mm
Part Number: P-030H-068-060P-AL-G-079 Metric Timing Pulleys - 68 tooth - 6x7.938 mm - Aluminium
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 24, 2025
$100.05 AUD
$100.05 AUD
Each
View the product page first if you are unsure.
Teeth
72
Max Belt Width
6.00
mm
Bore (d)
7.938
mm
Bore Type
Finished
Locking Type
Set Screw
1173844 | P-030H-072-060P-AL-G-079 --- Metric Timing Pulleys - 72 tooth - 6x7.938 mm - Aluminium
Material: Aluminium    Type: 3    Pitch Dia. (PD): 68.72 mm    Overall Length: 18.7 mm    Hub Diameter (HD): 31.8 mm
Part Number: P-030H-072-060P-AL-G-079 Metric Timing Pulleys - 72 tooth - 6x7.938 mm - Aluminium
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 24, 2025
$102.77 AUD
$102.77 AUD
Each
Teeth
72
Max Belt Width
6.00
mm
Bore (d)
7.938
mm
Bore Type
Finished
1173844 | P-030H-072-060P-AL-G-079 --- Metric Timing Pulleys - 72 tooth - 6x7.938 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 3    Pitch Dia. (PD): 68.72 mm    Overall Length: 18.7 mm    Hub Diameter (HD): 31.8 mm
Part Number: P-030H-072-060P-AL-G-079 Metric Timing Pulleys - 72 tooth - 6x7.938 mm - Aluminium
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 24, 2025
$102.77 AUD
$102.77 AUD
Each
View the product page first if you are unsure.
Teeth
72
Max Belt Width
6.00
mm
Bore (d)
8.000
mm
Bore Type
Finished
Locking Type
Set Screw
1175682 | P-030H-072-060P-AL-G-080 --- Metric Timing Pulleys - 72 tooth - 6x8 mm - Aluminium
Material: Aluminium    Type: 3    Pitch Dia. (PD): 68.72 mm    Overall Length: 18.6 mm    Hub Diameter (HD): 31.8 mm
Part Number: P-030H-072-060P-AL-G-080 Metric Timing Pulleys - 72 tooth - 6x8 mm - Aluminium
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 24, 2025
$103.68 AUD
$103.68 AUD
Each
Teeth
72
Max Belt Width
6.00
mm
Bore (d)
8.000
mm
Bore Type
Finished
1175682 | P-030H-072-060P-AL-G-080 --- Metric Timing Pulleys - 72 tooth - 6x8 mm - Aluminium
Material: Aluminium    Locking Type: Set Screw    Type: 3    Pitch Dia. (PD): 68.72 mm    Overall Length: 18.6 mm    Hub Diameter (HD): 31.8 mm
Part Number: P-030H-072-060P-AL-G-080 Metric Timing Pulleys - 72 tooth - 6x8 mm - Aluminium
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 24, 2025
$103.68 AUD
$103.68 AUD
Each
View the product page first if you are unsure.
