Collection: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock

Pulleys (With Images)

Metric Timing

3.000mm Pitch

HTD

6mm Wide

EZ-Lock
Through Bore

35 Products in this selection

Timing Pulleys to suit HTD 3.000mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide.

Additional resources:
Timing Pulleys Catalogue PDF
3mm HTD Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - EZ-Lock. Smallparts promote the most popular MBA products.

Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type	Indicative Image
Teeth 10	Max Belt Width 6.00 mm	Bore (d) 3.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.3 mm Hub Diameter (HD): 12.2
Part Number: P-030H-010-060FH-AL-E-030 Metric Timing Pulleys - 10 tooth - 6x3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Each
Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Teeth 10	Max Belt Width 6.00 mm	Bore (d) 3.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.3 mm Hub Diameter (HD): 12.2
Part Number: P-030H-010-060FH-AL-E-030 Metric Timing Pulleys - 10 tooth - 6x3 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-010-060FH-AL-E-030 --- Metric Timing Pulleys - 10 tooth - 6x3 mm - Aluminium P-030H-010-060FH-AL-E-030 --- Metric Timing Pulleys - 10 tooth - 6x3 mm - Aluminium Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Out of stock! Backorder Now
Teeth 10	Max Belt Width 6.00 mm	Bore (d) 3.175 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.3 mm Hub Diameter (HD): 12.2
Part Number: P-030H-010-060FH-AL-E-032 Metric Timing Pulleys - 10 tooth - 6x3.175 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Each
Teeth 10	Max Belt Width 6.00 mm	Bore (d) 3.175 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 12.8 mm Overall Length: 14.3 mm Hub Diameter (HD): 12.2
Part Number: P-030H-010-060FH-AL-E-032 Metric Timing Pulleys - 10 tooth - 6x3.175 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-010-060FH-AL-E-032 --- Metric Timing Pulleys - 10 tooth - 6x3.175 mm - Aluminium P-030H-010-060FH-AL-E-032 --- Metric Timing Pulleys - 10 tooth - 6x3.175 mm - Aluminium Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Out of stock! Backorder Now
Teeth 12	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-030H-012-060FH-AL-E-048 Metric Timing Pulleys - 12 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.41 AUD Regular price Sale price $71.41 AUD Unit price per Each
Teeth 12	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-030H-012-060FH-AL-E-048 Metric Timing Pulleys - 12 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.41 AUD Regular price Sale price $71.41 AUD Unit price per Each View the product page first if you are unsure.
P-030H-012-060FH-AL-E-048 --- Metric Timing Pulleys - 12 tooth - 6x4.763 mm - Aluminium P-030H-012-060FH-AL-E-048 --- Metric Timing Pulleys - 12 tooth - 6x4.763 mm - Aluminium Regular price $71.41 AUD Regular price Sale price $71.41 AUD Unit price per Out of stock! Backorder Now
Teeth 12	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-030H-012-060FH-AL-E-050 Metric Timing Pulleys - 12 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.41 AUD Regular price Sale price $71.41 AUD Unit price per Each
Teeth 12	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-030H-012-060FH-AL-E-050 Metric Timing Pulleys - 12 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.41 AUD Regular price Sale price $71.41 AUD Unit price per Each View the product page first if you are unsure.
P-030H-012-060FH-AL-E-050 --- Metric Timing Pulleys - 12 tooth - 6x5 mm - Aluminium P-030H-012-060FH-AL-E-050 --- Metric Timing Pulleys - 12 tooth - 6x5 mm - Aluminium Regular price $71.41 AUD Regular price Sale price $71.41 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-014-060FF-AL-E-048 Metric Timing Pulleys - 14 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.41 AUD Regular price Sale price $71.41 AUD Unit price per Each
Teeth 14	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-014-060FF-AL-E-048 Metric Timing Pulleys - 14 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.41 AUD Regular price Sale price $71.41 AUD Unit price per Each View the product page first if you are unsure.
P-030H-014-060FF-AL-E-048 --- Metric Timing Pulleys - 14 tooth - 6x4.763 mm - Aluminium P-030H-014-060FF-AL-E-048 --- Metric Timing Pulleys - 14 tooth - 6x4.763 mm - Aluminium Regular price $71.41 AUD Regular price Sale price $71.41 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-014-060FF-AL-E-050 Metric Timing Pulleys - 14 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Each
Teeth 14	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 13.36 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-014-060FF-AL-E-050 Metric Timing Pulleys - 14 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-014-060FF-AL-E-050 --- Metric Timing Pulleys - 14 tooth - 6x5 mm - Aluminium P-030H-014-060FF-AL-E-050 --- Metric Timing Pulleys - 14 tooth - 6x5 mm - Aluminium Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-015-060FF-AL-E-048 Metric Timing Pulleys - 15 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Each
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-015-060FF-AL-E-048 Metric Timing Pulleys - 15 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-015-060FF-AL-E-048 --- Metric Timing Pulleys - 15 tooth - 6x4.763 mm - Aluminium P-030H-015-060FF-AL-E-048 --- Metric Timing Pulleys - 15 tooth - 6x4.763 mm - Aluminium Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: A6D23M015DF0605 Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $88.59 AUD Regular price Sale price $88.59 AUD Unit price per Each
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: A6D23M015DF0605 Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $88.59 AUD Regular price Sale price $88.59 AUD Unit price per Each View the product page first if you are unsure.
A6D23M015DF0605 --- Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium A6D23M015DF0605 --- Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium Regular price $88.59 AUD Regular price Sale price $88.59 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-015-060FF-AL-E-050 Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium 5 Available Immediately \| Further orders can be expected around Wed, Jun 25, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Each
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 14.32 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-015-060FF-AL-E-050 Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium 5 Available Immediately \| Further orders can be expected around Wed, Jun 25, 2025 Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-015-060FF-AL-E-050 --- Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium P-030H-015-060FF-AL-E-050 --- Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium Regular price $71.50 AUD Regular price Sale price $71.50 AUD Unit price per 5 Available Now
Teeth 16	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.27 mm Flange Diameter (FD): 18.3 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-016-060FF-AL-E-048 Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $59.14 AUD Regular price Sale price $59.14 AUD Unit price per Each
Teeth 16	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 15.27 mm Flange Diameter (FD): 18.3 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-016-060FF-AL-E-048 Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $59.14 AUD Regular price Sale price $59.14 AUD Unit price per Each View the product page first if you are unsure.
P-030H-016-060FF-AL-E-048 --- Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium P-030H-016-060FF-AL-E-048 --- Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium Regular price $59.14 AUD Regular price Sale price $59.14 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.27 mm Flange Diameter (FD): 18.0 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-016-060FF-AL-E-050 Metric Timing Pulleys - 16 tooth - 6x5 mm - Aluminium 93 Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $47.50 AUD Regular price Sale price $47.50 AUD Unit price per Each
Teeth 16	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 15.27 mm Flange Diameter (FD): 18.0 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-030H-016-060FF-AL-E-050 Metric Timing Pulleys - 16 tooth - 6x5 mm - Aluminium 93 Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $47.50 AUD Regular price Sale price $47.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-016-060FF-AL-E-050 --- Metric Timing Pulleys - 16 tooth - 6x5 mm - Aluminium P-030H-016-060FF-AL-E-050 --- Metric Timing Pulleys - 16 tooth - 6x5 mm - Aluminium Regular price $47.50 AUD Regular price Sale price $47.50 AUD Unit price per 93 Available Now
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.18 mm Flange Diameter (FD): 20.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-018-060FF-AL-E-060 Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.77 AUD Regular price Sale price $71.77 AUD Unit price per Each
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 17.18 mm Flange Diameter (FD): 20.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-018-060FF-AL-E-060 Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.77 AUD Regular price Sale price $71.77 AUD Unit price per Each View the product page first if you are unsure.
P-030H-018-060FF-AL-E-060 --- Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium P-030H-018-060FF-AL-E-060 --- Metric Timing Pulleys - 18 tooth - 6x6 mm - Aluminium Regular price $71.77 AUD Regular price Sale price $71.77 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.18 mm Flange Diameter (FD): 20.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-018-060FF-AL-E-064 Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.77 AUD Regular price Sale price $71.77 AUD Unit price per Each
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 17.18 mm Flange Diameter (FD): 20.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-018-060FF-AL-E-064 Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.77 AUD Regular price Sale price $71.77 AUD Unit price per Each View the product page first if you are unsure.
P-030H-018-060FF-AL-E-064 --- Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium P-030H-018-060FF-AL-E-064 --- Metric Timing Pulleys - 18 tooth - 6x6.35 mm - Aluminium Regular price $71.77 AUD Regular price Sale price $71.77 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-020-060FF-AL-E-064 Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.32 AUD Regular price Sale price $72.32 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-020-060FF-AL-E-064 Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.32 AUD Regular price Sale price $72.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-020-060FF-AL-E-064 --- Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium P-030H-020-060FF-AL-E-064 --- Metric Timing Pulleys - 20 tooth - 6x6.35 mm - Aluminium Regular price $72.32 AUD Regular price Sale price $72.32 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-020-060FF-AL-E-060 Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.32 AUD Regular price Sale price $72.32 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-020-060FF-AL-E-060 Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.32 AUD Regular price Sale price $72.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-020-060FF-AL-E-060 --- Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium P-030H-020-060FF-AL-E-060 --- Metric Timing Pulleys - 20 tooth - 6x6 mm - Aluminium Regular price $72.32 AUD Regular price Sale price $72.32 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 21.00 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-022-060FF-AL-E-064 Metric Timing Pulleys - 22 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 21.00 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-022-060FF-AL-E-064 Metric Timing Pulleys - 22 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Each View the product page first if you are unsure.
P-030H-022-060FF-AL-E-064 --- Metric Timing Pulleys - 22 tooth - 6x6.35 mm - Aluminium P-030H-022-060FF-AL-E-064 --- Metric Timing Pulleys - 22 tooth - 6x6.35 mm - Aluminium Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 21.00 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-022-060FF-AL-E-060 Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 21.00 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-022-060FF-AL-E-060 Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Each View the product page first if you are unsure.
P-030H-022-060FF-AL-E-060 --- Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium P-030H-022-060FF-AL-E-060 --- Metric Timing Pulleys - 22 tooth - 6x6 mm - Aluminium Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 26.9 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-025-060FF-AL-E-064 Metric Timing Pulleys - 25 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $56.50 AUD Regular price Sale price $56.50 AUD Unit price per Each
Teeth 25	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 26.9 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-025-060FF-AL-E-064 Metric Timing Pulleys - 25 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $56.50 AUD Regular price Sale price $56.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-025-060FF-AL-E-064 --- Metric Timing Pulleys - 25 tooth - 6x6.35 mm - Aluminium P-030H-025-060FF-AL-E-064 --- Metric Timing Pulleys - 25 tooth - 6x6.35 mm - Aluminium Regular price $56.50 AUD Regular price Sale price $56.50 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.91 mm Flange Diameter (FD): 26.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-024-060FF-AL-E-060 Metric Timing Pulleys - 24 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Each
Teeth 24	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 22.91 mm Flange Diameter (FD): 26.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-024-060FF-AL-E-060 Metric Timing Pulleys - 24 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-024-060FF-AL-E-060 --- Metric Timing Pulleys - 24 tooth - 6x6 mm - Aluminium P-030H-024-060FF-AL-E-060 --- Metric Timing Pulleys - 24 tooth - 6x6 mm - Aluminium Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.91 mm Flange Diameter (FD): 26.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-024-060FF-AL-E-064 Metric Timing Pulleys - 24 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Each
Teeth 24	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 22.91 mm Flange Diameter (FD): 26.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-024-060FF-AL-E-064 Metric Timing Pulleys - 24 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-024-060FF-AL-E-064 --- Metric Timing Pulleys - 24 tooth - 6x6.35 mm - Aluminium P-030H-024-060FF-AL-E-064 --- Metric Timing Pulleys - 24 tooth - 6x6.35 mm - Aluminium Regular price $55.50 AUD Regular price Sale price $55.50 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 26.9 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-025-060FF-AL-E-060 Metric Timing Pulleys - 25 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $56.50 AUD Regular price Sale price $56.50 AUD Unit price per Each
Teeth 25	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 26.9 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-025-060FF-AL-E-060 Metric Timing Pulleys - 25 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $56.50 AUD Regular price Sale price $56.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-025-060FF-AL-E-060 --- Metric Timing Pulleys - 25 tooth - 6x6 mm - Aluminium P-030H-025-060FF-AL-E-060 --- Metric Timing Pulleys - 25 tooth - 6x6 mm - Aluminium Regular price $56.50 AUD Regular price Sale price $56.50 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 24.82 mm Flange Diameter (FD): 28.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-026-060FF-AL-E-064 Metric Timing Pulleys - 26 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $56.50 AUD Regular price Sale price $56.50 AUD Unit price per Each
Teeth 26	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 24.82 mm Flange Diameter (FD): 28.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9

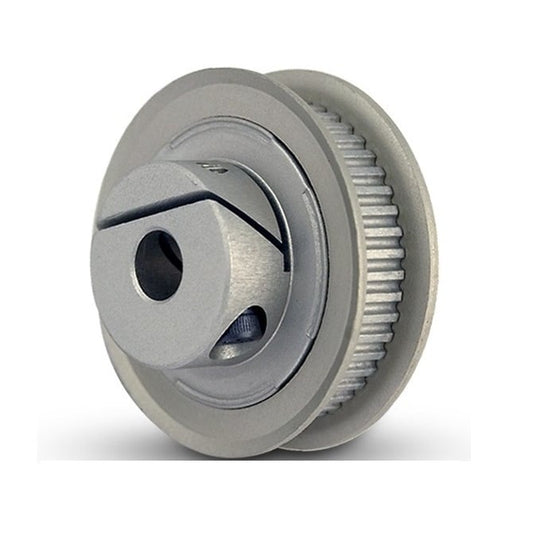

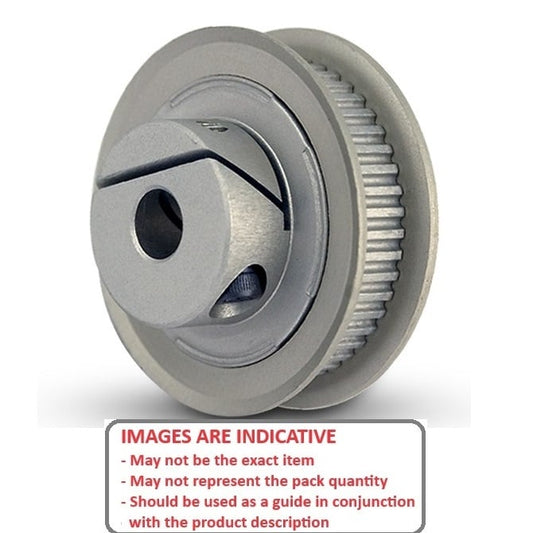

Part Number: P-030H-026-060FF-AL-E-064 Metric Timing Pulleys - 26 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $56.50 AUD Regular price Sale price $56.50 AUD Unit price per Each View the product page first if you are unsure.
P-030H-026-060FF-AL-E-064 --- Metric Timing Pulleys - 26 tooth - 6x6.35 mm - Aluminium P-030H-026-060FF-AL-E-064 --- Metric Timing Pulleys - 26 tooth - 6x6.35 mm - Aluminium Regular price $56.50 AUD Regular price Sale price $56.50 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 24.82 mm Flange Diameter (FD): 28.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-026-060FF-AL-E-060 Metric Timing Pulleys - 26 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $57.32 AUD Regular price Sale price $57.32 AUD Unit price per Each
Teeth 26	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 24.82 mm Flange Diameter (FD): 28.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-030H-026-060FF-AL-E-060 Metric Timing Pulleys - 26 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $57.32 AUD Regular price Sale price $57.32 AUD Unit price per Each View the product page first if you are unsure.
P-030H-026-060FF-AL-E-060 --- Metric Timing Pulleys - 26 tooth - 6x6 mm - Aluminium P-030H-026-060FF-AL-E-060 --- Metric Timing Pulleys - 26 tooth - 6x6 mm - Aluminium Regular price $57.32 AUD Regular price Sale price $57.32 AUD Unit price per Out of stock! Backorder Now

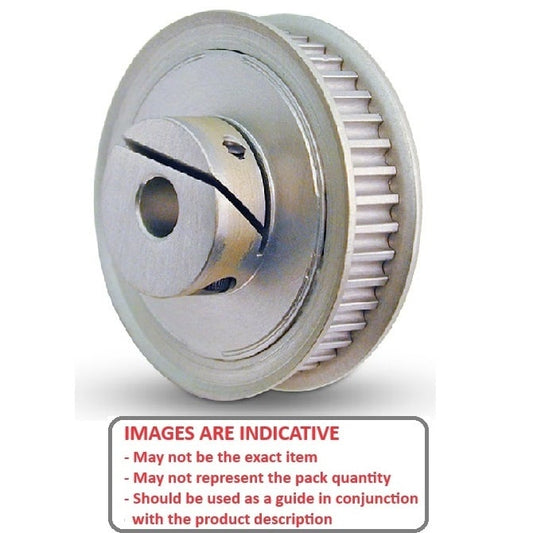

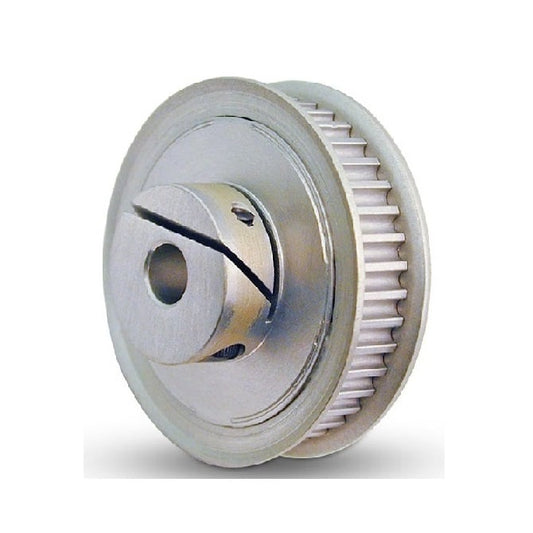

Teeth 30	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 19.1
Part Number: P-030H-030-060FF-AL-E-060 Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $58.59 AUD Regular price Sale price $58.59 AUD Unit price per Each
Teeth 30	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 31.8 mm Overall Length: 17.5 mm Hub Diameter (HD): 19.1
Part Number: P-030H-030-060FF-AL-E-060 Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $58.59 AUD Regular price Sale price $58.59 AUD Unit price per Each View the product page first if you are unsure.
P-030H-030-060FF-AL-E-060 --- Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium P-030H-030-060FF-AL-E-060 --- Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium Regular price $58.59 AUD Regular price Sale price $58.59 AUD Unit price per Out of stock! Backorder Now
