Collection: Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - EZ-Lock

Pulleys (With Images)

Metric Timing

2.000mm Pitch

6mm Wide

42 Products in this selection

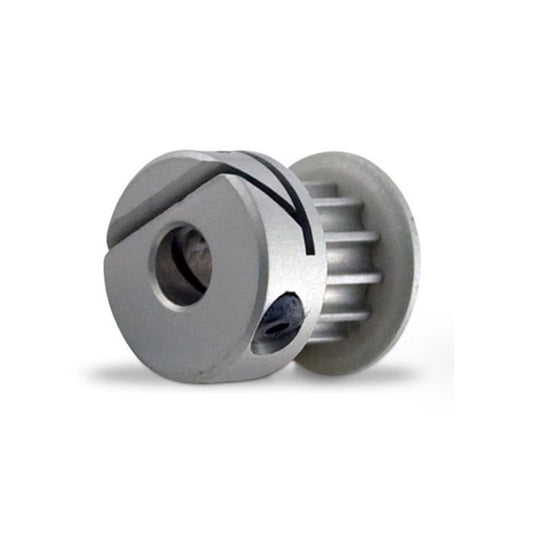

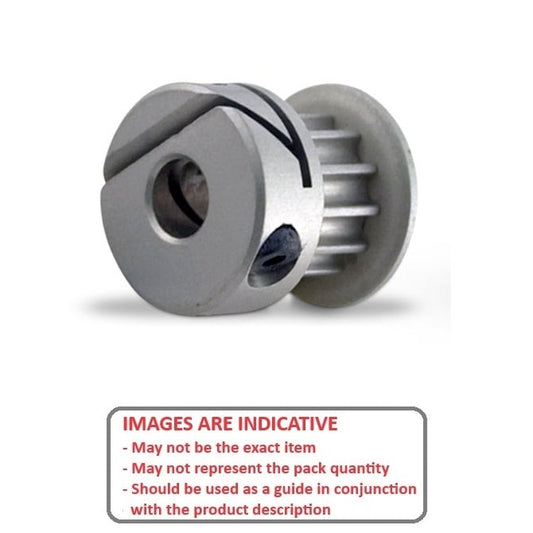

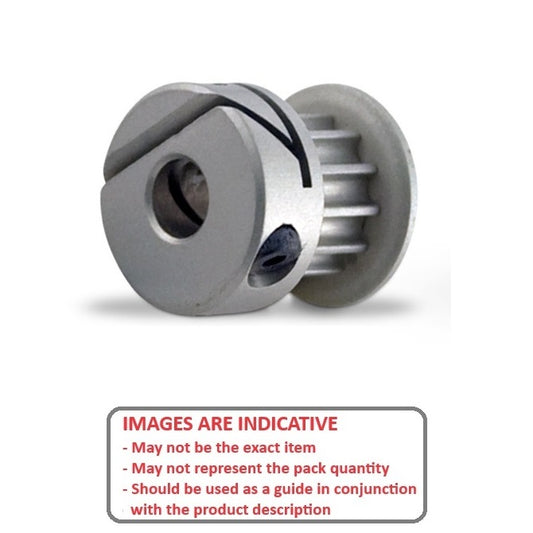

Timing Pulleys to suit 2mm Pitch GT Timing Belts 6mm Wide. Use with GT2 or GT3 type belts.
Aluminium Alloy
EZI-LOK Hub Clamps together wit a Socket Head Cap Screw
Socket Cap Screw is Supplied with Pulley

Additional resources:
Timing Pulleys Catalogue PDF
2mm GT Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - EZ-Lock. Smallparts promote the most popular MBA products.

Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 15.0 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-020G-015-060FH-AL-E-048 Metric Timing Pulleys - 15 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $70.50 AUD Regular price Sale price $70.50 AUD Unit price per Each
Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 15.0 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-020G-015-060FH-AL-E-048 Metric Timing Pulleys - 15 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $70.50 AUD Regular price Sale price $70.50 AUD Unit price per Each View the product page first if you are unsure.
P-020G-015-060FH-AL-E-048 --- Metric Timing Pulleys - 15 tooth - 6x4.763 mm - Aluminium P-020G-015-060FH-AL-E-048 --- Metric Timing Pulleys - 15 tooth - 6x4.763 mm - Aluminium Regular price $70.50 AUD Regular price Sale price $70.50 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 14.1 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-020G-015-060FH-AL-E-050 Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium 14 Available Immediately \| More stock due: 400 around Mon, May 05, 2025 \| Further orders can be expected around Mon, May 19, 2025 Regular price $64.05 AUD Regular price ~~$76.85 AUD~~ Sale price $64.05 AUD Unit price per Each
Teeth 15	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 9.55 mm Flange Diameter (FD): 14.1 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-020G-015-060FH-AL-E-050 Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium 14 Available Immediately \| More stock due: 400 around Mon, May 05, 2025 \| Further orders can be expected around Mon, May 19, 2025 Regular price $64.05 AUD Regular price ~~$76.85 AUD~~ Sale price $64.05 AUD Unit price per Each View the product page first if you are unsure.
P-020G-015-060FH-AL-E-050 --- Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium Sale P-020G-015-060FH-AL-E-050 --- Metric Timing Pulleys - 15 tooth - 6x5 mm - Aluminium Regular price $64.05 AUD Regular price ~~$76.85 AUD~~ Sale price $64.05 AUD Unit price per 14 Available Now Sale
Teeth 16	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.18 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-020G-016-060FH-AL-E-048 Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.32 AUD Regular price Sale price $71.32 AUD Unit price per Each
Teeth 16	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 10.18 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-020G-016-060FH-AL-E-048 Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $71.32 AUD Regular price Sale price $71.32 AUD Unit price per Each View the product page first if you are unsure.
P-020G-016-060FH-AL-E-048 --- Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium P-020G-016-060FH-AL-E-048 --- Metric Timing Pulleys - 16 tooth - 6x4.763 mm - Aluminium Regular price $71.32 AUD Regular price Sale price $71.32 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 10.18 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-020G-016-060FH-AL-E-050 Metric Timing Pulleys - 16 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Each
Teeth 16	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 10.18 mm Flange Diameter (FD): 14.7 mm Overall Length: 14.3 mm Hub Diameter (HD): 14.7
Part Number: P-020G-016-060FH-AL-E-050 Metric Timing Pulleys - 16 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Each View the product page first if you are unsure.
P-020G-016-060FH-AL-E-050 --- Metric Timing Pulleys - 16 tooth - 6x5 mm - Aluminium P-020G-016-060FH-AL-E-050 --- Metric Timing Pulleys - 16 tooth - 6x5 mm - Aluminium Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-018-060FH-AL-E-048 Metric Timing Pulleys - 18 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Each
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-018-060FH-AL-E-048 Metric Timing Pulleys - 18 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Each View the product page first if you are unsure.
P-020G-018-060FH-AL-E-048 --- Metric Timing Pulleys - 18 tooth - 6x4.763 mm - Aluminium P-020G-018-060FH-AL-E-048 --- Metric Timing Pulleys - 18 tooth - 6x4.763 mm - Aluminium Regular price $72.50 AUD Regular price Sale price $72.50 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-018-060FH-AL-E-050 Metric Timing Pulleys - 18 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.23 AUD Regular price Sale price $72.23 AUD Unit price per Each
Teeth 18	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 11.45 mm Flange Diameter (FD): 16.1 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-018-060FH-AL-E-050 Metric Timing Pulleys - 18 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.23 AUD Regular price Sale price $72.23 AUD Unit price per Each View the product page first if you are unsure.
P-020G-018-060FH-AL-E-050 --- Metric Timing Pulleys - 18 tooth - 6x5 mm - Aluminium P-020G-018-060FH-AL-E-050 --- Metric Timing Pulleys - 18 tooth - 6x5 mm - Aluminium Regular price $72.23 AUD Regular price Sale price $72.23 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.73 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-020-060FH-AL-E-048 Metric Timing Pulleys - 20 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.77 AUD Regular price Sale price $72.77 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 12.73 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-020-060FH-AL-E-048 Metric Timing Pulleys - 20 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.77 AUD Regular price Sale price $72.77 AUD Unit price per Each View the product page first if you are unsure.
P-020G-020-060FH-AL-E-048 --- Metric Timing Pulleys - 20 tooth - 6x4.763 mm - Aluminium P-020G-020-060FH-AL-E-048 --- Metric Timing Pulleys - 20 tooth - 6x4.763 mm - Aluminium Regular price $72.77 AUD Regular price Sale price $72.77 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 12.73 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-020-060FH-AL-E-050 Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Each
Teeth 20	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 12.73 mm Flange Diameter (FD): 17.4 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-020-060FH-AL-E-050 Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Each View the product page first if you are unsure.
P-020G-020-060FH-AL-E-050 --- Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium P-020G-020-060FH-AL-E-050 --- Metric Timing Pulleys - 20 tooth - 6x5 mm - Aluminium Regular price $72.59 AUD Regular price Sale price $72.59 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 14.00 mm Flange Diameter (FD): 18.8 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-022-060FH-AL-E-048 Metric Timing Pulleys - 22 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.32 AUD Regular price Sale price $73.32 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 4.763 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 14.00 mm Flange Diameter (FD): 18.8 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-022-060FH-AL-E-048 Metric Timing Pulleys - 22 tooth - 6x4.763 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.32 AUD Regular price Sale price $73.32 AUD Unit price per Each View the product page first if you are unsure.
P-020G-022-060FH-AL-E-048 --- Metric Timing Pulleys - 22 tooth - 6x4.763 mm - Aluminium P-020G-022-060FH-AL-E-048 --- Metric Timing Pulleys - 22 tooth - 6x4.763 mm - Aluminium Regular price $73.32 AUD Regular price Sale price $73.32 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 1 Pitch Dia. (PD): 14.00 mm Flange Diameter (FD): 18.8 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-022-060FH-AL-E-050 Metric Timing Pulleys - 22 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.14 AUD Regular price Sale price $73.14 AUD Unit price per Each
Teeth 22	Max Belt Width 6.00 mm	Bore (d) 5.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 1 Pitch Dia. (PD): 14.00 mm Flange Diameter (FD): 18.8 mm Overall Length: 14.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-022-060FH-AL-E-050 Metric Timing Pulleys - 22 tooth - 6x5 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.14 AUD Regular price Sale price $73.14 AUD Unit price per Each View the product page first if you are unsure.
P-020G-022-060FH-AL-E-050 --- Metric Timing Pulleys - 22 tooth - 6x5 mm - Aluminium P-020G-022-060FH-AL-E-050 --- Metric Timing Pulleys - 22 tooth - 6x5 mm - Aluminium Regular price $73.14 AUD Regular price Sale price $73.14 AUD Unit price per Out of stock! Backorder Now

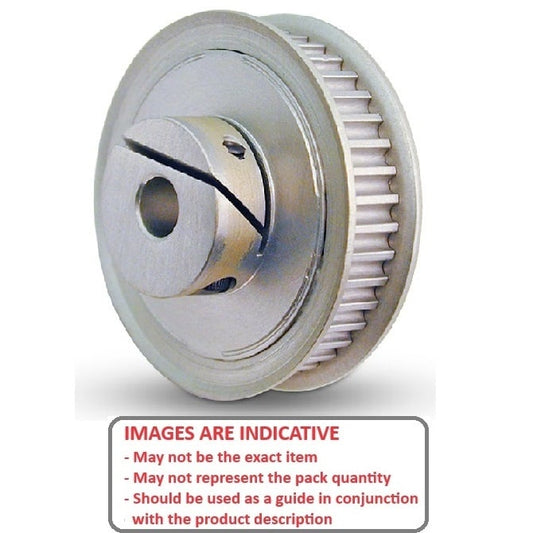

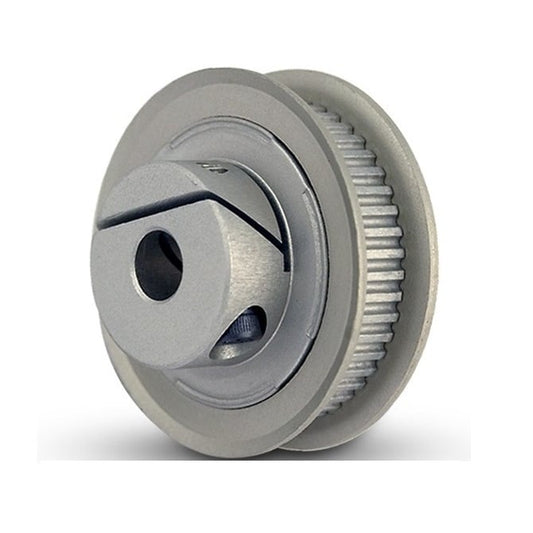

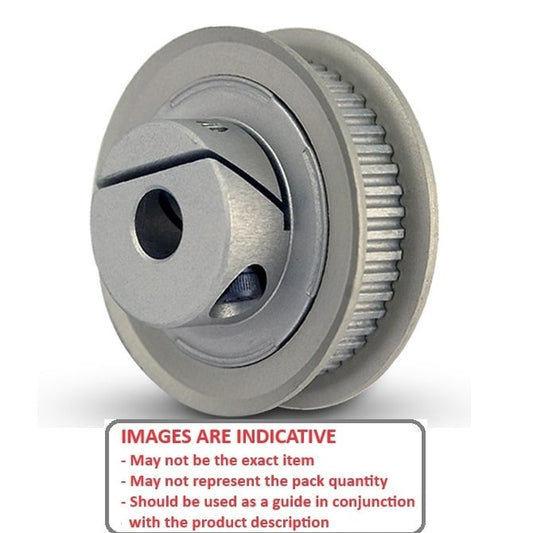

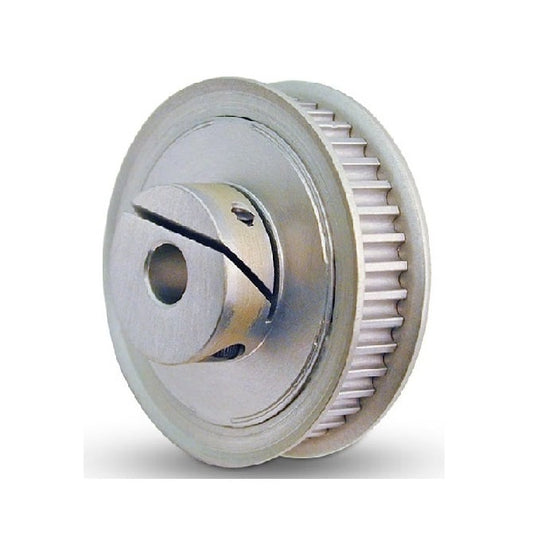

Teeth 24	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.27 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-024-060FF-AL-E-064 Metric Timing Pulleys - 24 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.68 AUD Regular price Sale price $73.68 AUD Unit price per Each
Teeth 24	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 15.27 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-024-060FF-AL-E-064 Metric Timing Pulleys - 24 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.68 AUD Regular price Sale price $73.68 AUD Unit price per Each View the product page first if you are unsure.
P-020G-024-060FF-AL-E-064 --- Metric Timing Pulleys - 24 tooth - 6x6.35 mm - Aluminium P-020G-024-060FF-AL-E-064 --- Metric Timing Pulleys - 24 tooth - 6x6.35 mm - Aluminium Regular price $73.68 AUD Regular price Sale price $73.68 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-025-060FF-AL-E-060 Metric Timing Pulleys - 25 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.86 AUD Regular price Sale price $73.86 AUD Unit price per Each
Teeth 25	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-025-060FF-AL-E-060 Metric Timing Pulleys - 25 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.86 AUD Regular price Sale price $73.86 AUD Unit price per Each View the product page first if you are unsure.
P-020G-025-060FF-AL-E-060 --- Metric Timing Pulleys - 25 tooth - 6x6 mm - Aluminium P-020G-025-060FF-AL-E-060 --- Metric Timing Pulleys - 25 tooth - 6x6 mm - Aluminium Regular price $73.86 AUD Regular price Sale price $73.86 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.27 mm Flange Diameter (FD): 20.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-024-060FF-AL-E-060 Metric Timing Pulleys - 24 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.59 AUD Regular price Sale price $73.59 AUD Unit price per Each
Teeth 24	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 15.27 mm Flange Diameter (FD): 20.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-024-060FF-AL-E-060 Metric Timing Pulleys - 24 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.59 AUD Regular price Sale price $73.59 AUD Unit price per Each View the product page first if you are unsure.
P-020G-024-060FF-AL-E-060 --- Metric Timing Pulleys - 24 tooth - 6x6 mm - Aluminium P-020G-024-060FF-AL-E-060 --- Metric Timing Pulleys - 24 tooth - 6x6 mm - Aluminium Regular price $73.59 AUD Regular price Sale price $73.59 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-025-060FF-AL-E-064 Metric Timing Pulleys - 25 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.86 AUD Regular price Sale price $73.86 AUD Unit price per Each
Teeth 25	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 15.91 mm Flange Diameter (FD): 20.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-025-060FF-AL-E-064 Metric Timing Pulleys - 25 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $73.86 AUD Regular price Sale price $73.86 AUD Unit price per Each View the product page first if you are unsure.
P-020G-025-060FF-AL-E-064 --- Metric Timing Pulleys - 25 tooth - 6x6.35 mm - Aluminium P-020G-025-060FF-AL-E-064 --- Metric Timing Pulleys - 25 tooth - 6x6.35 mm - Aluminium Regular price $73.86 AUD Regular price Sale price $73.86 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.82 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-028-060FF-AL-E-060 Metric Timing Pulleys - 28 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $74.86 AUD Regular price Sale price $74.86 AUD Unit price per Each
Teeth 28	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 17.82 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-028-060FF-AL-E-060 Metric Timing Pulleys - 28 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $74.86 AUD Regular price Sale price $74.86 AUD Unit price per Each View the product page first if you are unsure.
P-020G-028-060FF-AL-E-060 --- Metric Timing Pulleys - 28 tooth - 6x6 mm - Aluminium P-020G-028-060FF-AL-E-060 --- Metric Timing Pulleys - 28 tooth - 6x6 mm - Aluminium Regular price $74.86 AUD Regular price Sale price $74.86 AUD Unit price per Out of stock! Backorder Now
Teeth 28	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 17.82 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-028-060FF-AL-E-064 Metric Timing Pulleys - 28 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $74.86 AUD Regular price Sale price $74.86 AUD Unit price per Each
Teeth 28	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 17.82 mm Flange Diameter (FD): 22.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-028-060FF-AL-E-064 Metric Timing Pulleys - 28 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $74.86 AUD Regular price Sale price $74.86 AUD Unit price per Each View the product page first if you are unsure.
P-020G-028-060FF-AL-E-064 --- Metric Timing Pulleys - 28 tooth - 6x6.35 mm - Aluminium P-020G-028-060FF-AL-E-064 --- Metric Timing Pulleys - 28 tooth - 6x6.35 mm - Aluminium Regular price $74.86 AUD Regular price Sale price $74.86 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-030-060FF-AL-E-060 Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $75.14 AUD Regular price Sale price $75.14 AUD Unit price per Each
Teeth 30	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-030-060FF-AL-E-060 Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $75.14 AUD Regular price Sale price $75.14 AUD Unit price per Each View the product page first if you are unsure.
P-020G-030-060FF-AL-E-060 --- Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium P-020G-030-060FF-AL-E-060 --- Metric Timing Pulleys - 30 tooth - 6x6 mm - Aluminium Regular price $75.14 AUD Regular price Sale price $75.14 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-030-060FF-AL-E-064 Metric Timing Pulleys - 30 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $75.14 AUD Regular price Sale price $75.14 AUD Unit price per Each
Teeth 30	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 24.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-030-060FF-AL-E-064 Metric Timing Pulleys - 30 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $75.14 AUD Regular price Sale price $75.14 AUD Unit price per Each View the product page first if you are unsure.
P-020G-030-060FF-AL-E-064 --- Metric Timing Pulleys - 30 tooth - 6x6.35 mm - Aluminium P-020G-030-060FF-AL-E-064 --- Metric Timing Pulleys - 30 tooth - 6x6.35 mm - Aluminium Regular price $75.14 AUD Regular price Sale price $75.14 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 20.36 mm Flange Diameter (FD): 25.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-032-060FF-AL-E-060 Metric Timing Pulleys - 32 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Each
Teeth 32	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 20.36 mm Flange Diameter (FD): 25.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-032-060FF-AL-E-060 Metric Timing Pulleys - 32 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Each View the product page first if you are unsure.
P-020G-032-060FF-AL-E-060 --- Metric Timing Pulleys - 32 tooth - 6x6 mm - Aluminium P-020G-032-060FF-AL-E-060 --- Metric Timing Pulleys - 32 tooth - 6x6 mm - Aluminium Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 20.36 mm Flange Diameter (FD): 25.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-032-060FF-AL-E-064 Metric Timing Pulleys - 32 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Each
Teeth 32	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 20.36 mm Flange Diameter (FD): 25.4 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-032-060FF-AL-E-064 Metric Timing Pulleys - 32 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Each View the product page first if you are unsure.
P-020G-032-060FF-AL-E-064 --- Metric Timing Pulleys - 32 tooth - 6x6.35 mm - Aluminium P-020G-032-060FF-AL-E-064 --- Metric Timing Pulleys - 32 tooth - 6x6.35 mm - Aluminium Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.91 mm Flange Diameter (FD): 28.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-036-060FF-AL-E-060 Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $99.23 AUD Regular price Sale price $99.23 AUD Unit price per Each
Teeth 36	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 22.91 mm Flange Diameter (FD): 28.1 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-036-060FF-AL-E-060 Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $99.23 AUD Regular price Sale price $99.23 AUD Unit price per Each View the product page first if you are unsure.
P-020G-036-060FF-AL-E-060 --- Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium P-020G-036-060FF-AL-E-060 --- Metric Timing Pulleys - 36 tooth - 6x6 mm - Aluminium Regular price $99.23 AUD Regular price Sale price $99.23 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.91 mm Flange Diameter (FD): 28.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-036-060FF-AL-E-064 Metric Timing Pulleys - 36 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $79.68 AUD Regular price Sale price $79.68 AUD Unit price per Each
Teeth 36	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 22.91 mm Flange Diameter (FD): 28.7 mm Overall Length: 17.5 mm Hub Diameter (HD): 15.9
Part Number: P-020G-036-060FF-AL-E-064 Metric Timing Pulleys - 36 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $79.68 AUD Regular price Sale price $79.68 AUD Unit price per Each View the product page first if you are unsure.
P-020G-036-060FF-AL-E-064 --- Metric Timing Pulleys - 36 tooth - 6x6.35 mm - Aluminium P-020G-036-060FF-AL-E-064 --- Metric Timing Pulleys - 36 tooth - 6x6.35 mm - Aluminium Regular price $79.68 AUD Regular price Sale price $79.68 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 30.7 mm Overall Length: 18.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-040-060FF-AL-E-060 Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $81.68 AUD Regular price Sale price $81.68 AUD Unit price per Each
Teeth 40	Max Belt Width 6.00 mm	Bore (d) 6.000 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 30.7 mm Overall Length: 18.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-040-060FF-AL-E-060 Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $81.68 AUD Regular price Sale price $81.68 AUD Unit price per Each View the product page first if you are unsure.
P-020G-040-060FF-AL-E-060 --- Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium P-020G-040-060FF-AL-E-060 --- Metric Timing Pulleys - 40 tooth - 6x6 mm - Aluminium Regular price $81.68 AUD Regular price Sale price $81.68 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished	Locking Type EZ-Lock Hub
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 30.7 mm Overall Length: 18.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-040-060FF-AL-E-064 Metric Timing Pulleys - 40 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $81.68 AUD Regular price Sale price $81.68 AUD Unit price per Each
Teeth 40	Max Belt Width 6.00 mm	Bore (d) 6.350 mm	Bore Type Finished
Material: Aluminium Locking Type: EZ-Lock Hub Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 30.7 mm Overall Length: 18.3 mm Hub Diameter (HD): 15.9
Part Number: P-020G-040-060FF-AL-E-064 Metric Timing Pulleys - 40 tooth - 6x6.35 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $81.68 AUD Regular price Sale price $81.68 AUD Unit price per Each View the product page first if you are unsure.
P-020G-040-060FF-AL-E-064 --- Metric Timing Pulleys - 40 tooth - 6x6.35 mm - Aluminium P-020G-040-060FF-AL-E-064 --- Metric Timing Pulleys - 40 tooth - 6x6.35 mm - Aluminium Regular price $81.68 AUD Regular price Sale price $81.68 AUD Unit price per Out of stock! Backorder Now
