Pins - Dowel - Standard - Rounded Ends - 420 Stainless

1 Item Available
  • Also known as parallel pins
  • Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
  • Precision Dowel Pins - 420 Grade - Based on DIN7
  • Rounded end dowel pins are measured from the start of the edge rounding. This allows the pin to completely fill the hole after you grind off the rounded end.
  • Diameter tolerances are m6 unless otherwise listed
Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
A more concise listing may be found on the Smallparts store at Pins - Dowel - Standard - Rounded Ends - 420 Stainless. Smallparts promote the most popular MBA products.
Diameter (D) Length (L) Approx. Overall Length Type Indicative
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
Length (L)
17.00
mm
+/- 0.420
Approx. Overall Length
20.00
mm
+/ - 0.420
Type
3 (Rounded Ends)

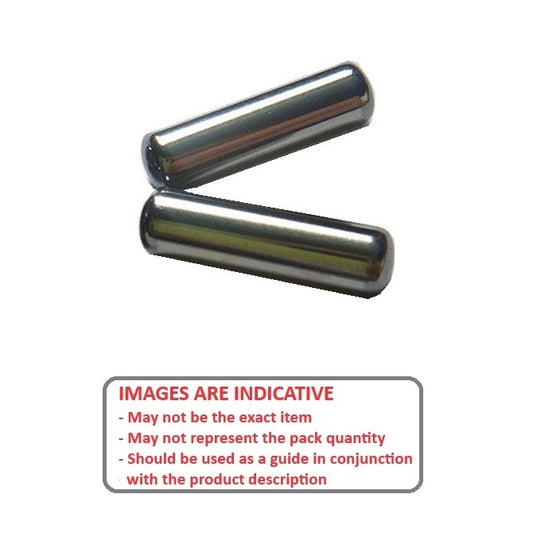

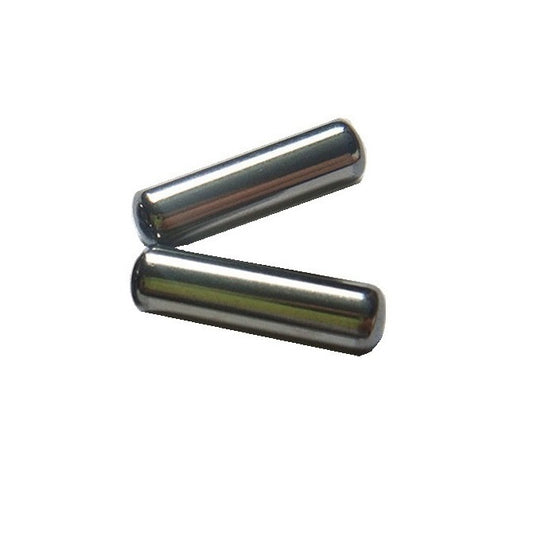

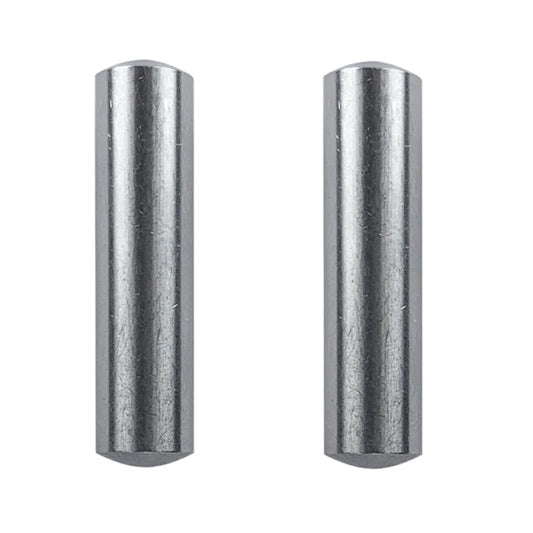

Dowel Pins - 3 mm x 17 mm x 20 mm
Material: Stainless Steel 400 Series Unhardened    Notes: End radius 1.5mm    Standard: Based on DIN 7 with Special Radius
Part Number: DP030-017-420-3-L20 (10 Pcs) Dowel Pins - 3x17x20 mm - Stainless Steel 400 Series Unhardened
200 units (2000 pcs) Available Immediately | Further orders can be expected around Sat, Jul 05, 2025
$13.14 AUD
$13.14 AUD
Per 10
Diameter (D) Length (L) Approx. Overall Length Indicative
Diameter (D)
3.000
mm
+ 0.004 / + 0.012
Length (L)
17.00
mm
+/- 0.420
Approx. Overall Length
20.00
mm
+/ - 0.420
Dowel Pins - 3 mm x 17 mm x 20 mm
Material: Stainless Steel 400 Series Unhardened    Type: 3 (Rounded Ends)    Notes: End radius 1.5mm    Standard: Based on DIN 7 with Special Radius
Part Number: DP030-017-420-3-L20 (10 Pcs) Dowel Pins - 3x17x20 mm - Stainless Steel 400 Series Unhardened
200 units (2000 pcs) Available Immediately | Further orders can be expected around Sat, Jul 05, 2025
$13.14 AUD
$13.14 AUD
Per 10
View the product page first if you are unsure.
