Collection: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Pins (With Images)

Dowel

Standard

Chamfered Ends

383 Products in this selection

Also known as parallel pins
Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
Precision Dowel Pins - Based on DIN6325, ISO2338
Note! Type 2 pins may be supplied in lieu of type 1 pins.

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

A more concise listing may be found on the Smallparts store at Pins - Dowel - Standard - Chamfered Ends - Carbon Steel. Smallparts promote the most popular MBA products.

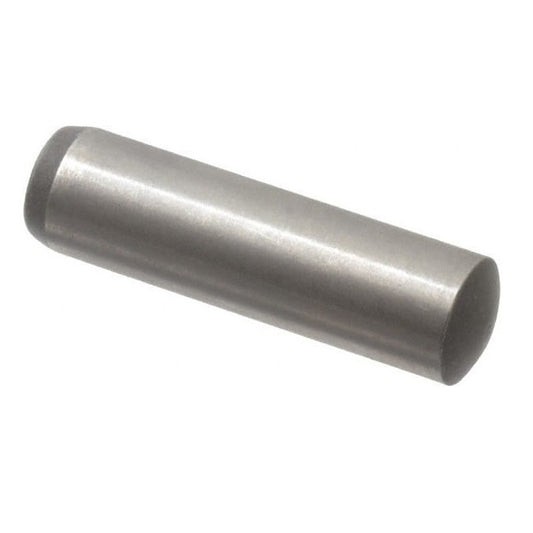

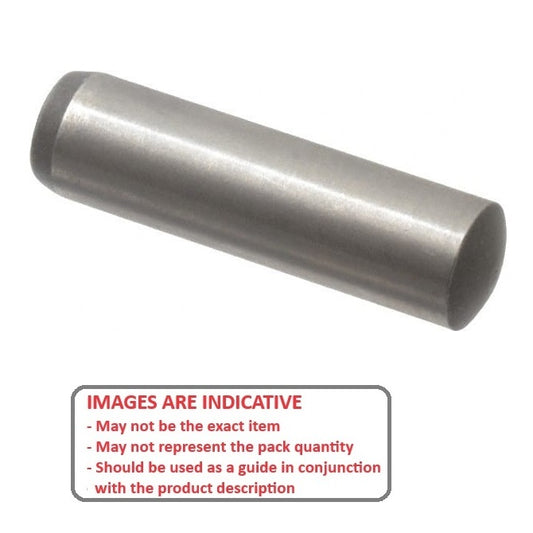

Diameter (D)	Length (L)	Approx. Overall Length	Type	Indicative Image
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 18.00 mm +/- 0.420	Approx. Overall Length 18.00 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-018-CH-1 (100 Pcs) Dowel Pins - 3x18x18 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $49.77 AUD Regular price Sale price $49.77 AUD Unit price per Per 100
Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 18.00 mm +/- 0.420	Approx. Overall Length 18.00 mm +/ - 0.420
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-018-CH-1 (100 Pcs) Dowel Pins - 3x18x18 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $49.77 AUD Regular price Sale price $49.77 AUD Unit price per Per 100 View the product page first if you are unsure.
DP030-018-CH-1 (100 Pcs) --- Dowel Pins - 3x18x18 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP030-018-CH-1 (100 Pcs) --- Dowel Pins - 3x18x18 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $49.77 AUD Regular price Sale price $49.77 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 20.00 mm +/- 0.420	Approx. Overall Length 20.00 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-020-CH-1 (20 Pcs) Dowel Pins - 3x20x20 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 59 units (1180 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Per 20
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 20.00 mm +/- 0.420	Approx. Overall Length 20.00 mm +/ - 0.420
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-020-CH-1 (20 Pcs) Dowel Pins - 3x20x20 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 59 units (1180 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Per 20 View the product page first if you are unsure.
DP030-020-CH-1 (20 Pcs) --- Dowel Pins - 3x20x20 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP030-020-CH-1 (20 Pcs) --- Dowel Pins - 3x20x20 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per 59 Available Now
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 24.00 mm +/- 0.420	Approx. Overall Length 24.00 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-024-CH-1 (5 Pcs) Dowel Pins - 3x24x24 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 208 units (1040 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 5
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 24.00 mm +/- 0.420	Approx. Overall Length 24.00 mm +/ - 0.420
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-024-CH-1 (5 Pcs) Dowel Pins - 3x24x24 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 208 units (1040 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Per 5 View the product page first if you are unsure.
DP030-024-CH-1 (5 Pcs) --- Dowel Pins - 3x24x24 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP030-024-CH-1 (5 Pcs) --- Dowel Pins - 3x24x24 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per 208 Available Now
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 25.00 mm +/- 0.420	Approx. Overall Length 25.00 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-025-CH-1 (20 Pcs) Dowel Pins - 3x25x25 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 25 units (500 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $8.14 AUD Regular price ~~$9.76 AUD~~ Sale price $8.14 AUD Unit price per Per 20
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 25.00 mm +/- 0.420	Approx. Overall Length 25.00 mm +/ - 0.420
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-025-CH-1 (20 Pcs) Dowel Pins - 3x25x25 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 25 units (500 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $8.14 AUD Regular price ~~$9.76 AUD~~ Sale price $8.14 AUD Unit price per Per 20 View the product page first if you are unsure.
DP030-025-CH-1 (20 Pcs) --- Dowel Pins - 3x25x25 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Sale DP030-025-CH-1 (20 Pcs) --- Dowel Pins - 3x25x25 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $8.14 AUD Regular price ~~$9.76 AUD~~ Sale price $8.14 AUD Unit price per 25 Available Now Sale
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 30.00 mm +/- 0.500	Approx. Overall Length 30.00 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-030-CH-1 (20 Pcs) Dowel Pins - 3x30x30 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 15 units (300 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 20
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 30.00 mm +/- 0.500	Approx. Overall Length 30.00 mm +/ - 0.500
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-030-CH-1 (20 Pcs) Dowel Pins - 3x30x30 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 15 units (300 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per Per 20
DP030-030-CH-1 (20 Pcs) --- Dowel Pins - 3x30x30 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Sale DP030-030-CH-1 (20 Pcs) --- Dowel Pins - 3x30x30 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $10.00 AUD Regular price ~~$19.00 AUD~~ Sale price $10.00 AUD Unit price per 15 Available Now Sale
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 32.00 mm +/- 0.500	Approx. Overall Length 32.00 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-032-CH-1 (50 Pcs) Dowel Pins - 3x32x32 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $54.95 AUD Regular price Sale price $54.95 AUD Unit price per Per 50
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 32.00 mm +/- 0.500	Approx. Overall Length 32.00 mm +/ - 0.500
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-032-CH-1 (50 Pcs) Dowel Pins - 3x32x32 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $54.95 AUD Regular price Sale price $54.95 AUD Unit price per Per 50 View the product page first if you are unsure.
DP030-032-CH-1 (50 Pcs) --- Dowel Pins - 3x32x32 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP030-032-CH-1 (50 Pcs) --- Dowel Pins - 3x32x32 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $54.95 AUD Regular price Sale price $54.95 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 40.00 mm +/- 0.500	Approx. Overall Length 40.00 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-040-CH-1 (10 Pcs) Dowel Pins - 3x40x40 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 94 units (940 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Per 10
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 40.00 mm +/- 0.500	Approx. Overall Length 40.00 mm +/ - 0.500
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-040-CH-1 (10 Pcs) Dowel Pins - 3x40x40 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 94 units (940 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per Per 10 View the product page first if you are unsure.
DP030-040-CH-1 (10 Pcs) --- Dowel Pins - 3x40x40 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP030-040-CH-1 (10 Pcs) --- Dowel Pins - 3x40x40 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $11.23 AUD Regular price Sale price $11.23 AUD Unit price per 94 Available Now
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 50.00 mm +/- 0.600	Approx. Overall Length 50.00 mm +/ - 0.600	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-050-CH-1 (10 Pcs) Dowel Pins - 3x50x50 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 10 units (100 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Per 10
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 50.00 mm +/- 0.600	Approx. Overall Length 50.00 mm +/ - 0.600
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-050-CH-1 (10 Pcs) Dowel Pins - 3x50x50 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 10 units (100 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Per 10 View the product page first if you are unsure.
DP030-050-CH-1 (10 Pcs) --- Dowel Pins - 3x50x50 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP030-050-CH-1 (10 Pcs) --- Dowel Pins - 3x50x50 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per 10 Available Now
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 55.00 mm +/- 0.600	Approx. Overall Length 55.00 mm +/ - 0.600	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-055-CH-1 Dowel Pins - 3x55x55 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 55.00 mm +/- 0.600	Approx. Overall Length 55.00 mm +/ - 0.600
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-055-CH-1 Dowel Pins - 3x55x55 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 8.00 mm +/- 0.254	Approx. Overall Length 8.00 mm +/ - 0.254	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-008-CH-1 (50 Pcs) Dowel Pins - 3x8x8 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 51 units (2550 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $11.95 AUD Regular price Sale price $11.95 AUD Unit price per Per 50
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 8.00 mm +/- 0.254	Approx. Overall Length 8.00 mm +/ - 0.254
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-008-CH-1 (50 Pcs) Dowel Pins - 3x8x8 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 51 units (2550 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $11.95 AUD Regular price Sale price $11.95 AUD Unit price per Per 50 View the product page first if you are unsure.
DP030-008-CH-1 (50 Pcs) --- Dowel Pins - 3x8x8 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP030-008-CH-1 (50 Pcs) --- Dowel Pins - 3x8x8 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $11.95 AUD Regular price Sale price $11.95 AUD Unit price per 51 Available Now
Diameter (D) 3.000 mm - 0.002 / - 0.008	Length (L) 15.00 mm	Approx. Overall Length 15.00 mm	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated Rc 55-58 Standard: DIN 6325
Part Number: DP030-015-CH-1 (5 Pcs) Dowel Pins - 3x15x15 mm - Steel Alloy - Heat Treated Rc 55-58 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 3.000 mm - 0.002 / - 0.008	Length (L) 15.00 mm	Approx. Overall Length 15.00 mm
Material: Steel Alloy - Heat Treated Rc 55-58 Type: 1 (Chamfer One End) Standard: DIN 6325
Part Number: DP030-015-CH-1 (5 Pcs) Dowel Pins - 3x15x15 mm - Steel Alloy - Heat Treated Rc 55-58 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 22.00 mm +/- 0.420	Approx. Overall Length 22.00 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-022-CH-1 (50 Pcs) Dowel Pins - 3x22x22 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $28.77 AUD Regular price Sale price $28.77 AUD Unit price per Per 50
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 22.00 mm +/- 0.420	Approx. Overall Length 22.00 mm +/ - 0.420
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-022-CH-1 (50 Pcs) Dowel Pins - 3x22x22 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Sat, May 31, 2025 Regular price $28.77 AUD Regular price Sale price $28.77 AUD Unit price per Per 50 View the product page first if you are unsure.
DP030-022-CH-1 (50 Pcs) --- Dowel Pins - 3x22x22 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP030-022-CH-1 (50 Pcs) --- Dowel Pins - 3x22x22 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $28.77 AUD Regular price Sale price $28.77 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 26.00 mm +/- 0.420	Approx. Overall Length 26.00 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-026-CH-1 (20 Pcs) Dowel Pins - 3x26x26 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 7 units (140 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$12.00 AUD~~ Sale price $10.00 AUD Unit price per Per 20
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 26.00 mm +/- 0.420	Approx. Overall Length 26.00 mm +/ - 0.420
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-026-CH-1 (20 Pcs) Dowel Pins - 3x26x26 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 7 units (140 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $10.00 AUD Regular price ~~$12.00 AUD~~ Sale price $10.00 AUD Unit price per Per 20
DP030-026-CH-1 (20 Pcs) --- Dowel Pins - 3x26x26 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Sale DP030-026-CH-1 (20 Pcs) --- Dowel Pins - 3x26x26 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $10.00 AUD Regular price ~~$12.00 AUD~~ Sale price $10.00 AUD Unit price per 7 Available Now Sale
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 60.00 mm +/- 0.600	Approx. Overall Length 60.00 mm +/ - 0.600	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP030-060-CH-1 Dowel Pins - 3x60x60 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 3.000 mm + 0.004 / + 0.012	Length (L) 60.00 mm +/- 0.600	Approx. Overall Length 60.00 mm +/ - 0.600
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP030-060-CH-1 Dowel Pins - 3x60x60 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 9.53 mm +/- 0.254	Approx. Overall Length 9.53 mm +/ - 0.254	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP032-010-CH-1 (50 Pcs) Dowel Pins - 3.175x9.53x9.53 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 04, 2025 Regular price $54.77 AUD Regular price Sale price $54.77 AUD Unit price per Per 50
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 9.53 mm +/- 0.254	Approx. Overall Length 9.53 mm +/ - 0.254
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP032-010-CH-1 (50 Pcs) Dowel Pins - 3.175x9.53x9.53 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 04, 2025 Regular price $54.77 AUD Regular price Sale price $54.77 AUD Unit price per Per 50 View the product page first if you are unsure.
DP032-010-CH-1 (50 Pcs) --- Dowel Pins - 3.175x9.53x9.53 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP032-010-CH-1 (50 Pcs) --- Dowel Pins - 3.175x9.53x9.53 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $54.77 AUD Regular price Sale price $54.77 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 15.88 mm +/- 0.350	Approx. Overall Length 15.88 mm +/ - 0.350	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP032-016-CH-1 (20 Pcs) Dowel Pins - 3.175x15.88x15.88 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 16 units (320 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 20
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 15.88 mm +/- 0.350	Approx. Overall Length 15.88 mm +/ - 0.350
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP032-016-CH-1 (20 Pcs) Dowel Pins - 3.175x15.88x15.88 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 16 units (320 pcs) Available Immediately \| Further orders can be expected around Sat, May 31, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Per 20 View the product page first if you are unsure.
DP032-016-CH-1 (20 Pcs) --- Dowel Pins - 3.175x15.88x15.88 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP032-016-CH-1 (20 Pcs) --- Dowel Pins - 3.175x15.88x15.88 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 16 Available Now
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 19.05 mm +/- 0.420	Approx. Overall Length 19.05 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP032-019-CH-1 (5 Pcs) Dowel Pins - 3.175x19.05x19.05 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 04, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 5
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 19.05 mm +/- 0.420	Approx. Overall Length 19.05 mm +/ - 0.420
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP032-019-CH-1 (5 Pcs) Dowel Pins - 3.175x19.05x19.05 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 04, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 5 View the product page first if you are unsure.
DP032-019-CH-1 (5 Pcs) --- Dowel Pins - 3.175x19.05x19.05 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP032-019-CH-1 (5 Pcs) --- Dowel Pins - 3.175x19.05x19.05 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 22.23 mm +/- 0.420	Approx. Overall Length 22.23 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP032-022-CH-1 (50 Pcs) Dowel Pins - 3.175x22.23x22.23 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 04, 2025 Regular price $62.23 AUD Regular price Sale price $62.23 AUD Unit price per Per 50
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 22.23 mm +/- 0.420	Approx. Overall Length 22.23 mm +/ - 0.420
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP032-022-CH-1 (50 Pcs) Dowel Pins - 3.175x22.23x22.23 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 04, 2025 Regular price $62.23 AUD Regular price Sale price $62.23 AUD Unit price per Per 50 View the product page first if you are unsure.
DP032-022-CH-1 (50 Pcs) --- Dowel Pins - 3.175x22.23x22.23 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP032-022-CH-1 (50 Pcs) --- Dowel Pins - 3.175x22.23x22.23 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $62.23 AUD Regular price Sale price $62.23 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 25.40 mm +/- 0.420	Approx. Overall Length 25.40 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP032-025-CH-1 Dowel Pins - 3.175x25.4x25.4 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 29 Available Immediately \| Further orders can be expected around Fri, Jul 04, 2025 Regular price $1.50 AUD Regular price Sale price $1.50 AUD Unit price per Each
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 25.40 mm +/- 0.420	Approx. Overall Length 25.40 mm +/ - 0.420
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP032-025-CH-1 Dowel Pins - 3.175x25.4x25.4 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 29 Available Immediately \| Further orders can be expected around Fri, Jul 04, 2025 Regular price $1.50 AUD Regular price Sale price $1.50 AUD Unit price per Each View the product page first if you are unsure.
DP032-025-CH-1 --- Dowel Pins - 3.175x25.4x25.4 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP032-025-CH-1 --- Dowel Pins - 3.175x25.4x25.4 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $1.50 AUD Regular price Sale price $1.50 AUD Unit price per 29 Available Now
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 25.40 mm +/- 0.420	Approx. Overall Length 25.40 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated with Black Lustre Finish Rc 58-62 Standard: Based on DIN 6325
Part Number: DP032-025-CHBL-1 (500 Pcs) Dowel Pins - 3.175x25.4x25.4 mm - Steel 100Cr6 - Heat Treated with Black Lustre Finish Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 26, 2025 Regular price $8,376.77 AUD Regular price Sale price $8,376.77 AUD Unit price per Per 500
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 25.40 mm +/- 0.420	Approx. Overall Length 25.40 mm +/ - 0.420
Material: Steel 100Cr6 - Heat Treated with Black Lustre Finish Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP032-025-CHBL-1 (500 Pcs) Dowel Pins - 3.175x25.4x25.4 mm - Steel 100Cr6 - Heat Treated with Black Lustre Finish Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Mon, May 26, 2025 Regular price $8,376.77 AUD Regular price Sale price $8,376.77 AUD Unit price per Per 500 View the product page first if you are unsure.
DP032-025-CHBL-1 (500 Pcs) --- Dowel Pins - 3.175x25.4x25.4 mm - Steel 100Cr6 - Heat Treated with Black Lustre Finish Rc 58-62 DP032-025-CHBL-1 (500 Pcs) --- Dowel Pins - 3.175x25.4x25.4 mm - Steel 100Cr6 - Heat Treated with Black Lustre Finish Rc 58-62 Regular price $8,376.77 AUD Regular price Sale price $8,376.77 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 28.58 mm +/- 0.420	Approx. Overall Length 28.58 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP032-029-CH-1 (10 Pcs) Dowel Pins - 3.175x28.58x28.58 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 23 units (230 pcs) Available Immediately \| Further orders can be expected around Sat, May 02, 2026 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 10
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 28.58 mm +/- 0.420	Approx. Overall Length 28.58 mm +/ - 0.420
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP032-029-CH-1 (10 Pcs) Dowel Pins - 3.175x28.58x28.58 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 23 units (230 pcs) Available Immediately \| Further orders can be expected around Sat, May 02, 2026 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per Per 10 View the product page first if you are unsure.
DP032-029-CH-1 (10 Pcs) --- Dowel Pins - 3.175x28.58x28.58 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP032-029-CH-1 (10 Pcs) --- Dowel Pins - 3.175x28.58x28.58 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $4.86 AUD Regular price Sale price $4.86 AUD Unit price per 23 Available Now
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 31.75 mm +/- 0.500	Approx. Overall Length 31.75 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP032-032-CH-1 (50 Pcs) Dowel Pins - 3.175x31.75x31.75 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 04, 2025 Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Per 50
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 31.75 mm +/- 0.500	Approx. Overall Length 31.75 mm +/ - 0.500
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP032-032-CH-1 (50 Pcs) Dowel Pins - 3.175x31.75x31.75 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 04, 2025 Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Per 50 View the product page first if you are unsure.
DP032-032-CH-1 (50 Pcs) --- Dowel Pins - 3.175x31.75x31.75 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP032-032-CH-1 (50 Pcs) --- Dowel Pins - 3.175x31.75x31.75 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 38.10 mm +/- 0.500	Approx. Overall Length 38.10 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP032-038-CH-1 (50 Pcs) Dowel Pins - 3.175x38.1x38.1 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 04, 2025 Regular price $67.59 AUD Regular price Sale price $67.59 AUD Unit price per Per 50
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 38.10 mm +/- 0.500	Approx. Overall Length 38.10 mm +/ - 0.500
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP032-038-CH-1 (50 Pcs) Dowel Pins - 3.175x38.1x38.1 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 04, 2025 Regular price $67.59 AUD Regular price Sale price $67.59 AUD Unit price per Per 50 View the product page first if you are unsure.
DP032-038-CH-1 (50 Pcs) --- Dowel Pins - 3.175x38.1x38.1 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP032-038-CH-1 (50 Pcs) --- Dowel Pins - 3.175x38.1x38.1 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $67.59 AUD Regular price Sale price $67.59 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 50.80 mm +/- 0.600	Approx. Overall Length 50.80 mm +/ - 0.600	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP032-051-CH-1 (2 Pcs) Dowel Pins - 3.175x50.8x50.8 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 4 units (8 pcs) Available Immediately \| Further orders can be expected around Fri, Jul 04, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 2
Diameter (D) 3.175 mm + 0.004 / + 0.012	Length (L) 50.80 mm +/- 0.600	Approx. Overall Length 50.80 mm +/ - 0.600
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP032-051-CH-1 (2 Pcs) Dowel Pins - 3.175x50.8x50.8 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 4 units (8 pcs) Available Immediately \| Further orders can be expected around Fri, Jul 04, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 2 View the product page first if you are unsure.
DP032-051-CH-1 (2 Pcs) --- Dowel Pins - 3.175x50.8x50.8 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP032-051-CH-1 (2 Pcs) --- Dowel Pins - 3.175x50.8x50.8 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per 4 Available Now
