Collection: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Pins (With Images)

Dowel

Standard

Chamfered Ends

383 Products in this selection

Also known as parallel pins
Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
Precision Dowel Pins - Based on DIN6325, ISO2338
Note! Type 2 pins may be supplied in lieu of type 1 pins.

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

A more concise listing may be found on the Smallparts store at Pins - Dowel - Standard - Chamfered Ends - Carbon Steel. Smallparts promote the most popular MBA products.

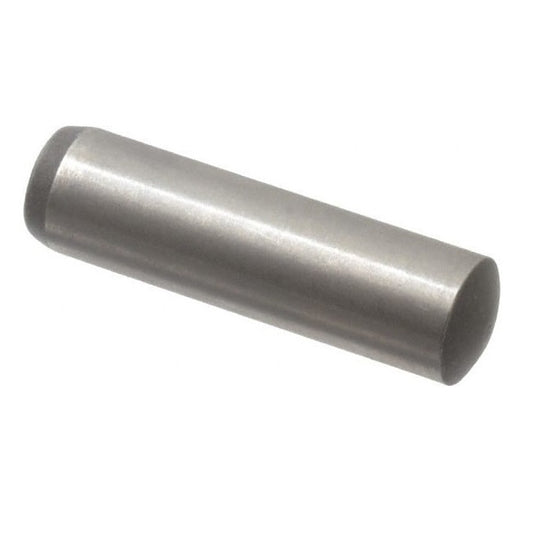

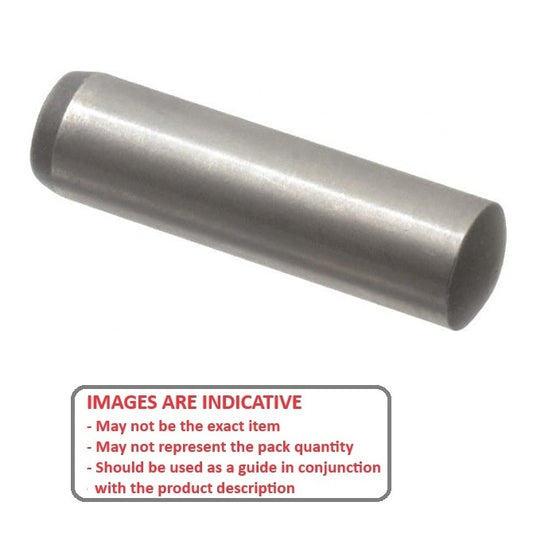

Diameter (D)	Length (L)	Approx. Overall Length	Type	Indicative Image
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 26.00 mm +/- 0.420	Approx. Overall Length 26.00 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-026-CH-1 (50 Pcs) Dowel Pins - 8x26x26 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $102.05 AUD Regular price Sale price $102.05 AUD Unit price per Per 50
Diameter (D)	Length (L)	Approx. Overall Length	Indicative Image
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 26.00 mm +/- 0.420	Approx. Overall Length 26.00 mm +/ - 0.420
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-026-CH-1 (50 Pcs) Dowel Pins - 8x26x26 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $102.05 AUD Regular price Sale price $102.05 AUD Unit price per Per 50 View the product page first if you are unsure.
DP080-026-CH-1 (50 Pcs) --- Dowel Pins - 8x26x26 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP080-026-CH-1 (50 Pcs) --- Dowel Pins - 8x26x26 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $102.05 AUD Regular price Sale price $102.05 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 28.00 mm +/- 0.420	Approx. Overall Length 28.00 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-028-CH-1 (50 Pcs) Dowel Pins - 8x28x28 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $119.50 AUD Regular price Sale price $119.50 AUD Unit price per Per 50
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 28.00 mm +/- 0.420	Approx. Overall Length 28.00 mm +/ - 0.420
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-028-CH-1 (50 Pcs) Dowel Pins - 8x28x28 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $119.50 AUD Regular price Sale price $119.50 AUD Unit price per Per 50 View the product page first if you are unsure.
DP080-028-CH-1 (50 Pcs) --- Dowel Pins - 8x28x28 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP080-028-CH-1 (50 Pcs) --- Dowel Pins - 8x28x28 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $119.50 AUD Regular price Sale price $119.50 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 30.00 mm +/- 0.500	Approx. Overall Length 30.00 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-030-CH-1 (50 Pcs) Dowel Pins - 8x30x30 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $62.59 AUD Regular price Sale price $62.59 AUD Unit price per Per 50
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 30.00 mm +/- 0.500	Approx. Overall Length 30.00 mm +/ - 0.500
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-030-CH-1 (50 Pcs) Dowel Pins - 8x30x30 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $62.59 AUD Regular price Sale price $62.59 AUD Unit price per Per 50 View the product page first if you are unsure.
DP080-030-CH-1 (50 Pcs) --- Dowel Pins - 8x30x30 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP080-030-CH-1 (50 Pcs) --- Dowel Pins - 8x30x30 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $62.59 AUD Regular price Sale price $62.59 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 32.00 mm +/- 0.500	Approx. Overall Length 32.00 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-032-CH-1 (10 Pcs) Dowel Pins - 8x32x32 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Per 10
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 32.00 mm +/- 0.500	Approx. Overall Length 32.00 mm +/ - 0.500
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-032-CH-1 (10 Pcs) Dowel Pins - 8x32x32 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Per 10 View the product page first if you are unsure.
DP080-032-CH-1 (10 Pcs) --- Dowel Pins - 8x32x32 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP080-032-CH-1 (10 Pcs) --- Dowel Pins - 8x32x32 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $25.68 AUD Regular price Sale price $25.68 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 35.00 mm +/- 0.500	Approx. Overall Length 35.00 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-035-CH-1 (50 Pcs) Dowel Pins - 8x35x35 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $67.95 AUD Regular price Sale price $67.95 AUD Unit price per Per 50
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 35.00 mm +/- 0.500	Approx. Overall Length 35.00 mm +/ - 0.500
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-035-CH-1 (50 Pcs) Dowel Pins - 8x35x35 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $67.95 AUD Regular price Sale price $67.95 AUD Unit price per Per 50 View the product page first if you are unsure.
DP080-035-CH-1 (50 Pcs) --- Dowel Pins - 8x35x35 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP080-035-CH-1 (50 Pcs) --- Dowel Pins - 8x35x35 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $67.95 AUD Regular price Sale price $67.95 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 36.00 mm +/- 0.500	Approx. Overall Length 36.00 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-036-CH-1 (50 Pcs) Dowel Pins - 8x36x36 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $150.14 AUD Regular price Sale price $150.14 AUD Unit price per Per 50
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 36.00 mm +/- 0.500	Approx. Overall Length 36.00 mm +/ - 0.500
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-036-CH-1 (50 Pcs) Dowel Pins - 8x36x36 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $150.14 AUD Regular price Sale price $150.14 AUD Unit price per Per 50 View the product page first if you are unsure.
DP080-036-CH-1 (50 Pcs) --- Dowel Pins - 8x36x36 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP080-036-CH-1 (50 Pcs) --- Dowel Pins - 8x36x36 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $150.14 AUD Regular price Sale price $150.14 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 40.00 mm +/- 0.500	Approx. Overall Length 40.00 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-040-CH-1 (5 Pcs) Dowel Pins - 8x40x40 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 5 units (25 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 5
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 40.00 mm +/- 0.500	Approx. Overall Length 40.00 mm +/ - 0.500
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-040-CH-1 (5 Pcs) Dowel Pins - 8x40x40 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 5 units (25 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 5 View the product page first if you are unsure.
DP080-040-CH-1 (5 Pcs) --- Dowel Pins - 8x40x40 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP080-040-CH-1 (5 Pcs) --- Dowel Pins - 8x40x40 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per 5 Available Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 45.00 mm +/- 0.500	Approx. Overall Length 45.00 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-045-CH-1 (50 Pcs) Dowel Pins - 8x45x45 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $178.68 AUD Regular price Sale price $178.68 AUD Unit price per Per 50
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 45.00 mm +/- 0.500	Approx. Overall Length 45.00 mm +/ - 0.500
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-045-CH-1 (50 Pcs) Dowel Pins - 8x45x45 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $178.68 AUD Regular price Sale price $178.68 AUD Unit price per Per 50 View the product page first if you are unsure.
DP080-045-CH-1 (50 Pcs) --- Dowel Pins - 8x45x45 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP080-045-CH-1 (50 Pcs) --- Dowel Pins - 8x45x45 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $178.68 AUD Regular price Sale price $178.68 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 15.00 mm +/- 0.350	Approx. Overall Length 15.00 mm +/ - 0.350	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-015-CH-1 Dowel Pins - 8x15x15 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 15.00 mm +/- 0.350	Approx. Overall Length 15.00 mm +/ - 0.350
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-015-CH-1 Dowel Pins - 8x15x15 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 50.00 mm +/- 0.600	Approx. Overall Length 50.00 mm +/ - 0.600	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-050-CH-1 (50 Pcs) Dowel Pins - 8x50x50 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $114.14 AUD Regular price Sale price $114.14 AUD Unit price per Per 50
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 50.00 mm +/- 0.600	Approx. Overall Length 50.00 mm +/ - 0.600
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-050-CH-1 (50 Pcs) Dowel Pins - 8x50x50 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $114.14 AUD Regular price Sale price $114.14 AUD Unit price per Per 50 View the product page first if you are unsure.
DP080-050-CH-1 (50 Pcs) --- Dowel Pins - 8x50x50 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP080-050-CH-1 (50 Pcs) --- Dowel Pins - 8x50x50 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $114.14 AUD Regular price Sale price $114.14 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 55.00 mm +/- 0.600	Approx. Overall Length 55.00 mm +/ - 0.600	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-055-CH-1 (5 Pcs) Dowel Pins - 8x55x55 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Per 5
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 55.00 mm +/- 0.600	Approx. Overall Length 55.00 mm +/ - 0.600
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-055-CH-1 (5 Pcs) Dowel Pins - 8x55x55 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Per 5 View the product page first if you are unsure.
DP080-055-CH-1 (5 Pcs) --- Dowel Pins - 8x55x55 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP080-055-CH-1 (5 Pcs) --- Dowel Pins - 8x55x55 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $30.77 AUD Regular price Sale price $30.77 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 70.00 mm +/- 0.600	Approx. Overall Length 70.00 mm +/ - 0.600	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-070-CH-1 (50 Pcs) Dowel Pins - 8x70x70 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $158.05 AUD Regular price Sale price $158.05 AUD Unit price per Per 50
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 70.00 mm +/- 0.600	Approx. Overall Length 70.00 mm +/ - 0.600
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-070-CH-1 (50 Pcs) Dowel Pins - 8x70x70 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $158.05 AUD Regular price Sale price $158.05 AUD Unit price per Per 50 View the product page first if you are unsure.
DP080-070-CH-1 (50 Pcs) --- Dowel Pins - 8x70x70 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP080-070-CH-1 (50 Pcs) --- Dowel Pins - 8x70x70 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $158.05 AUD Regular price Sale price $158.05 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 80.00 mm +/- 0.700	Approx. Overall Length 80.00 mm +/ - 0.700	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-080-CH-1 Dowel Pins - 8x80x80 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 80.00 mm +/- 0.700	Approx. Overall Length 80.00 mm +/ - 0.700
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-080-CH-1 Dowel Pins - 8x80x80 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 29, 2025 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Each View the product page first if you are unsure.
DP080-080-CH-1 --- Dowel Pins - 8x80x80 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP080-080-CH-1 --- Dowel Pins - 8x80x80 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $9.68 AUD Regular price Sale price $9.68 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 90.00 mm +/- 0.700	Approx. Overall Length 90.00 mm +/ - 0.700	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-090-CH-1 (100 Pcs) Dowel Pins - 8x90x90 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 90.00 mm +/- 0.700	Approx. Overall Length 90.00 mm +/ - 0.700
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-090-CH-1 (100 Pcs) Dowel Pins - 8x90x90 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 100.00 mm +/- 0.700	Approx. Overall Length 100.00 mm +/ - 0.700	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-100-CH-1 (5 Pcs) Dowel Pins - 8x100x100 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Per 5
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 100.00 mm +/- 0.700	Approx. Overall Length 100.00 mm +/ - 0.700
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-100-CH-1 (5 Pcs) Dowel Pins - 8x100x100 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Per 5 View the product page first if you are unsure.
DP080-100-CH-1 (5 Pcs) --- Dowel Pins - 8x100x100 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP080-100-CH-1 (5 Pcs) --- Dowel Pins - 8x100x100 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $34.77 AUD Regular price Sale price $34.77 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 120.00 mm +/- 0.800	Approx. Overall Length 120.00 mm +/ - 0.800	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-120-CH-1 Dowel Pins - 8x120x120 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $6.00 AUD Regular price ~~$11.40 AUD~~ Sale price $6.00 AUD Unit price per Each
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 120.00 mm +/- 0.800	Approx. Overall Length 120.00 mm +/ - 0.800
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-120-CH-1 Dowel Pins - 8x120x120 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $6.00 AUD Regular price ~~$11.40 AUD~~ Sale price $6.00 AUD Unit price per Each
DP080-120-CH-1 --- Dowel Pins - 8x120x120 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Sale DP080-120-CH-1 --- Dowel Pins - 8x120x120 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $6.00 AUD Regular price ~~$11.40 AUD~~ Sale price $6.00 AUD Unit price per 1 Available Now Sale
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 25.00 mm +/- 0.420	Approx. Overall Length 25.00 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-025-CH-1 (5 Pcs) Dowel Pins - 8x25x25 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 25.00 mm +/- 0.420	Approx. Overall Length 25.00 mm +/ - 0.420
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-025-CH-1 (5 Pcs) Dowel Pins - 8x25x25 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5 View the product page first if you are unsure.
DP080-025-CH-1 (5 Pcs) --- Dowel Pins - 8x25x25 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP080-025-CH-1 (5 Pcs) --- Dowel Pins - 8x25x25 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 60.00 mm +/- 0.600	Approx. Overall Length 60.00 mm +/ - 0.600	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-060-CH-1 (7 Pcs) Dowel Pins - 8x60x60 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Per 7
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 60.00 mm +/- 0.600	Approx. Overall Length 60.00 mm +/ - 0.600
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-060-CH-1 (7 Pcs) Dowel Pins - 8x60x60 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Per 7 View the product page first if you are unsure.
DP080-060-CH-1 (7 Pcs) --- Dowel Pins - 8x60x60 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 DP080-060-CH-1 (7 Pcs) --- Dowel Pins - 8x60x60 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Regular price $30.41 AUD Regular price Sale price $30.41 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 110.00 mm +/- 0.700	Approx. Overall Length 110.00 mm +/ - 0.700	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP080-110-CH-1 Dowel Pins - 8x110x110 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 8.000 mm + 0.006 / + 0.015	Length (L) 110.00 mm +/- 0.700	Approx. Overall Length 110.00 mm +/ - 0.700
Material: Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP080-110-CH-1 Dowel Pins - 8x110x110 mm - Steel 100Cr6 - Heat Treated and Ground Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 9.525 mm + 0.006 / + 0.015	Length (L) 12.70 mm +/- 0.350	Approx. Overall Length 12.70 mm +/ - 0.350	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP095-013-CH-1 (50 Pcs) Dowel Pins - 9.525x12.7x12.7 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $97.41 AUD Regular price Sale price $97.41 AUD Unit price per Per 50
Diameter (D) 9.525 mm + 0.006 / + 0.015	Length (L) 12.70 mm +/- 0.350	Approx. Overall Length 12.70 mm +/ - 0.350
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP095-013-CH-1 (50 Pcs) Dowel Pins - 9.525x12.7x12.7 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $97.41 AUD Regular price Sale price $97.41 AUD Unit price per Per 50 View the product page first if you are unsure.
DP095-013-CH-1 (50 Pcs) --- Dowel Pins - 9.525x12.7x12.7 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP095-013-CH-1 (50 Pcs) --- Dowel Pins - 9.525x12.7x12.7 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $97.41 AUD Regular price Sale price $97.41 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 9.525 mm + 0.006 / + 0.015	Length (L) 15.88 mm +/- 0.350	Approx. Overall Length 15.88 mm +/ - 0.350	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP095-016-CH-1 (50 Pcs) Dowel Pins - 9.525x15.88x15.88 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $100.59 AUD Regular price Sale price $100.59 AUD Unit price per Per 50
Diameter (D) 9.525 mm + 0.006 / + 0.015	Length (L) 15.88 mm +/- 0.350	Approx. Overall Length 15.88 mm +/ - 0.350
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP095-016-CH-1 (50 Pcs) Dowel Pins - 9.525x15.88x15.88 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $100.59 AUD Regular price Sale price $100.59 AUD Unit price per Per 50 View the product page first if you are unsure.
DP095-016-CH-1 (50 Pcs) --- Dowel Pins - 9.525x15.88x15.88 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP095-016-CH-1 (50 Pcs) --- Dowel Pins - 9.525x15.88x15.88 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $100.59 AUD Regular price Sale price $100.59 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 9.525 mm + 0.006 / + 0.015	Length (L) 25.40 mm +/- 0.420	Approx. Overall Length 25.40 mm +/ - 0.420	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP095-025-CH-1 (50 Pcs) Dowel Pins - 9.525x25.4x25.4 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $114.14 AUD Regular price Sale price $114.14 AUD Unit price per Per 50
Diameter (D) 9.525 mm + 0.006 / + 0.015	Length (L) 25.40 mm +/- 0.420	Approx. Overall Length 25.40 mm +/ - 0.420
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP095-025-CH-1 (50 Pcs) Dowel Pins - 9.525x25.4x25.4 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $114.14 AUD Regular price Sale price $114.14 AUD Unit price per Per 50 View the product page first if you are unsure.
DP095-025-CH-1 (50 Pcs) --- Dowel Pins - 9.525x25.4x25.4 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP095-025-CH-1 (50 Pcs) --- Dowel Pins - 9.525x25.4x25.4 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $114.14 AUD Regular price Sale price $114.14 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 9.525 mm + 0.006 / + 0.015	Length (L) 31.75 mm +/- 0.500	Approx. Overall Length 31.75 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Standard: Based on DIN 6325
Part Number: DP095-032-CH-1 (50 Pcs) Dowel Pins - 9.525x31.75x31.75 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $117.32 AUD Regular price Sale price $117.32 AUD Unit price per Per 50
Diameter (D) 9.525 mm + 0.006 / + 0.015	Length (L) 31.75 mm +/- 0.500	Approx. Overall Length 31.75 mm +/ - 0.500
Material: Steel Alloy - Heat Treated and Ground Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP095-032-CH-1 (50 Pcs) Dowel Pins - 9.525x31.75x31.75 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 09, 2025 Regular price $117.32 AUD Regular price Sale price $117.32 AUD Unit price per Per 50 View the product page first if you are unsure.
DP095-032-CH-1 (50 Pcs) --- Dowel Pins - 9.525x31.75x31.75 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 DP095-032-CH-1 (50 Pcs) --- Dowel Pins - 9.525x31.75x31.75 mm - Steel Alloy - Heat Treated and Ground Rc 58-62 Regular price $117.32 AUD Regular price Sale price $117.32 AUD Unit price per Out of stock! Backorder Now
Diameter (D) 9.525 mm + 0.006 / + 0.015	Length (L) 44.45 mm +/- 0.500	Approx. Overall Length 44.45 mm +/ - 0.500	Type 1 (Chamfer One End)
Material: Steel 100Cr6 - Heat Treated with Bright Finish Rc 58-62 Standard: Based on DIN 6325
Part Number: DP095-044-CH-1 Dowel Pins - 9.525x44.45x44.45 mm - Steel 100Cr6 - Heat Treated with Bright Finish Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Diameter (D) 9.525 mm + 0.006 / + 0.015	Length (L) 44.45 mm +/- 0.500	Approx. Overall Length 44.45 mm +/ - 0.500
Material: Steel 100Cr6 - Heat Treated with Bright Finish Rc 58-62 Type: 1 (Chamfer One End) Standard: Based on DIN 6325
Part Number: DP095-044-CH-1 Dowel Pins - 9.525x44.45x44.45 mm - Steel 100Cr6 - Heat Treated with Bright Finish Rc 58-62 Contact Us \| Item Discontinued - Please contact us if you need a large quantity
