Collection: Pins - Ball Lock - No Shoulder - Tee Handle - Stainless Steel Heavy Duty

Pins (With Images)

Ball Lock

No Shoulder

Tee Handle

7 Products in this selection

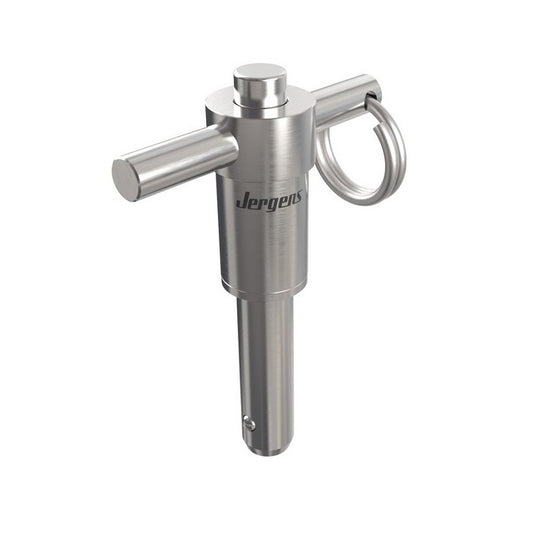

17-4 PH or PH15-7MO stainless steel spindle and shank. Ground handling pins used in the handling of aircraft and service equipment. Tee handle.
Positive lock detent pins.
300 Grade Stainless Components
440C Stainless Balls

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins

A more concise listing may be found on the Smallparts store at Pins - Ball Lock - No Shoulder - Tee Handle - Stainless Steel Heavy Duty. Smallparts promote the most popular MBA products.

Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C)	Open Ball Distance (B)
Nominal Diameter 7.94 mm _{(0.313 in.)}	Grip Length (B) 50.80 mm _{(2 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 10.16 mm	Open Ball Distance (B) 9.45 mm
Material: Stainless Steel 17-4 PH Handle Diameter (F): 12.70 mm Handle Height (G): 39.37 mm Handle Width (P): 50.80 mm Pull Out Strength: 230 Kg Max. Diameter: 7.90 mm Min. Diameter: 7.86 mm
Part Number: BLP-079-0508-THD-S17 Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $108.68 AUD Regular price Sale price $108.68 AUD Unit price per Each

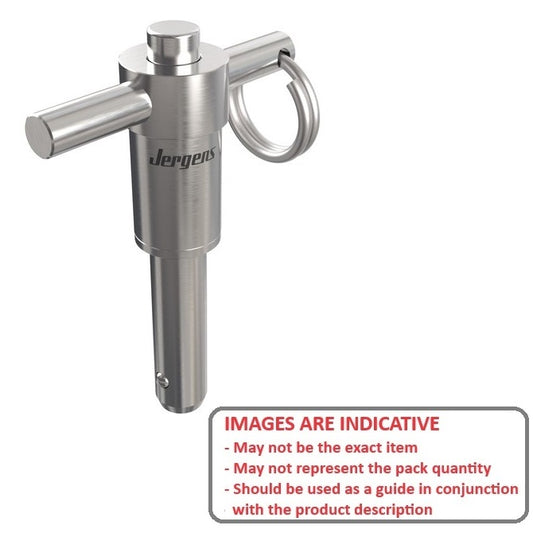

Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C)	Indicative Image
Nominal Diameter 7.94 mm _{(0.313 in.)}	Grip Length (B) 50.80 mm _{(2 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 10.16 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.45 mm Handle Diameter (F): 12.70 mm Handle Height (G): 39.37 mm Handle Width (P): 50.80 mm Pull Out Strength: 230 Kg Max. Diameter: 7.90 mm Min. Diameter: 7.86 mm
Part Number: BLP-079-0508-THD-S17 Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $108.68 AUD Regular price Sale price $108.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-079-0508-THD-S17 --- Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless BLP-079-0508-THD-S17 --- Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless Regular price $108.68 AUD Regular price Sale price $108.68 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 9.53 mm _{(0.375 in.)}	Grip Length (B) 38.10 mm _{(1.5 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 12.45 mm	Open Ball Distance (B) 11.13 mm
Material: Stainless Steel 17-4 PH Handle Diameter (F): 15.88 mm Handle Height (G): 39.37 mm Handle Width (P): 50.80 mm Pull Out Strength: 260 Kg Max. Diameter: 9.49 mm Min. Diameter: 9.45 mm
Part Number: BLP-095-0381-THD-S17 Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $129.41 AUD Regular price Sale price $129.41 AUD Unit price per Each
Nominal Diameter 9.53 mm _{(0.375 in.)}	Grip Length (B) 38.10 mm _{(1.5 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 12.45 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 11.13 mm Handle Diameter (F): 15.88 mm Handle Height (G): 39.37 mm Handle Width (P): 50.80 mm Pull Out Strength: 260 Kg Max. Diameter: 9.49 mm Min. Diameter: 9.45 mm
Part Number: BLP-095-0381-THD-S17 Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $129.41 AUD Regular price Sale price $129.41 AUD Unit price per Each View the product page first if you are unsure.
BLP-095-0381-THD-S17 --- Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless BLP-095-0381-THD-S17 --- Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless Regular price $129.41 AUD Regular price Sale price $129.41 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 9.53 mm _{(0.375 in.)}	Grip Length (B) 63.50 mm _{(2.5 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 12.45 mm	Open Ball Distance (B) 11.13 mm
Material: Stainless Steel 17-4 PH Handle Diameter (F): 15.88 mm Handle Height (G): 39.37 mm Handle Width (P): 50.80 mm Pull Out Strength: 260 Kg Max. Diameter: 9.49 mm Min. Diameter: 9.45 mm
Part Number: BLP-095-0635-THD-S17 Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $125.32 AUD Regular price Sale price $125.32 AUD Unit price per Each
Nominal Diameter 9.53 mm _{(0.375 in.)}	Grip Length (B) 63.50 mm _{(2.5 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 12.45 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 11.13 mm Handle Diameter (F): 15.88 mm Handle Height (G): 39.37 mm Handle Width (P): 50.80 mm Pull Out Strength: 260 Kg Max. Diameter: 9.49 mm Min. Diameter: 9.45 mm
Part Number: BLP-095-0635-THD-S17 Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $125.32 AUD Regular price Sale price $125.32 AUD Unit price per Each View the product page first if you are unsure.
BLP-095-0635-THD-S17 --- Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless BLP-095-0635-THD-S17 --- Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless Regular price $125.32 AUD Regular price Sale price $125.32 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 9.53 mm _{(0.375 in.)}	Grip Length (B) 76.20 mm _{(3 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 12.45 mm	Open Ball Distance (B) 11.13 mm
Material: Stainless Steel 17-4 PH Handle Diameter (F): 15.88 mm Handle Height (G): 39.37 mm Handle Width (P): 50.80 mm Pull Out Strength: 260 Kg Max. Diameter: 9.49 mm Min. Diameter: 9.45 mm
Part Number: BLP-095-0762-THD-S17 Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $127.14 AUD Regular price Sale price $127.14 AUD Unit price per Each
Nominal Diameter 9.53 mm _{(0.375 in.)}	Grip Length (B) 76.20 mm _{(3 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 12.45 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 11.13 mm Handle Diameter (F): 15.88 mm Handle Height (G): 39.37 mm Handle Width (P): 50.80 mm Pull Out Strength: 260 Kg Max. Diameter: 9.49 mm Min. Diameter: 9.45 mm
Part Number: BLP-095-0762-THD-S17 Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $127.14 AUD Regular price Sale price $127.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-095-0762-THD-S17 --- Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless BLP-095-0762-THD-S17 --- Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless Regular price $127.14 AUD Regular price Sale price $127.14 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 12.70 mm _{(0.5 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 13.46 mm	Open Ball Distance (B) 15.06 mm
Material: Stainless Steel 17-4 PH Handle Diameter (F): 19.05 mm Handle Height (G): 46.23 mm Handle Width (P): 63.50 mm Pull Out Strength: 525 Kg Max. Diameter: 12.66 mm Min. Diameter: 12.62 mm
Part Number: BLP-127-0127-THD-S17 Ball Lock Pins - 12.7x12.7 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $223.95 AUD Regular price Sale price $223.95 AUD Unit price per Each
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 12.70 mm _{(0.5 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 13.46 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 15.06 mm Handle Diameter (F): 19.05 mm Handle Height (G): 46.23 mm Handle Width (P): 63.50 mm Pull Out Strength: 525 Kg Max. Diameter: 12.66 mm Min. Diameter: 12.62 mm
Part Number: BLP-127-0127-THD-S17 Ball Lock Pins - 12.7x12.7 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $223.95 AUD Regular price Sale price $223.95 AUD Unit price per Each View the product page first if you are unsure.
BLP-127-0127-THD-S17 --- Ball Lock Pins - 12.7x12.7 mm - 17-4 PH Stainless BLP-127-0127-THD-S17 --- Ball Lock Pins - 12.7x12.7 mm - 17-4 PH Stainless Regular price $223.95 AUD Regular price Sale price $223.95 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 76.20 mm _{(3 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 13.46 mm	Open Ball Distance (B) 15.06 mm
Material: Stainless Steel 17-4 PH Handle Diameter (F): 19.05 mm Handle Height (G): 46.23 mm Handle Width (P): 63.50 mm Pull Out Strength: 525 Kg Max. Diameter: 12.66 mm Min. Diameter: 12.62 mm
Part Number: BLP-127-0762-THD-S17 Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $113.50 AUD Regular price Sale price $113.50 AUD Unit price per Each
Nominal Diameter 12.70 mm _{(0.5 in.)}	Grip Length (B) 76.20 mm _{(3 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 13.46 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 15.06 mm Handle Diameter (F): 19.05 mm Handle Height (G): 46.23 mm Handle Width (P): 63.50 mm Pull Out Strength: 525 Kg Max. Diameter: 12.66 mm Min. Diameter: 12.62 mm
Part Number: BLP-127-0762-THD-S17 Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $113.50 AUD Regular price Sale price $113.50 AUD Unit price per Each View the product page first if you are unsure.
BLP-127-0762-THD-S17 --- Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless BLP-127-0762-THD-S17 --- Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless Regular price $113.50 AUD Regular price Sale price $113.50 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 15.88 mm _{(0.625 in.)}	Grip Length (B) 101.60 mm _{(4 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 16.51 mm	Open Ball Distance (B) 19.00 mm
Material: Stainless Steel 17-4 PH Handle Diameter (F): 22.23 mm Handle Height (G): 46.23 mm Handle Width (P): 76.20 mm Pull Out Strength: 937 Kg Max. Diameter: 15.84 mm Min. Diameter: 15.80 mm
Part Number: BLP-159-1016-THD-S17 Ball Lock Pins - 15.88x101.6 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $463.86 AUD Regular price Sale price $463.86 AUD Unit price per Each
Nominal Diameter 15.88 mm _{(0.625 in.)}	Grip Length (B) 101.60 mm _{(4 in.)}	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 16.51 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 19.00 mm Handle Diameter (F): 22.23 mm Handle Height (G): 46.23 mm Handle Width (P): 76.20 mm Pull Out Strength: 937 Kg Max. Diameter: 15.84 mm Min. Diameter: 15.80 mm
Part Number: BLP-159-1016-THD-S17 Ball Lock Pins - 15.88x101.6 mm - 17-4 PH Stainless Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $463.86 AUD Regular price Sale price $463.86 AUD Unit price per Each View the product page first if you are unsure.
BLP-159-1016-THD-S17 --- Ball Lock Pins - 15.88x101.6 mm - 17-4 PH Stainless BLP-159-1016-THD-S17 --- Ball Lock Pins - 15.88x101.6 mm - 17-4 PH Stainless Regular price $463.86 AUD Regular price Sale price $463.86 AUD Unit price per Out of stock! Backorder Now
