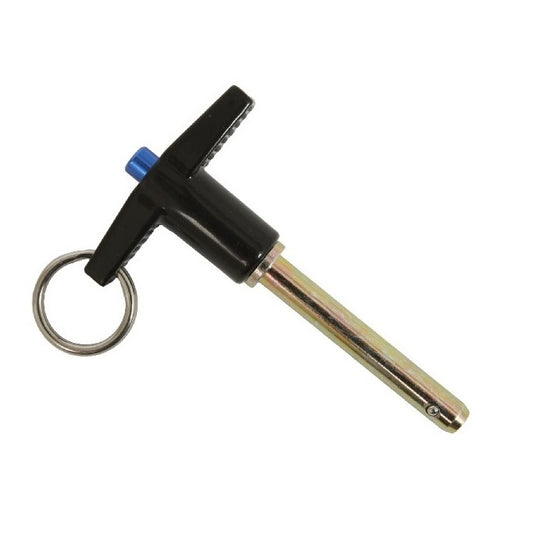

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and Aluminium

4 Products in this selection
  • Quick release. Heat treated carbon and alloy steel. Aluminium tee handle.
  • Positive lock detent pins.
  • Aluminium handles.
  • Carbon steel components
Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
A more concise listing may be found on the Smallparts store at Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and Aluminium. Smallparts promote the most popular MBA products.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Open Ball Distance (B) Max. Handle Height (H) Indicative
Nominal Diameter
5.00
mm

(0.197 in.)
Grip Length (B)
25.00
mm

(0.984 in.)
Pin Material Grade
Alloy Steel / Aluminium Handle
Locking Ball to End (C)
6.00
mm
Open Ball Distance (B)
5.54
mm

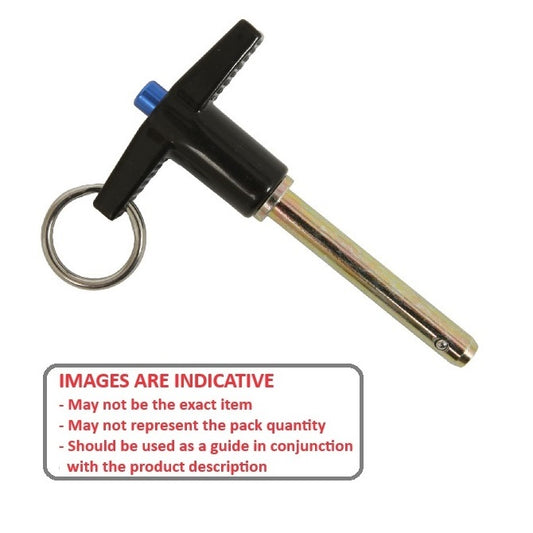

Ball Lock Pins - 5x25 mm - Alloy Steel / Aluminium Handle
Material: Steel Alloy with Aluminium Handle    Shank Diameter (D): 13.00 mm    Handle Width (E): 46.00 mm    Handle Height (G): 32.00 mm    Handle Shank Length (H): 18 mm    Max. Diameter: 4.96 mm    Min. Diameter: 4.92 mm
Part Number: BLP-050-0250-TI-AC Ball Lock Pins - 5x25 mm - Alloy Steel / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 04, 2025
$64.59 AUD
$64.59 AUD
Each
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Indicative
Nominal Diameter
5.00
mm

(0.197 in.)
Grip Length (B)
25.00
mm

(0.984 in.)
Pin Material Grade
Alloy Steel / Aluminium Handle
Locking Ball to End (C)
6.00
mm
Ball Lock Pins - 5x25 mm - Alloy Steel / Aluminium Handle
Material: Steel Alloy with Aluminium Handle    Open Ball Distance (B): 5.54 mm    Shank Diameter (D): 13.00 mm    Handle Width (E): 46.00 mm    Handle Height (G): 32.00 mm    Handle Shank Length (H): 18 mm    Max. Diameter: 4.96 mm    Min. Diameter: 4.92 mm
Part Number: BLP-050-0250-TI-AC Ball Lock Pins - 5x25 mm - Alloy Steel / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 04, 2025
$64.59 AUD
$64.59 AUD
Each
View the product page first if you are unsure.
Nominal Diameter
9.53
mm

(0.375 in.)
Grip Length (B)
50.80
mm

(2 in.)
Pin Material Grade
Alloy Steel / Aluminium Handle
Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.17
mm
Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle
Material: Steel Alloy with Aluminium Handle    Handle Width (E): 52.45 mm    Handle Height (G): 36.83 mm    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Part Number: BLP-095-0508-TI-AC Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle
3 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Each
Nominal Diameter
9.53
mm

(0.375 in.)
Grip Length (B)
50.80
mm

(2 in.)
Pin Material Grade
Alloy Steel / Aluminium Handle
Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle
Material: Steel Alloy with Aluminium Handle    Open Ball Distance (B): 11.17 mm    Handle Width (E): 52.45 mm    Handle Height (G): 36.83 mm    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Part Number: BLP-095-0508-TI-AC Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle
3 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$14.00 AUD
$26.60 AUD $14.00 AUD
Each
Nominal Diameter
10.00
mm

(0.394 in.)
Grip Length (B)
25.00
mm

(0.984 in.)
Pin Material Grade
Alloy Steel / Aluminium Handle
Locking Ball to End (C)
9.00
mm
Open Ball Distance (B)
11.86
mm
Ball Lock Pins - 10x25 mm - Alloy Steel / Aluminium Handle
Material: Steel Alloy with Aluminium Handle    Shank Diameter (D): 16.00 mm    Handle Width (E): 51.00 mm    Handle Height (G): 37.00 mm    Handle Shank Length (H): 21 mm    Max. Diameter: 9.96 mm    Min. Diameter: 9.92 mm
Part Number: BLP-100-0250-TI-AC Ball Lock Pins - 10x25 mm - Alloy Steel / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 04, 2025
$126.68 AUD
$126.68 AUD
Each
Nominal Diameter
10.00
mm

(0.394 in.)
Grip Length (B)
25.00
mm

(0.984 in.)
Pin Material Grade
Alloy Steel / Aluminium Handle
Locking Ball to End (C)
9.00
mm
Ball Lock Pins - 10x25 mm - Alloy Steel / Aluminium Handle
Material: Steel Alloy with Aluminium Handle    Open Ball Distance (B): 11.86 mm    Shank Diameter (D): 16.00 mm    Handle Width (E): 51.00 mm    Handle Height (G): 37.00 mm    Handle Shank Length (H): 21 mm    Max. Diameter: 9.96 mm    Min. Diameter: 9.92 mm
Part Number: BLP-100-0250-TI-AC Ball Lock Pins - 10x25 mm - Alloy Steel / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 04, 2025
$126.68 AUD
$126.68 AUD
Each
View the product page first if you are unsure.
Nominal Diameter
10.00
mm

(0.394 in.)
Grip Length (B)
50.00
mm

(1.969 in.)
Pin Material Grade
Alloy Steel / Aluminium Handle
Locking Ball to End (C)
9.00
mm
Open Ball Distance (B)
11.86
mm
Ball Lock Pins - 10x50 mm - Alloy Steel / Aluminium Handle
Material: Steel Alloy with Aluminium Handle    Shank Diameter (D): 16.00 mm    Handle Width (E): 51.00 mm    Handle Height (G): 37.00 mm    Handle Shank Length (H): 21 mm    Max. Diameter: 9.96 mm    Min. Diameter: 9.92 mm
Part Number: BLP-100-0500-TI-AC Ball Lock Pins - 10x50 mm - Alloy Steel / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 04, 2025
$154.50 AUD
$154.50 AUD
Each
Nominal Diameter
10.00
mm

(0.394 in.)
Grip Length (B)
50.00
mm

(1.969 in.)
Pin Material Grade
Alloy Steel / Aluminium Handle
Locking Ball to End (C)
9.00
mm
Ball Lock Pins - 10x50 mm - Alloy Steel / Aluminium Handle
Material: Steel Alloy with Aluminium Handle    Open Ball Distance (B): 11.86 mm    Shank Diameter (D): 16.00 mm    Handle Width (E): 51.00 mm    Handle Height (G): 37.00 mm    Handle Shank Length (H): 21 mm    Max. Diameter: 9.96 mm    Min. Diameter: 9.92 mm
Part Number: BLP-100-0500-TI-AC Ball Lock Pins - 10x50 mm - Alloy Steel / Aluminium Handle
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 04, 2025
$154.50 AUD
$154.50 AUD
Each
View the product page first if you are unsure.
