Collection: Nuts - Wing

Nuts (With Images)

Wing

69 Products in this selection

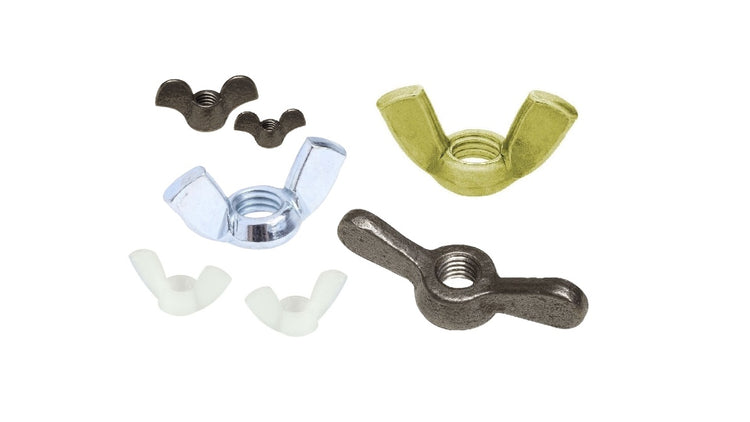

This is a combined category of Wing Nuts.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Nuts - Wing

Additional resources:
Countersunk Head Screws
Pan Head Screws
Screws

A more concise listing may be found on the Smallparts store at Nuts - Wing. Smallparts promote the most popular MBA products.

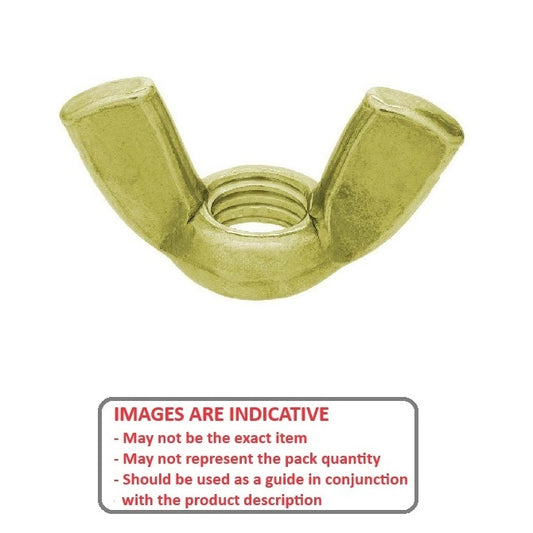

Thread Size	Overall Length (A)	Base Diameter (B)	Body Height (D)	Wing Width	Overall Height (C)	Indicative Image
Thread Size M3 (3x0.5mm)			Body Height (D) 3.3 mm	Wing Width 18.7 mm	Overall Height (C) 8.6 mm
Material: Brass Pitch in mm / Threads Per Inch: 0.500 mm / 50.80 TPI Category: Nuts - Wing - Brass
Part Number: NT030M-WG-BR (100 Pcs) Wing Nuts - M3 - 3x0.5mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $191.68 AUD Regular price Sale price $191.68 AUD Unit price per Per 100
Thread Size	Overall Length (A)	Base Diameter (B)	Body Height (D)	Indicative Image
Thread Size M3 (3x0.5mm)			Body Height (D) 3.3 mm
Material: Brass Wing Width: 18.7 mm Overall Height (C): 8.6 mm Pitch in mm / Threads Per Inch: 0.500 mm / 50.80 TPI Category: Nuts - Wing - Brass
Part Number: NT030M-WG-BR (100 Pcs) Wing Nuts - M3 - 3x0.5mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $191.68 AUD Regular price Sale price $191.68 AUD Unit price per Per 100 View the product page first if you are unsure.
NT030M-WG-BR (100 Pcs) --- Wing Nuts - M3 - 3x0.5mm - - - Brass NT030M-WG-BR (100 Pcs) --- Wing Nuts - M3 - 3x0.5mm - - - Brass Regular price $191.68 AUD Regular price Sale price $191.68 AUD Unit price per Out of stock! Backorder Now

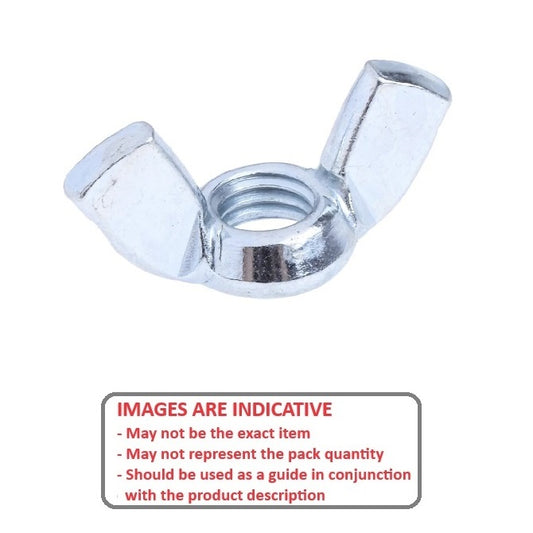

Thread Size M3 (3x0.5mm)			Body Height (D) 3.3 mm	Wing Width 18.7 mm	Overall Height (C) 8.6 mm
Material: Steel - Plated Pitch in mm / Threads Per Inch: 0.500 mm / 50.8 TPI Category: Nuts - Wing - Steel
Part Number: NT030M-WG-CZ (50 Pcs) Wing Nuts - M3 - 3x0.5mm - - - Steel - Plated 2 units (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50
Thread Size M3 (3x0.5mm)			Body Height (D) 3.3 mm
Material: Steel - Plated Wing Width: 18.7 mm Overall Height (C): 8.6 mm Pitch in mm / Threads Per Inch: 0.500 mm / 50.8 TPI Category: Nuts - Wing - Steel
Part Number: NT030M-WG-CZ (50 Pcs) Wing Nuts - M3 - 3x0.5mm - - - Steel - Plated 2 units (100 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50
NT030M-WG-CZ (50 Pcs) --- Wing Nuts - M3 - 3x0.5mm - - - Steel - Plated Sale NT030M-WG-CZ (50 Pcs) --- Wing Nuts - M3 - 3x0.5mm - - - Steel - Plated Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 2 Available Now Sale

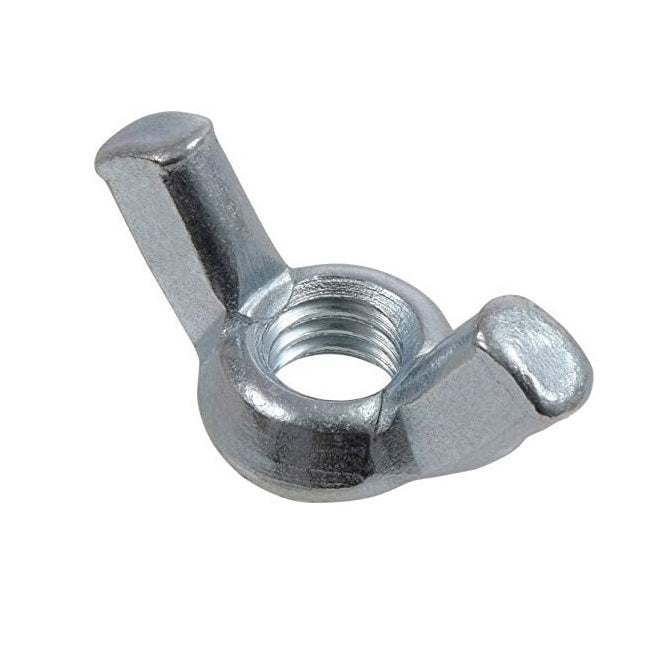

Thread Size M3 (3x0.5mm)			Body Height (D) 3.3 mm	Wing Width 18.7 mm	Overall Height (C) 8.6 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Pitch in mm / Threads Per Inch: 0.500 mm / 50.8 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT030M-WG-S4 (10 Pcs) Wing Nuts - M3 - 3x0.5mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 17 units (170 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Per 10
Thread Size M3 (3x0.5mm)			Body Height (D) 3.3 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Wing Width: 18.7 mm Overall Height (C): 8.6 mm Pitch in mm / Threads Per Inch: 0.500 mm / 50.8 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT030M-WG-S4 (10 Pcs) Wing Nuts - M3 - 3x0.5mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 17 units (170 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Per 10 View the product page first if you are unsure.
NT030M-WG-S4 (10 Pcs) --- Wing Nuts - M3 - 3x0.5mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 NT030M-WG-S4 (10 Pcs) --- Wing Nuts - M3 - 3x0.5mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per 17 Available Now
Thread Size M3 (3x0.5mm)			Body Height (D) 3.3 mm	Wing Width 18.7 mm	Overall Height (C) 8.6 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Pitch in mm / Threads Per Inch: 0.500 mm / 50.8 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT030M-WG-S6 (5 Pcs) Wing Nuts - M3 - 3x0.5mm - - - Stainless Steel 316 Similar to A4, 18-10 5 units (25 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 5
Thread Size M3 (3x0.5mm)			Body Height (D) 3.3 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Wing Width: 18.7 mm Overall Height (C): 8.6 mm Pitch in mm / Threads Per Inch: 0.500 mm / 50.8 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT030M-WG-S6 (5 Pcs) Wing Nuts - M3 - 3x0.5mm - - - Stainless Steel 316 Similar to A4, 18-10 5 units (25 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per Per 5 View the product page first if you are unsure.
NT030M-WG-S6 (5 Pcs) --- Wing Nuts - M3 - 3x0.5mm - - - Stainless Steel 316 Similar to A4, 18-10 NT030M-WG-S6 (5 Pcs) --- Wing Nuts - M3 - 3x0.5mm - - - Stainless Steel 316 Similar to A4, 18-10 Regular price $7.05 AUD Regular price Sale price $7.05 AUD Unit price per 5 Available Now

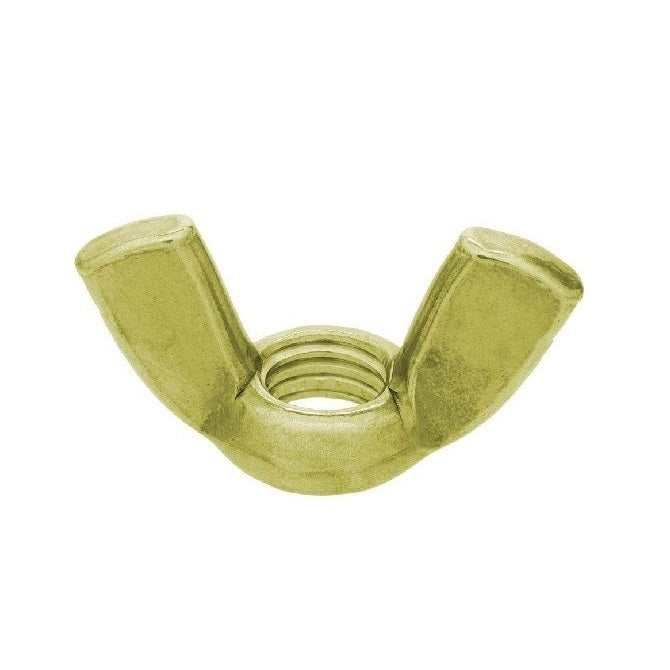

Thread Size 1/8-40 BSW (3.175mm)
Material: Brass Pitch in mm / Threads Per Inch: 0.635 mm / 40 TPI Category: Nuts - Wing - Brass
Part Number: NT032W-WG-BR (100 Pcs) Wing Nuts - 1/8-40 BSW - 3.175mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $191.68 AUD Regular price Sale price $191.68 AUD Unit price per Per 100
Thread Size 1/8-40 BSW (3.175mm)
Material: Brass Pitch in mm / Threads Per Inch: 0.635 mm / 40 TPI Category: Nuts - Wing - Brass
Part Number: NT032W-WG-BR (100 Pcs) Wing Nuts - 1/8-40 BSW - 3.175mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $191.68 AUD Regular price Sale price $191.68 AUD Unit price per Per 100 View the product page first if you are unsure.
NT032W-WG-BR (100 Pcs) --- Wing Nuts - 1/8-40 BSW - 3.175mm - - - Brass NT032W-WG-BR (100 Pcs) --- Wing Nuts - 1/8-40 BSW - 3.175mm - - - Brass Regular price $191.68 AUD Regular price Sale price $191.68 AUD Unit price per Out of stock! Backorder Now

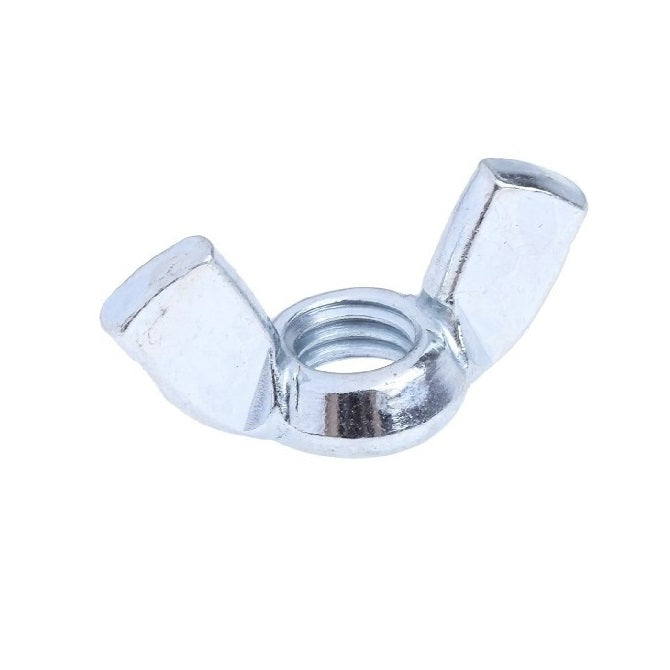

Thread Size 1/8-40 BSW (3.175mm)
Material: Steel - Plated Pitch in mm / Threads Per Inch: 0.635 mm / 40 TPI Category: Nuts - Wing - Steel
Part Number: NT032W-WG-CZ (50 Pcs) Wing Nuts - 1/8-40 BSW - 3.175mm - - - Steel - Plated 4 units (200 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $6.64 AUD Regular price ~~$19.08 AUD~~ Sale price $6.64 AUD Unit price per Per 50
Thread Size 1/8-40 BSW (3.175mm)
Material: Steel - Plated Pitch in mm / Threads Per Inch: 0.635 mm / 40 TPI Category: Nuts - Wing - Steel
Part Number: NT032W-WG-CZ (50 Pcs) Wing Nuts - 1/8-40 BSW - 3.175mm - - - Steel - Plated 4 units (200 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $6.64 AUD Regular price ~~$19.08 AUD~~ Sale price $6.64 AUD Unit price per Per 50
NT032W-WG-CZ (50 Pcs) --- Wing Nuts - 1/8-40 BSW - 3.175mm - - - Steel - Plated Sale NT032W-WG-CZ (50 Pcs) --- Wing Nuts - 1/8-40 BSW - 3.175mm - - - Steel - Plated Regular price $6.64 AUD Regular price ~~$19.08 AUD~~ Sale price $6.64 AUD Unit price per 4 Available Now Sale
Thread Size 5/32-32 BSW (3.969mm)
Material: Brass Pitch in mm / Threads Per Inch: 0.794 mm / 32 TPI Category: Nuts - Wing - Brass
Part Number: NT039W-WG-BR (100 Pcs) Wing Nuts - 5/32-32 BSW - 3.969mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $207.95 AUD Regular price Sale price $207.95 AUD Unit price per Per 100
Thread Size 5/32-32 BSW (3.969mm)
Material: Brass Pitch in mm / Threads Per Inch: 0.794 mm / 32 TPI Category: Nuts - Wing - Brass
Part Number: NT039W-WG-BR (100 Pcs) Wing Nuts - 5/32-32 BSW - 3.969mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $207.95 AUD Regular price Sale price $207.95 AUD Unit price per Per 100 View the product page first if you are unsure.
NT039W-WG-BR (100 Pcs) --- Wing Nuts - 5/32-32 BSW - 3.969mm - - - Brass NT039W-WG-BR (100 Pcs) --- Wing Nuts - 5/32-32 BSW - 3.969mm - - - Brass Regular price $207.95 AUD Regular price Sale price $207.95 AUD Unit price per Out of stock! Backorder Now
Thread Size 5/32-32 BSW (3.969mm)
Material: Steel - Plated Pitch in mm / Threads Per Inch: 0.794 mm / 32 TPI Category: Nuts - Wing - Steel
Part Number: NT039W-WG-CZ (20 Pcs) Wing Nuts - 5/32-32 BSW - 3.969mm - - - Steel - Plated 10 units (200 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.24 AUD Regular price ~~$12.14 AUD~~ Sale price $4.24 AUD Unit price per Per 20
Thread Size 5/32-32 BSW (3.969mm)
Material: Steel - Plated Pitch in mm / Threads Per Inch: 0.794 mm / 32 TPI Category: Nuts - Wing - Steel
Part Number: NT039W-WG-CZ (20 Pcs) Wing Nuts - 5/32-32 BSW - 3.969mm - - - Steel - Plated 10 units (200 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.24 AUD Regular price ~~$12.14 AUD~~ Sale price $4.24 AUD Unit price per Per 20
NT039W-WG-CZ (20 Pcs) --- Wing Nuts - 5/32-32 BSW - 3.969mm - - - Steel - Plated Sale NT039W-WG-CZ (20 Pcs) --- Wing Nuts - 5/32-32 BSW - 3.969mm - - - Steel - Plated Regular price $4.24 AUD Regular price ~~$12.14 AUD~~ Sale price $4.24 AUD Unit price per 10 Available Now Sale

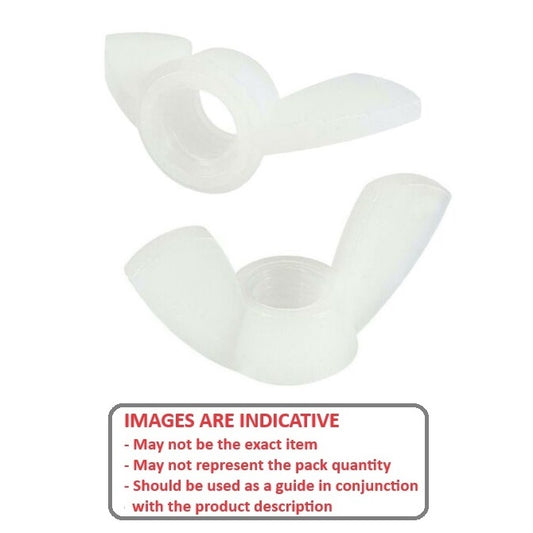

Thread Size M4 (4x0.7mm)	Overall Length (A) 14.0 mm _{(0.551 in.)}	Base Diameter (B) 8.0 mm _{(0.315 in.)}	Body Height (D) 2.0 mm		Overall Height (C) 7.0 mm

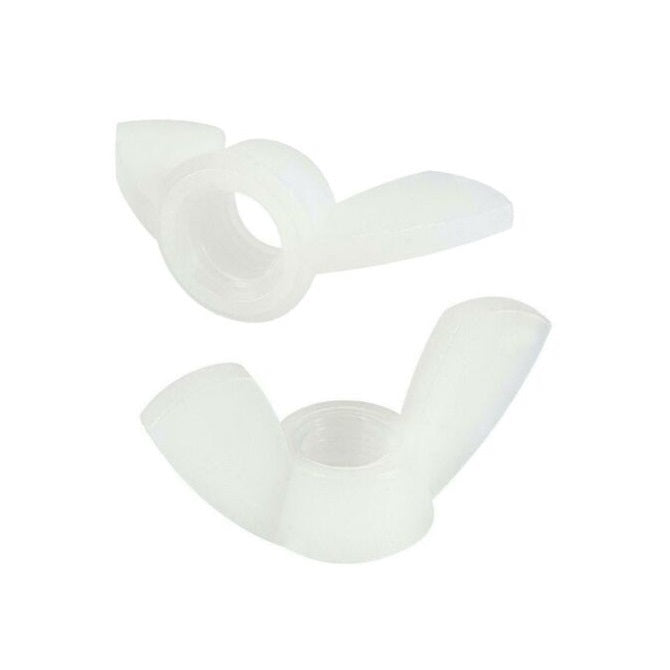

Material: Natural Nylon 6.6 Category: Nuts - Wing - Nylon
Part Number: NT040M-WG-NY (10 Pcs) Wing Nuts - M4 - 4x0.7mm - 14x8 mm - Natural Nylon 6.6 7 units (70 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per Per 10
Thread Size M4 (4x0.7mm)	Overall Length (A) 14.0 mm _{(0.551 in.)}	Base Diameter (B) 8.0 mm _{(0.315 in.)}	Body Height (D) 2.0 mm
Material: Natural Nylon 6.6 Overall Height (C): 7.0 mm Category: Nuts - Wing - Nylon
Part Number: NT040M-WG-NY (10 Pcs) Wing Nuts - M4 - 4x0.7mm - 14x8 mm - Natural Nylon 6.6 7 units (70 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per Per 10 View the product page first if you are unsure.
NT040M-WG-NY (10 Pcs) --- Wing Nuts - M4 - 4x0.7mm - 14x8 mm - Natural Nylon 6.6 NT040M-WG-NY (10 Pcs) --- Wing Nuts - M4 - 4x0.7mm - 14x8 mm - Natural Nylon 6.6 Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per 7 Available Now
Thread Size M4 (4x0.7mm)			Body Height (D) 3.3 mm	Wing Width 18.7 mm	Overall Height (C) 8.6 mm
Material: Brass Pitch in mm / Threads Per Inch: 0.700 mm / 36.29 TPI Category: Nuts - Wing - Brass
Part Number: NT040M-WG-BR (100 Pcs) Wing Nuts - M4 - 4x0.7mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $207.95 AUD Regular price Sale price $207.95 AUD Unit price per Per 100
Thread Size M4 (4x0.7mm)			Body Height (D) 3.3 mm
Material: Brass Wing Width: 18.7 mm Overall Height (C): 8.6 mm Pitch in mm / Threads Per Inch: 0.700 mm / 36.29 TPI Category: Nuts - Wing - Brass
Part Number: NT040M-WG-BR (100 Pcs) Wing Nuts - M4 - 4x0.7mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $207.95 AUD Regular price Sale price $207.95 AUD Unit price per Per 100 View the product page first if you are unsure.
NT040M-WG-BR (100 Pcs) --- Wing Nuts - M4 - 4x0.7mm - - - Brass NT040M-WG-BR (100 Pcs) --- Wing Nuts - M4 - 4x0.7mm - - - Brass Regular price $207.95 AUD Regular price Sale price $207.95 AUD Unit price per Out of stock! Backorder Now
Thread Size M4 (4x0.7mm)			Body Height (D) 3.3 mm	Wing Width 18.7 mm	Overall Height (C) 8.6 mm
Material: Steel - Plated Pitch in mm / Threads Per Inch: 0.700 mm / 36.29 TPI Category: Nuts - Wing - Steel
Part Number: NT040M-WG-CZ (20 Pcs) Wing Nuts - M4 - 4x0.7mm - - - Steel - Plated 6 units (120 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.24 AUD Regular price ~~$12.14 AUD~~ Sale price $4.24 AUD Unit price per Per 20
Thread Size M4 (4x0.7mm)			Body Height (D) 3.3 mm
Material: Steel - Plated Wing Width: 18.7 mm Overall Height (C): 8.6 mm Pitch in mm / Threads Per Inch: 0.700 mm / 36.29 TPI Category: Nuts - Wing - Steel
Part Number: NT040M-WG-CZ (20 Pcs) Wing Nuts - M4 - 4x0.7mm - - - Steel - Plated 6 units (120 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.24 AUD Regular price ~~$12.14 AUD~~ Sale price $4.24 AUD Unit price per Per 20
NT040M-WG-CZ (20 Pcs) --- Wing Nuts - M4 - 4x0.7mm - - - Steel - Plated Sale NT040M-WG-CZ (20 Pcs) --- Wing Nuts - M4 - 4x0.7mm - - - Steel - Plated Regular price $4.24 AUD Regular price ~~$12.14 AUD~~ Sale price $4.24 AUD Unit price per 6 Available Now Sale
Thread Size M4 (4x0.7mm)			Body Height (D) 3.3 mm	Wing Width 18.7 mm	Overall Height (C) 8.6 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Pitch in mm / Threads Per Inch: 0.700 mm / 36.29 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT040M-WG-S4 (50 Pcs) Wing Nuts - M4 - 4x0.7mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $40.05 AUD Regular price Sale price $40.05 AUD Unit price per Per 50
Thread Size M4 (4x0.7mm)			Body Height (D) 3.3 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Wing Width: 18.7 mm Overall Height (C): 8.6 mm Pitch in mm / Threads Per Inch: 0.700 mm / 36.29 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT040M-WG-S4 (50 Pcs) Wing Nuts - M4 - 4x0.7mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $40.05 AUD Regular price Sale price $40.05 AUD Unit price per Per 50 View the product page first if you are unsure.
NT040M-WG-S4 (50 Pcs) --- Wing Nuts - M4 - 4x0.7mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 NT040M-WG-S4 (50 Pcs) --- Wing Nuts - M4 - 4x0.7mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $40.05 AUD Regular price Sale price $40.05 AUD Unit price per Out of stock! Backorder Now
Thread Size M4 (4x0.7mm)			Body Height (D) 3.3 mm	Wing Width 18.7 mm	Overall Height (C) 8.6 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Pitch in mm / Threads Per Inch: 0.700 mm / 36.29 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT040M-WG-S6 (10 Pcs) Wing Nuts - M4 - 4x0.7mm - - - Stainless Steel 316 Similar to A4, 18-10 9 units (90 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 10
Thread Size M4 (4x0.7mm)			Body Height (D) 3.3 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Wing Width: 18.7 mm Overall Height (C): 8.6 mm Pitch in mm / Threads Per Inch: 0.700 mm / 36.29 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT040M-WG-S6 (10 Pcs) Wing Nuts - M4 - 4x0.7mm - - - Stainless Steel 316 Similar to A4, 18-10 9 units (90 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per Per 10 View the product page first if you are unsure.
NT040M-WG-S6 (10 Pcs) --- Wing Nuts - M4 - 4x0.7mm - - - Stainless Steel 316 Similar to A4, 18-10 NT040M-WG-S6 (10 Pcs) --- Wing Nuts - M4 - 4x0.7mm - - - Stainless Steel 316 Similar to A4, 18-10 Regular price $6.68 AUD Regular price Sale price $6.68 AUD Unit price per 9 Available Now
Thread Size 3/16-24 BSW (4.76mm)
Material: Brass Pitch in mm / Threads Per Inch: 1.058 mm / 24 TPI Category: Nuts - Wing - Brass
Part Number: NT048W-WG-BR (100 Pcs) Wing Nuts - 3/16-24 BSW - 4.76mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $231.59 AUD Regular price Sale price $231.59 AUD Unit price per Per 100
Thread Size 3/16-24 BSW (4.76mm)
Material: Brass Pitch in mm / Threads Per Inch: 1.058 mm / 24 TPI Category: Nuts - Wing - Brass
Part Number: NT048W-WG-BR (100 Pcs) Wing Nuts - 3/16-24 BSW - 4.76mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $231.59 AUD Regular price Sale price $231.59 AUD Unit price per Per 100 View the product page first if you are unsure.
NT048W-WG-BR (100 Pcs) --- Wing Nuts - 3/16-24 BSW - 4.76mm - - - Brass NT048W-WG-BR (100 Pcs) --- Wing Nuts - 3/16-24 BSW - 4.76mm - - - Brass Regular price $231.59 AUD Regular price Sale price $231.59 AUD Unit price per Out of stock! Backorder Now
Thread Size 3/16-24 BSW (4.76mm)
Material: Steel - Plated Pitch in mm / Threads Per Inch: 1.058 mm / 24 TPI Category: Nuts - Wing - Steel
Part Number: NT048W-WG-CZ (20 Pcs) Wing Nuts - 3/16-24 BSW - 4.76mm - - - Steel - Plated 9 units (180 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.31 AUD Regular price ~~$12.19 AUD~~ Sale price $4.31 AUD Unit price per Per 20
Thread Size 3/16-24 BSW (4.76mm)
Material: Steel - Plated Pitch in mm / Threads Per Inch: 1.058 mm / 24 TPI Category: Nuts - Wing - Steel
Part Number: NT048W-WG-CZ (20 Pcs) Wing Nuts - 3/16-24 BSW - 4.76mm - - - Steel - Plated 9 units (180 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.31 AUD Regular price ~~$12.19 AUD~~ Sale price $4.31 AUD Unit price per Per 20
NT048W-WG-CZ (20 Pcs) --- Wing Nuts - 3/16-24 BSW - 4.76mm - - - Steel - Plated Sale NT048W-WG-CZ (20 Pcs) --- Wing Nuts - 3/16-24 BSW - 4.76mm - - - Steel - Plated Regular price $4.31 AUD Regular price ~~$12.19 AUD~~ Sale price $4.31 AUD Unit price per 9 Available Now Sale
Thread Size 10-24 UNC (4.76mm)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Pitch in mm / Threads Per Inch: 1.058 mm / 24 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT048C-WG-S4 (5 Pcs) Wing Nuts - 10-24 UNC - 4.76mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 17 units (85 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Per 5
Thread Size 10-24 UNC (4.76mm)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Pitch in mm / Threads Per Inch: 1.058 mm / 24 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT048C-WG-S4 (5 Pcs) Wing Nuts - 10-24 UNC - 4.76mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 17 units (85 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Per 5 View the product page first if you are unsure.
NT048C-WG-S4 (5 Pcs) --- Wing Nuts - 10-24 UNC - 4.76mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 NT048C-WG-S4 (5 Pcs) --- Wing Nuts - 10-24 UNC - 4.76mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per 17 Available Now
Thread Size 10-32 UNF (4.76mm)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Pitch in mm / Threads Per Inch: 0.794 mm / 32 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT048F-WG-S4 (50 Pcs) Wing Nuts - 10-32 UNF - 4.76mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $79.86 AUD Regular price Sale price $79.86 AUD Unit price per Per 50
Thread Size 10-32 UNF (4.76mm)
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Pitch in mm / Threads Per Inch: 0.794 mm / 32 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT048F-WG-S4 (50 Pcs) Wing Nuts - 10-32 UNF - 4.76mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 12, 2025 Regular price $79.86 AUD Regular price Sale price $79.86 AUD Unit price per Per 50 View the product page first if you are unsure.
NT048F-WG-S4 (50 Pcs) --- Wing Nuts - 10-32 UNF - 4.76mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 NT048F-WG-S4 (50 Pcs) --- Wing Nuts - 10-32 UNF - 4.76mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $79.86 AUD Regular price Sale price $79.86 AUD Unit price per Out of stock! Backorder Now
Thread Size M5 (5x0.8mm)	Overall Length (A) 16.0 mm _{(0.63 in.)}	Base Diameter (B) 10.0 mm _{(0.394 in.)}	Body Height (D) 2.5 mm		Overall Height (C) 8.0 mm
Material: Natural Nylon 6.6 Category: Nuts - Wing - Nylon
Part Number: NT050M-WG-NY (10 Pcs) Wing Nuts - M5 - 5x0.8mm - 16x10 mm - Natural Nylon 6.6 1 pack (10 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per Per 10
Thread Size M5 (5x0.8mm)	Overall Length (A) 16.0 mm _{(0.63 in.)}	Base Diameter (B) 10.0 mm _{(0.394 in.)}	Body Height (D) 2.5 mm
Material: Natural Nylon 6.6 Overall Height (C): 8.0 mm Category: Nuts - Wing - Nylon
Part Number: NT050M-WG-NY (10 Pcs) Wing Nuts - M5 - 5x0.8mm - 16x10 mm - Natural Nylon 6.6 1 pack (10 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per Per 10 View the product page first if you are unsure.
NT050M-WG-NY (10 Pcs) --- Wing Nuts - M5 - 5x0.8mm - 16x10 mm - Natural Nylon 6.6 NT050M-WG-NY (10 Pcs) --- Wing Nuts - M5 - 5x0.8mm - 16x10 mm - Natural Nylon 6.6 Regular price $15.50 AUD Regular price Sale price $15.50 AUD Unit price per 1 Available Now
Thread Size M5 (5x0.8mm)			Body Height (D) 3.8 mm	Wing Width 22.5 mm	Overall Height (C) 10.5 mm
Material: Brass Pitch in mm / Threads Per Inch: 0.800 mm / 31.75 TPI Category: Nuts - Wing - Brass
Part Number: NT050M-WG-BR (100 Pcs) Wing Nuts - M5 - 5x0.8mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $254.23 AUD Regular price Sale price $254.23 AUD Unit price per Per 100
Thread Size M5 (5x0.8mm)			Body Height (D) 3.8 mm
Material: Brass Wing Width: 22.5 mm Overall Height (C): 10.5 mm Pitch in mm / Threads Per Inch: 0.800 mm / 31.75 TPI Category: Nuts - Wing - Brass
Part Number: NT050M-WG-BR (100 Pcs) Wing Nuts - M5 - 5x0.8mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $254.23 AUD Regular price Sale price $254.23 AUD Unit price per Per 100 View the product page first if you are unsure.
NT050M-WG-BR (100 Pcs) --- Wing Nuts - M5 - 5x0.8mm - - - Brass NT050M-WG-BR (100 Pcs) --- Wing Nuts - M5 - 5x0.8mm - - - Brass Regular price $254.23 AUD Regular price Sale price $254.23 AUD Unit price per Out of stock! Backorder Now
Thread Size M5 (5x0.8mm)			Body Height (D) 3.8 mm	Wing Width 22.5 mm	Overall Height (C) 10.5 mm
Material: Steel - Plated Pitch in mm / Threads Per Inch: 0.800 mm / 31.75 TPI Category: Nuts - Wing - Steel
Part Number: NT050M-WG-CZ (20 Pcs) Wing Nuts - M5 - 5x0.8mm - - - Steel - Plated 8 units (160 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.31 AUD Regular price ~~$12.19 AUD~~ Sale price $4.31 AUD Unit price per Per 20
Thread Size M5 (5x0.8mm)			Body Height (D) 3.8 mm
Material: Steel - Plated Wing Width: 22.5 mm Overall Height (C): 10.5 mm Pitch in mm / Threads Per Inch: 0.800 mm / 31.75 TPI Category: Nuts - Wing - Steel
Part Number: NT050M-WG-CZ (20 Pcs) Wing Nuts - M5 - 5x0.8mm - - - Steel - Plated 8 units (160 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.31 AUD Regular price ~~$12.19 AUD~~ Sale price $4.31 AUD Unit price per Per 20
NT050M-WG-CZ (20 Pcs) --- Wing Nuts - M5 - 5x0.8mm - - - Steel - Plated Sale NT050M-WG-CZ (20 Pcs) --- Wing Nuts - M5 - 5x0.8mm - - - Steel - Plated Regular price $4.31 AUD Regular price ~~$12.19 AUD~~ Sale price $4.31 AUD Unit price per 8 Available Now Sale
Thread Size M5 (5x0.8mm)			Body Height (D) 3.8 mm	Wing Width 22.5 mm	Overall Height (C) 10.5 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Pitch in mm / Threads Per Inch: 0.800 mm / 31.75 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT050M-WG-S4 (5 Pcs) Wing Nuts - M5 - 5x0.8mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 6 units (30 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 5
Thread Size M5 (5x0.8mm)			Body Height (D) 3.8 mm
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Wing Width: 22.5 mm Overall Height (C): 10.5 mm Pitch in mm / Threads Per Inch: 0.800 mm / 31.75 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT050M-WG-S4 (5 Pcs) Wing Nuts - M5 - 5x0.8mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 6 units (30 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Per 5 View the product page first if you are unsure.
NT050M-WG-S4 (5 Pcs) --- Wing Nuts - M5 - 5x0.8mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 NT050M-WG-S4 (5 Pcs) --- Wing Nuts - M5 - 5x0.8mm - - - Stainless Steel 304 Similar to A2, 18-8 HRB80 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per 6 Available Now
Thread Size M5 (5x0.8mm)			Body Height (D) 3.8 mm	Wing Width 22.5 mm	Overall Height (C) 10.5 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Pitch in mm / Threads Per Inch: 0.800 mm / 31.75 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT050M-WG-S6 (5 Pcs) Wing Nuts - M5 - 5x0.8mm - - - Stainless Steel 316 Similar to A4, 18-10 60 units (300 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Per 5
Thread Size M5 (5x0.8mm)			Body Height (D) 3.8 mm
Material: Stainless Steel 316 (Similar to A4, 18-10) Wing Width: 22.5 mm Overall Height (C): 10.5 mm Pitch in mm / Threads Per Inch: 0.800 mm / 31.75 TPI Category: Nuts - Wing - Stainless Steel
Part Number: NT050M-WG-S6 (5 Pcs) Wing Nuts - M5 - 5x0.8mm - - - Stainless Steel 316 Similar to A4, 18-10 60 units (300 pcs) Available Immediately \| Further orders can be expected around Sat, Jul 12, 2025 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per Per 5 View the product page first if you are unsure.
NT050M-WG-S6 (5 Pcs) --- Wing Nuts - M5 - 5x0.8mm - - - Stainless Steel 316 Similar to A4, 18-10 NT050M-WG-S6 (5 Pcs) --- Wing Nuts - M5 - 5x0.8mm - - - Stainless Steel 316 Similar to A4, 18-10 Regular price $4.05 AUD Regular price Sale price $4.05 AUD Unit price per 60 Available Now
Thread Size M6 (6x1mm)	Overall Length (A) 20.0 mm _{(0.787 in.)}	Base Diameter (B) 12.0 mm _{(0.472 in.)}	Body Height (D) 3.0 mm		Overall Height (C) 10.0 mm
Material: Natural Nylon 6.6 Category: Nuts - Wing - Nylon
Part Number: NT060M-WG-NY (5 Pcs) Wing Nuts - M6 - 6x1mm - 20x12 mm - Natural Nylon 6.6 19 units (95 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 5
Thread Size M6 (6x1mm)	Overall Length (A) 20.0 mm _{(0.787 in.)}	Base Diameter (B) 12.0 mm _{(0.472 in.)}	Body Height (D) 3.0 mm
Material: Natural Nylon 6.6 Overall Height (C): 10.0 mm Category: Nuts - Wing - Nylon
Part Number: NT060M-WG-NY (5 Pcs) Wing Nuts - M6 - 6x1mm - 20x12 mm - Natural Nylon 6.6 19 units (95 pcs) Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per Per 5 View the product page first if you are unsure.
NT060M-WG-NY (5 Pcs) --- Wing Nuts - M6 - 6x1mm - 20x12 mm - Natural Nylon 6.6 NT060M-WG-NY (5 Pcs) --- Wing Nuts - M6 - 6x1mm - 20x12 mm - Natural Nylon 6.6 Regular price $9.41 AUD Regular price Sale price $9.41 AUD Unit price per 19 Available Now
Thread Size M6 (6x1mm)			Body Height (D) 4.7 mm	Wing Width 27.2 mm	Overall Height (C) 12.7 mm
Material: Brass Pitch in mm / Threads Per Inch: 1.000 mm / 25.4 TPI Category: Nuts - Wing - Brass
Part Number: NT060M-WG-BR (100 Pcs) Wing Nuts - M6 - 6x1mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $320.86 AUD Regular price Sale price $320.86 AUD Unit price per Per 100
Thread Size M6 (6x1mm)			Body Height (D) 4.7 mm
Material: Brass Wing Width: 27.2 mm Overall Height (C): 12.7 mm Pitch in mm / Threads Per Inch: 1.000 mm / 25.4 TPI Category: Nuts - Wing - Brass

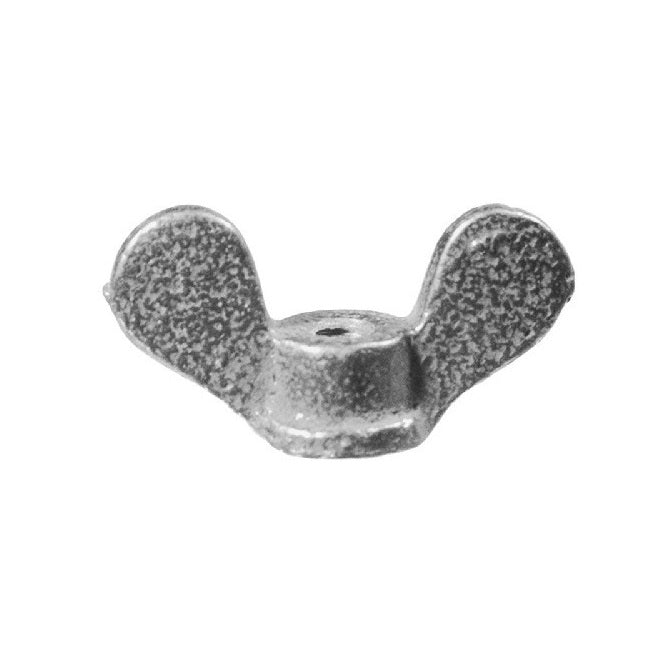

Part Number: NT060M-WG-BR (100 Pcs) Wing Nuts - M6 - 6x1mm - - - Brass Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jul 11, 2025 Regular price $320.86 AUD Regular price Sale price $320.86 AUD Unit price per Per 100 View the product page first if you are unsure.
NT060M-WG-BR (100 Pcs) --- Wing Nuts - M6 - 6x1mm - - - Brass NT060M-WG-BR (100 Pcs) --- Wing Nuts - M6 - 6x1mm - - - Brass Regular price $320.86 AUD Regular price Sale price $320.86 AUD Unit price per Out of stock! Backorder Now
