Mounts - Square Base Bobbin

1 Item Available
  • Rubber hardness 60 Duro Standard unless otherwise noted. Vibration dampening
  • Fastener may be steel, brass or zinc plated.
  • Natural Rubber isolator.
Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
A more concise listing may be found on the Smallparts store at Mounts - Square Base Bobbin. Smallparts promote the most popular MBA products.
Body Square Body Length (H) Thread Size Shore Hardness Thread Length (L1) Compression Load Indicative
Body Square
12.7
mm

(0.5 in.)
Body Length (H)
14.3
mm

(0.563 in.)
Thread Size
8-32 UNC (32 TPI)
Shore Hardness
60
Thread Length (L1)
14.3
mm
Compression Load
3.1 (7)
Kg (lbs)

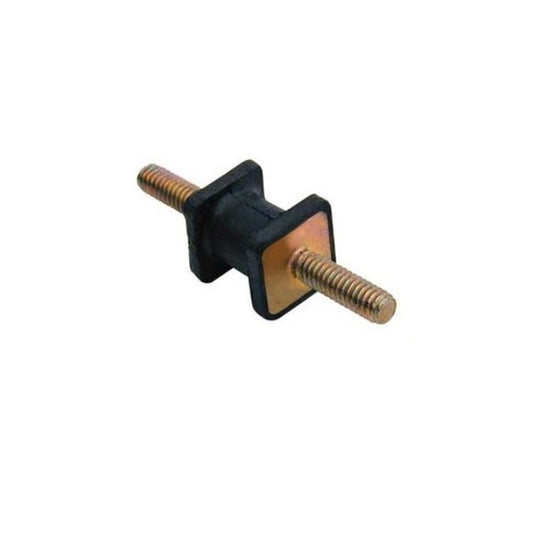

Square Base Bobbin Mounts - 12.7x14.3 mm - 8-32 UNC -32 TPI- - Natural Rubber
Material: Natural Rubber    Max Shear Load: 1.26 (3) Kg (lbs)    Configuration: Male to Male
Part Number: CMM013-14-042C-R60SQ Square Base Bobbin Mounts - 12.7x14.3 mm - 8-32 UNC - 32 TPI - - Natural Rubber
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$4.00 AUD
$7.60 AUD $4.00 AUD
Each
Body Square Body Length (H) Thread Size Shore Hardness Indicative
Body Square
12.7
mm

(0.5 in.)
Body Length (H)
14.3
mm

(0.563 in.)
Thread Size
8-32 UNC (32 TPI)
Shore Hardness
60

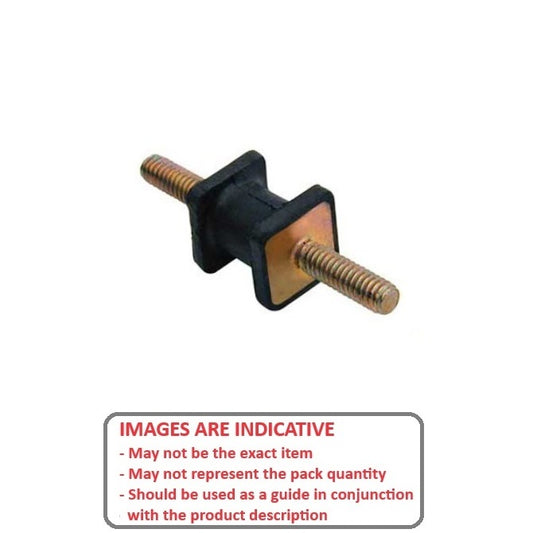

Square Base Bobbin Mounts - 12.7x14.3 mm - 8-32 UNC -32 TPI- - Natural Rubber
Material: Natural Rubber    Thread Length (L1): 14.3 mm    Compression Load: 3.1 (7) Kg (lbs)    Max Shear Load: 1.26 (3) Kg (lbs)    Configuration: Male to Male
Part Number: CMM013-14-042C-R60SQ Square Base Bobbin Mounts - 12.7x14.3 mm - 8-32 UNC - 32 TPI - - Natural Rubber
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$4.00 AUD
$7.60 AUD $4.00 AUD
Each
