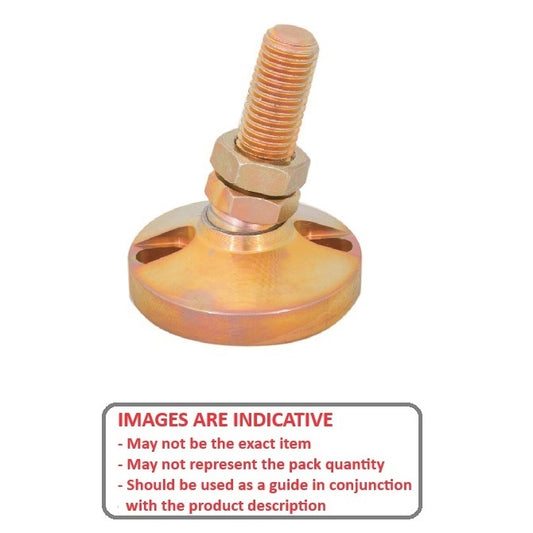

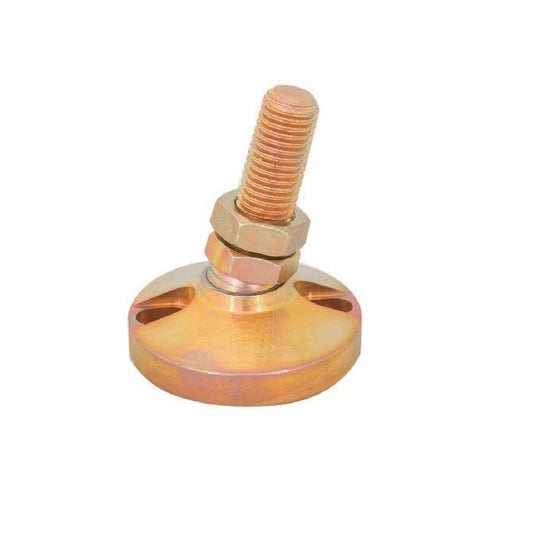

Mounts - Levelling Studded - Swivel - With Lag Holes

2 Products in this selection
  • Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches. Lag holes alow base to be secured.
  • Hardened ball prevents galling and forms it's own seat.
  • Large diameter pad design assures solid support.
  • Zinc plated with gold chromate finish.
Additional resources:
A more concise listing may be found on the Smallparts store at Mounts - Levelling Studded - Swivel - With Lag Holes. Smallparts promote the most popular MBA products.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm

(3 in.)
Foot Height (C)
38.1
mm

(1.5 in.)
Thread Length (F)
101.6
mm
Base Height (E)
12.70
mm
Overall Height
139.7
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 3270 Kg    Finish: Gold Chromate    Cap Screw to Suit (I): 3/8-16 UNC (9.525mm)    G: 46.736    Hex Flats (B): 26.975 mm
Part Number: MSM-191C-102-C-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$171.14 AUD
$171.14 AUD
Each
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm

(3 in.)
Foot Height (C)
38.1
mm

(1.5 in.)
Thread Length (F)
101.6
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Overall Height: 139.7 mm    Load Rating: 3270 Kg    Finish: Gold Chromate    Cap Screw to Suit (I): 3/8-16 UNC (9.525mm)    G: 46.736    Hex Flats (B): 26.975 mm
Part Number: MSM-191C-102-C-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$171.14 AUD
$171.14 AUD
Each
View the product page first if you are unsure.
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm

(3 in.)
Foot Height (C)
38.1
mm

(1.5 in.)
Thread Length (F)
50.8
mm
Base Height (E)
12.70
mm
Overall Height
88.9
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 3270 Kg    Finish: Gold Chromate    Cap Screw to Suit (I): 3/8-16 UNC (9.525mm)    G: 46.736    Hex Flats (B): 26.975 mm
Part Number: MSM-191C-051-C-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$151.68 AUD
$151.68 AUD
Each
Thread Size (A)
3/4-10 UNC (19.05mm)
Base Diameter (D)
76.2
mm

(3 in.)
Foot Height (C)
38.1
mm

(1.5 in.)
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Overall Height: 88.9 mm    Load Rating: 3270 Kg    Finish: Gold Chromate    Cap Screw to Suit (I): 3/8-16 UNC (9.525mm)    G: 46.736    Hex Flats (B): 26.975 mm
Part Number: MSM-191C-051-C-2LH Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Jun 03, 2025
$151.68 AUD
$151.68 AUD
Each
View the product page first if you are unsure.
